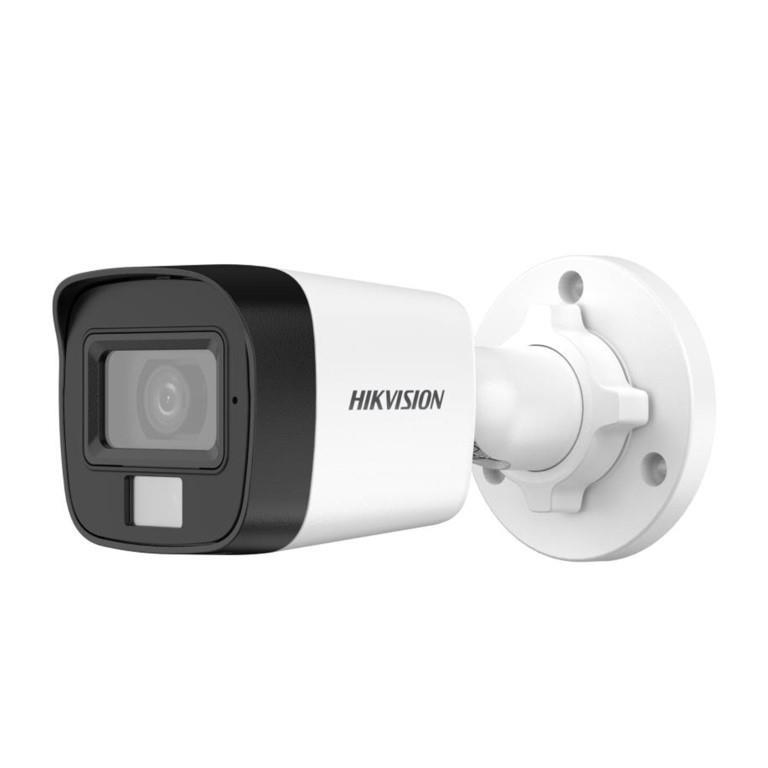

Hikvision 2MP 2.8mm Smart Hybrid Light Fixed Mini Bullet Camera DS-2CE16D0T-EXLPF(2.8mm)

Hikvision 2MP 2.8mm Smart Hybrid Light Fixed Mini Bullet Camera DS-2CE16D0T-EXLPF(2.8mm)

Features

• High quality imaging with 2 MP
• Max. Resolution - 1920 × 1080
• 2.8 mm Fixed Lens
• Horizontal FOV: 97°
• Vertical FOV: 54°
• Diagonal FOV: 113°
• Smart-Hybrid light, optimize your security with flexible lighting options
• Up to 20 m IR distance for bright night imaging
• Up to 20 m white light distance for bright night imaging
• One port for 4 switchable signals (TVI/AHD/CVI/CVBS)
• Water and dust resistant (IP67)
• 12 VDC ± 25%, Max. 3.2 W (Purchase PSU separately)

Technical Specifications:

Camera
Image Sensor: 2 MP CMOS
Max. Resolution: 1920 (H) × 1080 (V)
Min. Illumination: 0.02 Lux @ (F2.2, AGC ON), 0 Lux with IR
Shutter Time: PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
Day & Night: ICR
Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°
Signal System: PAL/NTSC

Lens
Lens Type: 2.8 mm, 3.6 mm fixed focal lens
Focal Length & FOV:

• 2.8 mm: Horizontal FOV 97°, Vertical FOV 54°, Diagonal FOV 113°
• 3.6 mm: Horizontal FOV 77°, Vertical FOV 43°, Diagonal FOV 90°

Lens Mount: M12

Illuminator
Supplement Light Type: Smart, IR, White Light
Supplement Light Range:

• IR: Up to 20 m
• White Light: Up to 20 m

Image Parameters Switch: STD/HIGH-SAT/HIGHLIGHT
Image Settings: Brightness, Sharpness, Smart IR
Frame Rate:

• TVI: 1080p @ 30 fps, 1080p @ 25 fps
• AHD: 1080p @ 30 fps, 1080p @ 25 fps
• CVI: 1080p @ 30 fps, 1080p @ 25 fps
• CVBS: PAL/NTSC

Day/Night Mode: Auto/Color
Wide Dynamic Range (WDR): Digital WDR
Image Enhancement: DWDR/BLC/HLC/Global
White Balance: Auto/Manual
AGC: Yes

Interface
Video Output: Switchable TVI/AHD/CVI/CVBS

General
Material: Plastic
Dimension: Ø70 mm × 138.8 mm (Ø2.76" × 5.46")
Weight: Max. 150 g (0.33 lb.)
Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F), Humidity ≤ 90% (non-condensing)
Communication: HIKVISION-C
Language: English
Power Supply: 12 VDC ± 25%, Max. 3.2 W
You are recommended to use one power adapter per camera.

Approval
Protection: IP67
