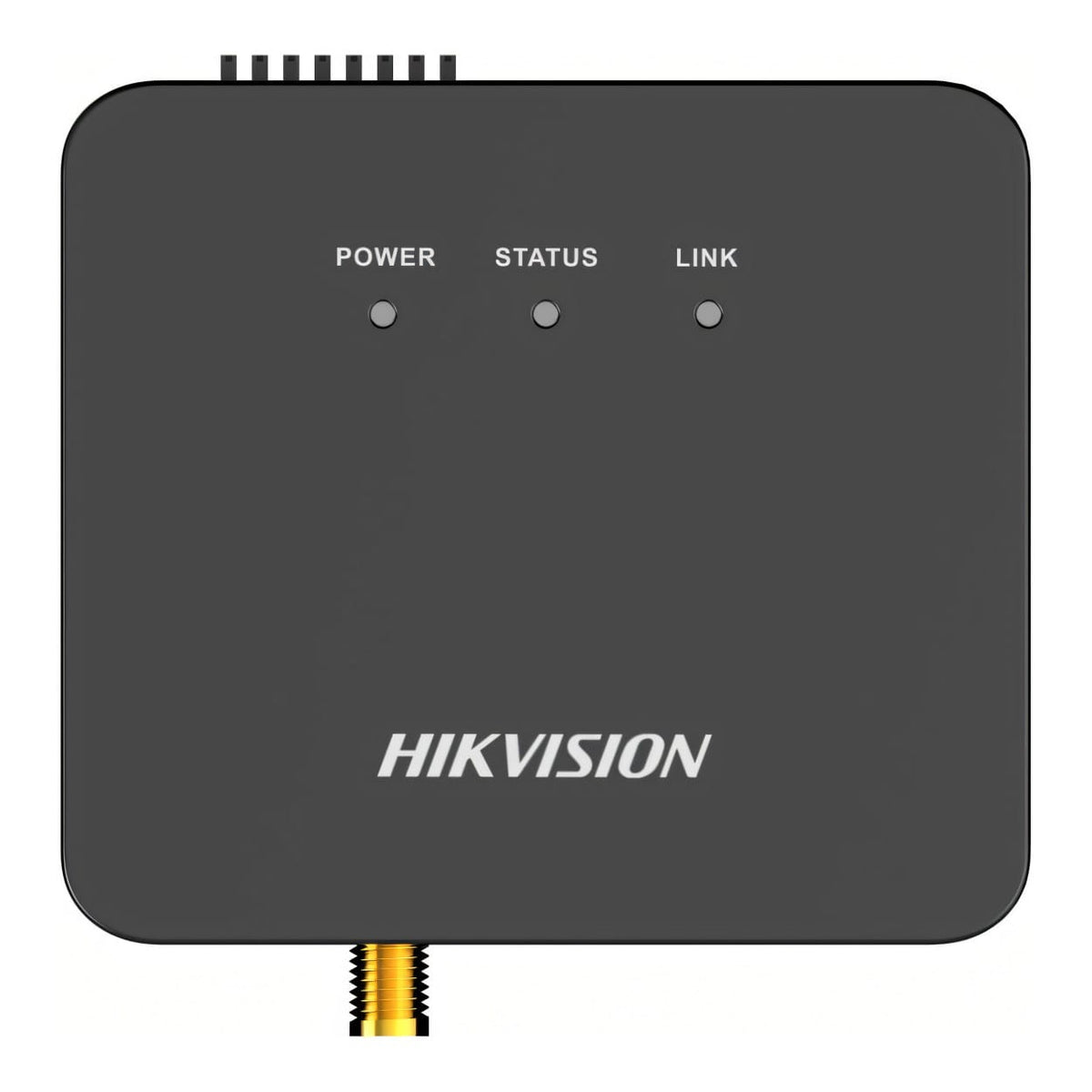

Hikvision 2MP 2.8mm Separated Network Camera DS-2CD6425G1-20(2.8MM)2M

Hikvision 2MP 2.8mm Separated Network Camera DS-2CD6425G1-20(2.8MM)2M

The Hikvision DS-2CD6425G1-20(2.8MM)2M is a 2MP DeepinView separated network camera designed for discreet and specialised video surveillance installations. Its separated architecture places the compact 2.8mm camera head away from the main processing unit using a 2m cable, allowing the lens to be positioned unobtrusively where a conventional network camera may be too large. A 1/2.8-inch Progressive Scan CMOS sensor provides Full HD 1920 × 1080 imaging, while H.265/H.264 compression, multi-stream video, audio support and extensive network integration features make it suitable for professional IP surveillance environments.

Key Features

• 2MP separated IP surveillance camera.
• 1/2.8-inch Progressive Scan CMOS image sensor.
• Maximum 1920 × 1080 Full HD resolution.
• Compact separated camera-head architecture.
• 2.8mm fixed lens.
• Wide 93.9° horizontal field of view.
• F2.5 fixed aperture.
• 2m lens cable configuration.
• Up to 25fps at 1080p in 50Hz mode or 30fps in 60Hz mode.
• H.265 and H.264 video compression.
• Three-stream video capability.
• Mono audio support with multiple audio codecs.
• Environmental noise filtering.
• NAS network storage support.
• ONVIF, ISAPI, SDK and ISUP 5.0 integration support.
• Designed for discreet and specialised professional surveillance installations.

2MP Full HD Imaging

The DS-2CD6425G1-20 uses a 1/2.8-inch Progressive Scan CMOS sensor and captures video at resolutions up to 1920 × 1080. The main stream supports up to 25fps at Full HD resolution in 50Hz environments and up to 30fps in 60Hz environments.

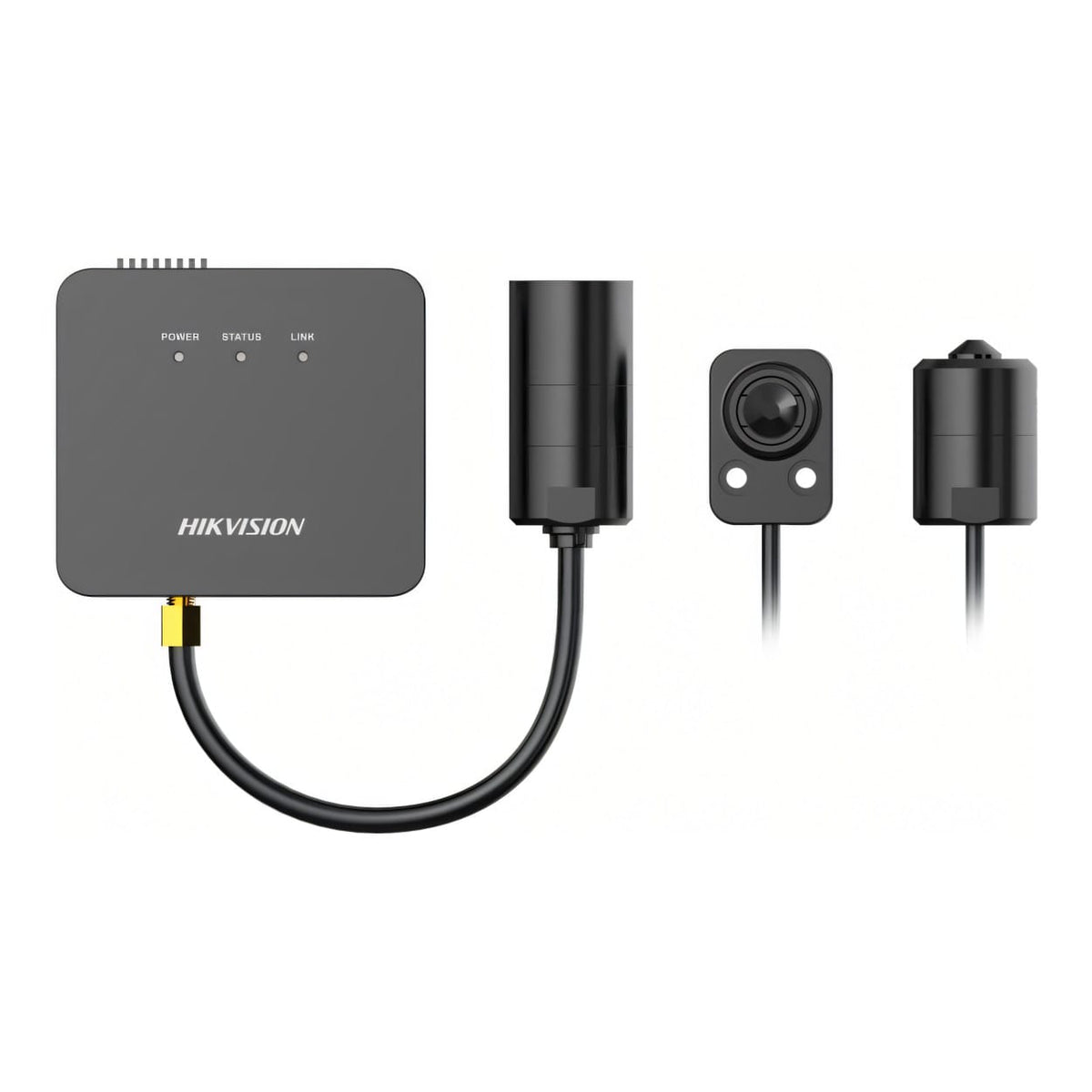

Separated Camera Architecture

Unlike a conventional network camera with the lens, image sensor and processing electronics housed together, the DS-2CD6425G1-20 uses a separated camera-head design. The compact imaging module can therefore be positioned separately from the main camera body, making the system particularly useful for discreet installations and locations with limited mounting space.

2.8mm Wide-Angle Lens

This variant features the 2.8mm fixed lens option. Hikvision specifies a horizontal field of view of 93.9°, vertical field of view of 51.7° and diagonal field of view of 109.3°. The lens uses a fixed F2.5 aperture, providing broad scene coverage for suitable indoor surveillance applications.

2m Lens Cable Configuration

The DS-2CD6425G1-20 family supports separated camera-head cabling, with Hikvision publishing 2m and 8m cable configurations. This DS-2CD6425G1-20(2.8MM)2M configuration uses the 2m cable option, allowing the compact camera module to be installed separately from the main processing body.

Efficient Multi-Stream Video

The main video stream supports H.265 and H.264 compression, while the sub-stream additionally supports MJPEG. A third stream is also available, allowing the camera to provide different video streams for recording, live monitoring and other network surveillance requirements.

Audio Support

The camera supports mono audio with G.711, G.722.1, G.726, MP2L2, PCM and AAC compression options. Environmental noise filtering is also supported to help improve captured audio in suitable installations.

Professional Network Integration

The DS-2CD6425G1 series supports a broad selection of standard IP networking protocols together with ONVIF, ISAPI, SDK and ISUP 5.0 interfaces. NAS storage using NFS or SMB/CIFS is supported, while Hikvision iVMS-4200 and Hik-Connect can be used as compatible client platforms.

Technical Specifications

What’s in the Box:

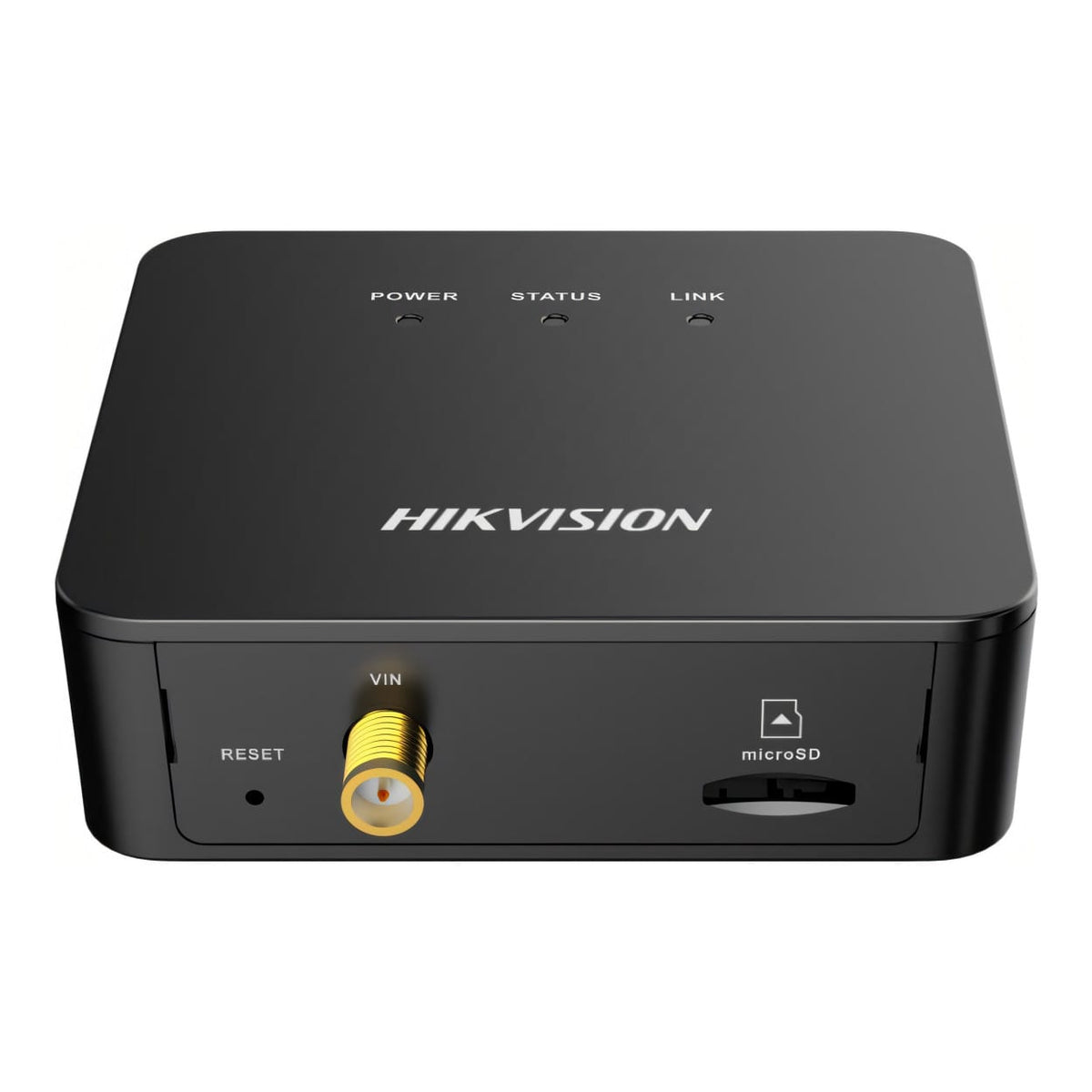

• 1 × Hikvision DS-2CD6425G1-20 Main Camera Unit

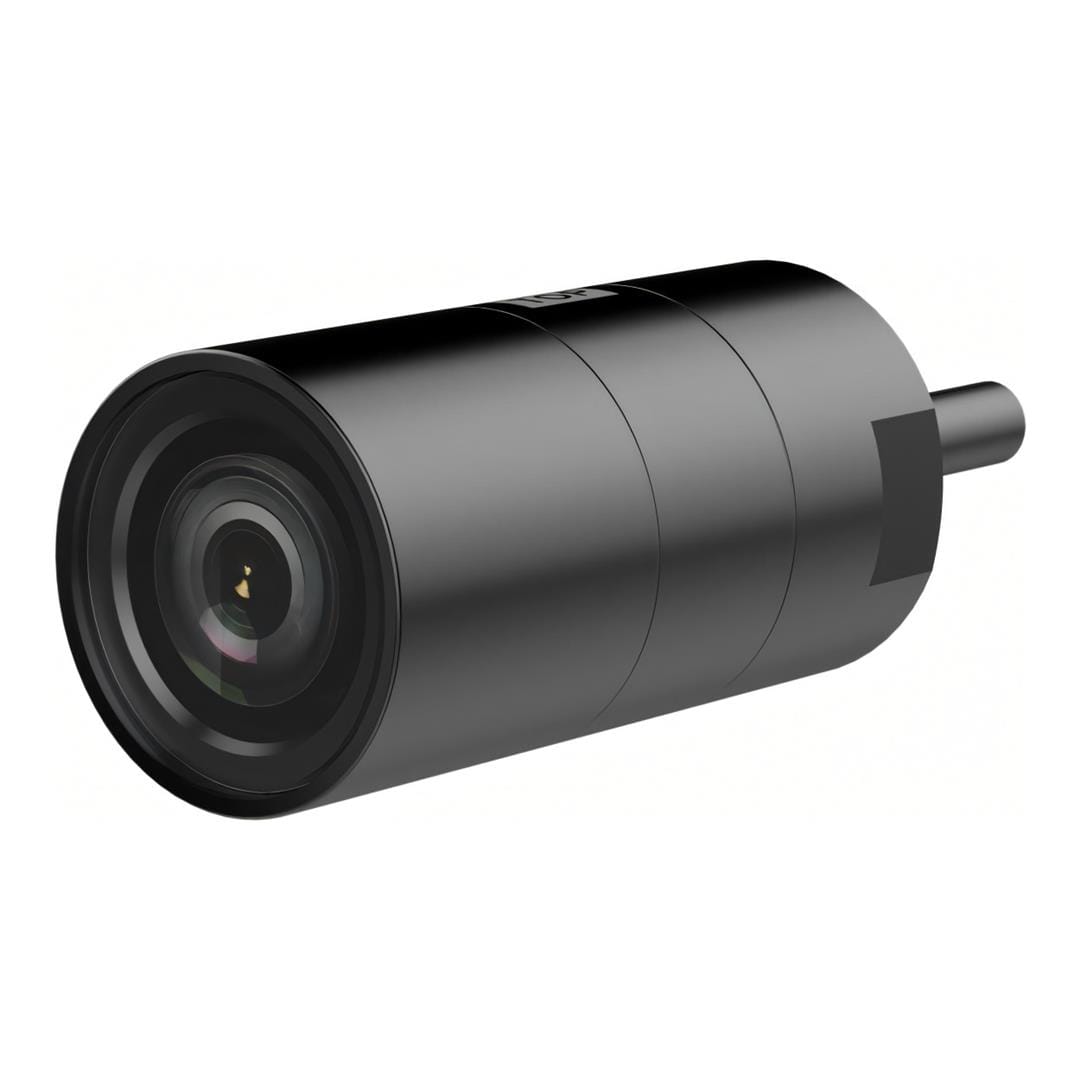

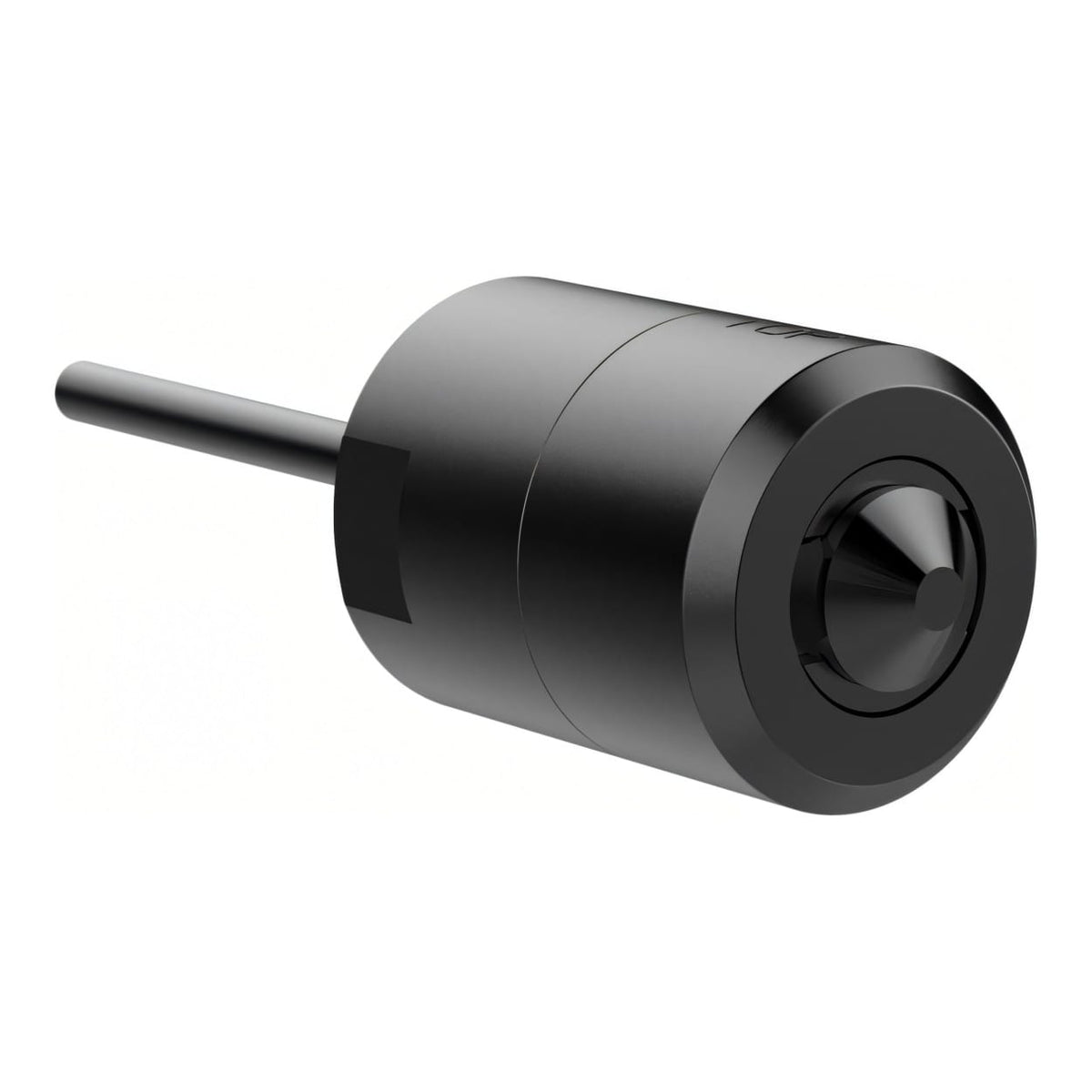

• 1 × 2.8mm Separated Camera Module
• 1 × 2m Camera/Lens Connection Cable

The Hikvision DS-2CD6425G1-20(2.8MM)2M combines Full HD 2MP imaging with a compact separated camera-head architecture for specialised surveillance applications. Its 2.8mm wide-angle lens, 2m separated-camera configuration, H.265/H.264 compression, multi-stream video and professional network integration capabilities make it particularly useful where discreet camera placement and flexible installation are required.
