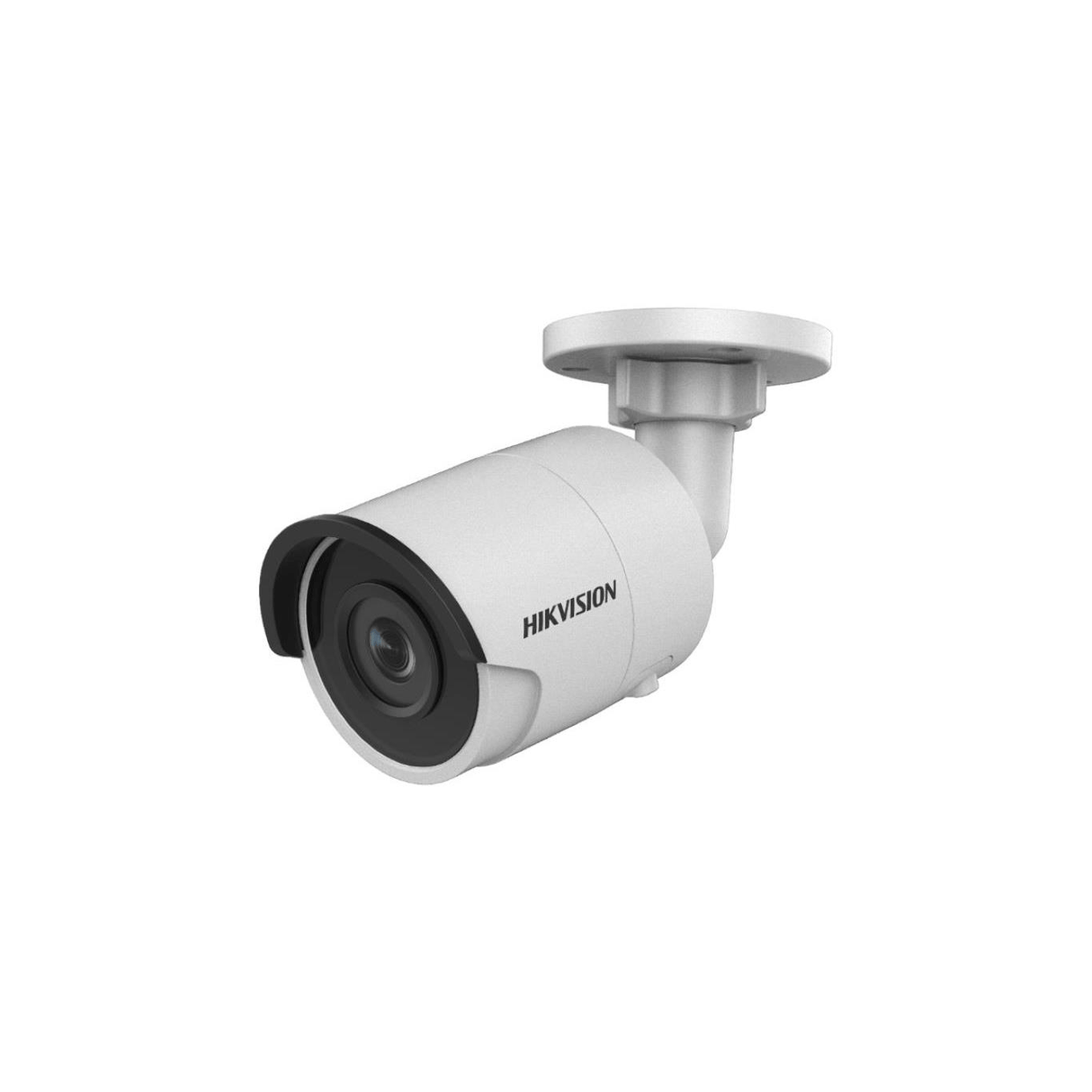

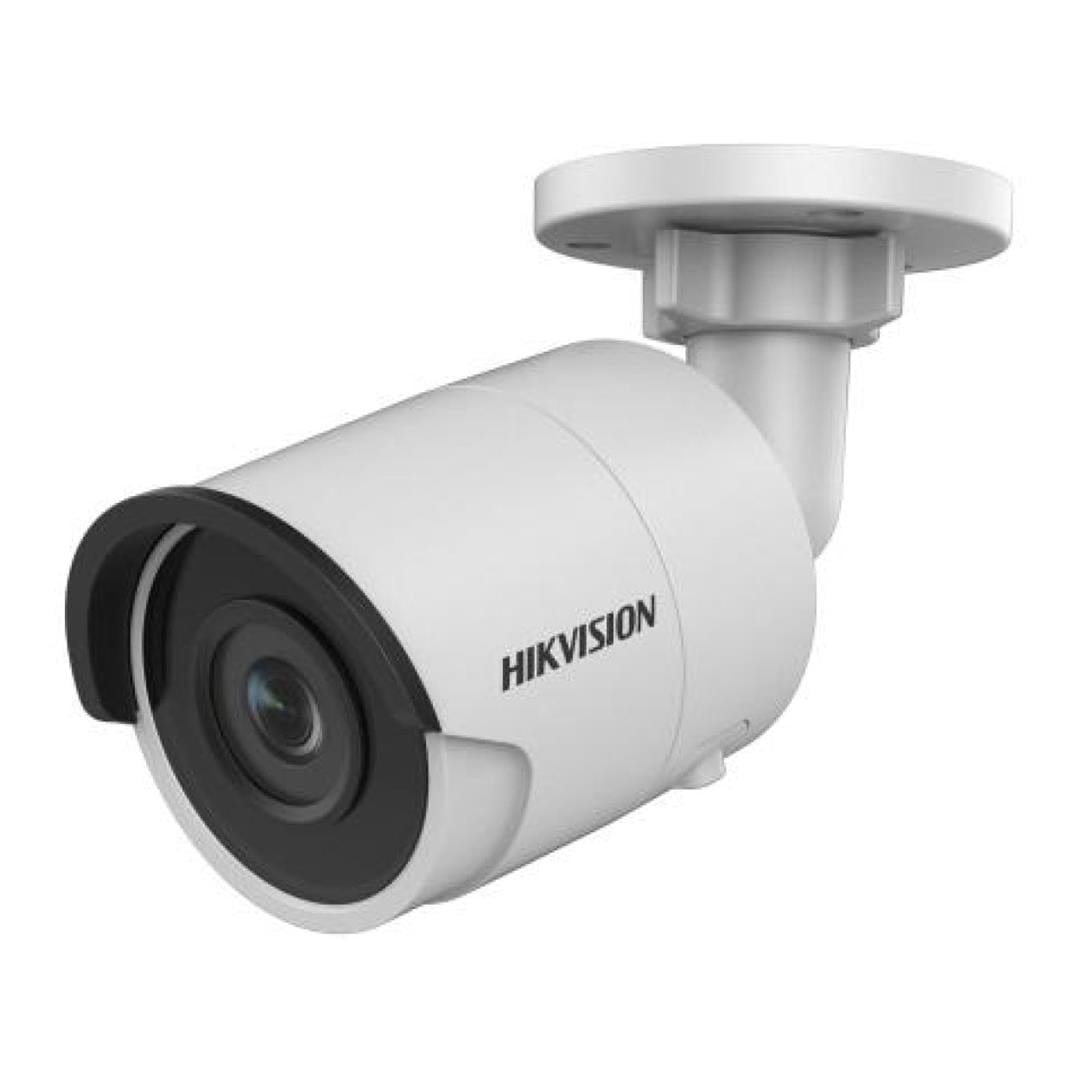

Hikvision 2MP 2.8mm Fixed Mini Bullet Network Camera Powered by DarkFighter DS-2CD2025FWD-I2.8

Hikvision 2MP 2.8mm Fixed Mini Bullet Network Camera Powered by DarkFighter

Features:

• High quality imaging with 2 MP resolution
• Excellent low-light performance via powered-by-DarkFighter technology
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to 120 dB true WDR technology
• Water and dust resistant (IP67)
• Robust structure design with full metal material.

Technical Specifications:

Camera
Image Sensor: 1/2.8" Progressive Scan CMOS
Min. Illumination:

• Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR
• Color: 0.009 Lux @ (F1.6, AGC ON), 0 Lux with IR

Shutter Speed: 1/3 s to 1/100,000 s
Slow Shutter: Yes
Wide Dynamic Range: 120 dB
Day & Night: IR Cut Filter
Angle Adjustment: Pan: 0°–360°, Tilt: 0°–90°, Rotate: 0°–360°

Lens
Focus: Fixed
Lens Type: 2.8 / 4 / 6 / 8 / 12 mm
FOV:

• 2.8 mm: Horizontal 108°
• 4 mm: Horizontal 86.4°
• 6 mm: Horizontal 52°
• 8 mm: Horizontal 41°
• 12 mm: Horizontal 25°

Aperture: F1.6
Lens Mount: M12

Illuminator
IR Range: 30 m

Video
Max. Resolution: 1920 × 1080
Main Stream:

• 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720)
• 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)

Sub Stream:

• 50 Hz: 25 fps (640 × 480, 640 × 360, 320 × 240)
• 60 Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)

Third Stream:

• 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 288)
• 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 240)

Video Compression: Main stream: H.265/H.264; Sub-stream: H.265/H.264/MJPEG; Third stream: H.265/H.264
Video Bit Rate: 32 Kbps to 16 Mbps
H.264 Type: Main Profile / High Profile
H.265 Type: Main Profile
H.264+: Main stream supports
H.265+: Main stream supports
Region of Interest (ROI): 1 fixed region for main stream and sub-stream

Network
Simultaneous Live View: Up to 6 channels
API: ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, IPv4, Bonjour, SSL/TLS, WebSocket
User/Host: Up to 32 users, 3 levels: Administrator, Operator, User
Security: Password protection, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP filter, basic/digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
Network Storage: Micro SD/SDHC/SDXC (up to 128 GB), local storage, NAS (NFS, SMB/CIFS), ANR
Client: iVMS-4200, Hik-Connect, Hik-Central
Web Browser: IE 8+ (plug-in), Chrome 57+, Firefox 52+, Safari 11+, Local service: Chrome 41+, Firefox 30+

Alarm Trigger: Motion detection, video tampering, network disconnected, IP conflict, HDD full/error, PIR, illegal login

Day/Night Switch: Day / Night / Auto / Schedule
DNR: 3D DNR
Image Enhancement: BLC / 3D DNR / HLC
Image Settings: Rotate, saturation, brightness, contrast, sharpness, AGC, white balance adjustable via client software or web browser

Interface
On-board Storage: Micro SD/SDHC/SDXC slot, up to 128 GB
Hardware Reset: Yes
Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port

Event
Basic Event: Motion detection, video tampering, exception (network disconnected, IP conflict, illegal login, HDD full/error)
Smart Event: Line crossing, intrusion, unattended baggage, object removal, face detection, scene change
Face Detection: Yes
Exception Detection: Scene change detection

General
Linkage Method: Trigger recording: memory card, network storage, pre/post-record; Trigger captured pictures: FTP, HTTP, NAS, Email; Trigger notification: HTTP, ISAPI, alarm output, Email
Firmware Version: V5.5.80
Web Client Language: 32 languages (English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil))
General Function: Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
Startup & Operating Conditions: -30 °C to +60 °C, Humidity ≤ 95% (non-condensing)
Power Consumption & Current: 12 VDC ±25%, 5 W; PoE 802.3af, 36–57 V, Class 3, 6.5 W
Camera Dimension: Φ70 × 155.03 mm (Φ2.76″ × 6.1″); Package: 216 × 121 × 118 mm (8.5″ × 4.76″ × 4.65″)
Camera Weight: 410 g (0.9 lb.)
