Hikvision 2MP 2.8-12mm DeepinView ANPR Motorized Varifocal Bullet Camera iDS-2CD7A26G0/P-IZHSY(2.8-12mm)

Hikvision 2MP 2.8-12mm DeepinView ANPR Motorized Varifocal Bullet Camera iDS-2CD7A26G0/P-IZHSY(2.8-12mm)

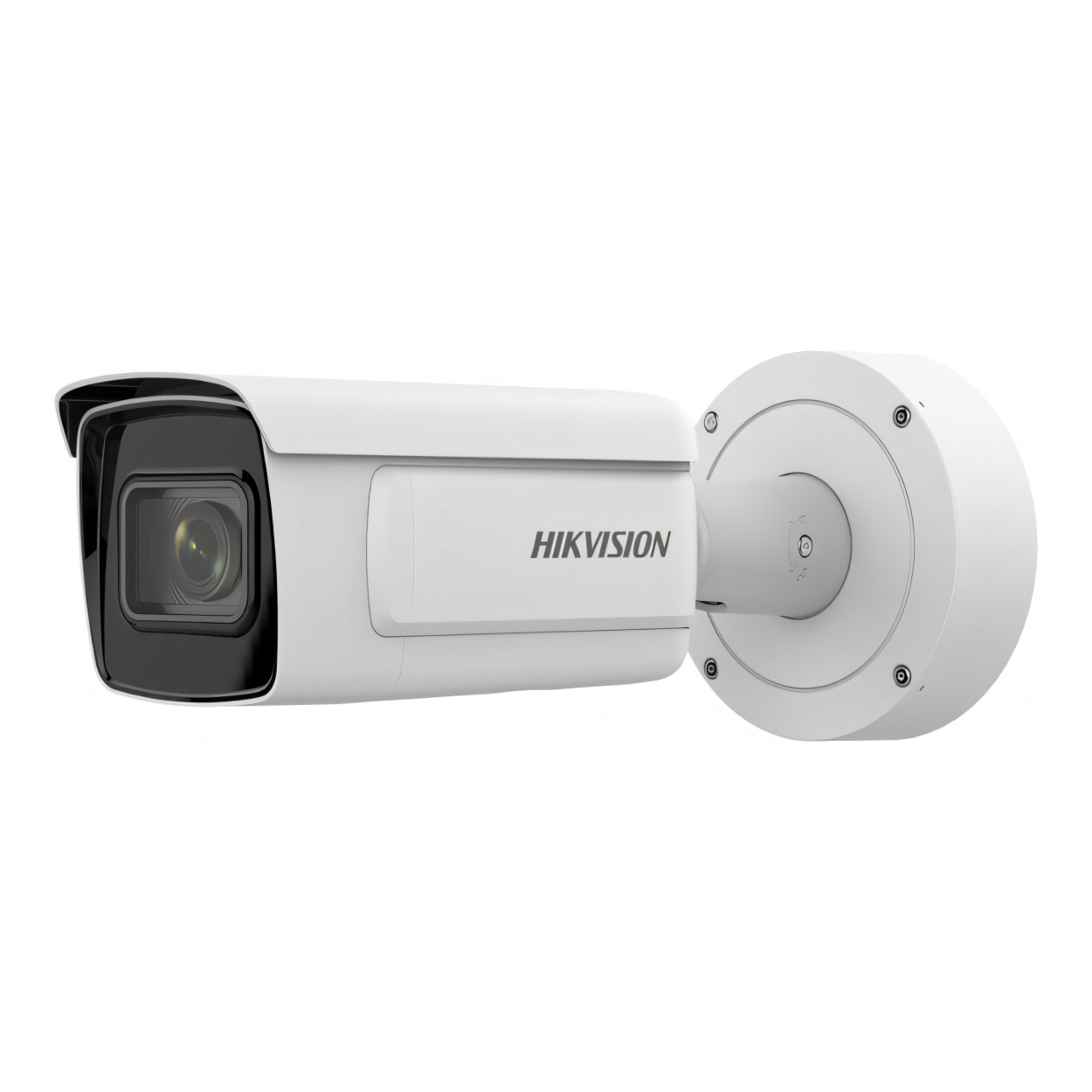

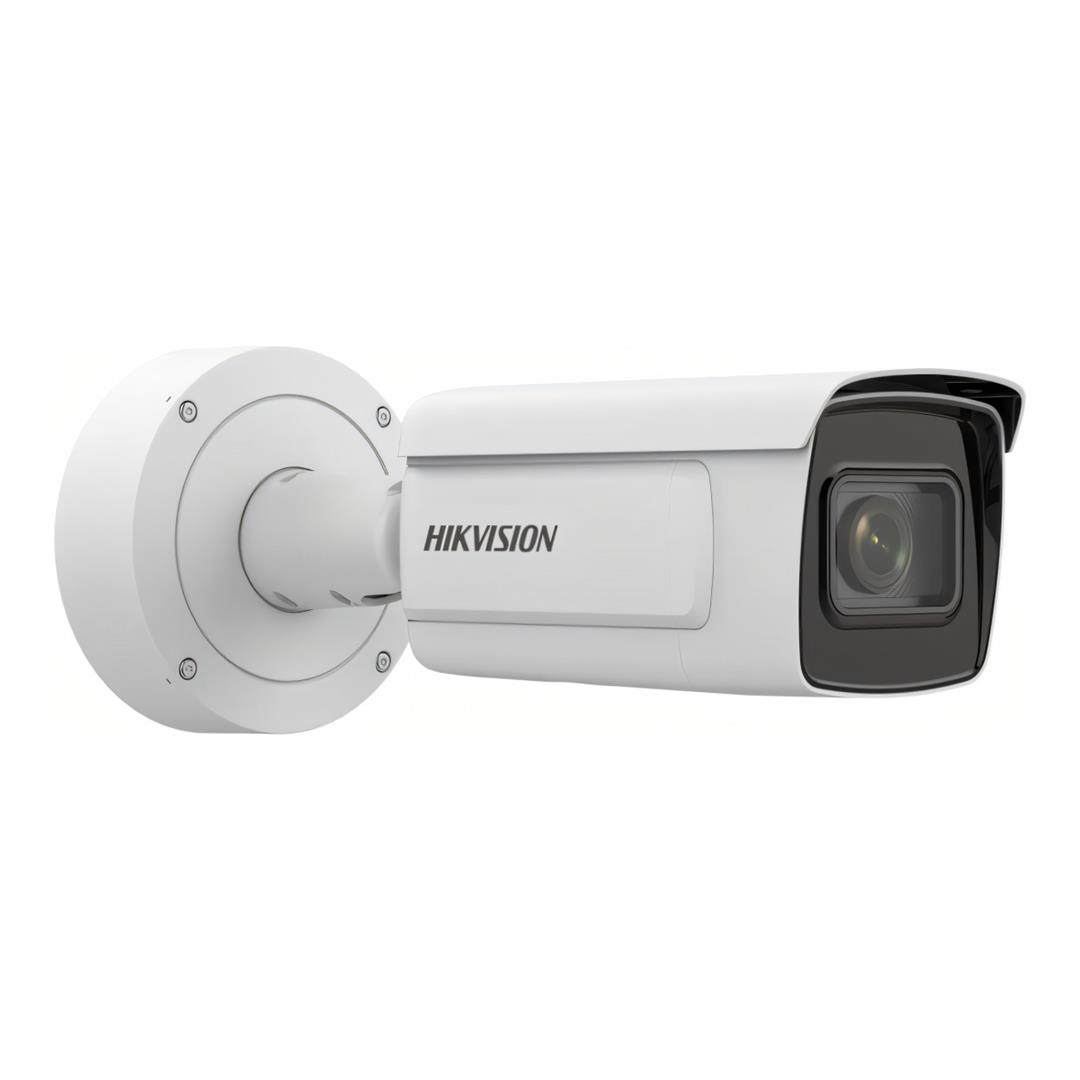

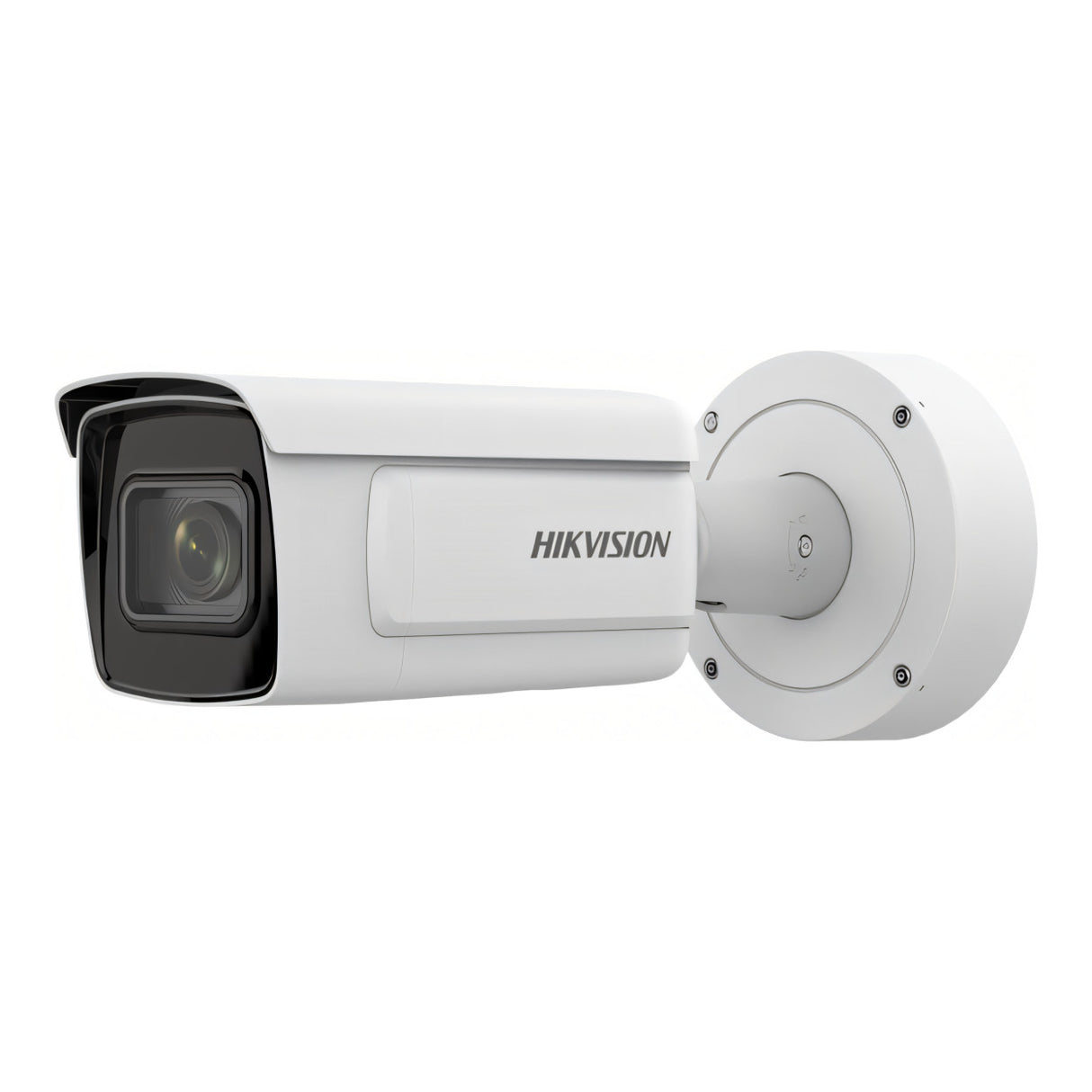

The Hikvision iDS-2CD7A26G0/P-IZHSY(2.8-12mm) is a 2MP DeepinView ANPR motorized varifocal bullet network camera designed for intelligent road, entrance and vehicle surveillance applications. Its 1/1.8-inch Progressive Scan CMOS sensor captures Full HD video at up to 1920 × 1080 resolution, while the 2.8–12mm motorized P-Iris lens provides flexible adjustment between wide-area and focused monitoring. Deep-learning vehicle intelligence and licence-plate recognition capabilities combine with excellent low-light performance, up to 50m infrared illumination, five video streams and rugged IP67, IK10 and NEMA 4X protection for demanding professional traffic-monitoring installations.

Key Features

• 2MP Full HD imaging: Captures detailed surveillance footage at up to 1920 × 1080 resolution.
• 2.8–12mm motorized varifocal lens: Provides remotely adjustable viewing coverage with a wide 114.5° to focused 41.8° horizontal field of view.
• DeepinView intelligence: Deep-learning technology provides advanced intelligent analysis for professional surveillance applications.
• ANPR functionality: Designed for intelligent vehicle monitoring and licence-plate recognition applications.
• Excellent low-light performance: Provides colour imaging at illumination levels down to 0.0005 lux at F1.2.
• Up to 50m infrared: Integrated 850nm IR illumination enables monitoring in complete darkness.
• Five video streams: Multiple simultaneous streams provide flexibility for live viewing, recording and other applications.
• Efficient H.265+ compression: Helps reduce bandwidth and storage requirements while retaining useful image quality.
• NEMA 4X protection: The Y-designated model provides moderate anti-corrosion protection for demanding environments.
• IP67 and IK10: Rugged construction provides resistance to water, dust and external impact.

2MP Full HD Imaging

The iDS-2CD7A26G0/P-IZHSY incorporates a 1/1.8-inch Progressive Scan CMOS sensor capable of capturing video at up to 1920 × 1080 resolution. Excellent sensor sensitivity provides colour imaging down to 0.0005 lux and black-and-white imaging down to 0.0001 lux at F1.2, allowing useful image detail to be retained under challenging lighting conditions.

2.8–12mm Motorized P-Iris Lens

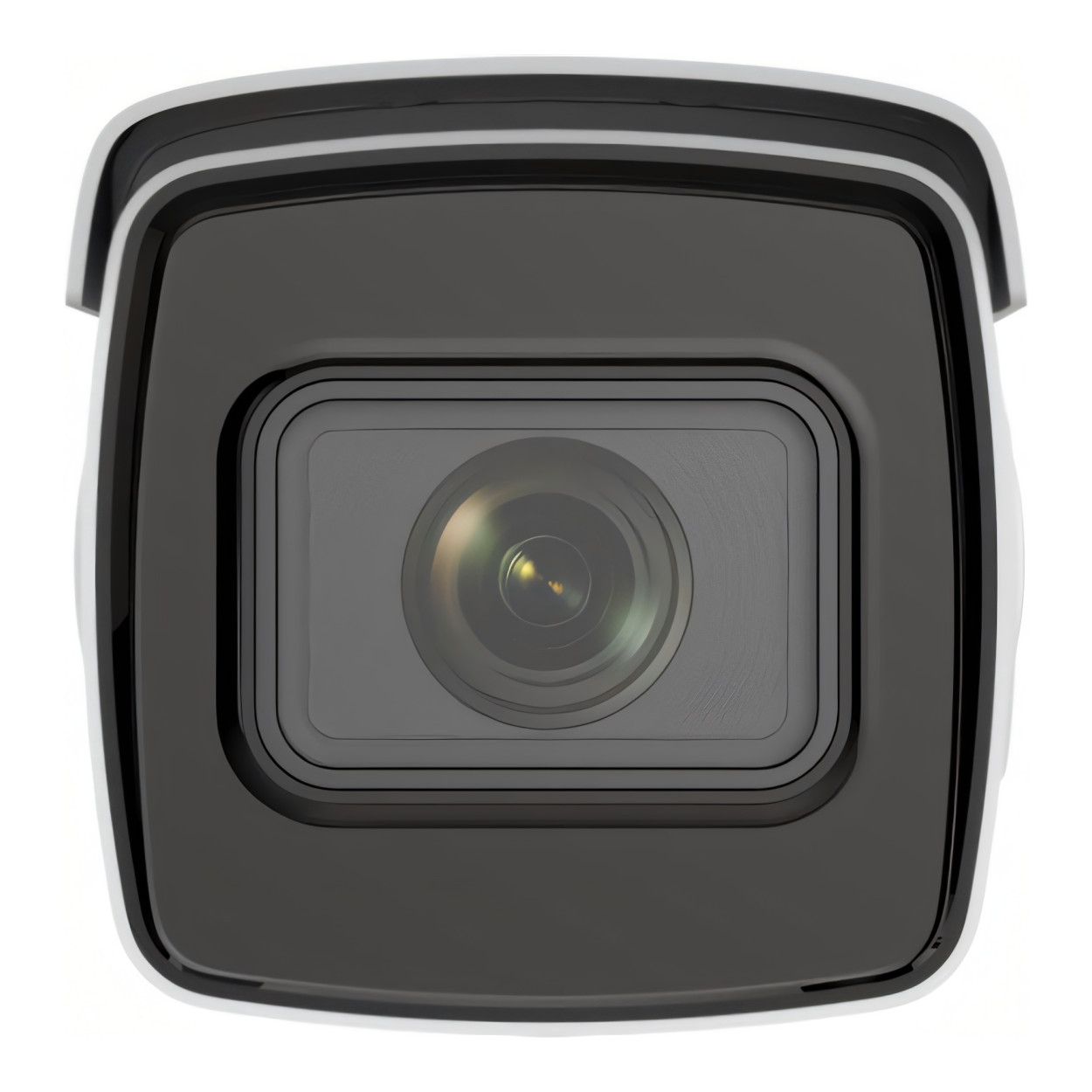

This specific configuration features a 2.8–12mm motorized varifocal lens with P-Iris control and an F1.2 to F2.5 aperture range. Its horizontal field of view adjusts from 114.5° at the wide end to 41.8° at telephoto, providing flexibility when configuring the camera for road lanes, vehicle entrances, gates and other monitoring points.

Intelligent Vehicle and ANPR Applications

The /P configuration is designed for intelligent traffic and vehicle-monitoring applications. Deep-learning functionality enables the camera to analyse vehicles and licence-plate information, making it suitable for entrances, exits, roadways, parking facilities and other locations requiring intelligent vehicle identification.

Excellent Low-Light Performance with 50m IR

The highly sensitive imaging system provides colour video at illumination levels down to 0.0005 lux and black-and-white imaging down to 0.0001 lux at F1.2 with AGC enabled. When ambient illumination is insufficient, integrated 850nm infrared lighting enables surveillance at 0 lux over distances of up to 50 metres.

Five-Stream Video Architecture

The camera supports up to five video streams for flexible integration into professional surveillance systems. The main stream provides Full HD video at up to 25fps in 50Hz environments or 30fps in 60Hz environments, while additional streams can be configured for live viewing, recording and other network applications.

Enhanced Environmental Protection

The Y-designated iDS-2CD7A26G0/P-IZHSY provides NEMA 4X moderate anti-corrosion protection. Combined with IP67 water and dust resistance and IK10 vandal resistance, this provides a robust housing for demanding outdoor installations.

Technical Specifications

What’s in the Box:

• 1 × Hikvision iDS-2CD7A26G0/P-IZHSY(2.8-12mm) 2MP DeepinView ANPR Motorized Varifocal Bullet Network Camera

Deploy intelligent vehicle surveillance with Full HD imaging, a flexible 2.8–12mm motorized P-Iris lens, DeepinView analytics, licence-plate recognition, excellent low-light sensitivity, up to 50m infrared illumination and rugged NEMA 4X, IP67 and IK10 protection using the Hikvision iDS-2CD7A26G0/P-IZHSY(2.8-12mm).
