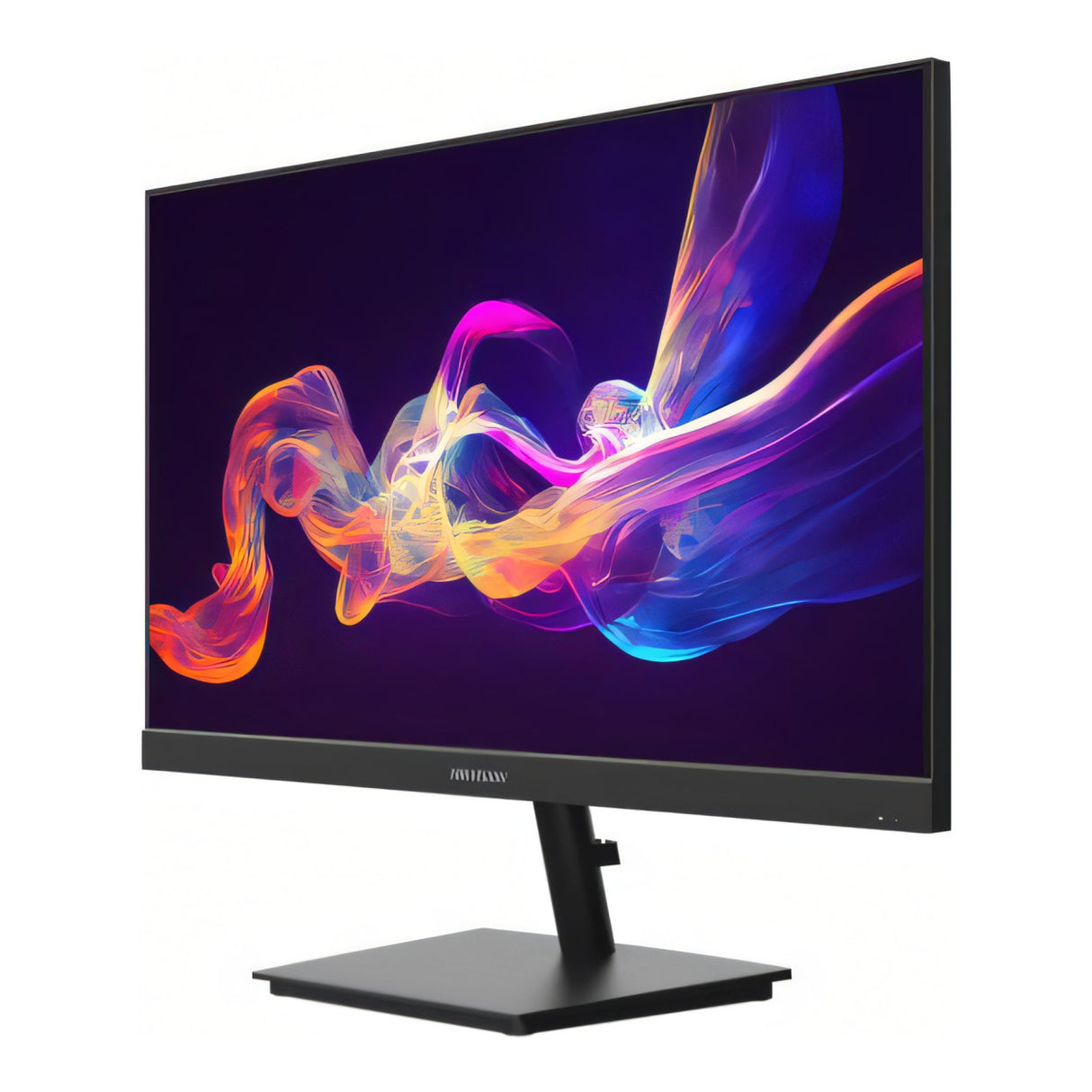

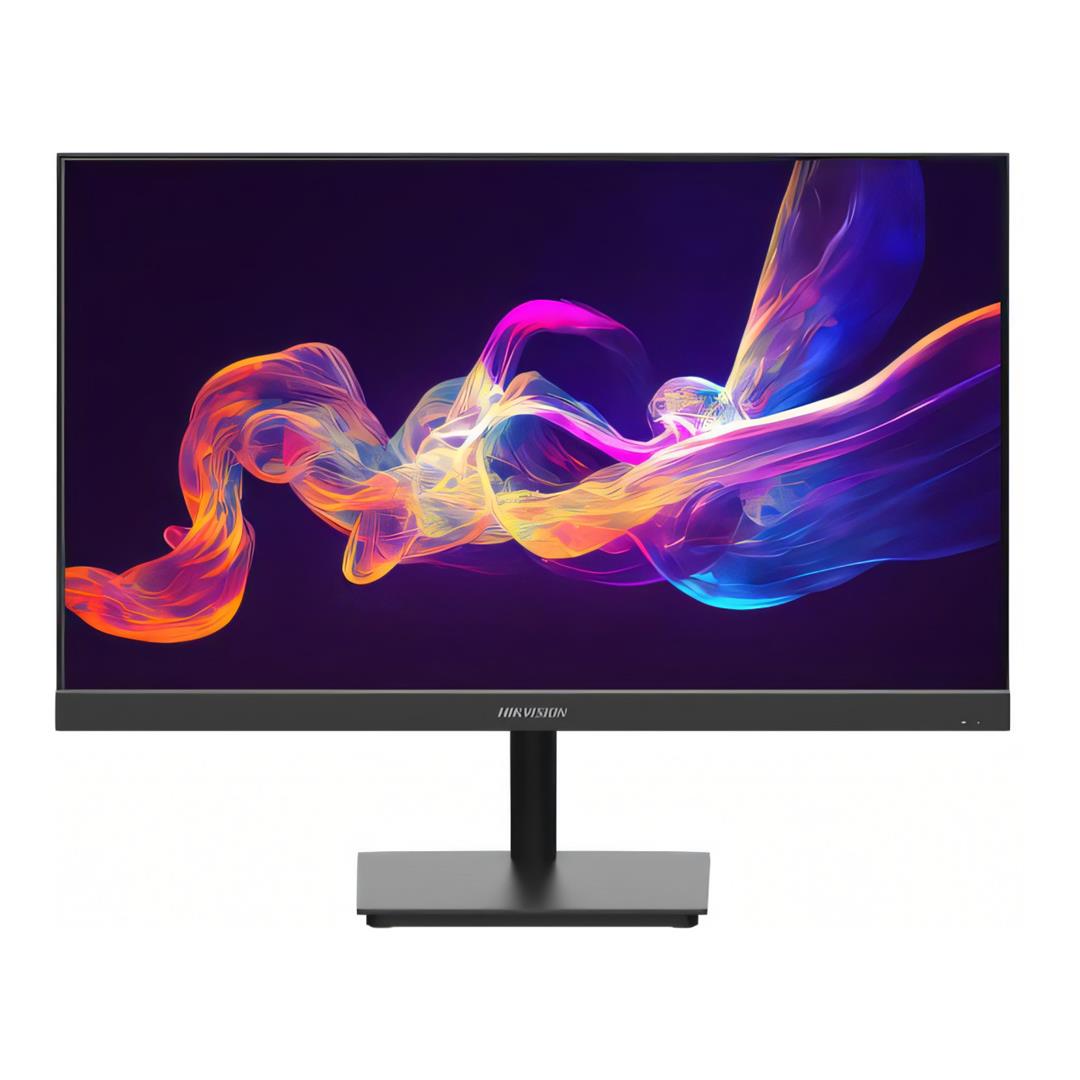

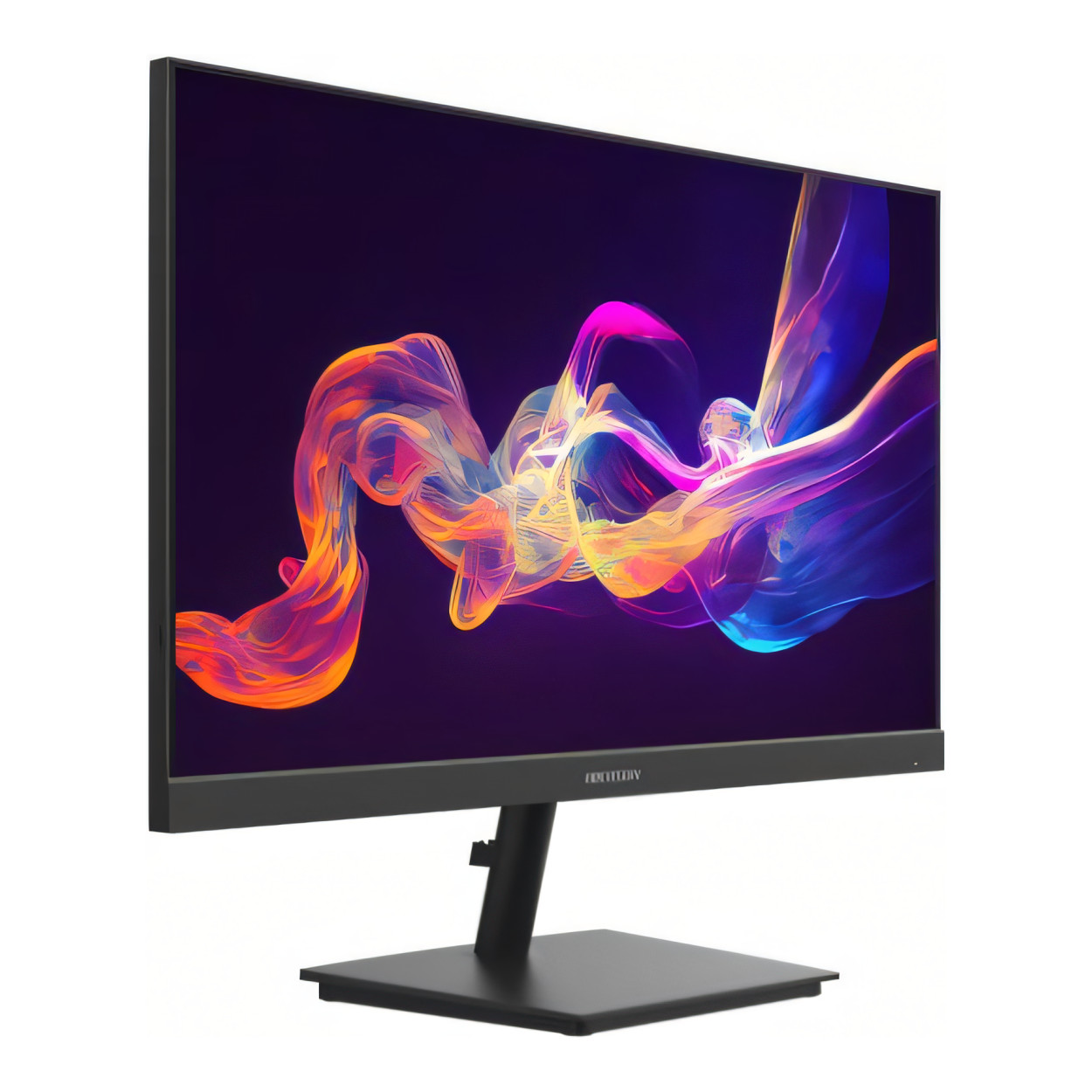

Hikvision 23.8-inch 1920 × 1080p FHD 16:9 100Hz 7ms E-LED VA Monitor DS-D5024F2-AV2(EU)

Hikvision 23.8-inch 1920 × 1080p FHD 16:9 100Hz 7ms E-LED VA Monitor DS-D5024F2-AV2(EU)

The Hikvision DS-D5024F2-AV2(EU) is a 23.8-inch Full HD VA monitor designed for video surveillance, office and general display applications. Its 1920 × 1080 panel combines a maximum 100Hz refresh rate with a 4000:1 contrast ratio, 250 cd/m² brightness and wide 178° viewing angles for clear and fluid viewing. HDMI and VGA inputs provide flexible connectivity with modern and legacy video sources, while 3D noise reduction, low-blue-light technology, a slim three-sided bezel and 75 × 75mm VESA mounting support comfortable and versatile installation.

Key Features

• 23.8-inch Full HD display: Provides a 1920 × 1080 native resolution for clear video, surveillance and everyday computing.
• Up to 100Hz refresh rate: Delivers smoother motion and more fluid video than conventional 60Hz-only displays.
• VA panel technology: Combines a high 4000:1 contrast ratio with wide 178° horizontal and vertical viewing angles.
• 8-bit colour: Supports 16.7 million colours and a 72% NTSC colour gamut.
• HDMI and VGA: Dual video interfaces provide compatibility with both digital and analogue video sources.
• Low-blue-light design: Helps improve viewing comfort during extended periods of use.
• 3D noise reduction: Helps improve the appearance and clarity of displayed video.
• Ultra-thin three-sided bezel: Features slim 2mm top and side borders for a clean, modern appearance.

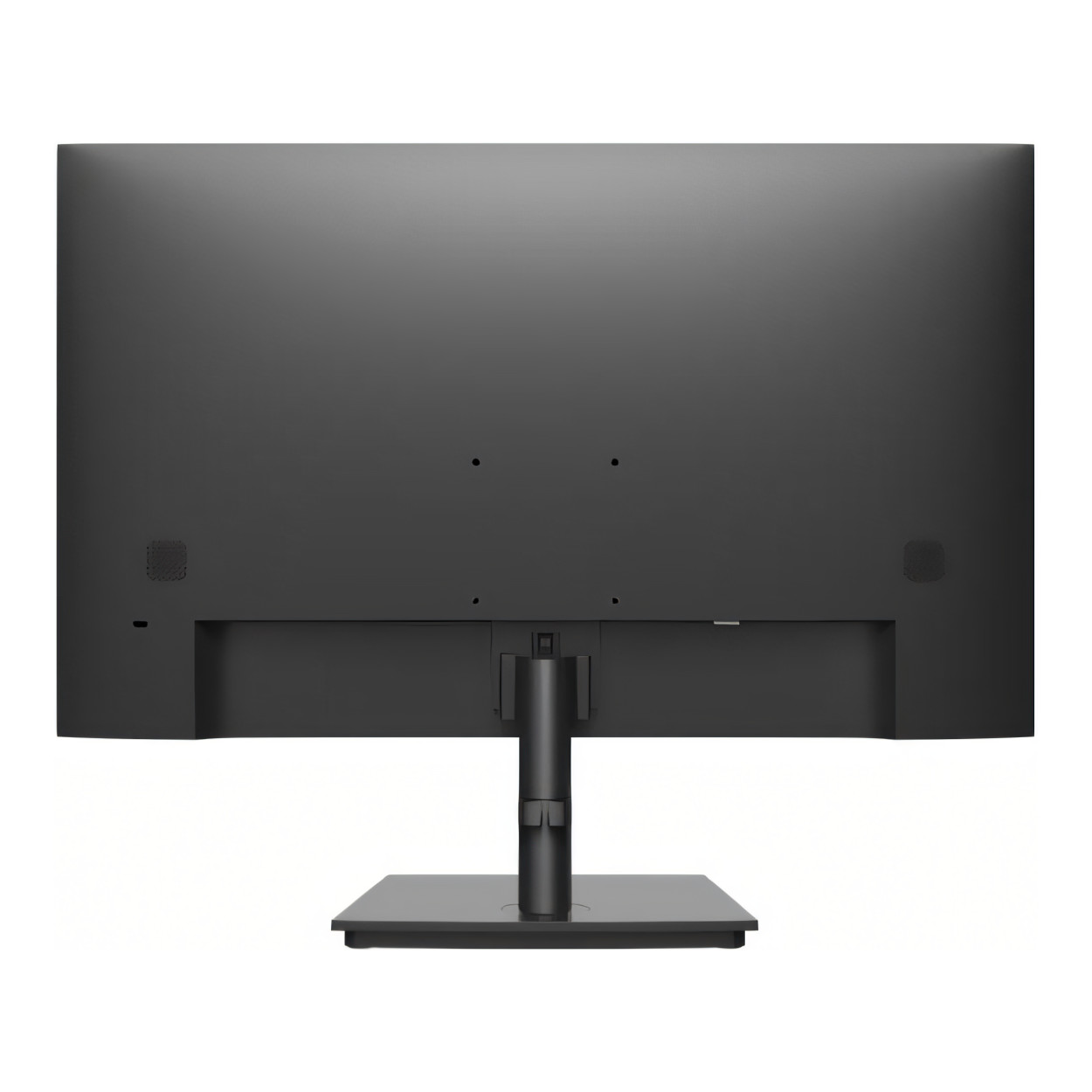

• VESA mounting: Supports a standard 75 × 75mm mounting pattern for compatible wall mounts and monitor arms.

23.8-Inch Full HD VA Display

The DS-D5024F2-AV2 features a 23.8-inch VA panel with a native Full HD resolution of 1920 × 1080. Its 4000:1 contrast ratio provides strong differentiation between dark and bright areas, while 250 cd/m² brightness and 8-bit colour reproduction support clear everyday viewing.

Up to 100Hz Refresh Rate

A maximum refresh rate of 100Hz provides smoother motion than a conventional 60Hz-only monitor. This can improve fluidity when viewing moving surveillance footage, navigating applications or displaying other fast-moving visual content.

Wide 178° Viewing Angles

VA panel technology provides 178° horizontal and 178° vertical viewing angles, helping maintain a consistent image when the screen is viewed from different positions. This is particularly useful in surveillance environments where multiple operators may need to view the monitor.

HDMI and VGA Connectivity

The monitor provides one HDMI 1.4 input and one VGA input, allowing connection to a wide range of DVRs, NVRs, computers and other compatible video sources. A dedicated audio output is also provided for connecting compatible external audio equipment.

Low-Blue-Light and 3D Noise Reduction

Hikvision incorporates a low-blue-light design to support greater viewing comfort during extended use. Integrated 3D noise reduction helps improve displayed video by reducing unwanted visual noise in the image.

Technical Specifications

What’s in the Box:

• 1 × Hikvision DS-D5024F2-AV2(EU) 23.8" Full HD VA Monitor
• 1 × Base Component
• 1 × 12V / 2A Power Adapter
• 1 × 1.5m HDMI Cable
• 1 × User Manual
• 1 × Multilingual Manual

Equip a surveillance workstation, office or general display setup with Full HD resolution, a fluid maximum 100Hz refresh rate, wide 178° viewing angles, a high 4000:1 contrast ratio and flexible HDMI and VGA connectivity using the Hikvision DS-D5024F2-AV2(EU).
