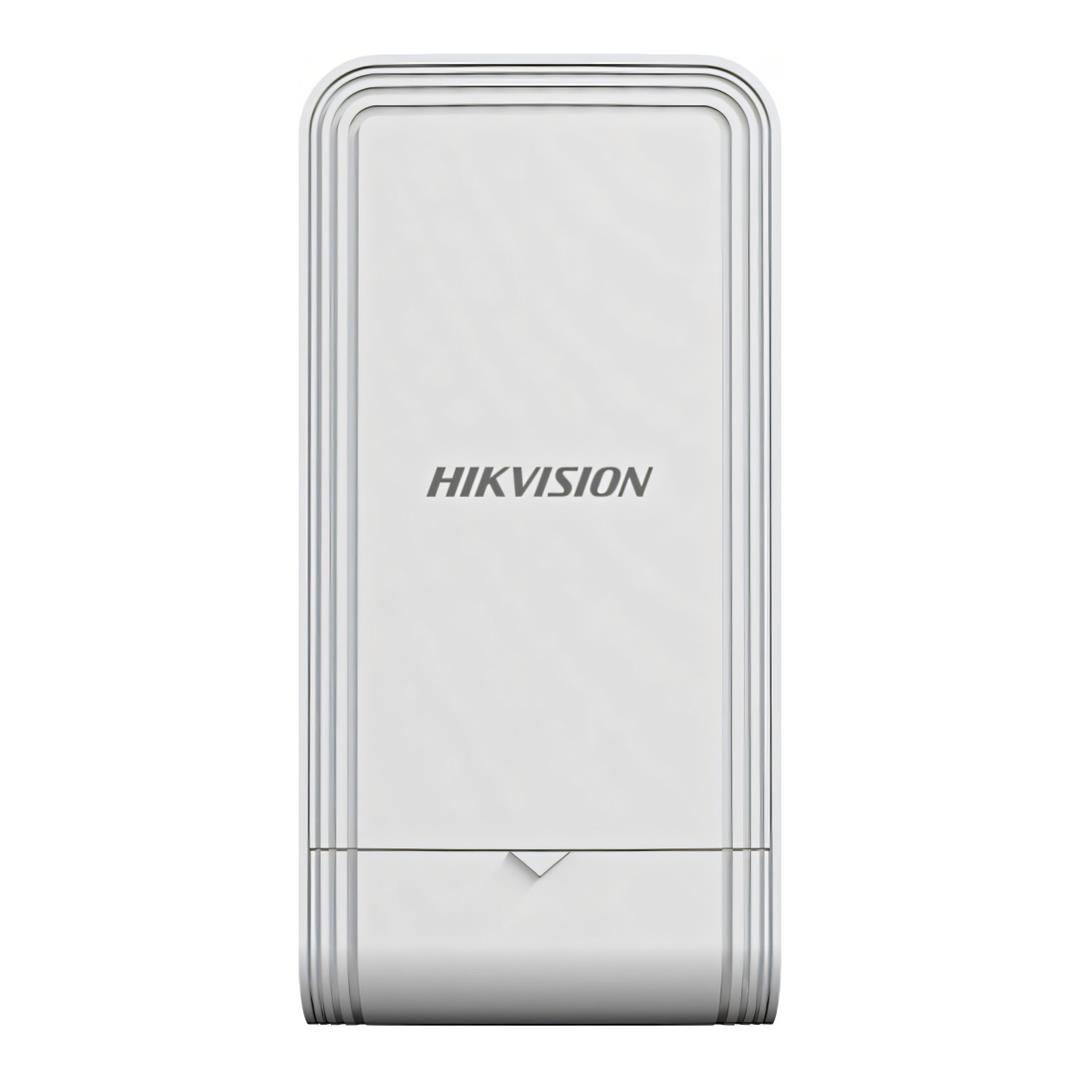

Hikvision 2.4Ghz 300Mbps 1km Wireless Bridge DS-3WF1000S-EI-2N

Hikvision 2.4Ghz 300Mbps 1km Wireless Bridge DS-3WF1000S-EI-2N

The Hikvision DS-3WF1000S-EI-2N is an outdoor 2.4GHz wireless bridge designed to provide reliable point-to-point and point-to-multipoint network connectivity across distances of up to 1km. Featuring IEEE 802.11b/g/n wireless connectivity, 2 × 2 MIMO technology, a maximum 300Mbps air-interface rate and an integrated 7dBi directional antenna, it provides a practical wireless transmission solution for IP surveillance and network deployments. Dual 10/100Mbps Ethernet ports, passive PoE power, WPA2-PSK security and an IP55 outdoor-rated enclosure support flexible installation in demanding environments.

Key Features

• Up to 1km wireless transmission: Designed for outdoor point-to-point and point-to-multipoint network links over distances of up to 1 kilometre.
• 300Mbps wireless rate: IEEE 802.11b/g/n with 2 × 2 MIMO provides a maximum air-interface transmission rate of up to 300Mbps.
• 7dBi integrated antenna: Directional antenna provides approximately 60° horizontal and 50° vertical beamwidth for focused wireless coverage.
• Up to 70Mbps at 1km PTP: Point-to-point throughput is rated at up to 70Mbps over a 1km link using a 40MHz channel.
• Dual Ethernet ports: Two 10/100Mbps RJ45 interfaces provide wired connectivity to compatible network equipment.
• Passive PoE: Supports 12–24V DC passive PoE for convenient outdoor installation using network cabling.
• WPA2-PSK security: Provides wireless encryption together with support for hiding the wireless network name.
• IP55 outdoor protection: Designed for outdoor pole mounting and operation from -30°C to +60°C.

1km Outdoor Wireless Bridge

The DS-3WF1000S-EI-2N is designed to establish wireless network links over distances of up to 1km. It can be used for point-to-point transmission between two locations or point-to-multipoint deployments where multiple remote wireless bridges connect to a central device, making it particularly useful where conventional network cabling is difficult to install.

2.4GHz 2 × 2 MIMO Wireless Connectivity

Operating across the 2400–2483.5MHz frequency band, the wireless bridge supports IEEE 802.11b/g/n and 2 × 2 MIMO technology with a maximum air-interface rate of 300Mbps. Channel widths of 10MHz, 20MHz and 40MHz are supported, with automatic or manual channel selection.

Real-World Point-to-Point Performance

Hikvision specifies point-to-point throughput of up to 90Mbps at 0.2km, 90Mbps at 0.5km and 70Mbps at 1km when using HT40. For point-to-multipoint operation with one-to-four links, throughput is rated at up to 40Mbps at 1km. The advertised 300Mbps specification represents the maximum wireless air-interface transmission rate rather than the real-world throughput across a 1km link.

Integrated 7dBi Directional Antenna

An integrated 7dBi antenna provides a 3dB beamwidth of approximately 60° horizontally and 50° vertically. Signal-strength indicators built into the unit assist installers with positioning and alignment to establish a reliable wireless link between bridge devices.

Outdoor-Ready Design

The IP55-rated enclosure is designed for pole-mounted outdoor installations and operates in temperatures ranging from -30°C to +60°C. Support for passive PoE allows power and network connectivity to be delivered conveniently to the bridge without requiring a conventional power outlet directly beside the installation point.

Technical Specifications

What’s in the Box:

• 1 × Hikvision DS-3WF1000S-EI-2N Wireless Bridge
• 1 × 12V DC, 1A Power Adapter
• 1 × 10/100Mbps PoE Injector
• 2 × Binding Tapes
• 1 × Quick Start Guide
• 1 × Regulatory Compliance and Safety Information

Extend network and IP surveillance connectivity between outdoor locations with the Hikvision DS-3WF1000S-EI-2N, combining a 1km transmission range, 2.4GHz 2 × 2 MIMO wireless connectivity, a 300Mbps maximum air-interface rate, integrated 7dBi antenna and rugged IP55 construction.
