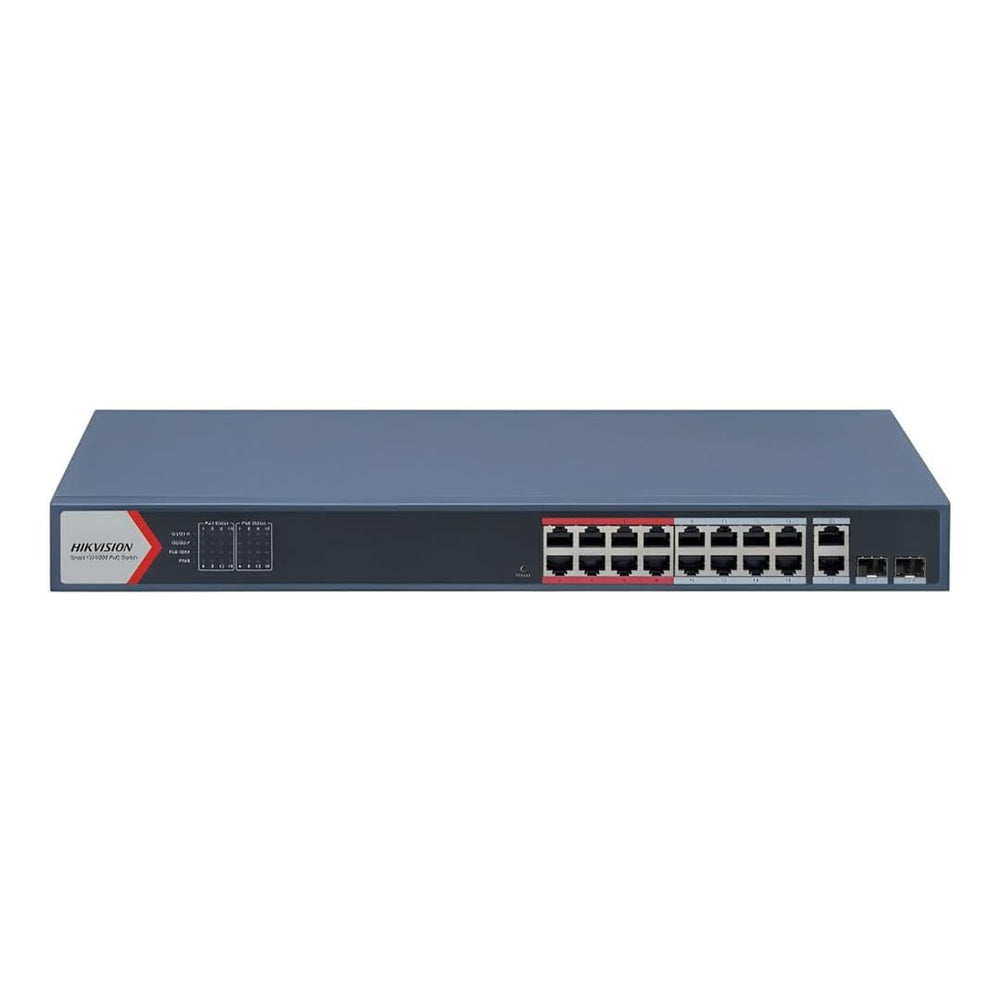

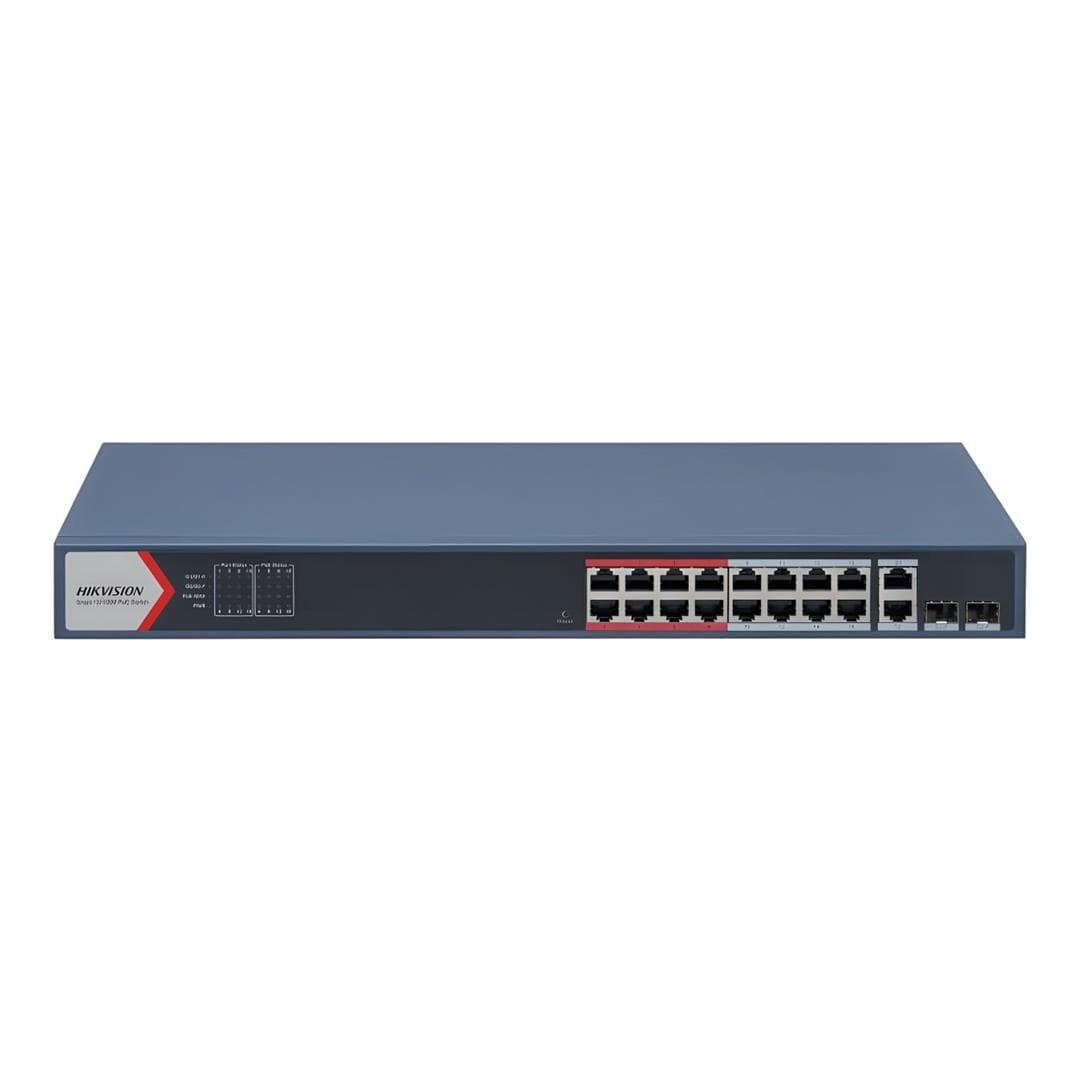

Hikvision 16-port Fast Ethernet Smart POE Switch DS-3E1318P-EI(B)
The Hikvision DS-3E1318P-EI(B) is a smart managed Fast Ethernet PoE switch designed for professional IP surveillance and business networking applications. Equipped with sixteen PoE-enabled Fast Ethernet ports, two Gigabit uplink ports and intelligent PoE management features, it provides reliable power delivery and network connectivity for IP cameras, wireless access points, VoIP phones and other PoE-enabled devices.
Key Features
- 16 × 10/100 Mbps PoE RJ45 ports.
- 2 × 10/100/1000 Mbps Gigabit uplink ports.
- IEEE 802.3af/at Power over Ethernet.
- 130 W total PoE power budget.
- Long-range transmission up to 300 m in Extend Mode.
- Smart managed Layer 2 functionality.
- PoE watchdog for automatic camera recovery.
- 6 kV surge protection.
Optimised for IP Surveillance
The DS-3E1318P-EI(B) is specifically designed for CCTV deployments, supplying both power and network connectivity to IP cameras while simplifying installation through Power over Ethernet.
Intelligent PoE Management
Built-in PoE watchdog automatically detects and restarts unresponsive powered devices, while VIP port priority ensures uninterrupted power delivery to critical surveillance equipment.
Extended Transmission Distance
Extend Mode supports PoE transmission distances of up to 300 metres at reduced network speeds, making the switch suitable for long-distance camera installations.
Reliable Enterprise Performance
Featuring Gigabit uplinks, intelligent Layer 2 management and integrated 6 kV surge protection, the switch delivers stable operation for commercial surveillance and business networking environments.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Hikvision |
| Manufacturer Part Number | DS-3E1318P-EI(B) |
| Product Type | Smart Managed PoE Switch |
| Layer | Layer 2 |
| PoE Ports | 16 × 10/100 Mbps RJ45 (IEEE 802.3af/at) |
| Uplink Ports | 2 × 10/100/1000 Mbps RJ45 |
| Total Ports | 18 |
| PoE Power Budget | 130 W |
| Maximum PoE Output Per Port | 30 W |
| PoE Standards | IEEE 802.3af and IEEE 802.3at |
| Long-Range Mode | Up to 300 m (Extend Mode) |
| Smart Features | PoE Watchdog, VIP Port Priority, Port Isolation, Loop Prevention, Cable Detection and Storm Control |
| Surge Protection | 6 kV |
| Switching Capacity | 7.2 Gbps |
| Packet Forwarding Rate | 5.36 Mpps |
| MAC Address Table | 8K Entries |
| Management | Web Interface, Hik-Partner Pro and HikCentral Compatible |
| Mounting | Desktop or Rack Mount |
| Operating Temperature | 0°C to 40°C |
| Colour | Grey |
| What's in the Box | Hikvision DS-3E1318P-EI(B) Smart Managed PoE Switch, Power Cable, Rack Mount Kit, Rubber Feet and Quick Start Guide |
| Applications | IP Surveillance Systems, Business Networks, Retail, Offices, Schools, Warehouses, Hotels, Healthcare Facilities and PoE Device Deployments |
The Hikvision DS-3E1318P-EI(B) combines sixteen PoE-enabled Fast Ethernet ports, intelligent Layer 2 management, long-range PoE transmission, Gigabit uplinks and advanced surveillance features, making it an ideal networking solution for professional CCTV and enterprise PoE deployments.
