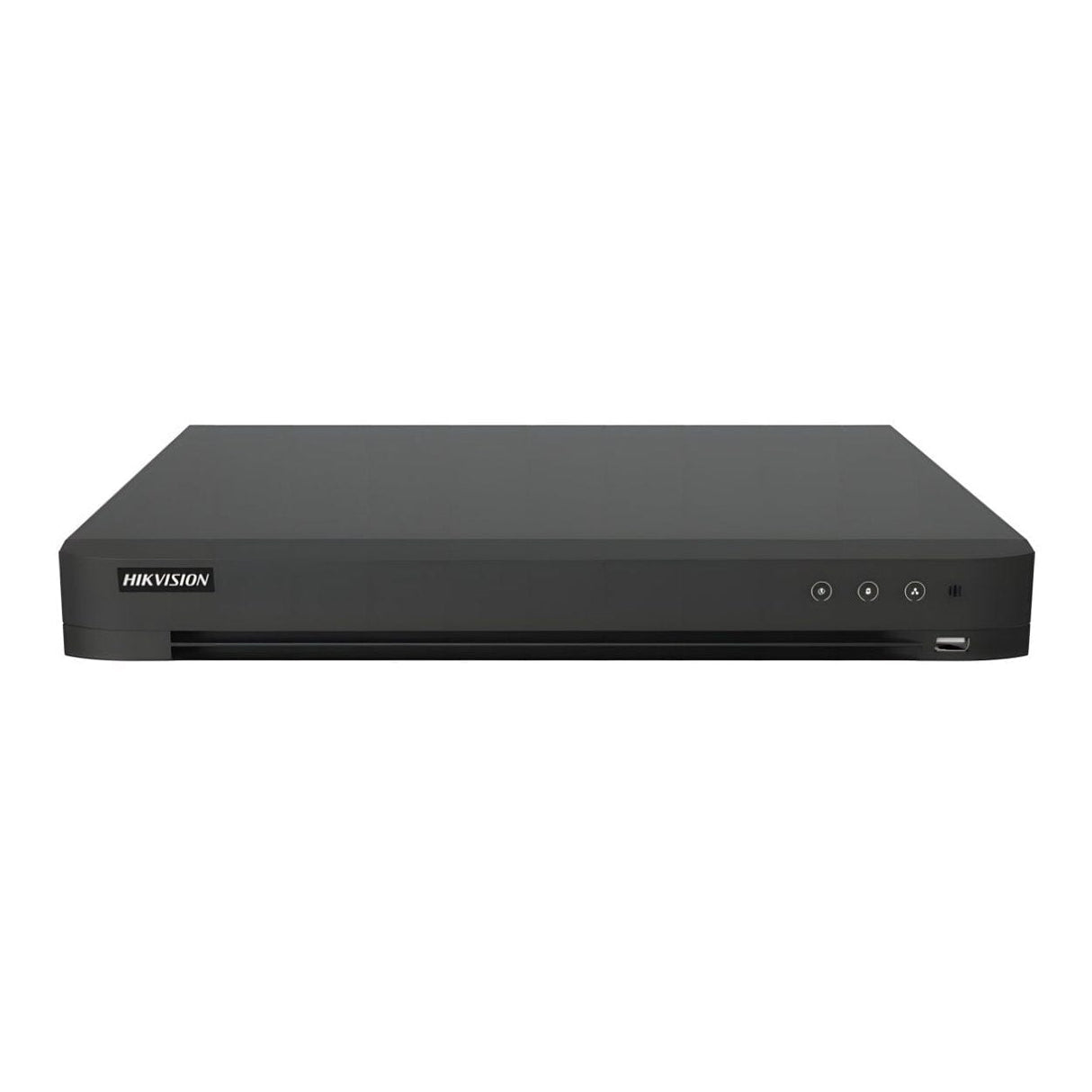

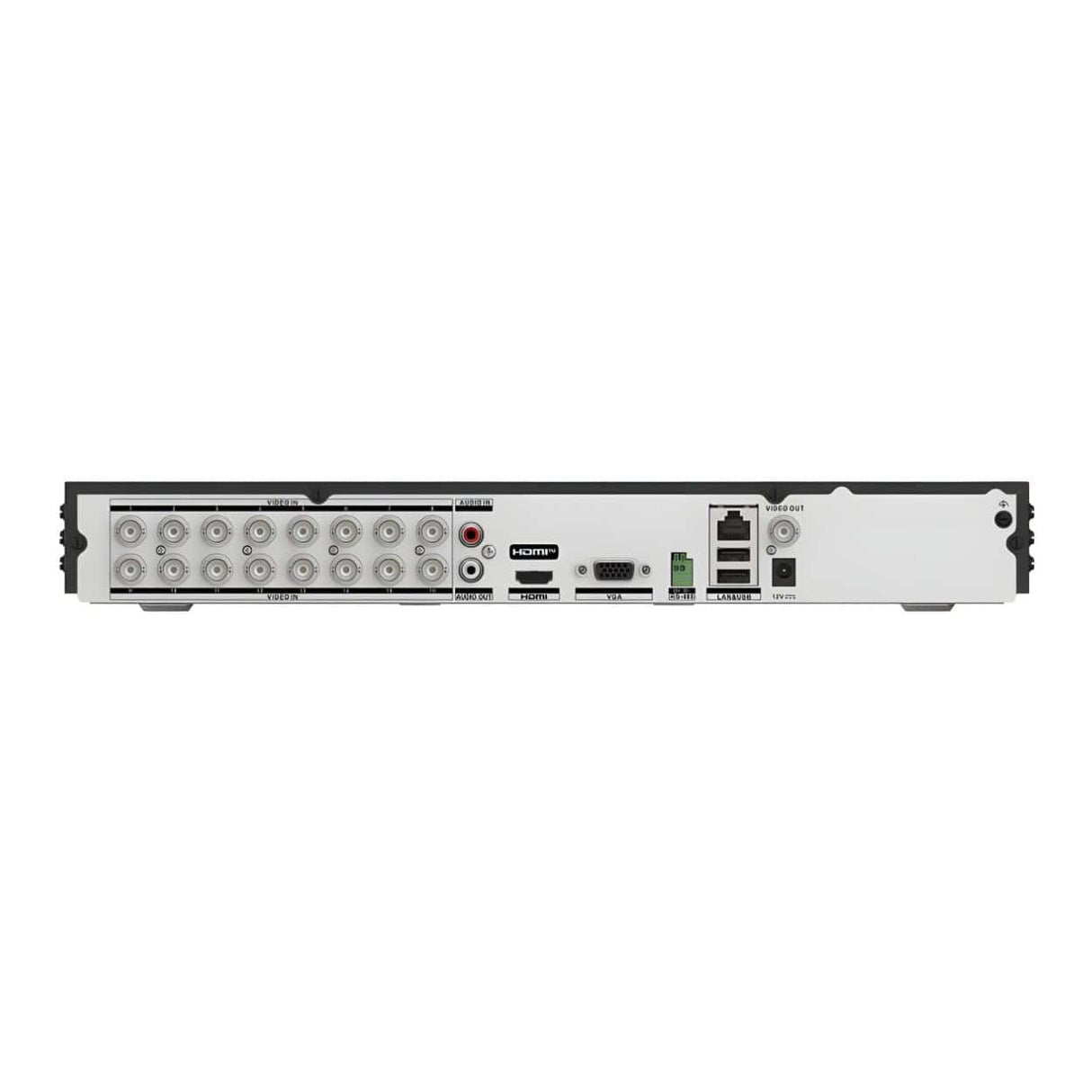

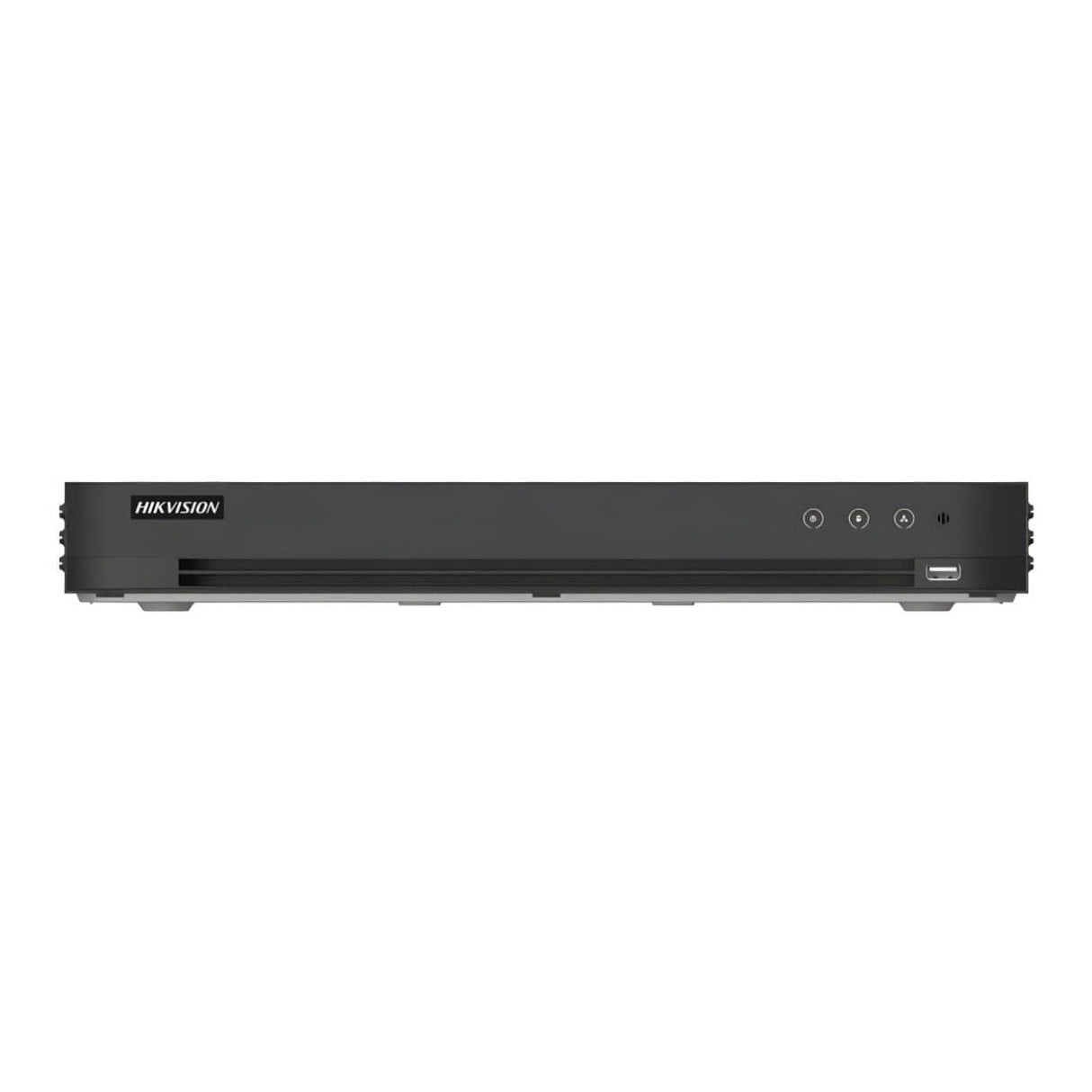

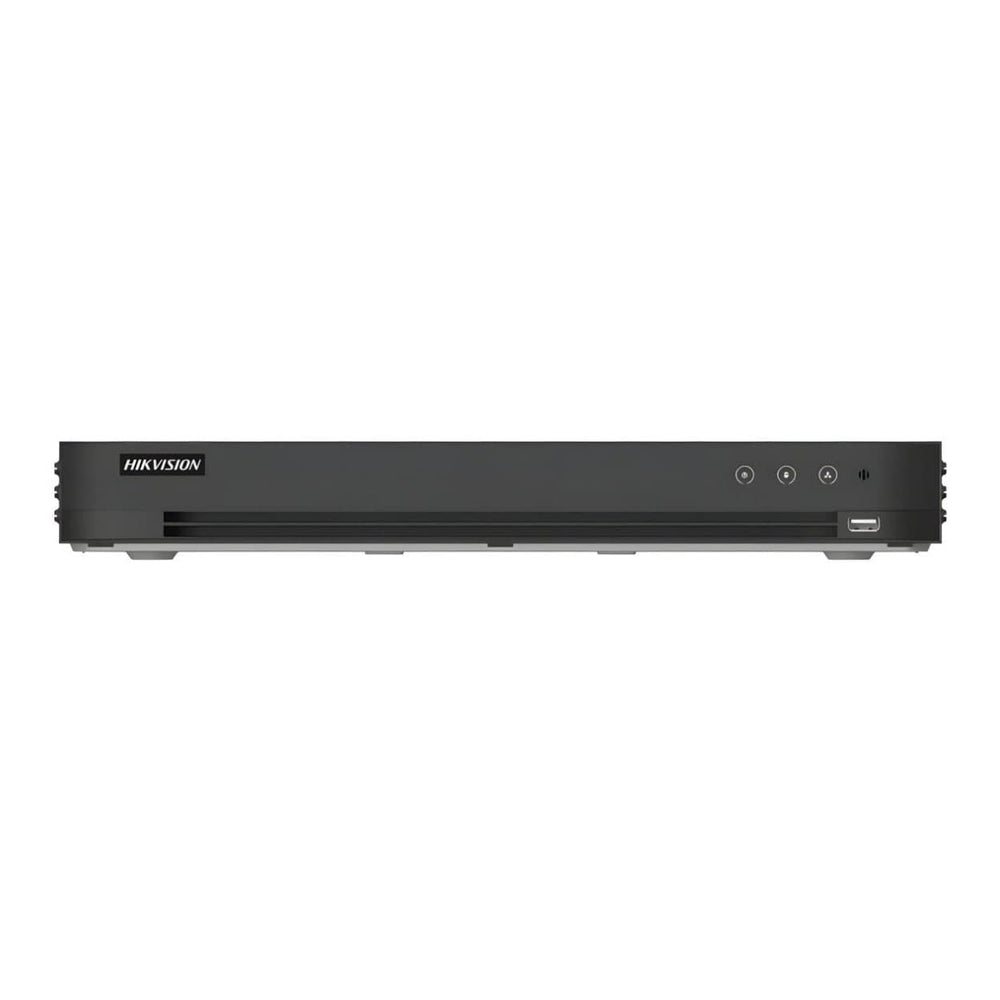

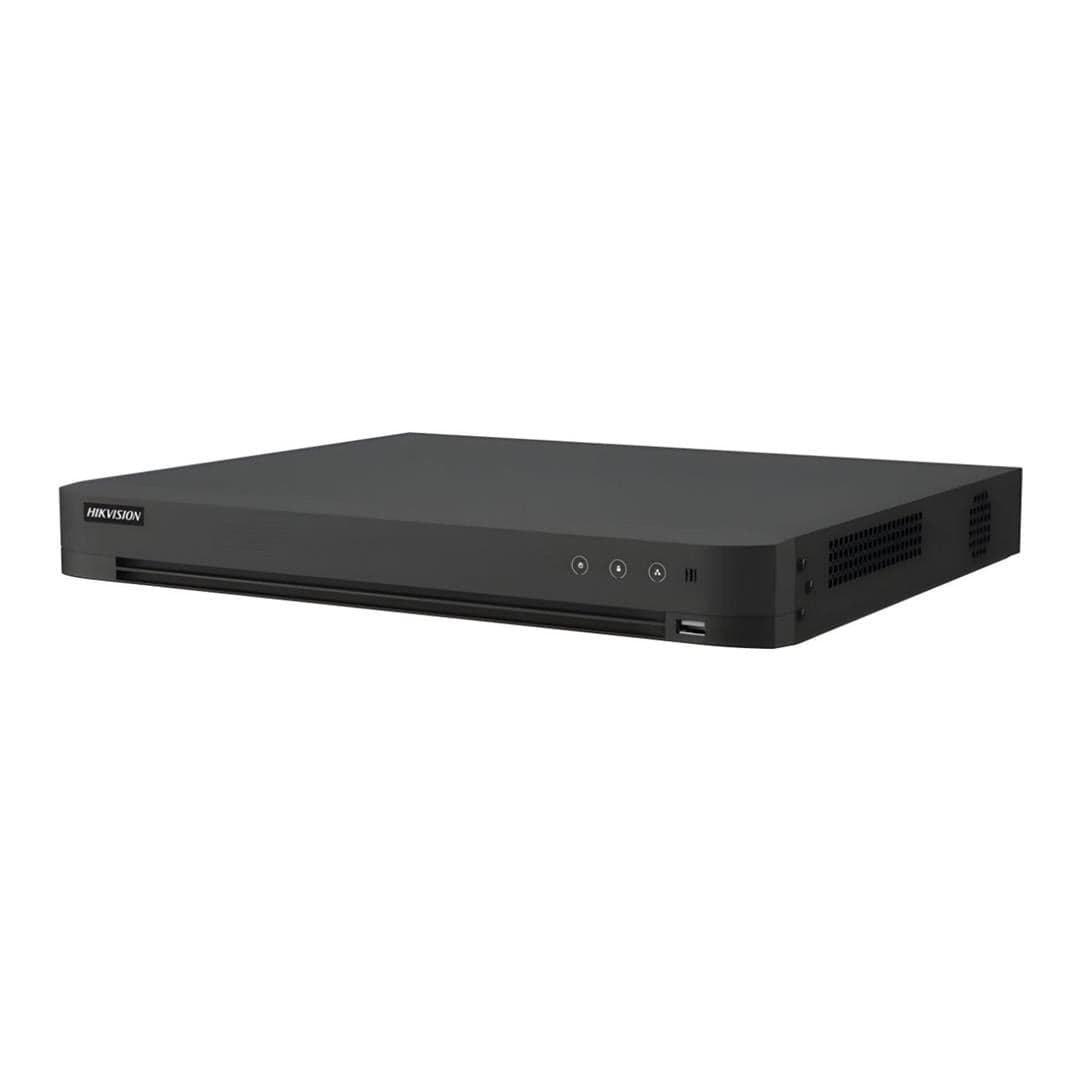

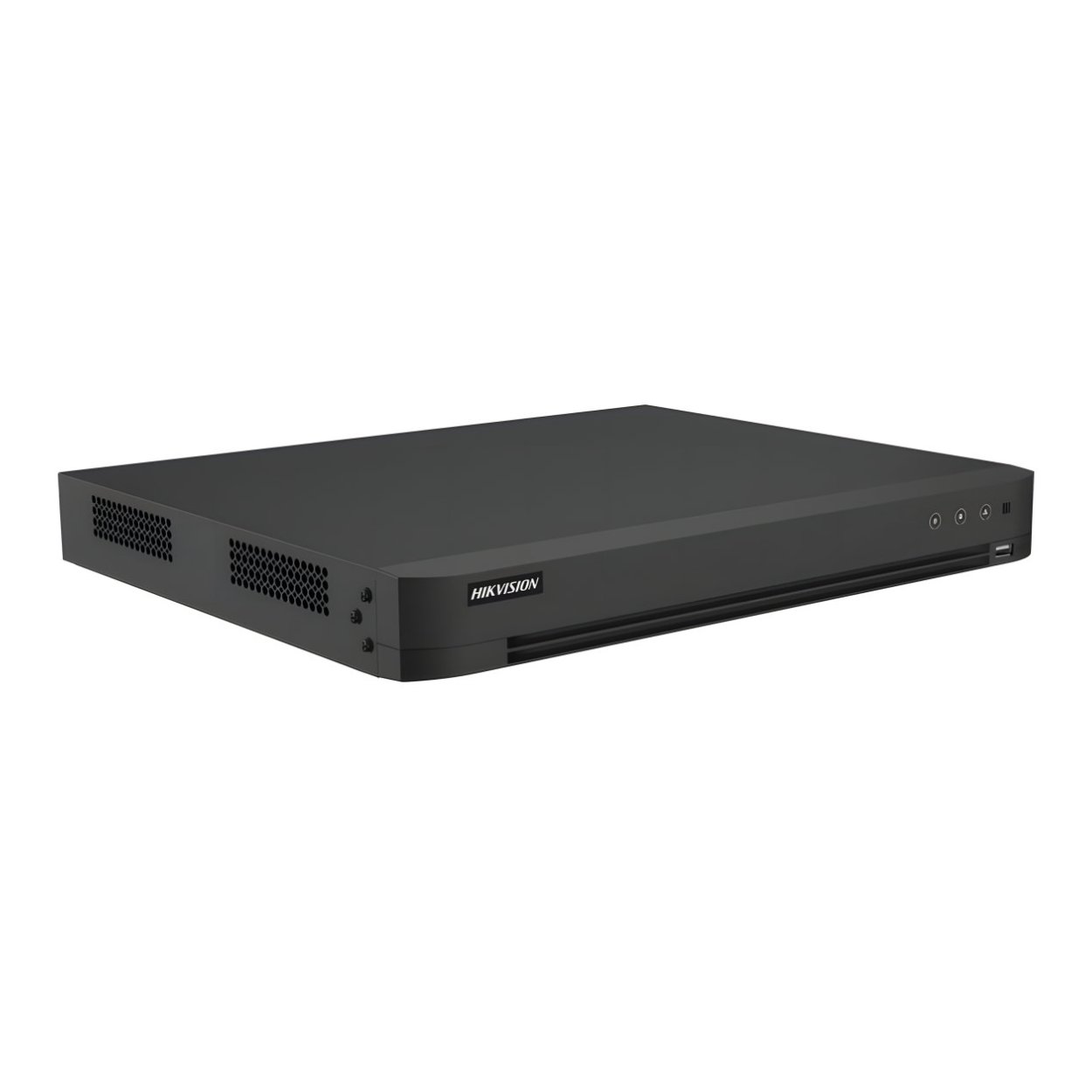

Hikvision 16-channel 5MP 1U H.265 AcuSense DVR iDS-7216HUHI-M2/XT

Hikvision 16-channel 5MP 1U H.265 AcuSense DVR iDS-7216HUHI-M2/XT

Features:

• 16 channels and 2 HDD 1U AcuSense DVR
• Support 4-ch Facial Recognition or 16-ch advanced model Perimeter Protection based on Deep Learning algorithm
• Support 16-ch AcuSearch Technology
• Encoding ability up to 4K/8MP @ 8fps; 3K/5MP @12fps
• Up to 32 channels IP camera inputs, each channel up to 8MP
• Up to 24*1080P@30fps decoding ability
• 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
• Support All channels Motion Detection Technology
• Support All channels HDTVI Two-Way Audio Technology

Technical Specifications:

Perimeter Protection

Human/Vehicle Analysis Up to 16-ch (advanced model)

Facial Detection

Facial Detection and Capture Face picture detection, face picture searchï¼›
4-ch face picture capture

Facial Recognition

Face Picture Library Up to 16 face picture libraries;

HDD damage will not cause data loss in the face picture library, because the library has been backed up by HDD and flash.

Face Picture Comparison (Captured from Camera) 4-ch face picture comparison alarm (HD analog camera)

Motion Detection 2.0

Human/Vehicle Analysis Deep learning-based motion detection 2.0 is enabled by default for all analog channels,

it can classify human and vehicle, and extremely reduce false alarms caused by objects

like leaves and lights;

Quick search by object or event type is supported;

Video and Audio

IP Video Input 16-ch (up to 32-ch), each up to 8MP

Analog Video Input 16-ch

BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

HDMI Output 1-ch, 4K (3840 × 2160)/30Hz,

2K (2560 × 1440)/60Hz,

1920 × 1080/60Hz,

1280 × 1024/60Hz,

1280 × 720/60Hz

HDMI/VGA simultaneous output

VGA Output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

HDMI/VGA simultaneous output

CVBS Input PAL/NTSC

CVBS Output 1-ch, BNC (1.0 Vp-p, 75 Ω),

resolution: PAL: 704 × 576, NTSC: 704 × 480

Synchronous Playback 16-ch

HDTVI Input 8 MP(3840 × 2160)@12/15 fps, 3K(2960 x 1665)@25/20 fps,3K(3328x1504)@20fps,2K(2304x1296)@20fps,5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps

AHD Input 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps

HDCVI Input 8 MP(3840 × 2160)@12/15 fps, 3K(2880×1620)@20/25 fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps

Audio Output 1-ch, RCA (Linear, 1 KΩ)

Audio Input 1-ch (up to 16-ch is optional), RCA (2.0 Vpp,1 KΩ), 16-ch via coaxial cable

Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input)

Recording

Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Encoding Resolution 8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF

Frame Rate Main stream:

8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps

1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

Sub-stream:

WD1/4CIF/CIF@25 fps (P)/30 fps (N)

Video Bitrate 32 Kbps to 10 Mbps

Dual-stream Support main stream or sub stream

Stream Type Video, Video & Audio

Audio Compression G.711u

Audio Bitrate 64 Kbps

Decoding

Decoding Capability up to 24-ch 1080P@30fps

Network

Total Bandwidth 256 Mbps

Network Protocol TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP

Remote Connection 128

Network Interface 1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface

Auxiliary Interface

SATA 2 SATA interfaces

Capacity Up to 12 TB capacity for each disk

Serial Interface RS-485 (half-duplex)

USB Interface Front panel: 1 × USB 2.0

Rear panel: 2 × USB 3.0

Alarm In/Out N/A (optional to support)

General

Power Supply 12 VDC, 5 A

Consumption ≤ 60 W

Working Temperature -10 °C to +55 °C (+14 °F to +131 °F)

Working Humidity 10% to 90%

Dimension (W × D × H) 384 × 317 × 52 mm (15.1 × 12.5 × 2.0 inch)

Weight ≤ 2.1 kg (4.6 lb)
