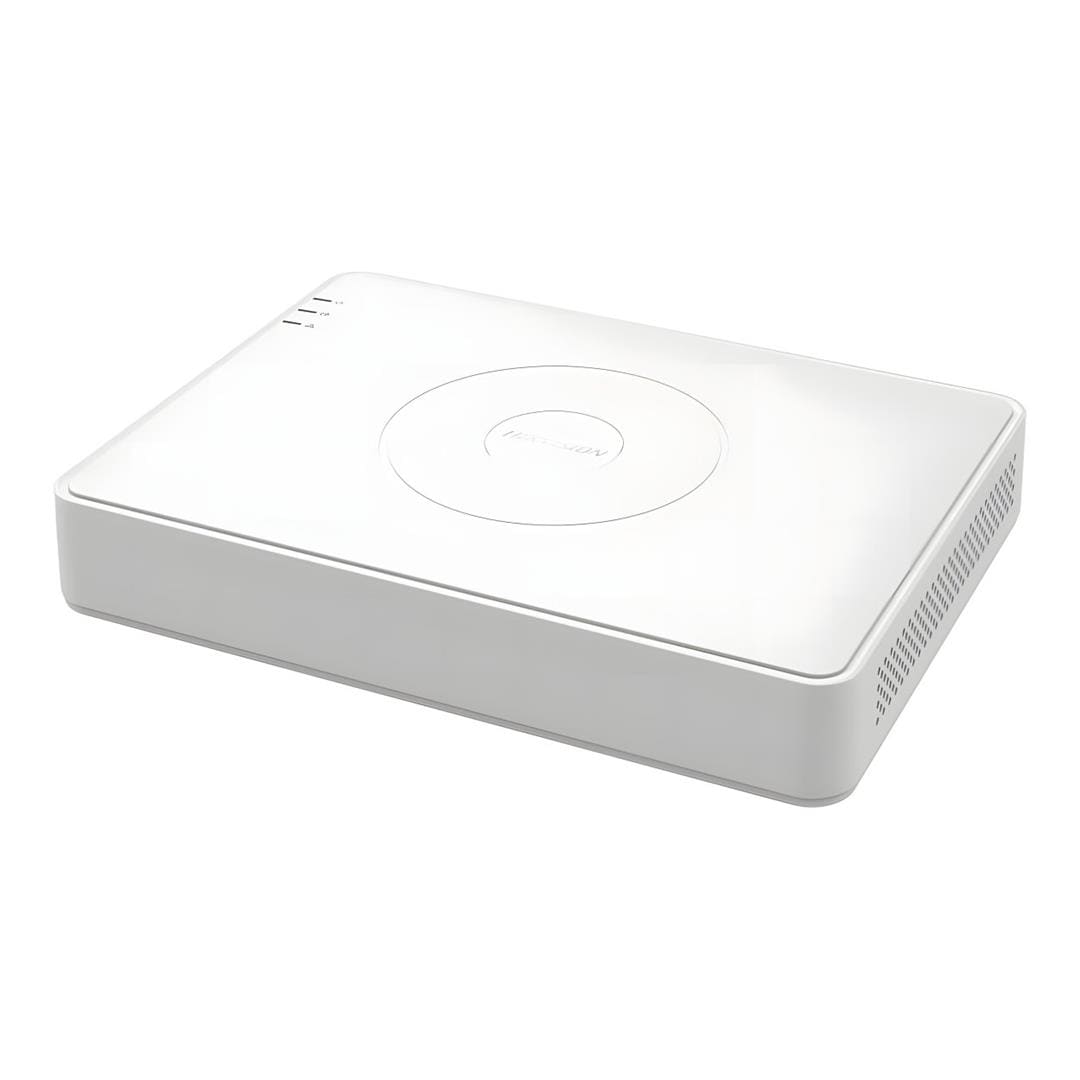

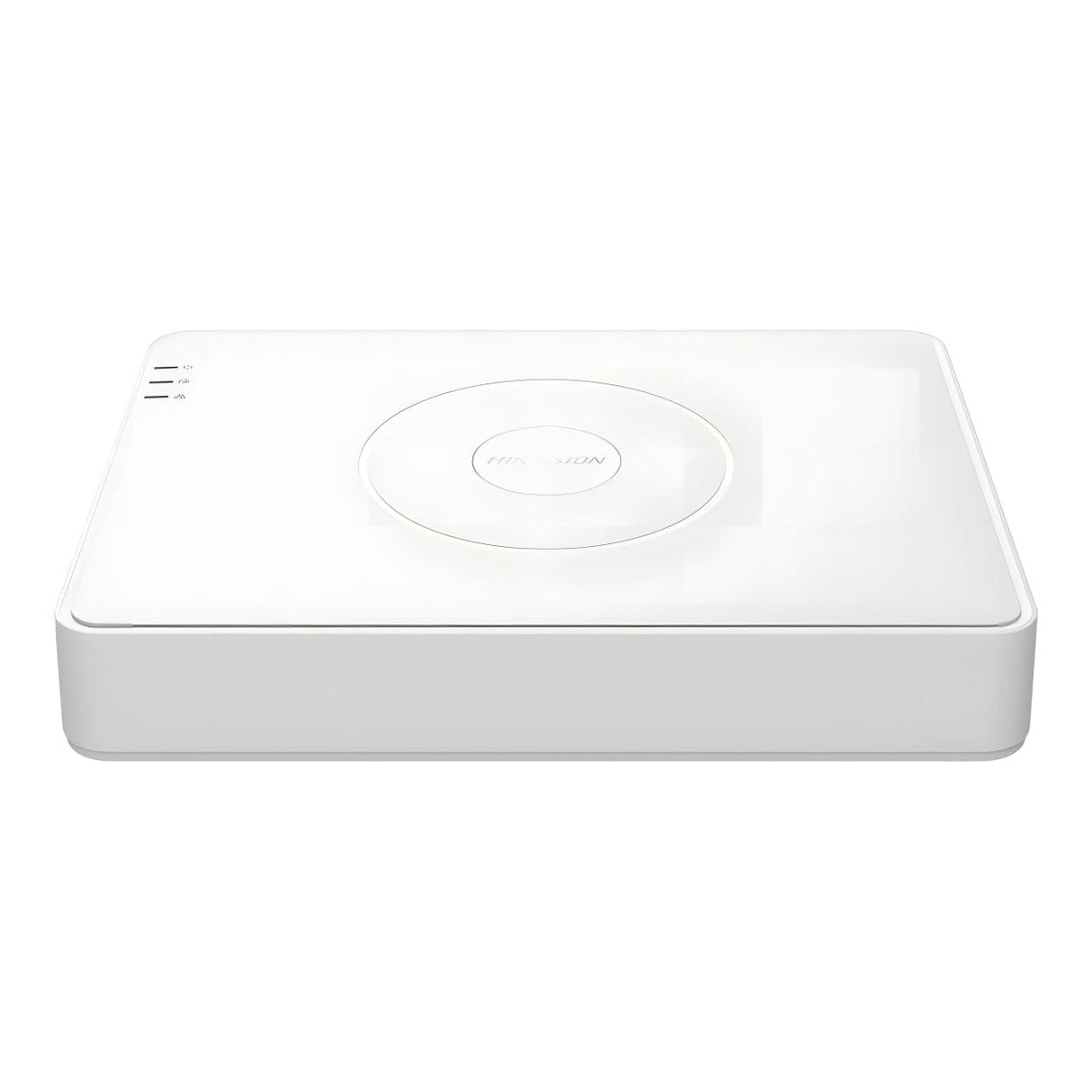

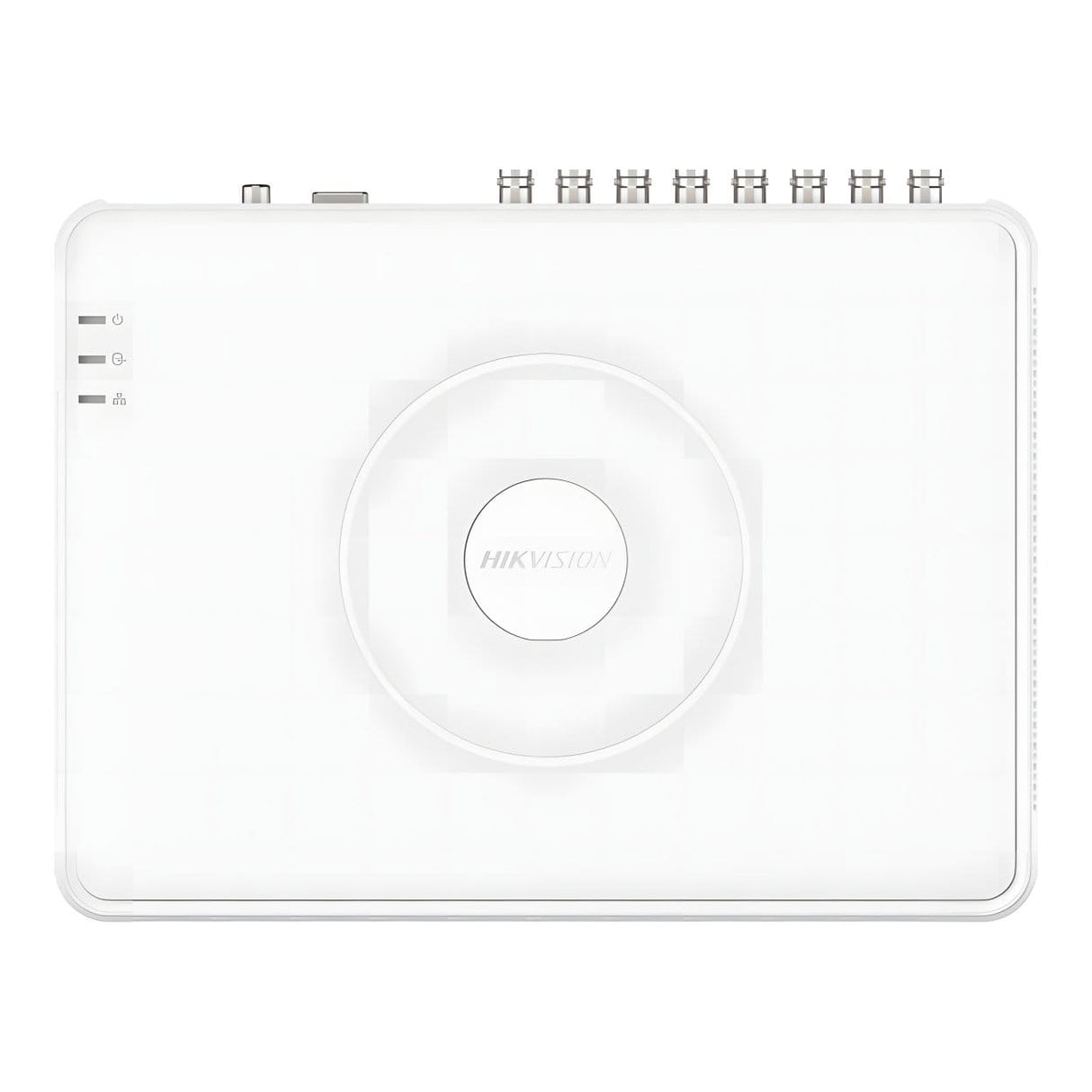

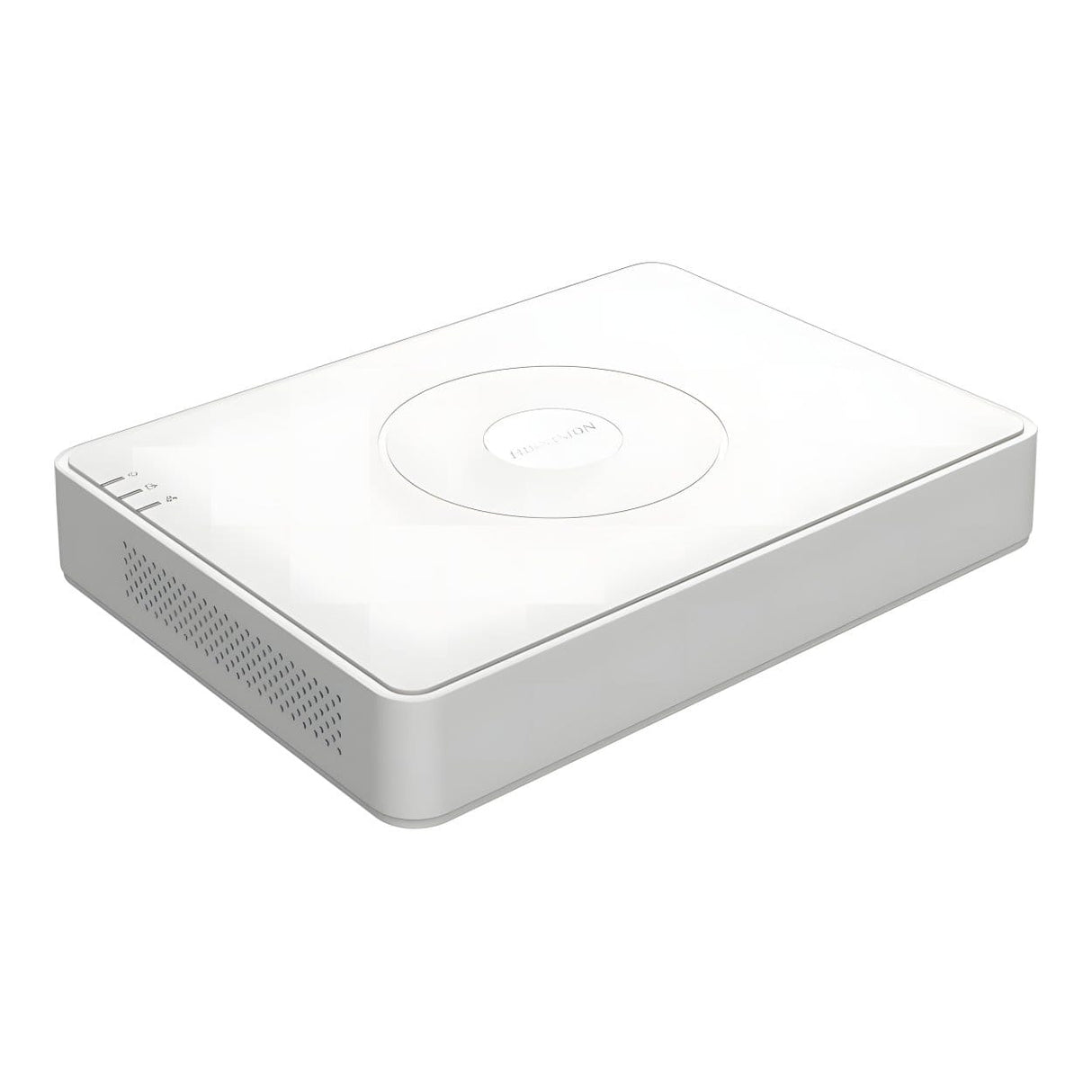

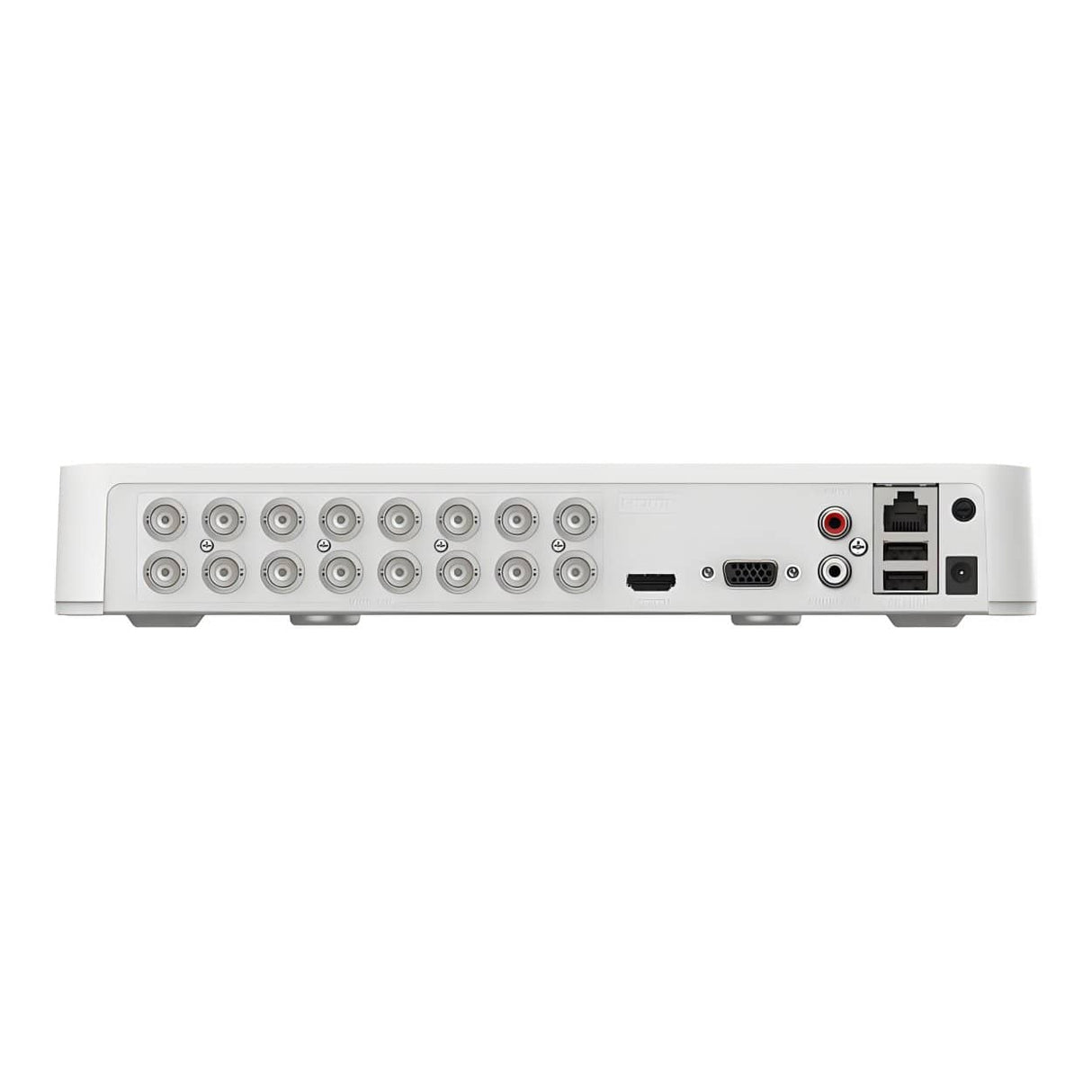

Hikvision 16-channel 1080P Mini 1U H.265 AcuSense DVR IDS-7116HQHI-M1/T

Hikvision 16-channel 1080P Mini 1U H.265 AcuSense DVR IDS-7116HQHI-M1/T

Features:

• Deep learning based human and vehicle targets classification of Motion Detection 2.0
• Deep learning-based perimeter protection
• H.265 Pro+/H.265 Pro/H.265 video compression
• HDTVI/AHD/CVI/CVBS/IP video inputs
• Audio via coaxial cable
• Up to 24-ch IP camera inputs (up to 6 MP)
• Encoding ability up to 3K/5M Lite @ 12 fps

Technical Specifications:

Intelligent Analytics

Perimeter Protection
Line Crossing Detection / Intrusion Detection: 4 Channels

Facial Detection
Facial Detection and Capture: Face Picture Detection, Face Picture Search

Motion Detection 2.0
Human/Vehicle Analysis: Deep Learning-Based Motion Detection 2.0 Enabled by Default on All Analog Channels, Supports Human and Vehicle Classification, Reduces False Alarms Caused by Leaves, Lights, and Other Objects
Quick Search: Supported by Object or Event Type

Video and Audio

IP Video Input
IP Video Input: 2 Channels (Up to 18 Channels)
Enhanced IP Mode: 8 Channels (Up to 24 Channels), Up to 4 Mbps per Channel
Maximum IP Camera Resolution: Up to 6 MP
Supported IP Camera Formats: H.265+, H.265, H.264+, H.264

Analog Video Input
Analog Video Input: 16 Channels
Interface: BNC (1.0 Vp-p, 75 Ω)
Coaxitron Support: Yes

HDTVI Input
Supported Resolutions: 3K (2960 × 1665) @ 25/20 fps, 3K (3328 × 1504) @ 20 fps, 5 MP (2560 × 1944) @ 20 fps, 4 MP (2560 × 1440) @ 30 fps, 4 MP (2560 × 1440) @ 25 fps, 2K (2304 × 1296) @ 20 fps, 1080p @ 30 fps, 1080p @ 25 fps, 720p @ 30 fps, 720p @ 25 fps

AHD Input
Supported Resolutions: 5 MP (2592 × 1944) @ 20 fps, 4 MP (2560 × 1440) @ 30 fps, 4 MP (2560 × 1440) @ 25 fps, 1080p @ 30 fps, 1080p @ 25 fps, 720p @ 30 fps, 720p @ 25 fps

HDCVI Input
Supported Resolutions: 3K (2880 × 1620) @ 20/25 fps, 5 MP (2592 × 1944) @ 20 fps, 4 MP (2560 × 1440) @ 30 fps, 4 MP (2560 × 1440) @ 25 fps, 1080p @ 30 fps, 1080p @ 25 fps, 720p @ 30 fps, 720p @ 25 fps

CVBS Input
Video Standard: PAL, NTSC

HDMI Output
HDMI Output: 1 Channel
Supported Resolutions: 4K (3840 × 2160) @ 30 Hz, 2K (2560 × 1440) @ 60 Hz, 1920 × 1080 @ 60 Hz, 1280 × 1024 @ 60 Hz, 1280 × 720 @ 60 Hz

VGA Output
VGA Output: 1 Channel
Supported Resolutions: 1920 × 1080 @ 60 Hz, 1280 × 1024 @ 60 Hz, 1280 × 720 @ 60 Hz

Audio Input
Audio Input: 1 Channel (Up to 4 Channels Optional), RCA (2.0 Vp-p, 1 kΩ), 4 Channels via Coaxial Cable

Audio Output
Audio Output: 1 Channel, RCA (Linear, 1 kΩ)

Two-Way Audio
Two-Way Audio: 1 Channel, RCA (2.0 Vp-p, 1 kΩ), Using the First Audio Input

Playback
Synchronous Playback: 16 Channels

Recording

Video Compression
Video Compression: H.265 Pro+, H.265 Pro, H.265, H.264+, H.264

Encoding Resolution
Encoding Resolution: 2K, 3K Lite, 5 MP Lite, 4 MP Lite, 3 MP, 1080p, 1080p Lite, 720p, 720p Lite, VGA, WD1, 4CIF, CIF

Frame Rate
Main Stream Frame Rates:

• 3K Stream Access: 3K Lite @ 12 fps, 4 MP Lite/1080p @ 15 fps, 720p/WD1/4CIF/VGA/CIF @ 20 fps
• 5 MP Stream Access: 5 MP Lite @ 12 fps, 4 MP Lite/1080p @ 15 fps, 720p/WD1/4CIF/VGA/CIF @ 20 fps
• 4 MP Stream Access: 4 MP Lite/1080p @ 15 fps, 720p/WD1/4CIF/VGA/CIF @ 25 fps (PAL) / 30 fps (NTSC)
• 3 MP Stream Access: 3 MP @ 10 fps, 1080p @ 15 fps, 720p/WD1/4CIF/VGA/CIF @ 25 fps (PAL) / 30 fps (NTSC)
• 2K Stream Access: 2K @ 10 fps, 1080p @ 15 fps, 720p/WD1/4CIF/VGA/CIF @ 20 fps
• 1080p Stream Access: 1080p/720p @ 15 fps, VGA/WD1/4CIF/CIF @ 25 fps (PAL) / 30 fps (NTSC)
• 720p Stream Access: 720p/VGA/WD1/4CIF/CIF @ 25 fps (PAL) / 30 fps (NTSC)
• 1080p Lite Mode Enabled: 3K Lite/5 MP Lite @ 12 fps, 4 MP Lite @ 15 fps, 3 MP/2K @ 10 fps, 1080p Lite/720p Lite/VGA/WD1/4CIF/CIF @ 25 fps (PAL) / 30 fps (NTSC)

Sub-Stream Frame Rates: WD1/4CIF @ 12 fps, CIF @ 25 fps (PAL) / 30 fps (NTSC)

Video Bitrate
Video Bitrate: 32 Kbps to 6 Mbps

Dual Stream
Dual Stream: Supported

Stream Type
Stream Type: Video, Video and Audio

Audio Compression
Audio Compression: G.711u

Audio Bitrate
Audio Bitrate: 64 Kbps

Network

Remote Access
Remote Connections: 128

Bandwidth
Total Bandwidth: 128 Mbps

Network Protocols
Network Protocols: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF, ISUP

Network Interface
Network Interface: 1 × RJ45 10/100/1000 Mbps Self-Adaptive Ethernet Port

Storage and Interfaces

SATA Storage
SATA Interface: 1 SATA Port
Maximum HDD Capacity: Up to 10 TB per Disk

USB Interface
USB Ports: 2 × USB 2.0 (Rear Panel)

Alarm Interface
Alarm Input/Output: Not Available (Optional Support)

General

Power
Power Supply: 12 V DC, 2 A
Power Consumption: ≤ 24 W (Without HDD)

Environmental Conditions
Operating Temperature: -10°C to 55°C (14°F to 131°F)
Operating Humidity: 10% to 90%

Physical Specifications
Dimensions: 285 × 210 × 48 mm
Weight: ≤ 1 kg (Without HDD)
