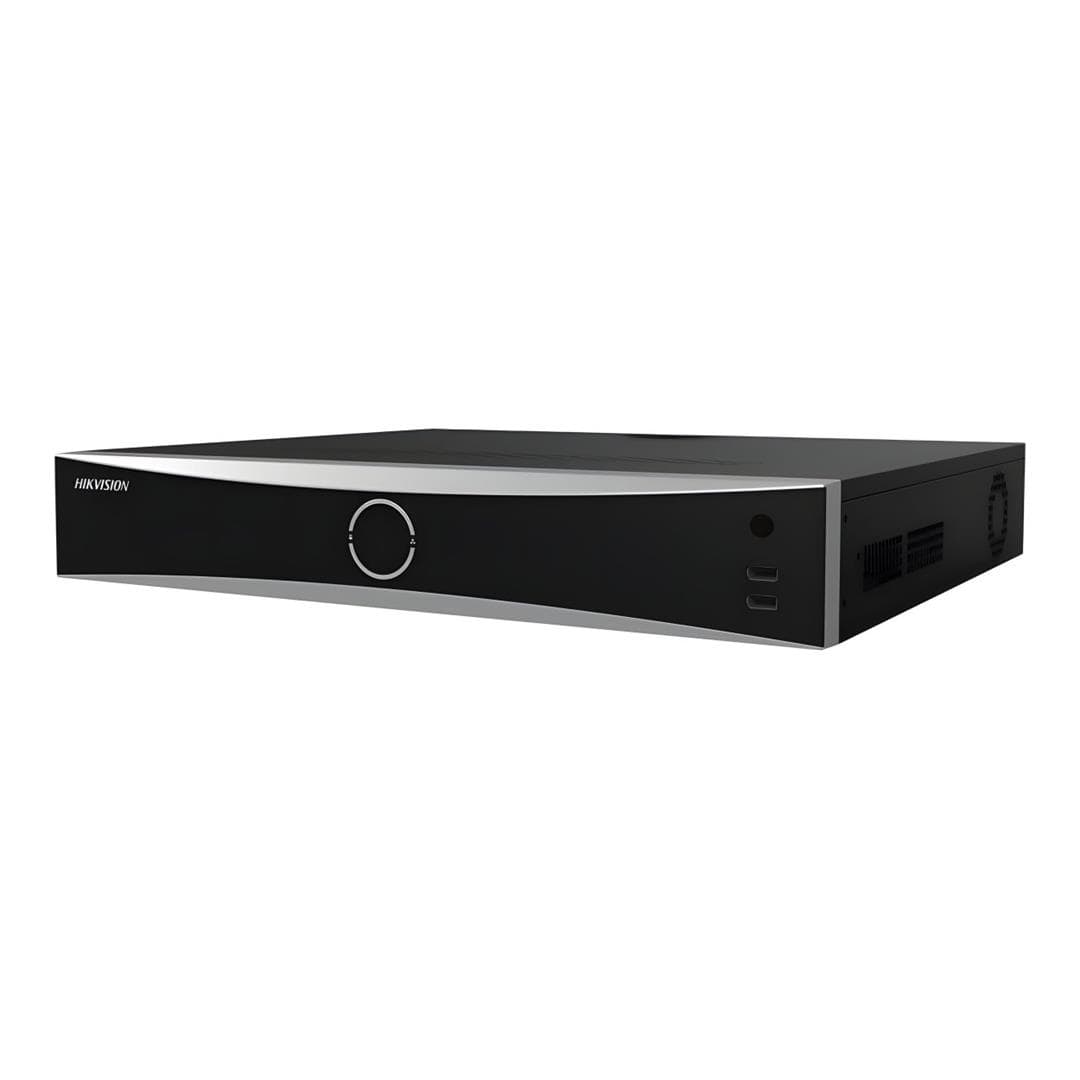

Hikvision 16-channel 1.5U 8K DeepinMind NVR IDS-7716NXI-M4/X

Hikvision 16-channel 1.5U 8K DeepinMind NVR IDS-7716NXI-M4/X

Features:

• Up to 2-ch@32 MP/2-ch@24 MP/4-ch@12 MP/8-ch@8 MP/16-ch@4 MP decoding capacity
• H.265+/H.265/H.264+/H.264 video formats
• Up to 16-ch IP cameras can be connected
• Intelligent analytics based on deep learning algorithm
• Up to 16-ch perimeter protection
• Up to 16-ch facial recognition for video stream, or up to 16-ch facial recognition for face picture
• Up to 12-ch video structuralization
• Up to 8-ch IP speakers can be connected

Technical Specifications:

Intelligent Analytics

AI Functions
AI by NVR: Facial Recognition, Perimeter Protection, Video Structuralization, AcuSearch
AI by Camera: Facial Recognition, Perimeter Protection, Video Structuralization, AcuSearch, Motion Detection 2.0, ANPR, People Counting, VCA

AI Engine
Engine: 2
Engine Function: Each Engine Can Run an Intelligent Algorithm
Engine Mode: Adjustable

AcuSearch
By Camera: All Channels, Up to 691,200 Targets per Day
Requirement: Camera Must Have AcuSearch Enabled

By NVR: Up to 8 Channels, Up to 691,200 Targets per Day

Perimeter Protection
By NVR:

• 16 Channels at 4 MP or 8 Channels at 8 MP (Without Large Model)
• 12 Channels at 2 MP, 8 Channels at 4 MP, or 4 Channels at 8 MP (With Large Model)

By Camera: All Channels (Powered by Large Model)

Video Structuralization
Structured Analysis: Up to 12 Channels at 2 MP (6 Channels per Engine), 8 Channels at 4 MP, or 4 Channels at 8 MP

Face Picture Library

• Up to 16 Face Picture Libraries
• Up to 100,000 Face Pictures in List Library
• Up to 10,000 Face Pictures in Stranger Library
• Up to 5,000,000 Face Pictures in Face Capture Library
• Maximum Picture Size: 4 MB Each
• Total Capacity: 20 GB

Face Picture Comparison
Channels: 16
Comparison Speed: 32 Pictures per Second

Facial Recognition

Facial Detection and Analytics
Functions: Face Picture Comparison, Human Face Capture, Face Picture Search

Face Picture Library

• Up to 16 Face Picture Libraries
• Up to 100,000 Face Pictures in List Library
• Up to 10,000 Face Pictures in Stranger Library
• Up to 5,000,000 Face Pictures in Face Capture Library
• Maximum Picture Size: 4 MB Each
• Total Capacity: 20 GB

Face Picture Comparison (Captured from Camera)
Channels: 16 (24 Channels per Engine)
Comparison Speed: 48 Pictures per Second

Facial Recognition Performance
Performance: Up to 16 Channels at 2 MP (8 Channels per Engine), 8 Channels at 4 MP, or 4 Channels at 8 MP

ANPR

ANPR Support
By Camera: All Channels

Plate Attributes

• Plate Number
• License Plate Colour
• License Plate Type

Vehicle Attributes

• Vehicle Brand
• Vehicle Colour
• Vehicle Type

Video and Audio

Video Input
IP Video Input: 16 Channels
Maximum Resolution: Up to 32 MP

Bandwidth
Incoming Bandwidth: 256 Mbps
Outgoing Bandwidth: 256 Mbps

Video Outputs

HDMI 1 Output

• 8K (7680 × 4320) at 30 Hz
• 4K (3840 × 2160) at 60 Hz
• 4K (3840 × 2160) at 30 Hz
• 2K (2560 × 1440) at 60 Hz
• 1920 × 1080 at 60 Hz

HDMI 2 Output

• 4K (3840 × 2160) at 60 Hz
• 4K (3840 × 2160) at 30 Hz
• 2K (2560 × 1440) at 60 Hz
• 1920 × 1080 at 60 Hz

Note: When HDMI 1 Output Resolution Is Set to 8K, the Maximum HDMI 2 Output Resolution Is 1080p.

VGA Output
VGA Output: 1920 × 1080 at 60 Hz

Video Output Mode
Video Output Mode: HDMI1/VGA Simultaneous Output, HDMI1/HDMI2 Independent Output

CVBS Output
CVBS Output: 1 × BNC (1.0 Vp-p, 75 Ω)
PAL Resolution: 704 × 576
NTSC Resolution: 704 × 480

Audio Output
Audio Output: 1 × RCA (Linear, 1 kΩ)

Two-Way Audio
Two-Way Audio: 1 × RCA (2.0 Vp-p, 1 kΩ)

Decoding

Decoding Format
Decoding Format: H.265, H.265+, H.264, H.264+

Decoding Capability

• 2 Channels at 32 MP (30 fps)
• 2 Channels at 24 MP (30 fps)
• 4 Channels at 16 MP (30 fps)
• 8 Channels at 8 MP (30 fps)
• 16 Channels at 4 MP (30 fps)

Playback
Synchronous Playback: 16 Channels

Recording Resolution

• 32 MP
• 24 MP
• 12 MP
• 8 MP
• 6 MP
• 5 MP
• 4 MP
• 3 MP
• 1080p
• UXGA
• 720p
• VGA
• 4CIF
• DCIF
• 2CIF
• CIF
• QCIF

Network

Remote Access
Remote Connections: 128

Network Protocols

• TCP/IP
• DHCP
• IPv4
• IPv6
• DNS
• DDNS
• NTP
• RTSP
• SADP
• SMTP
• SNMP
• NFS
• iSCSI
• ISUP
• UPnP
• HTTP
• HTTPS
• ONVIF Version 2.2
• OTAP

API Support
API: ONVIF (Profile S/G), SDK, ISAPI

Browser Compatibility

• Internet Explorer 11
• Chrome 57 and Above
• Firefox 52 and Above
• Safari 12 and Above
• Edge 89 and Above

Network Interfaces

• 2 × RJ45 10/100/1000 Mbps Self-Adaptive Ethernet Interfaces

Camera Access Protocols

• ONVIF Version 2.5
• RTSP

Storage & Interfaces

Storage
SATA Interfaces: 4 × SATA (3.5-Inch HDD)
eSATA Interface: 1 × eSATA

Storage Capacity
Maximum HDD Capacity: Up to 16 TB per HDD

Serial Interfaces

• 1 × RS-232
• 1 × RS-485 (Full Duplex)

USB Interfaces

• Front Panel: 2 × USB 2.0
• Rear Panel: 1 × USB 3.0

Alarm Interfaces
Alarm Input: 16 Channels
Alarm Output: 4 Channels

General

Languages

• English
• Russian
• Bulgarian
• Hungarian
• Greek
• German
• Italian
• Czech
• Slovak
• French
• Polish
• Dutch
• Portuguese
• Spanish
• Romanian
• Turkish
• Japanese
• Danish
• Swedish
• Norwegian
• Finnish
• Korean
• Traditional Chinese
• Thai
• Estonian
• Vietnamese
• Croatian
• Slovenian
• Serbian
• Latvian
• Lithuanian
• Uzbek
• Kazakh
• Arabic
• Ukrainian
• Kyrgyz
• Brazilian Portuguese
• Indonesian

Power
Power Supply: 100 to 240 VAC, 50 to 60 Hz
Power Consumption: ≤ 50 W (Without HDD)

Environmental Conditions
Working Temperature: -10°C to 55°C
Working Humidity: 10% to 90%

Physical Specifications
Dimensions: 445 × 400 × 71 mm
Weight: ≤ 5 kg (Without HDD)

Certifications

Compliance Certifications

• CE
• FCC
• IC
• CB
• KC
• UL
• RoHS
• REACH
• WEEE
• RCM
• UKCA
• LOA
• BIS

FCC Compliance
FCC Standard: Part 15 Subpart B, ANSI C63.4-2014

CE Compliance

• EN 55032:2015+A1:2020
• EN IEC 61000-3-2:2019+A1:2021
• EN 61000-3-3:2013+A1:2019
• EN 50130-4:2011+A1:2014
• EN 55035:2017+A11:2020
