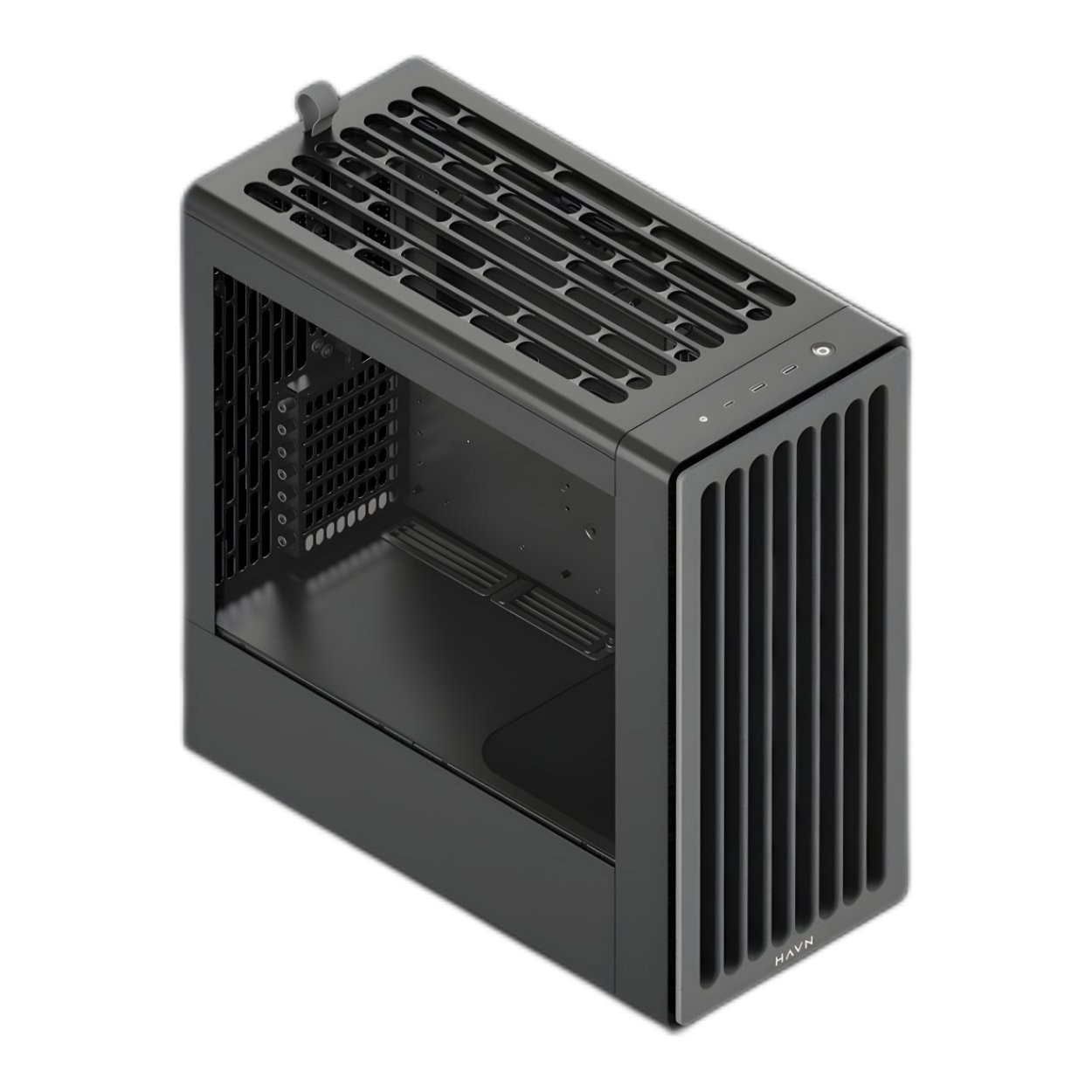

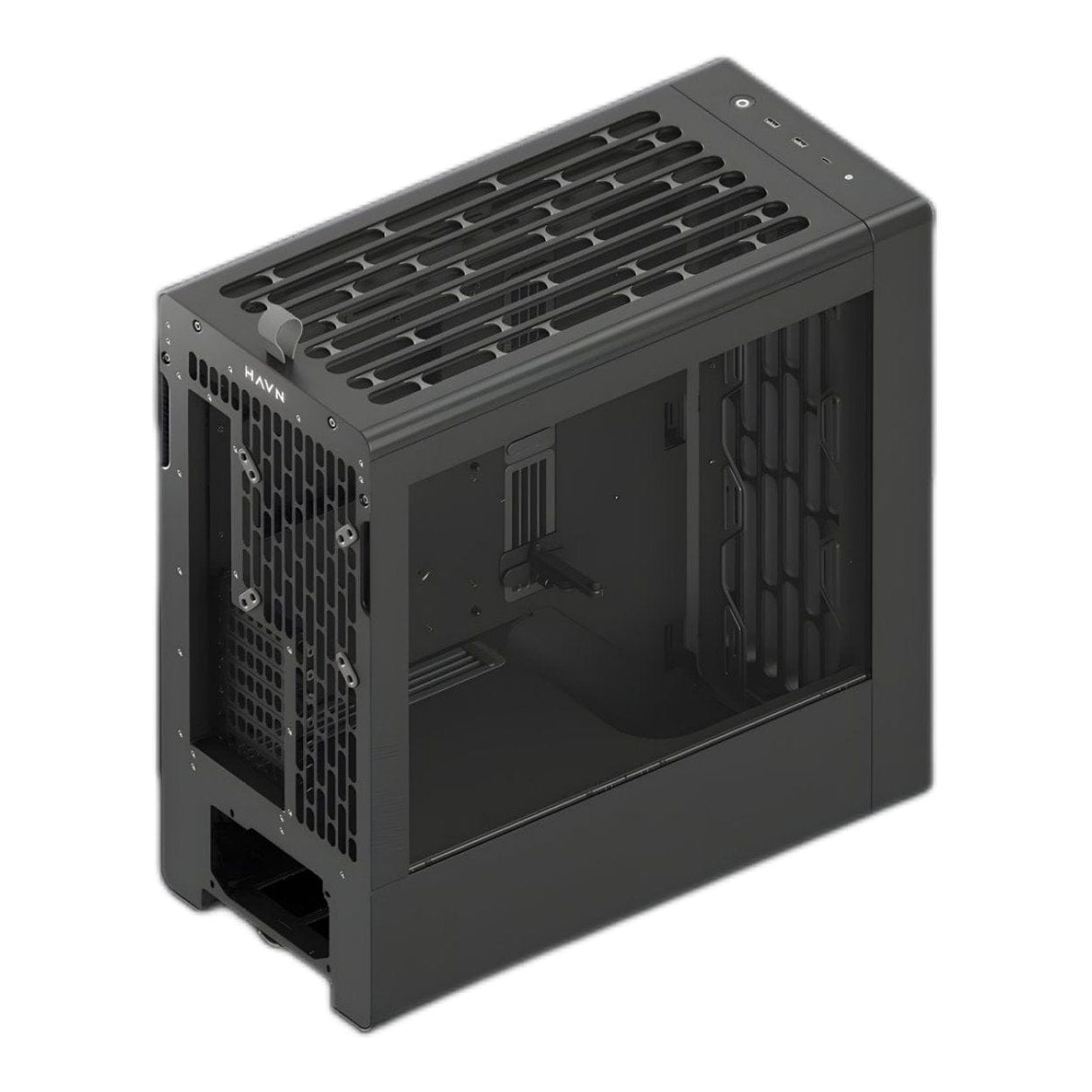

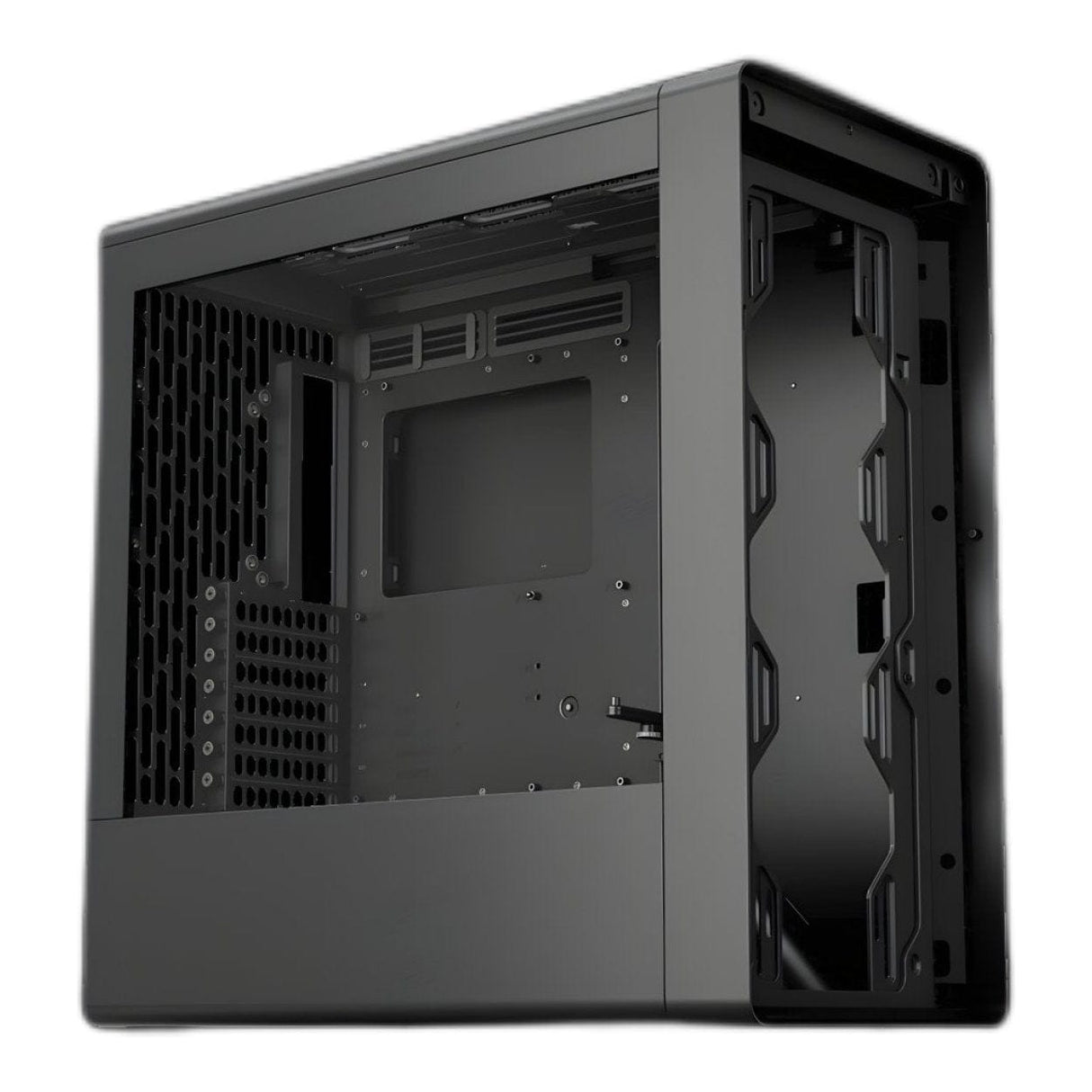

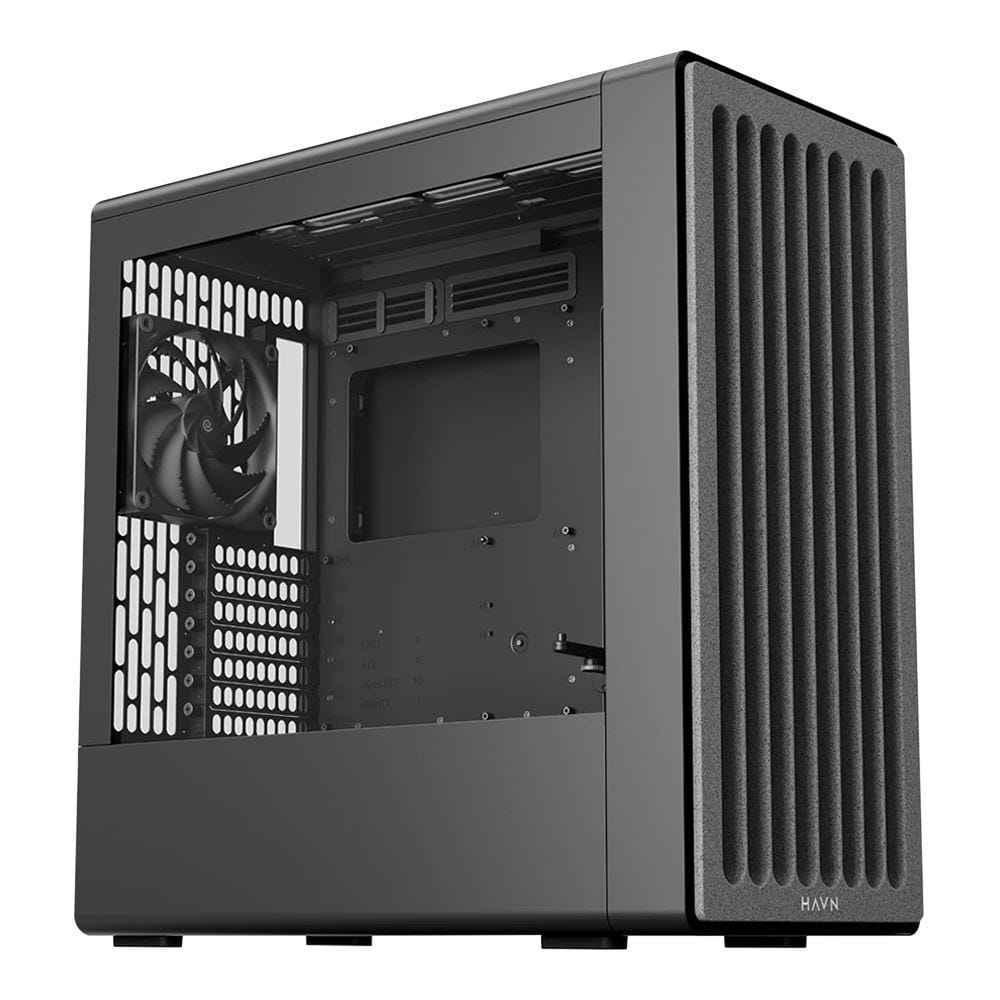

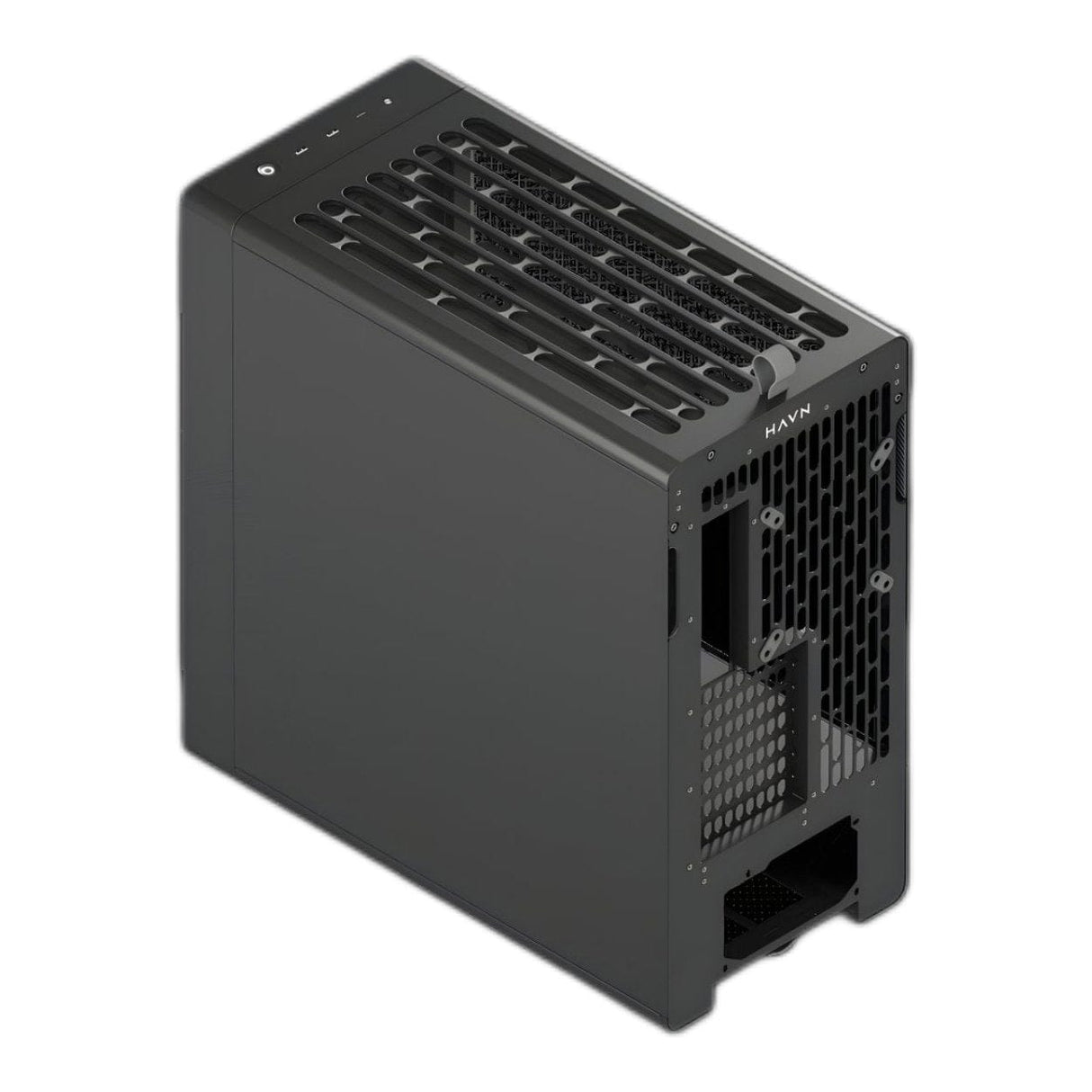

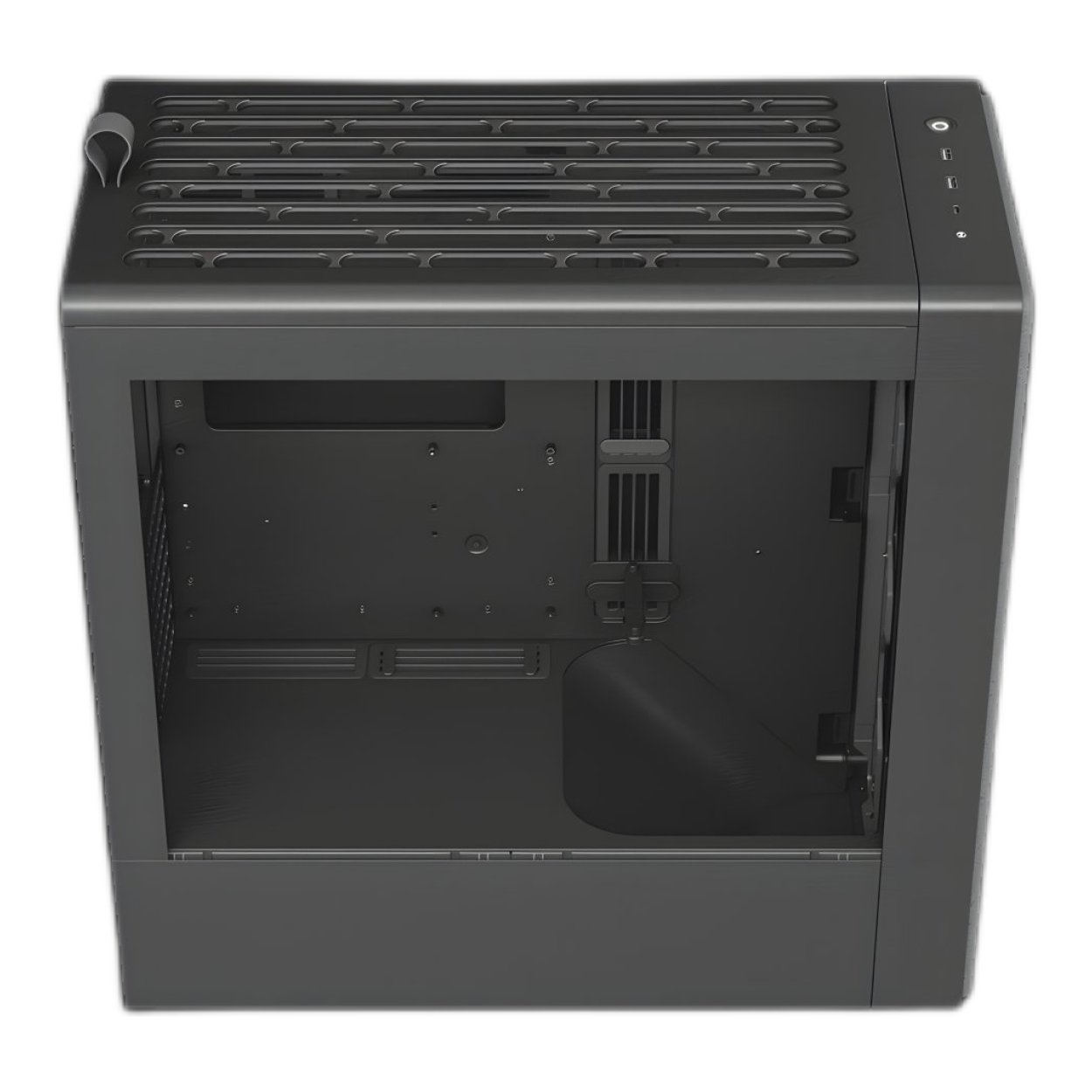

HAVN BF 360 Tempered Glass E-ATX Mid Tower Gaming PC Case Black HVN-CA-BF360-02

HAVN BF 360 Tempered Glass E-ATX Mid Tower Gaming PC Case Black HVN-CA-BF360-02

GPU-Focused Air Guide Ramp

Keeps graphics cards cool under heavy loads.

Features:

• ATX mid tower with GPU air guide ramp and support for 120 to 180 mm fans.
• Semi open frame design for smooth assembly and optimized airflow.
• Minimalist stone textured front panel finish with clean SimpliCable routing system.

Precision Aerodynamic Design

Optimized airflow delivers efficient GPU cooling.

Semi-Open Frame Access

Easier upgrades and improved cooling efficiency.

Highly Adjustable GPU Support

Neatly hidden bracket stabilizes heavy GPUs.

Stone-Textured Front Panel

Minimalistic stone-textured finish for premium aesthetic.

Choose Your Style

Available as BF 360 and BF 360 Flow, both in clean white or sleek black to match your build. Choose your look without sacrificing performance.

Technical Specifications:

Form Factor
Mid Tower

Materials
SGCC sheet metal
Tempered glass
ABS
Nylon
Silicon
Zinc alloy
NdFeB magnets

Case Dimensions (L × W × H)
515 × 254 × 522.6 mm

Net Weight
13.63 kg

Warranty
1 Year

Warranty Notice
Warranty support is only available for orders shipped within the United States
Orders via forwarding services are not supported
Please review the full warranty terms for more information

Front I/O Ports

• USB 3.2 Gen 2 Type-C ×1
• USB 3.2 Gen 1 Type-A ×2
• Audio Jack ×1
• Power & Reset Button ×1

Motherboard Support
E-ATX*
ATX
Micro-ATX
Mini-ITX

*To install an E-ATX motherboard, the built-in GPU support bracket must be removed

Expansion Slots
7

Fan Support
Maximum Supported Fans: 7

Top:

• 2 × 180 mm
• 2 × 140 mm
• 3 × 120 mm

Front:

• 2 × 180 mm
• 3 × 140 mm
• 3 × 120 mm

Rear:

• 1 × 140 mm
• 1 × 120 mm

Fan PWM Repeater
Fan Ports: 1 × PWM repeater, 6 ports total
Location: Cable management tray
Fan Connector Type: 4-pin PWM
Rated Voltage: 12V
Safety Current: Up to 2.6A across 6 ports
Power Connector: 1 × SATA power
Power Safety Current: 12V → 2.6A (max)

CPU Cooler Clearance
Maximum Height: 195 mm

Liquid Cooling Support
Top Radiator: 240 / 280 / 360 mm
Front Radiator: 240 / 280 / 360 / 420 mm
Maximum AIO Thickness: 60 mm

Graphics Card Clearance
Maximum Length: 410 mm
Maximum Width: 195 mm

GPU Support
Up to 4.5-slot GPUs

RAM Clearance
With radiator & fan thickness over 80 mm:

• 280 mm radiator: reduce by 40 mm
• 360 mm radiator: reduce by 60 mm

Power Supply Support
ATX
Maximum Length: 200 mm
Total Clearance: 260 mm

Storage Support
Right Mount:

• 2 × 3.5"
• 4 × 2.5"

Cable Management Tray:

• 1 × 3.5"
• 2 × 2.5"

Included Storage Bays:

2 × (2 × 3.5" / 4 × 2.5")

Dust Filters
Front: Built-in
Top: Built-in
Rear Bottom: Removable
