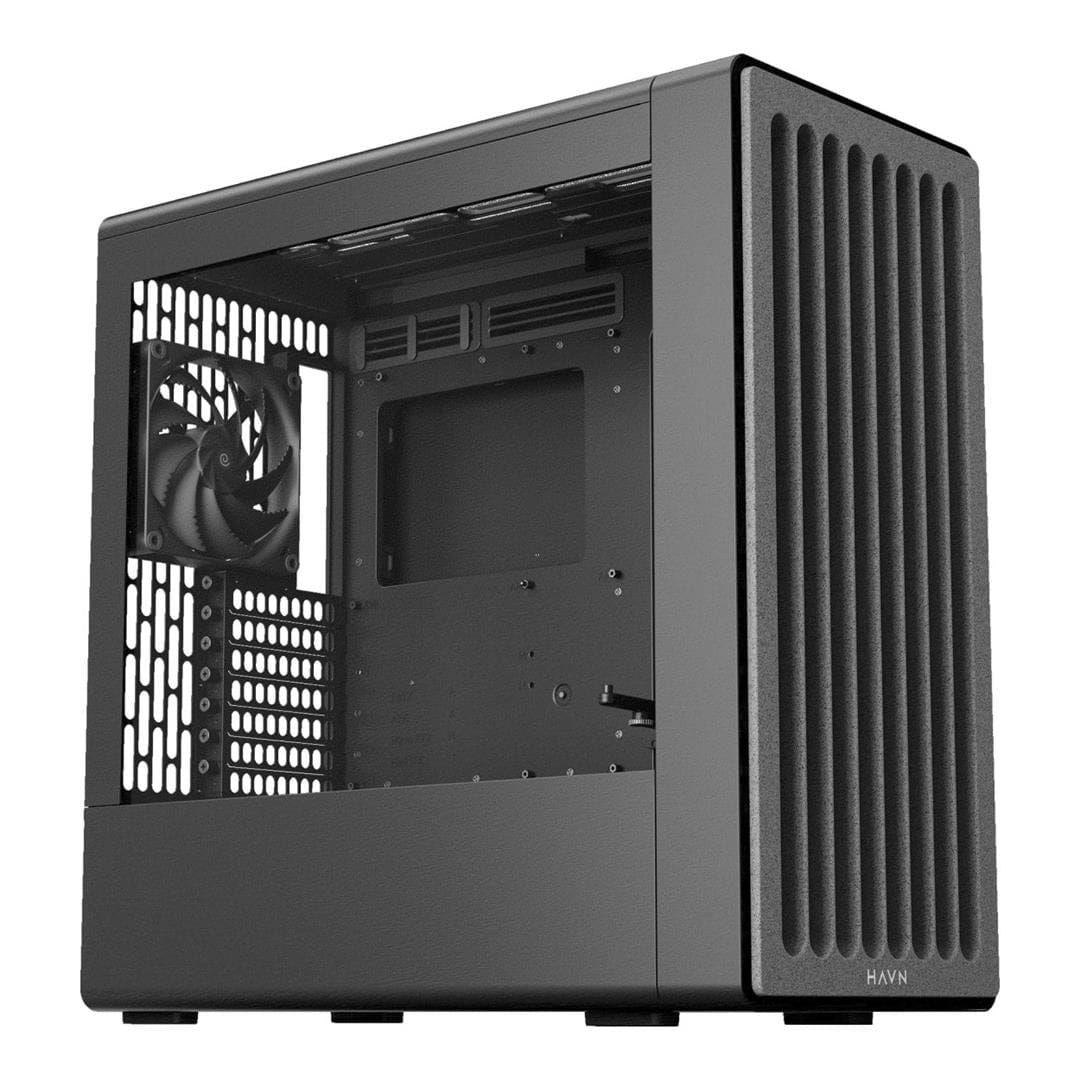

HAVN BF 360 Flow Tempered Glass E-ATX Mid Tower Gaming PC Case Black HVN-CA-BF360-04

HAVN BF 360 Flow Tempered Glass E-ATX Mid Tower Gaming PC Case Black HVN-CA-BF360-04

GPU-Focused Air Guide Ramp

Channels airflow directly to graphics card intake.

Features:

• High-airflow ATX mid-tower with GPU-focused air guide ramp and dual 180mm fans.
• Ultra-quiet operation with premium FDB bearings and vibration isolation.
• Minimalistic stone-textured front panel with SimpliCable routing system for a cleaner build.

Precision Aerodynamic Design

Optimized airflow delivers efficient GPU cooling.

Semi-Open Frame Access

Easier upgrades and improved cooling efficiency.

Highly Adjustable GPU Support

Neatly hidden bracket stabilizes heavy GPUs.

Dual 180mm H18 Fans

Maximum airflow capacity for high-end GPUs.

Triple-Groove FDB Bearings

Long-lasting, whisper-quiet fan operation.

Stone-Textured Front Panel

Minimalistic stone-textured finish for premium aesthetic.

Choose Your Style

Available as BF 360 and BF 360 Flow, both in clean white or sleek black to match your build. Choose your look without sacrificing performance.

Technical Specifications:

Form Factor
Mid Tower

Materials
SGCC sheet metal
Tempered glass
ABS
Nylon
Silicon
Zinc alloy
NdFeB magnets

PC Case Dimensions (L × W × H)
515 × 254 × 522.6 mm

Net Weight
14.79 kg

Warranty
1 year

Warranty Notice
Warranty support is only available for orders shipped within the United States
Orders via forwarding services are not supported
Please review the full warranty terms for more information

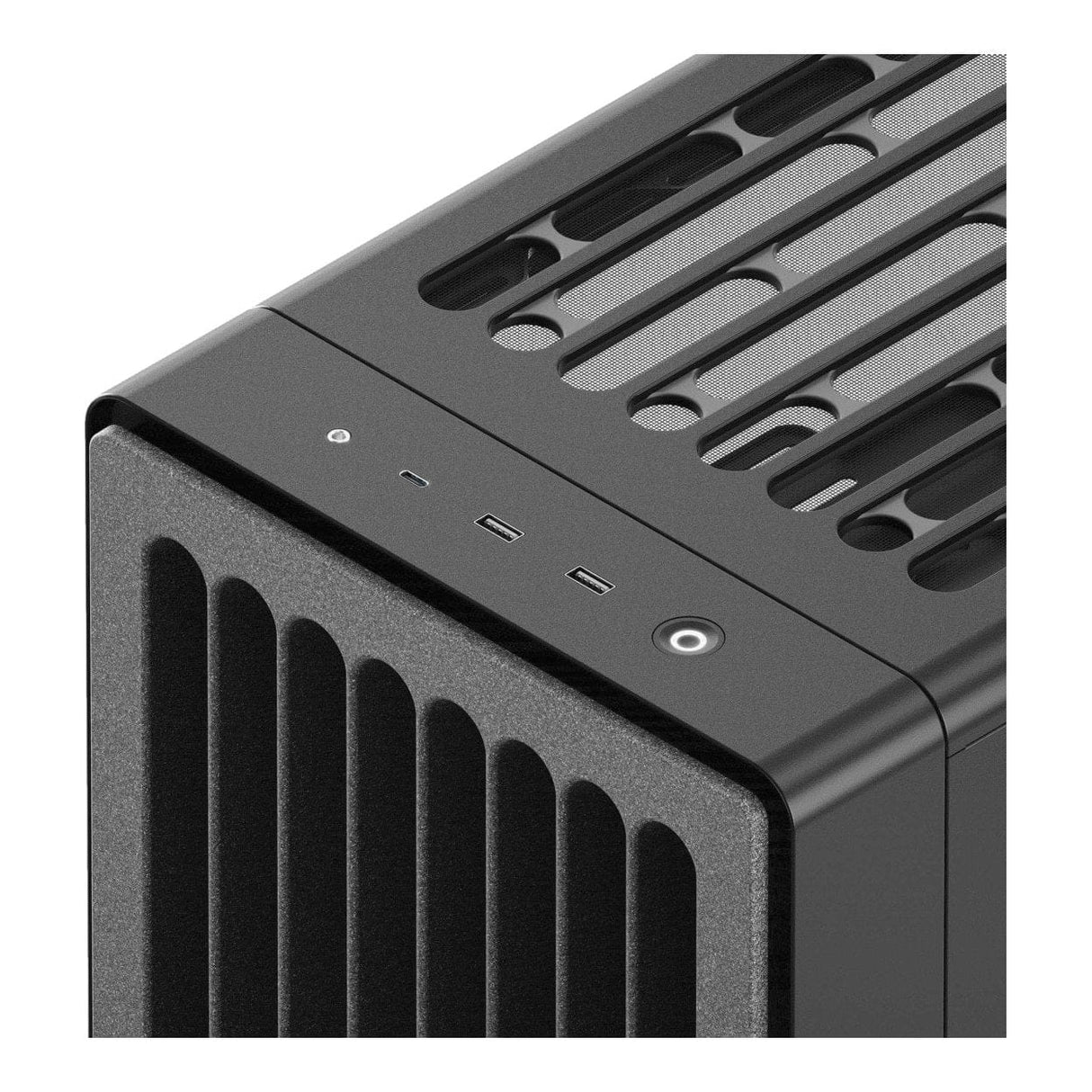

Front I/O Ports

• USB 3.2 Gen 2 Type-C ×1
• USB 3.2 Gen 1 Type-A ×2
• Audio Jack ×1
• Power & Reset Button ×1

Motherboard Support
E-ATX*
ATX
Micro-ATX
ITX

*To install an E-ATX motherboard, the built-in GPU support bracket must be removed

Expansion Slots
7

Fan Support
Maximum supported fans: 6

Top support:
2 × 180 mm
2 × 140 mm
3 × 120 mm

Front support:
2 × 180 mm

Rear support:
1 × 140 mm
1 × 120 mm

Fan PWM Repeater
Repeater quantity: 1
Total fan ports: 6
Location: Cable management tray
Connector type: 4-pin PWM
Rated voltage: 12V
Safety current: Up to 2.6A across 6 ports
Power connector: 1 × SATA power
Power safety current: 12V → 2.6A (max)

CPU Tower Cooler Clearance
Up to 195 mm

Liquid Cooling Support
Top radiator support: 240 / 280 / 360 mm
Maximum AIO thickness: Up to 60 mm

Graphics Card Clearance
Maximum length: Up to 410 mm
Maximum width: Up to 195 mm

GPU Support
1 – 4.5 slot GPUs

RAM Clearance
If radiator and fan thickness exceeds 80 mm:
280 mm radiator: reduce clearance by 40 mm
360 mm radiator: reduce clearance by 60 mm

Power Supply Support
ATX
Maximum PSU length: Up to 200 mm
Total clearance: Up to 260 mm

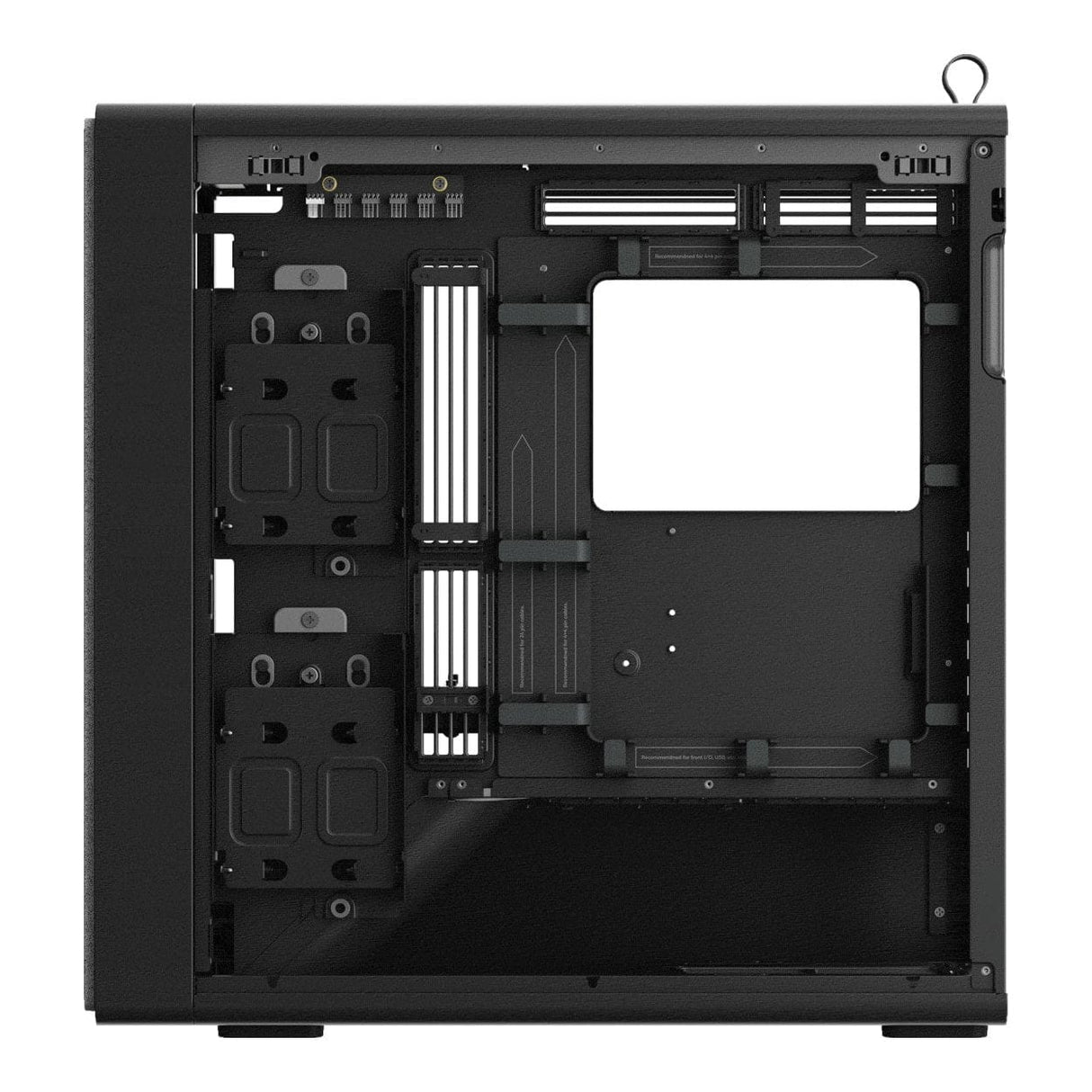

Storage Support
Right mount storage bays:
2 × 3.5"
4 × 2.5"

Cable management tray storage bay:
1 × 3.5"
2 × 2.5"

Included storage bays:
2 × (2 × 3.5" / 4 × 2.5")

Dust Filters
Front: Built-in
Top: Built-in
Rear bottom: Removable

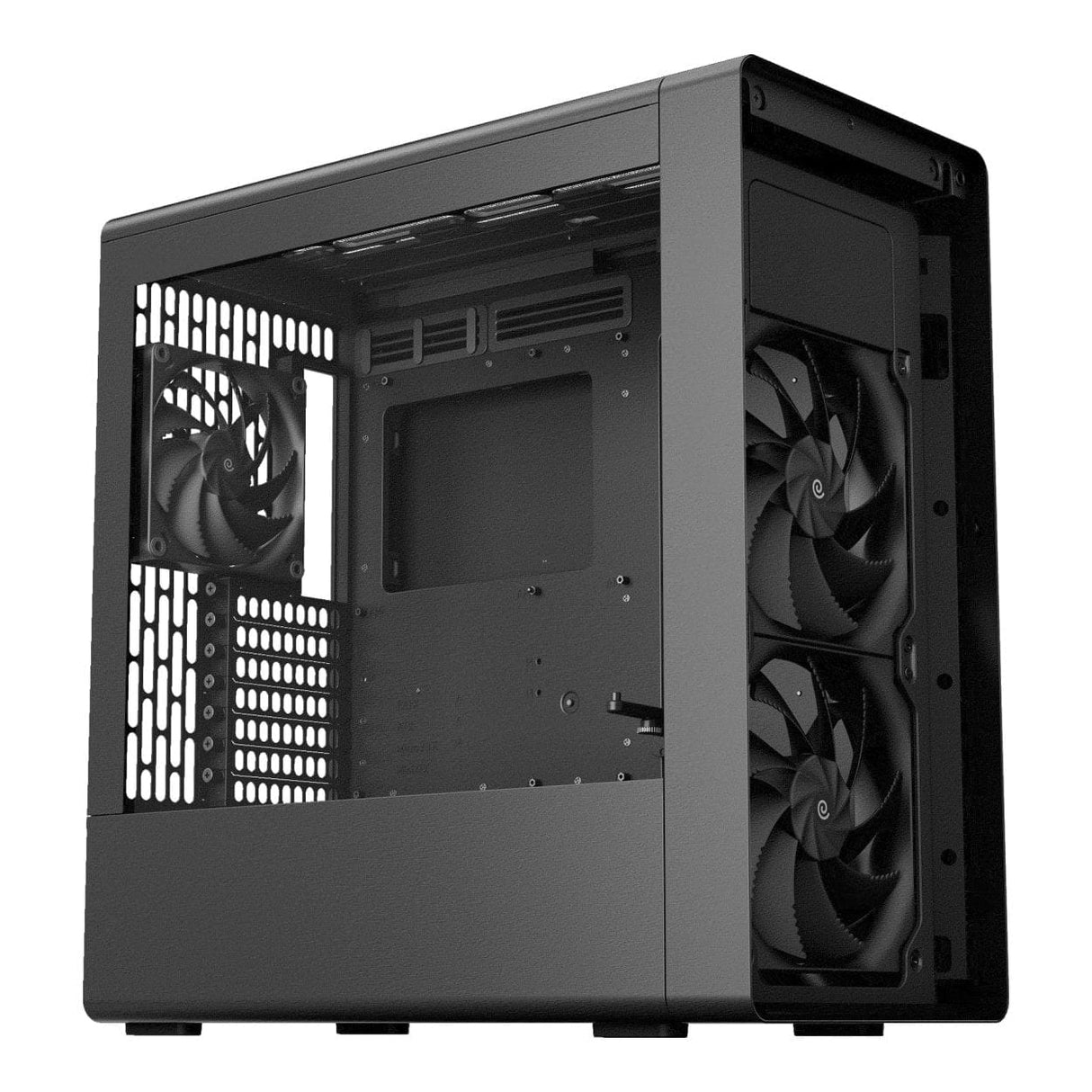

Pre-installed Fans
Front: 2 × H18 fans (Case Version)
Rear: 1 × H14 fan (Case Version)

Additional Notes
The Loopin™ System is available on the Retail Version only
Pre-installed case fans use single-female fan connectors
