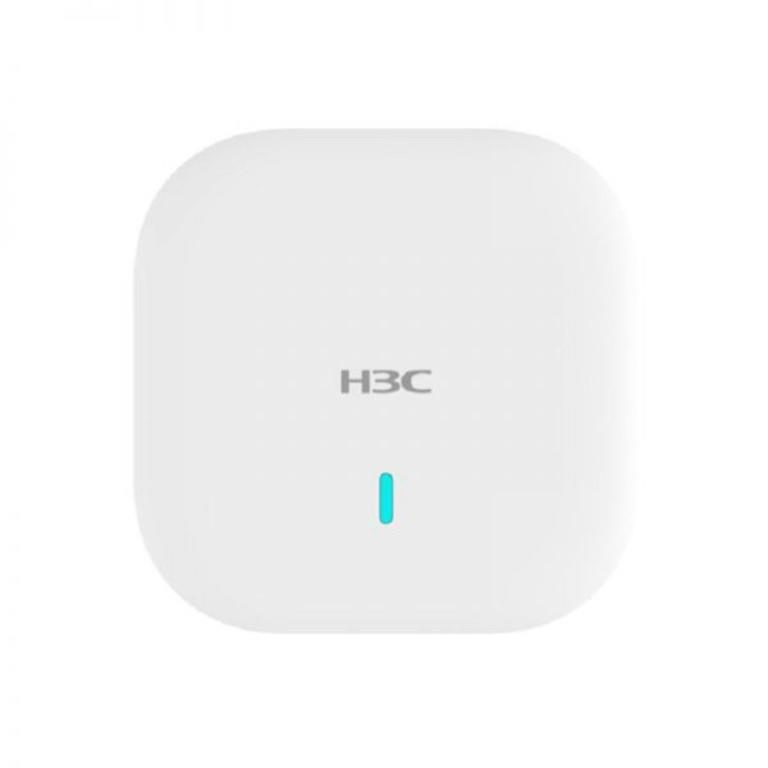

H3C WA6330 PoE Wi-Fi Access Point White 9801A23V

H3C WA6330 PoE Wi-Fi Access Point White

WA6330 Internal Antennas 6 Streams Triple Radio 802.11ax/ac/n Access Point

• AP Working Mode: Fit/Anchor/Cloud/Fat
• H3C Oasis platform CoudNet for easy maintenance and management

Transmission speed is at least 2 times faster than 802.11ac products.

Specifications:

• Ethernet ports: Two（one for 100/1000M/2.5G Rj45，one for 10/100/1000M Rj45 support IoT）, support LACP.
• PoE: Port1: 802.3at,802.3af
• Local Power supply: 54V DC
• Console port: One（RJ-45）, One USB 2.0 interface
• Built-in Bluetooth: Built-in Bluetooth 4.0，Support iBeacon standard
• IoT Extension: Support BLE、RFID、ZigBee,etc.

Built-in antenna

• Built-in omni-directional antenna
• Radio 1 : 5dBi antenna gain @ 5G
• Radio 2 : 5dBi antenna gain @ 5G
• Radio 3 : 5dBi antenna gain @ 2.4G or 5dBi antenna gain @ 5G

Working frequencies

• 802.11ax/ac/n/a : 5.725GHz-5.850GHz ; 5.47～5.725GHz; 5.15~5.35GHz
• 802.11ax/b/g/n : 2.4GHz-2.483GHz

Modulation technology

• OFDM : BPSK@6/9Mbps、QPSK@12/18Mbps、16-QAM@24Mbps、64- QAM@48/54Mbps
• DSSS : DBPSK@1Mbps、DQPSK@2Mbps、
• CCK@5.5/11Mbps (file://dbpsk@1mbps、dqpsk@2mbps、cck@5.5/11Mbps)
• MIMO-OFDM （11n）: MCS 0-31
• MIMO-OFDM （11ac）: MCS 0-11
• MIMO-OFDM （11ax）: MCS 0-11
