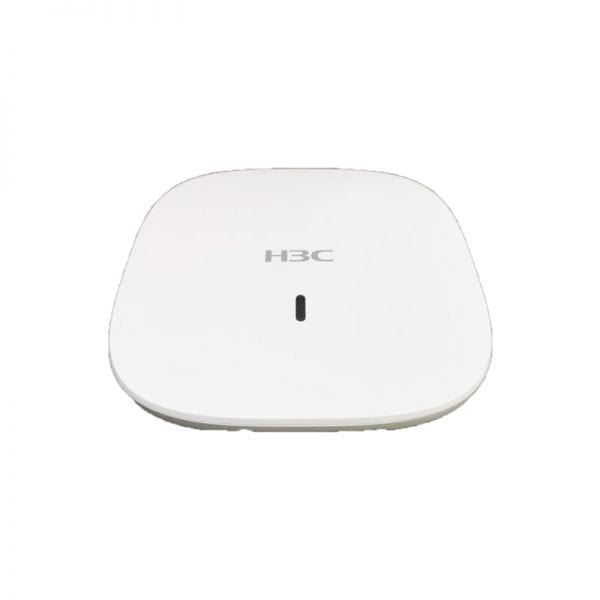

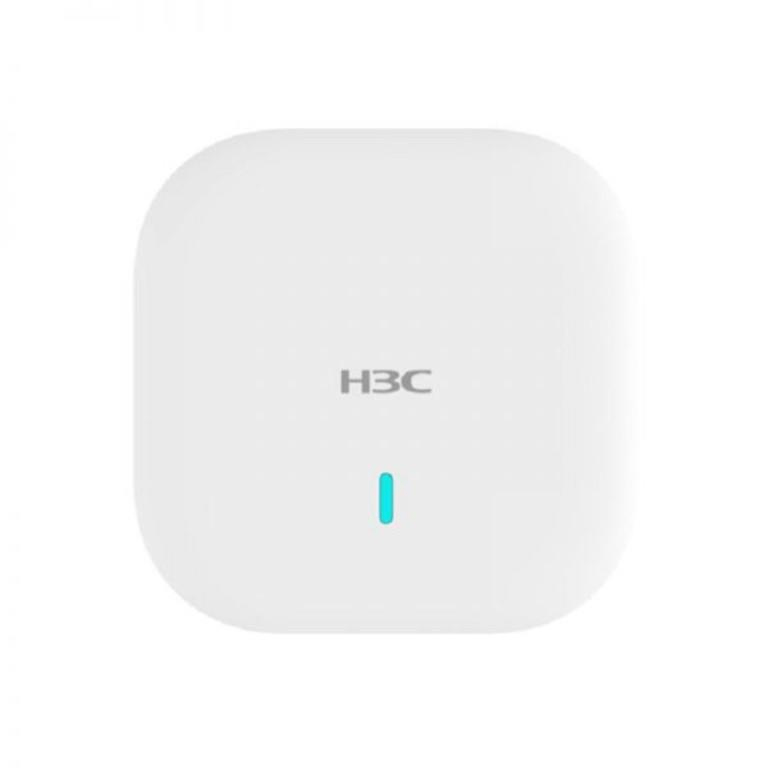

H3C WA6320 4 Streams Wi-Fi Access Point 9801A28N

H3C WA6320 4 Streams Wi-Fi Access Point

WA6320 Internal Antennas 4 Streams Dual Radio 802.11ax/ac/n Access Point, FIT

H3C WA6320 series access point is the latest generation wireless access point developed based on 802.11ax standard. They are designed with creative dual-radio 802.11ax technology standard respectively and provide a transmission speed at least 2 times faster than 802.11ac products.

• 802.11ax/ac/n/a : 5.725GHz-5.850GHz ; 5.47～5.725GHz; 5.15~5.35GHz
• 802.11ax/b/g/n : 2.4GHz-2.483GHz

Specifications:

• Ethernet ports: one for 100/1000M Rj45
• PoEPort1: 802.3af
• Local Power supply: 54V DC
• Console port: One（RJ-45
• Built-in antenna: Built-in omni-directional antenna 3dBi antenna gain @2.4GHz 5dBi antenna gain @5GHz.
• Built-in Bluetooth: Built-in Bluetooth 5.0(Support to switch RFID through software)，Support iBeacon standardWorking frequencies802.11ax/ac/n/a: 5.725GHz-5.850GHz ; 5.47～5.725GHz; 5.15~5.35GHz 802.11ax/b/g/n: 2.4GHz-2.483GHz

Modulation technology:

• OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps DSSS:DBPSK@1Mbps, DQPSK@2Mbps, CCK@5.5/11Mbps(file://dbpsk@1mbps, dqpsk@2mbps, cck@5.5/11Mbps) MIMO-OFDM （11n）: MCS 0-31 MIMO-OFDM （11ac）: MCS 0-11 MIMO-OFDM （11ax）: MCS 0-11
