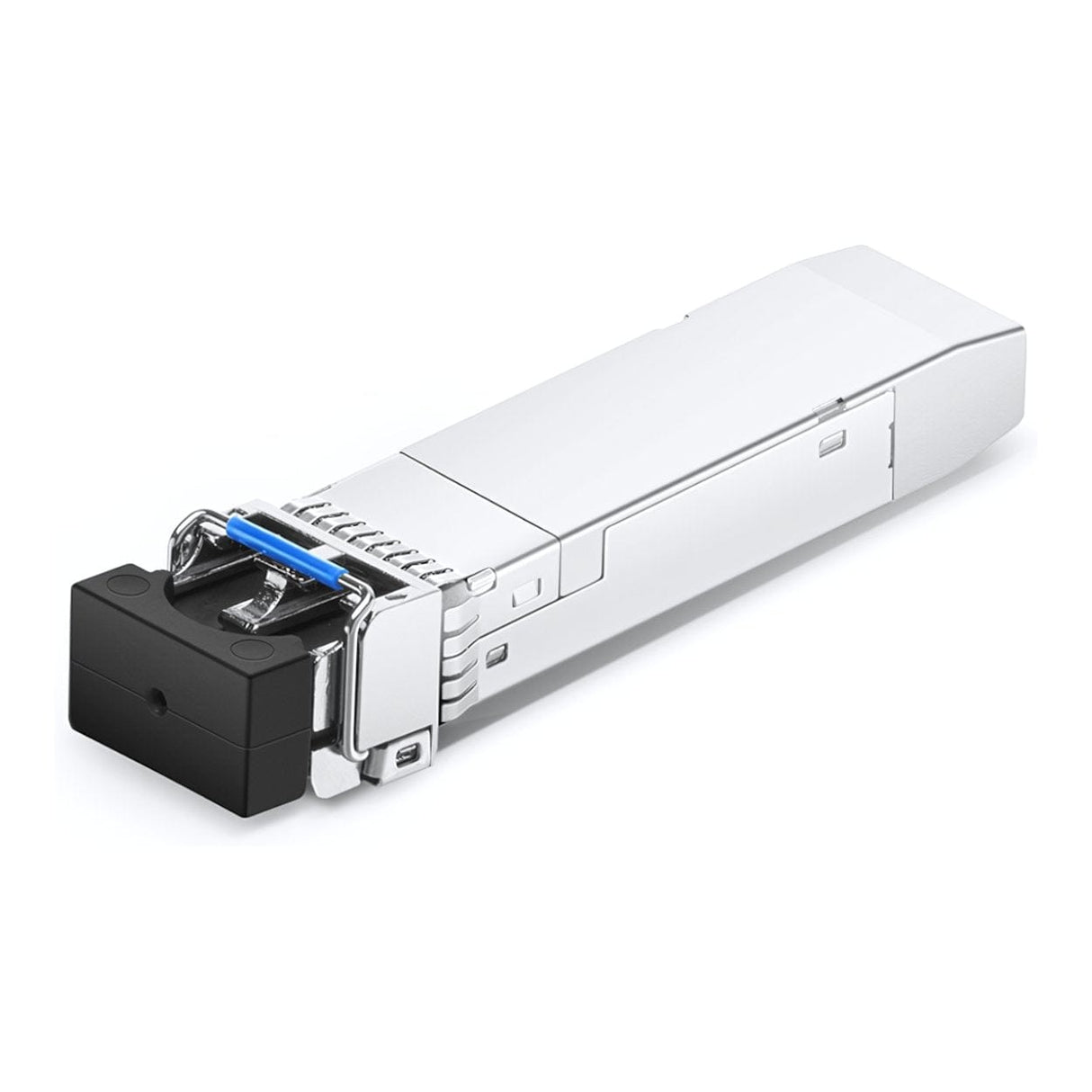

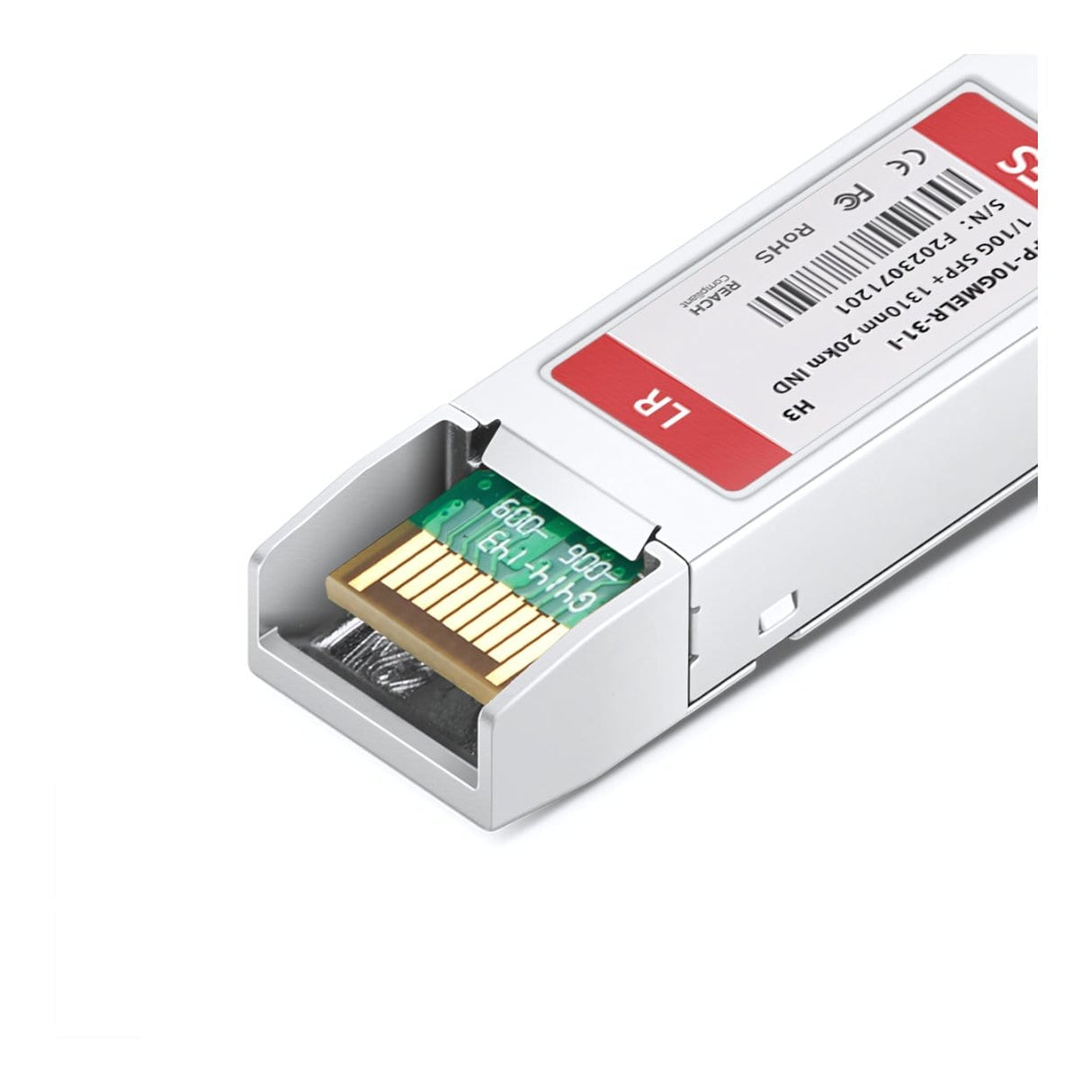

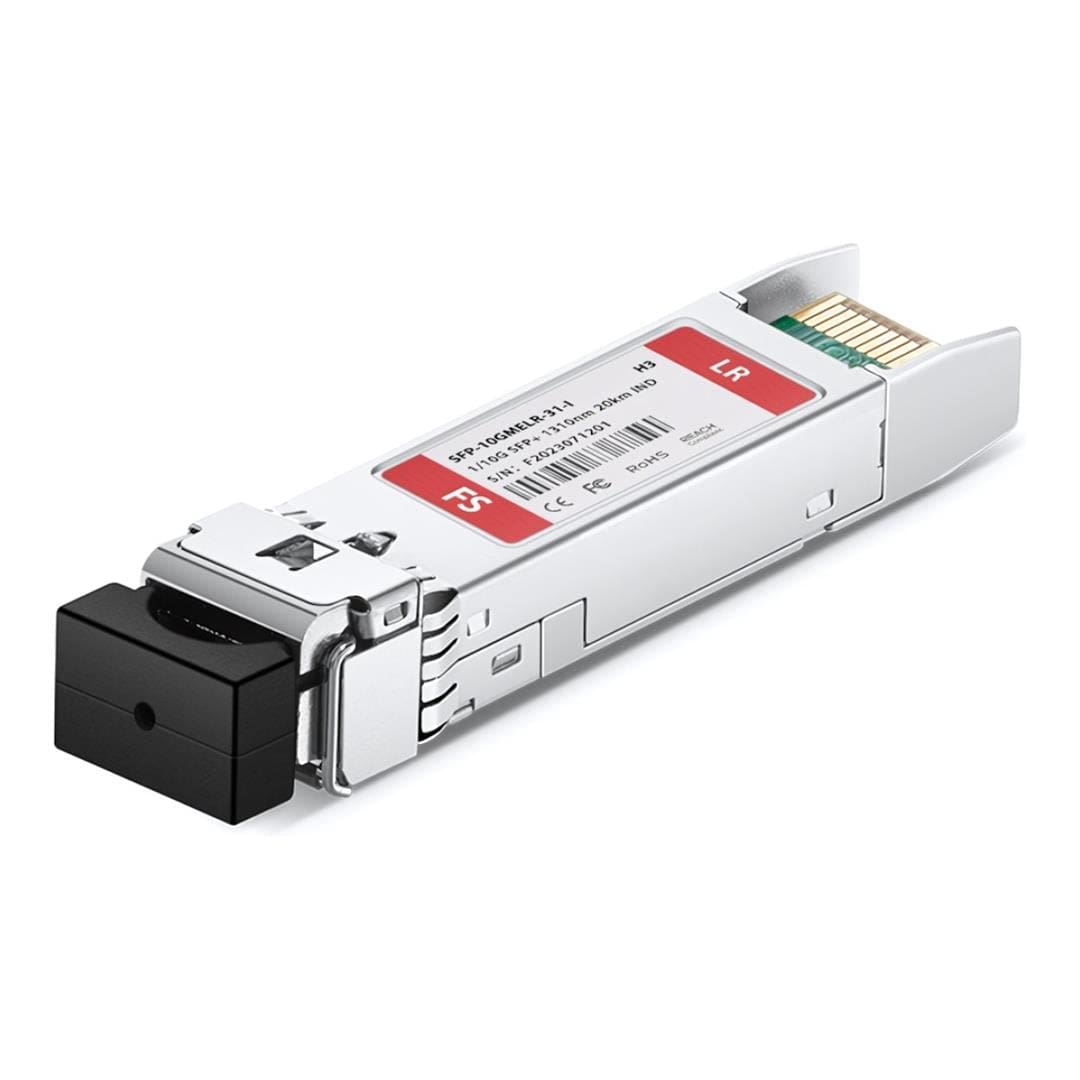

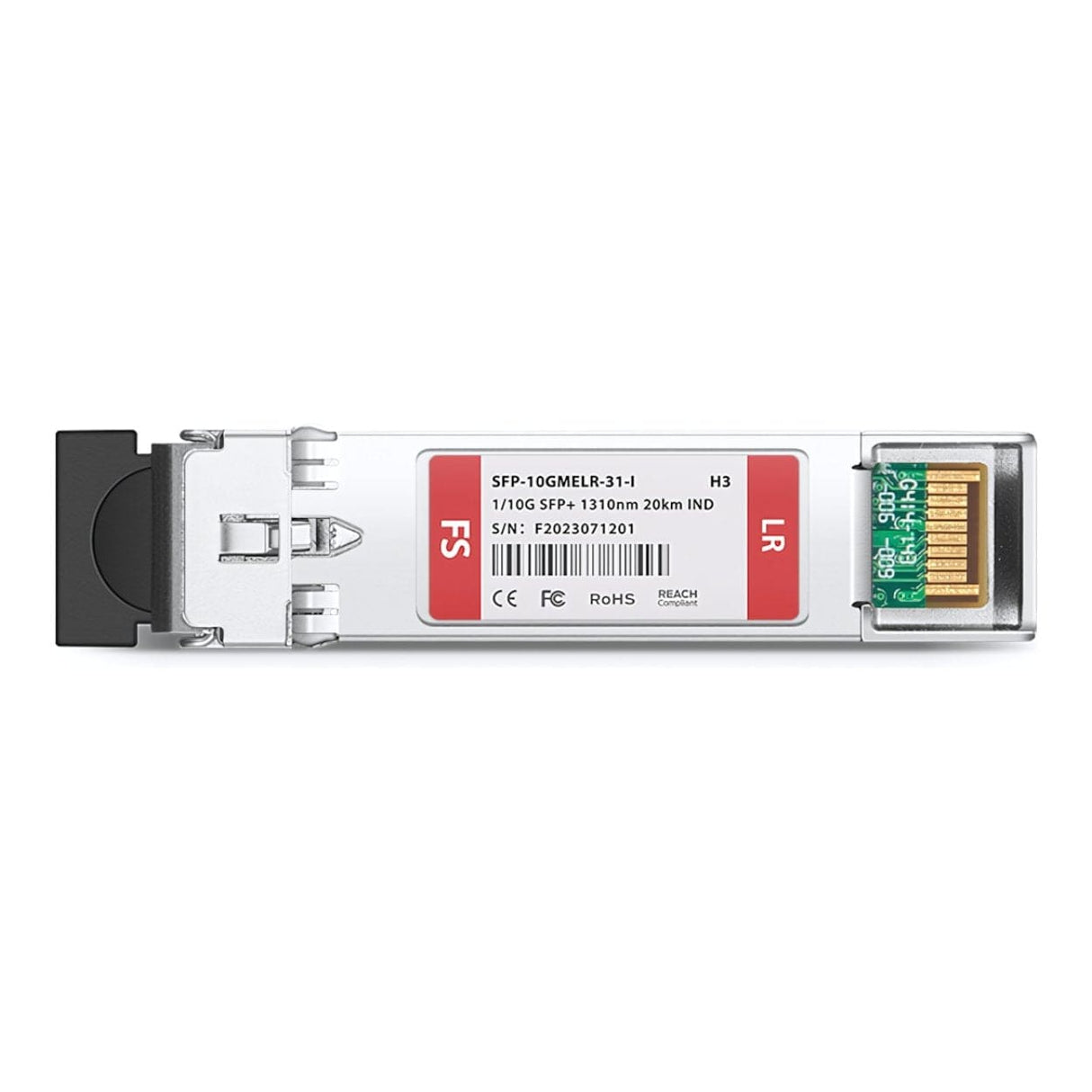

H3C SFP-XG-LX-SM1310 Compatible 10GBASE-LR SFP+ 1310nm 10km DOM Duplex LC/UPC SMF Optical Transceiver Module

H3C SFP-XG-LX-SM1310 Compatible 10GBASE-LR SFP+ 1310nm 10km DOM Duplex LC/UPC SMF Optical Transceiver Module

H3C SFP-XG-LX-SM1310 compatible SFP+ transceiver supports up to 10km link lengths over LC duplex SMF fiber. This transceiver is compliant with SFF-8431, SFF-8432 and IEEE 802.3ae standards. Digital diagnostics monitoring is available via a 2-wire serial interface, as specified in SFF-8472. Featuring low power consumption, high speed, this 10G SFP+ transceiver is ideal for data center, enterprise wiring closet, service provider transport application, Radio & Baseband Unit, etc.

Specifications

H3C Compatible

SFP-XG-LX-SM1310

Form Factor

SFP+

Max Data Rate

10.3125Gbps

Wavelength

1310nm

Max Cable Distance

10km

Connector

Duplex LC

Media

SMF

Transmitter Type

DFB

Receiver Type

PIN

TX Power

-8.2~0.5dBm

Receiver Sensitivity

<-14.4dBm

Power Budget

6.2dB

Receiver Overload

0.5dBm

Power Consumption

≤1W

Extinction Ratio

>3.5dB

Core Size

9/125µm

Modulation

NRZ

Commercial Temperature Range

0 to 70°C (32 to 158°F)

Protocols

IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA Compliant, CPRI, eCPRI
