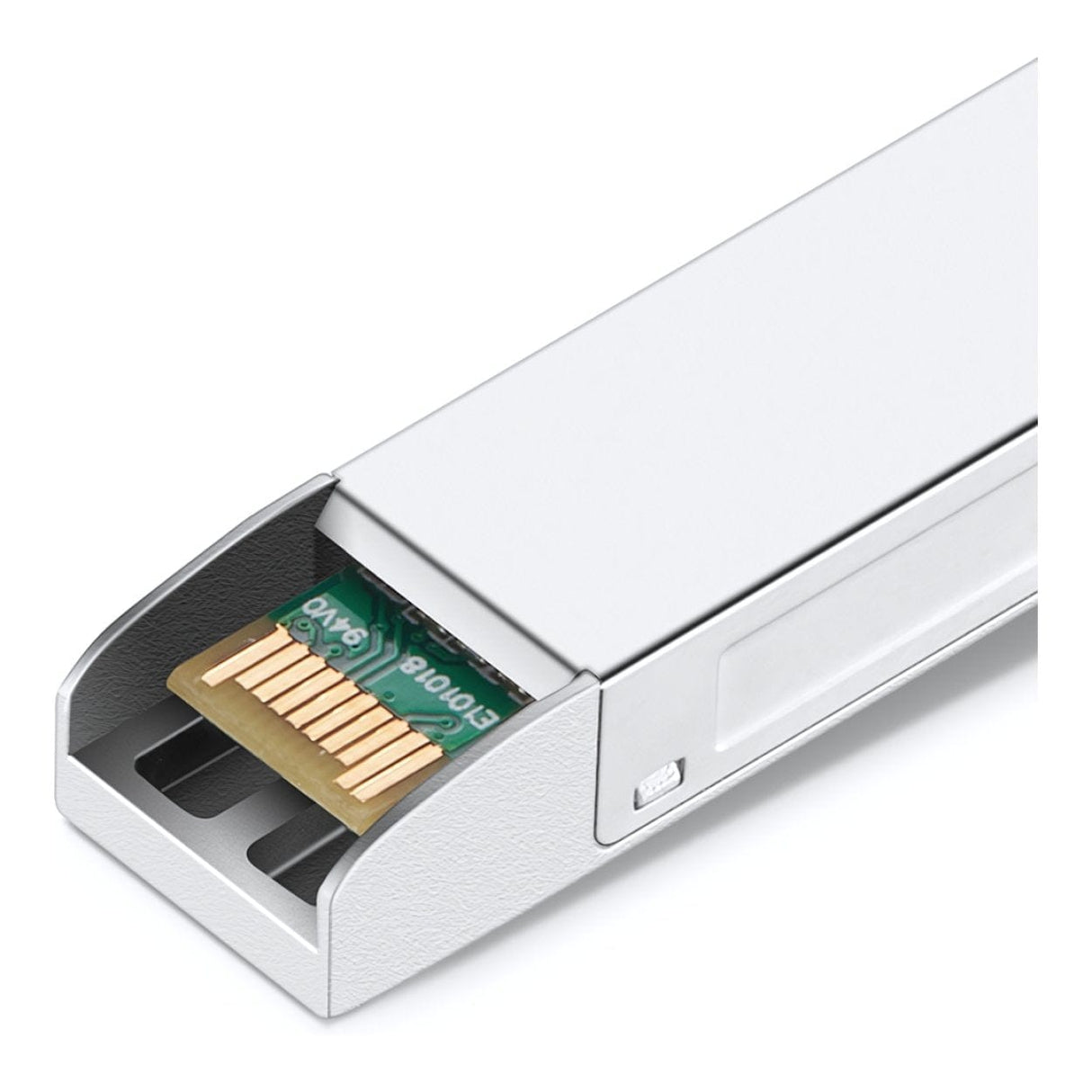

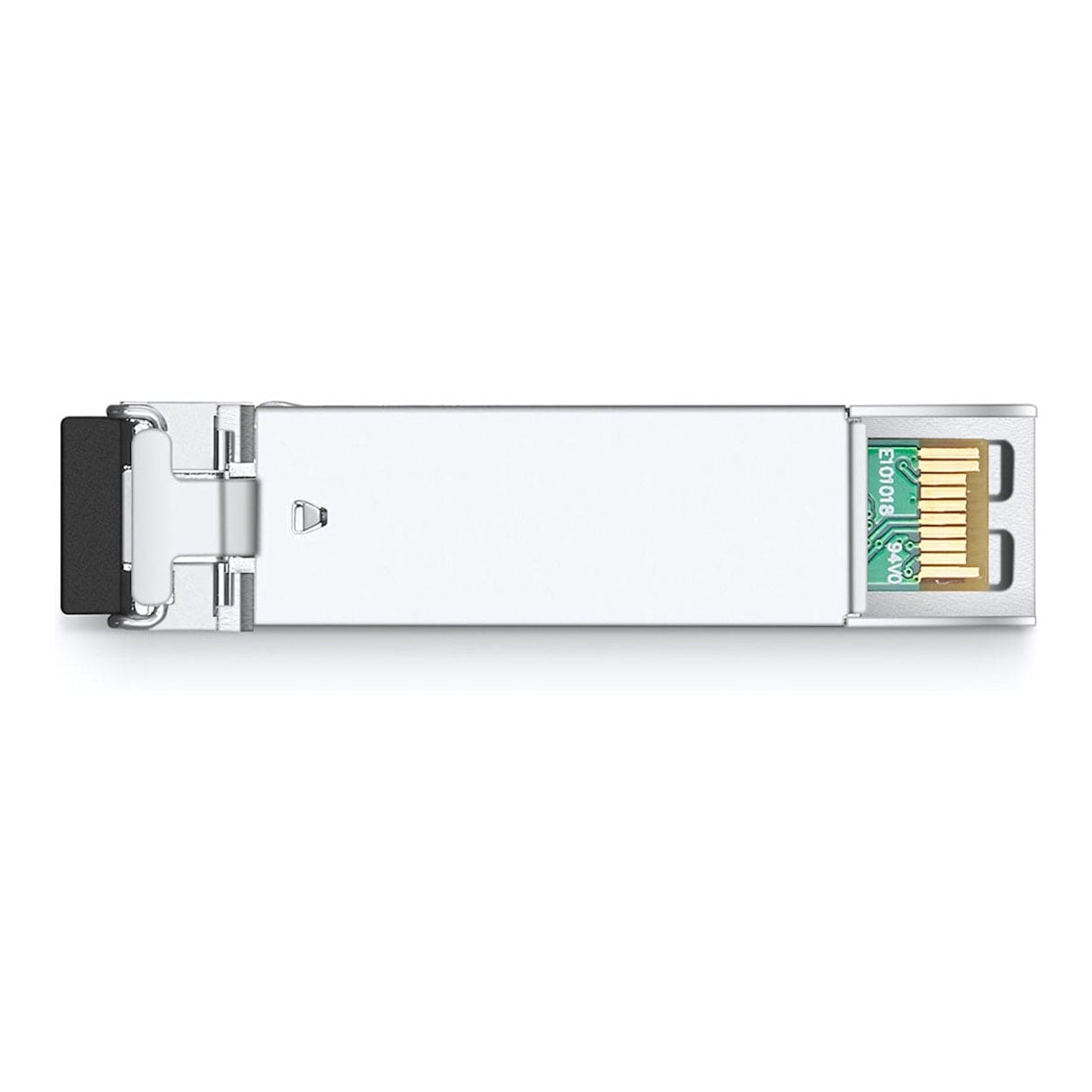

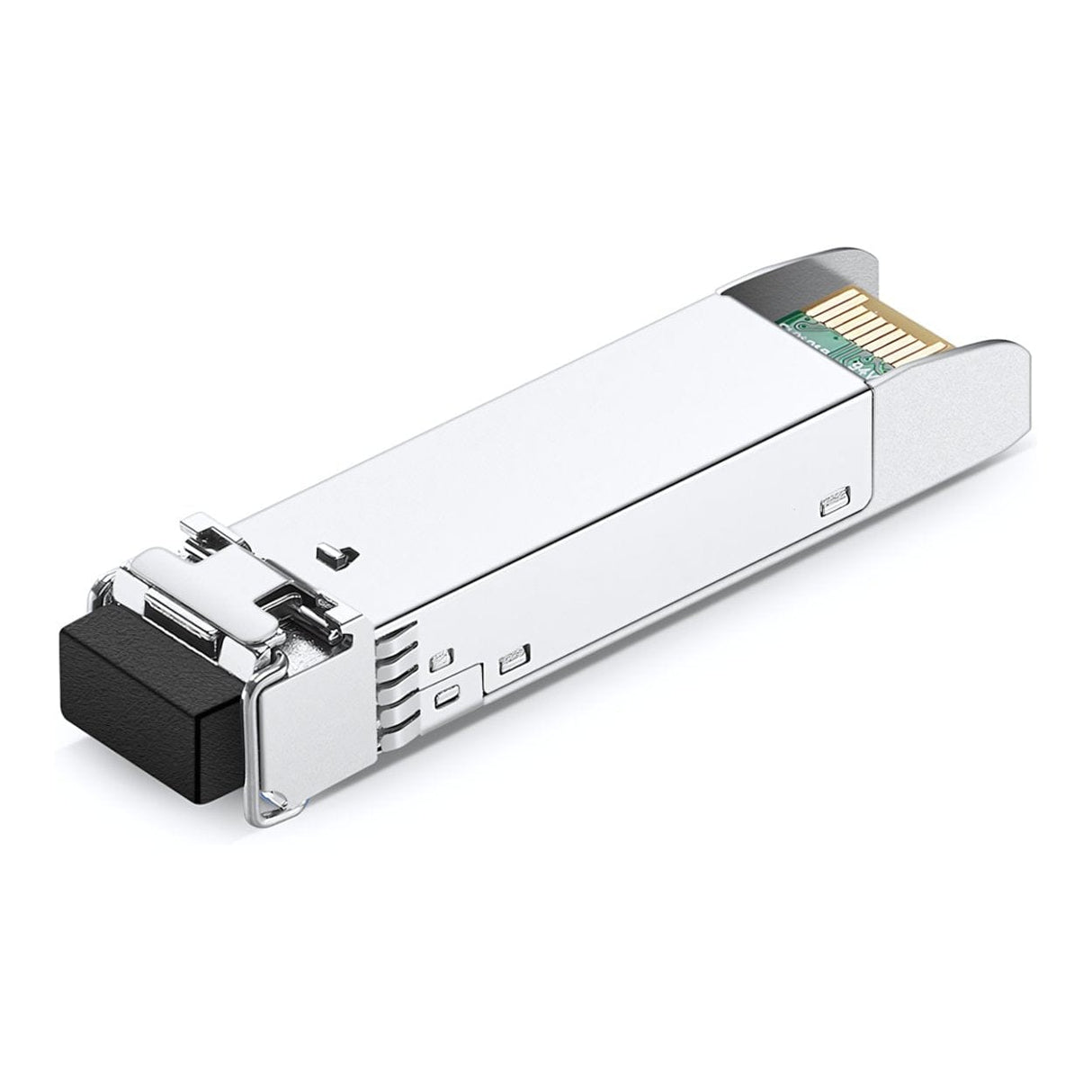

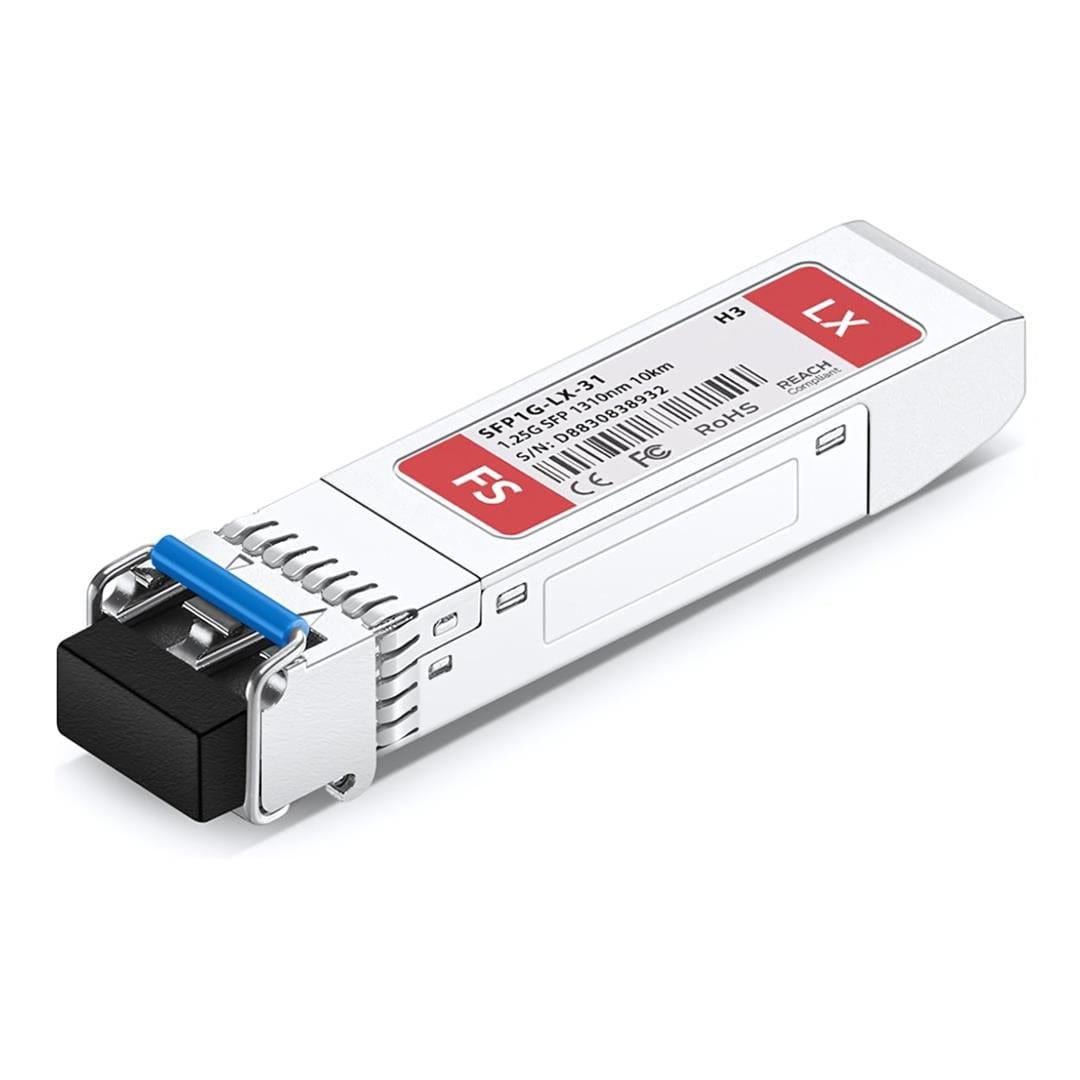

H3C SFP-GE-LX-SM1310-A Compatible 1000BASE-LX/LH SFP 1310nm 10km DOM Duplex LC/UPC SMF Optical Transceiver Module

H3C SFP-GE-LX-SM1310-A Compatible 1000BASE-LX/LH SFP 1310nm 10km DOM Duplex LC/UPC SMF Optical Transceiver Module

H3C SFP-GE-LX-SM1310-A compatible SFP transceiver supports up to 10km link lengths over LC duplex SMF fiber. Each SFP transceiver module is individually tested to be used on a series of H3C switches, routers, servers, network interface card (NICs) etc. Featuring low power consumption, the hot swappable 1G SFP transceiver is ideal for Internet Service Provider (ISP) Gigabit Ethernet communication links, Enterprise LAN & SAN Networks, Data Center LAN & SAN Networks and other optical links.

Specifications:

H3C Compatible

SFP-GE-LX-SM1310-A

Form Factor

SFP

Max. Data Rate

1.25Gbps

Wavelength

1310nm

Max. Cable Distance

10km@SMF

Connector

Duplex LC

Media

SMF

Transmitter Type

FP

Receiver Type

PIN

DDM/DOM

Supported

Commercial Temperature Range

0 to 70°C (32 to 158°F)

TX Power

-9.5 ~ -3dBm

Receiver Sensitivity

< -20dBm

Power Consumption

≤1W

Receiver Overload

-3dBm

Bit Error Ratio (BER)

1E-12

Extinction Ratio

>9dB

EMC (Electro Magnetic Compatibility)

Supported

MTBF (LX)

4,761,904 Hours

Protocols

IEEE 802.3ah-2004, IEEE 802.3z, SFF-8472, SFP MSA (INF-8074i) Compliant

Warranty

5 Years
