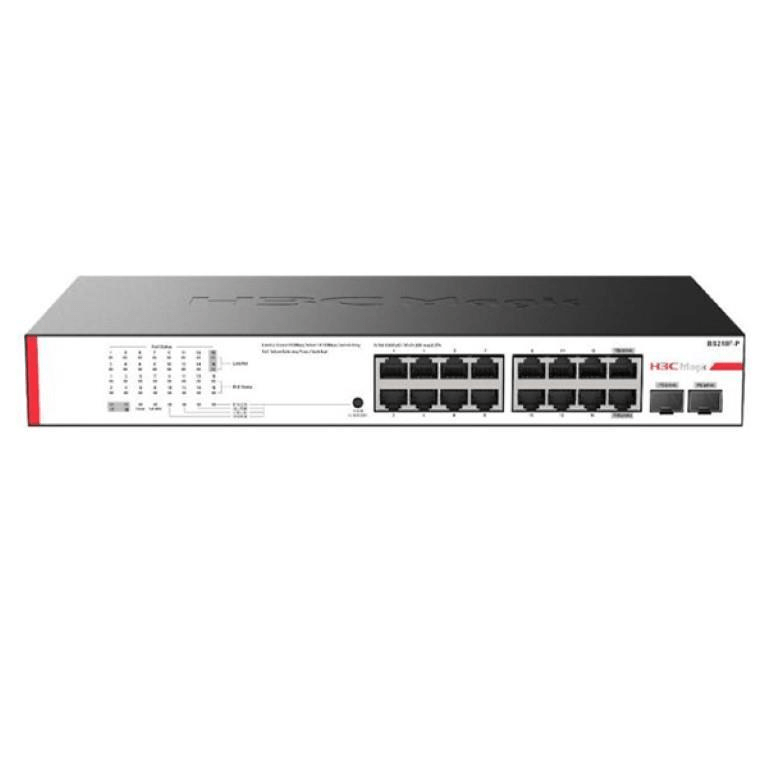

H3C Magic BS218F-HP 16-port Advanced POE Ethernet Switch

H3C Magic BS218F-HP 16-port Advanced POE Ethernet Switch

H3C Magic BS218F-HP is a new generation Gigabit unmanaged green PoE switch launched by H3C. It is easy to install, provides a rich set of features, and is widely used in small and medium-sized enterprises, commercial chains, hotels, campuses, and other scenarios.

PoE capable

The switch is PoE+ capable, delivering a total PoE output of 225 W and a maximum PoE output of 30 W on a single port. It uses an advanced PoE chip, ensuring high availability and compatibility.

Multiple working modes

The switch can operate in standard, isolation, aggregation, or clone mode and supports one-key switching of the working mode.

High performance

With a cache sharing architecture, the switch multiplies the available cashing space for each port, greatly enhancing the forwarding performance especially in the event of unexpected and sudden traffic bursts.

High reliability

Integrated with enterprise-level lightning protection circuit. Built with a high-voltage power supply.

Features:

• Operating mode
• Standard
• Isolation
• Aggregation
• Clone

Specifications:

• H3C Magic BS218F-High Power
• 18 Ports Gigabit Ethernet PoE Switch
• Dimensions (H W D): 44 440 210mm (1.73 17.32 8.27 in)
• Ports: 16 10/100/1000BASE-T copper ports (2 uplink ports), 2 1000BASE-X SFP ports (uplink ports)
• MAC address entries: 8K
• Switching capacity: 36 Gbps
• Forwarding capacity: 26.8 Mpps
• Packet caching: 4 Mb
• Switching mode: Store-and-forward switching
• PoE+
• PoE+ supported
• Supports PoE Power up to 225 W for all PoE ports(16 PoE ports)
• Supports PoE Power up to 30 W for each PoE port
• Power: 100 to 240V AC
• Auto-MDI/MDIX: Yes
• Cooling method: Fan cooling
• Operating temperature/storage temperature
• 0 C to 40 C (32 F to 104 F)/-40 C to +70 C (-40 F to +158 F)
• Operating humidity/storage humidity 5% to 95% RH, noncondensing
• Certification: CE,RoHS
• MTBF: > 50000 H
• Installation method: Rack-mount by using mounting brackets

In the Box:

• 1 x H3C Magic BS218F-HP Ethernet Switch (16GE+2SFP+PoE, AC)
