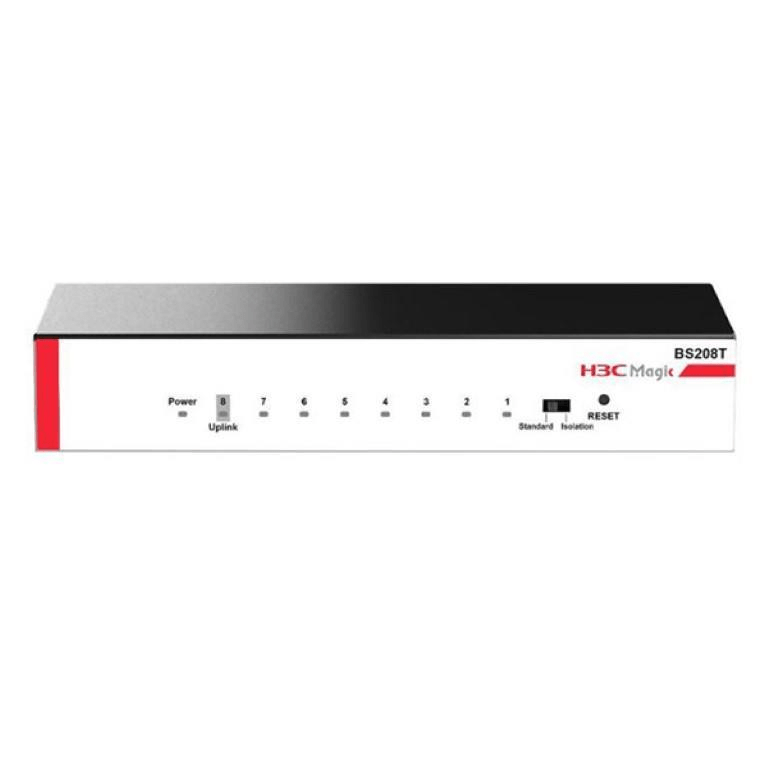

H3C Magic BS208T 8-port Advanced Gigabit Ethernet Switch

H3C Magic BS208T 8-port Advanced Gigabit Ethernet Switch

H3C Magic BS208T is a new generation of Gigabit unmanaged green switch launched by H3C. It is easy to install, provides a rich set of features, and is widely used in small and medium-sized enterprises, commercial chains, hotels, campuses, and other scenarios.

Multiple working modes

The switch can operate in standard and isolation working modes and supports one-key switching of the working mode.

High performance

With a buffer sharing architecture, the switch multiplies the available buffering space for each port, greatly enhancing the forwarding performance in the event of unexpected and sudden traffic bursts.

High reliability

Integrating enterprise-level lightning protection circuit into the switch protects the switch from lightning strikes and ensures reliable operation of the switch.

Features:

• Operating mode
• Standard
• Isolation

Specifications:

• H3C Magic BS208T
• 8 Ports Gigabit Ethernet Switch
• Dimensions (H W D): 27 155 58 mm (1.06 6.10 2.28 in)
• Ports: 8 10/100/1000BASE-T copper ports
• MAC address entries: 4K
• Switching capacity: 16 Gbps
• Forwarding capacity: 11.9 Mpps
• Packet buffering: 1.5 Mbit
• Switching mode: Store-and-forward switching
• Power: 12 V DC, 0.5 A
• Auto-MDI/MDIX: Yes
• Cooling method: Natural cooling
• Operating temperature/storage temperature
• 0 C to 40 C (32 F to 104 F)/-40 C to +70 C (-40 F to +158 F)
• Operating humidity/storage humidity: 5% to 95% RH, noncondensing
• Certifications: CE, RoHS
• MTBF: > 50000 H
• Installation method: Desktop-mount and wall-mount

In the Box:

• 1 x H3C Magic BS208T Ethernet Switch (8GE, DC)
