Grandstream Networks GWN7670 Dual-band Wi-Fi 7 Ceiling Mount Access Point

Grandstream Networks GWN7670 Dual-band Wi-Fi 7 Ceiling Mount Access Point

The GWN7670 is a new generation enterprise-grade Wi-Fi 7 access point, ideal for small-to-medium-sized businesses to build next-generation Wi-Fi networks. It offers dual-band 2x2:2 MIMO with DL/UL OFDMA technology and a sophisticated antenna design for maximum network throughput and expanded Wi-Fi coverage range. The GWN7670 improves bandwidth utilization and anti-interference ability with multi-RU and Preamble Puncturing technology. With 4096 QAM modulation, Wi-Fi 7 achieves a significant increase in data transfer rates. MLO technology optimizes spectrum resource utilization to ensure a smooth experience for every user. To ensure easy installation and management, the GWN7670 uses a controller-less distributed network management design in which the controller is embedded within the product’s Web user interface The GWN7670 is also supported by GDMS Networking and GWN Manager, Grandstream’s cloud and on-premise Wi-Fi management platform. It is the ideal Wi-Fi AP for voice-over-Wi-Fi deployments and offers a seamless connection with Grandstream’s Wi-Fi capable IP phones. With support for advanced QoS, low-latency realtime applications, mesh networks, captive portals, BT location with BLE 5.3, 256 concurrent clients per AP and 2 x 2.5 Gigabit network ports with PoE+, GWN7670 is an ideal Wi-Fi access point for medium wireless network deployments with medium-to-high user density.

Features

• 3.6Gbps aggregate wireless throughput, 5Gbps aggregate wired throughput
• Integrated Wi-Fi 7 & 2x2:2 MIMO with MLO, 4KQAM, MRU, Preamble Puncturing Technology
• Up to 175-meter coverage range
• Supports 256 concurrent Wi-Fi client devices
• Advanced QoS to ensure real-time performance of low-latency applications
• Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
• Self-power adaptation upon auto-detection of PoE+
• Embedded controller manages up to 50 local GWN APs; GDMS Networking offers unlimited AP management, & GWN Manager offers on-premise software AP management

Technical Specification

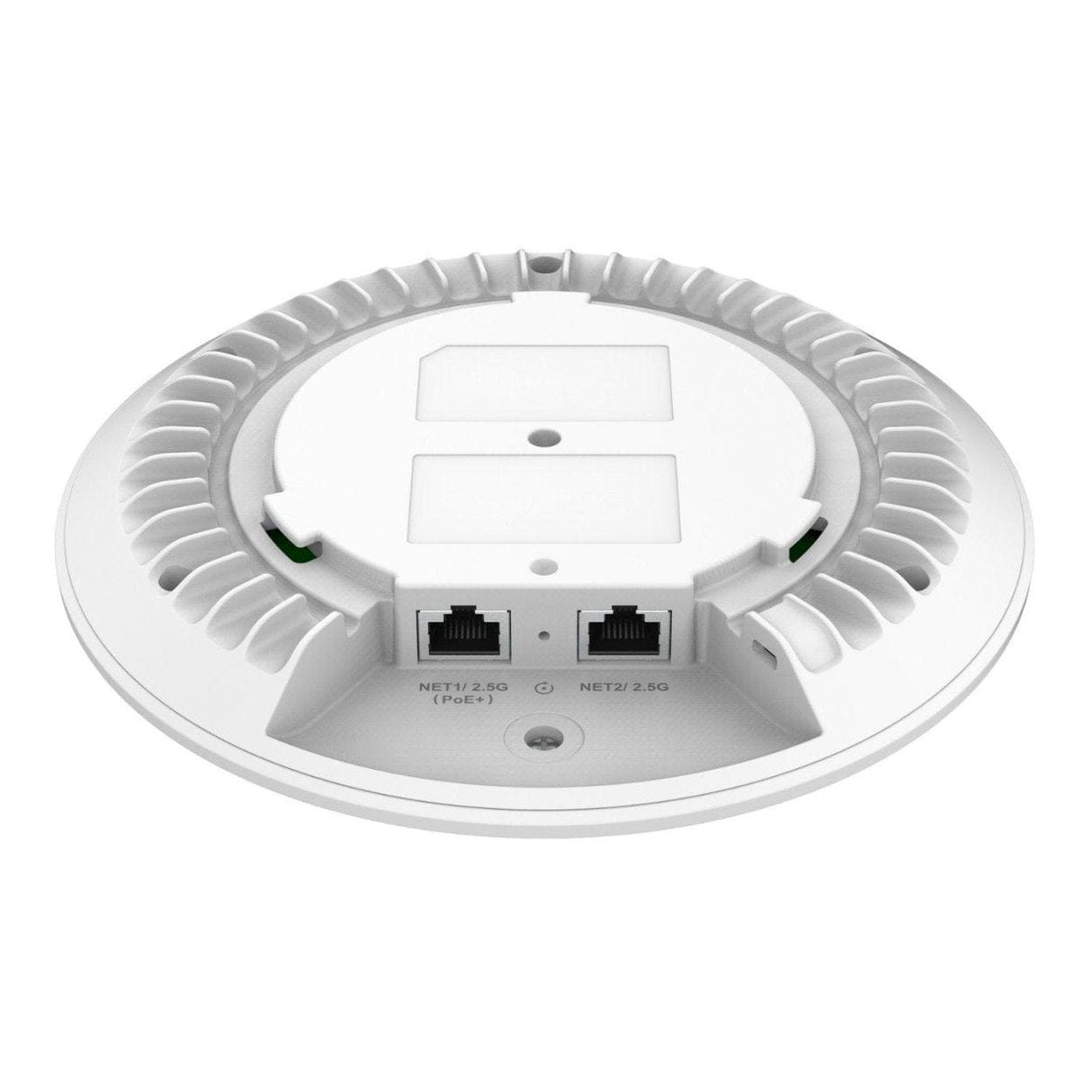

Network Interfaces: 2x 2.5G Ethernet WAN/LAN

Wi-Fi Standards: IEEE 802.11 a/b/g/n/ac/ax/be

Antennas

• 5 single frequency antennas
• 2.4GHz x 2, gain 3.5dBi
• 5GHz x 2, gain 5.5dBi
• BT gain 3.5dBi

Wi-Fi Data Rates

• 5G: IEEE 802.11be: Up to 2882 Mbps IEEE 802.11ax: 7.3 Mbps to 2402 Mbps IEEE 802.11ac: 6.5 Mbps to 1732 Mbps IEEE 802.11n: 6.5 Mbps to 600 Mbps IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 2.4G: IEEE 802.11be: Up to 688 Mbps IEEE 802.11ax: 7.3 Mbps to 574 Mbps IEEE 802.11n: 6.5Mbps to 300 Mbps IEEE 802.11b: 1, 2, 5.5, 11 Mbps IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

Frequency Bands

• 2.4GHz Radio: 2400 - 2483.5 MHz
• 5GHz Radio: 5150 - 5895 MHz

MIMO: 2x2:2 2.4GHz ; 2x2:2 5GHz

Coverage Range: Up to 175 meters

Concurrent Clients: up to 256

Auxiliary Ports: 1x Reset Pinhole, 1x Kensington lock

Bluetooth: BLE 5.3

Mounting: Indoor wall mount or ceiling mount, kits included

Power and Green Energy Efficiency: PoE/PoE+ 802.3af/at (Power Adapter Is Not Included)

Maximum Power Consumption: 14.5W

Package Content

• GWN7670 Wi-Fi 7 Wireless AP
• Mounting Kits
• Quick Start Guide
