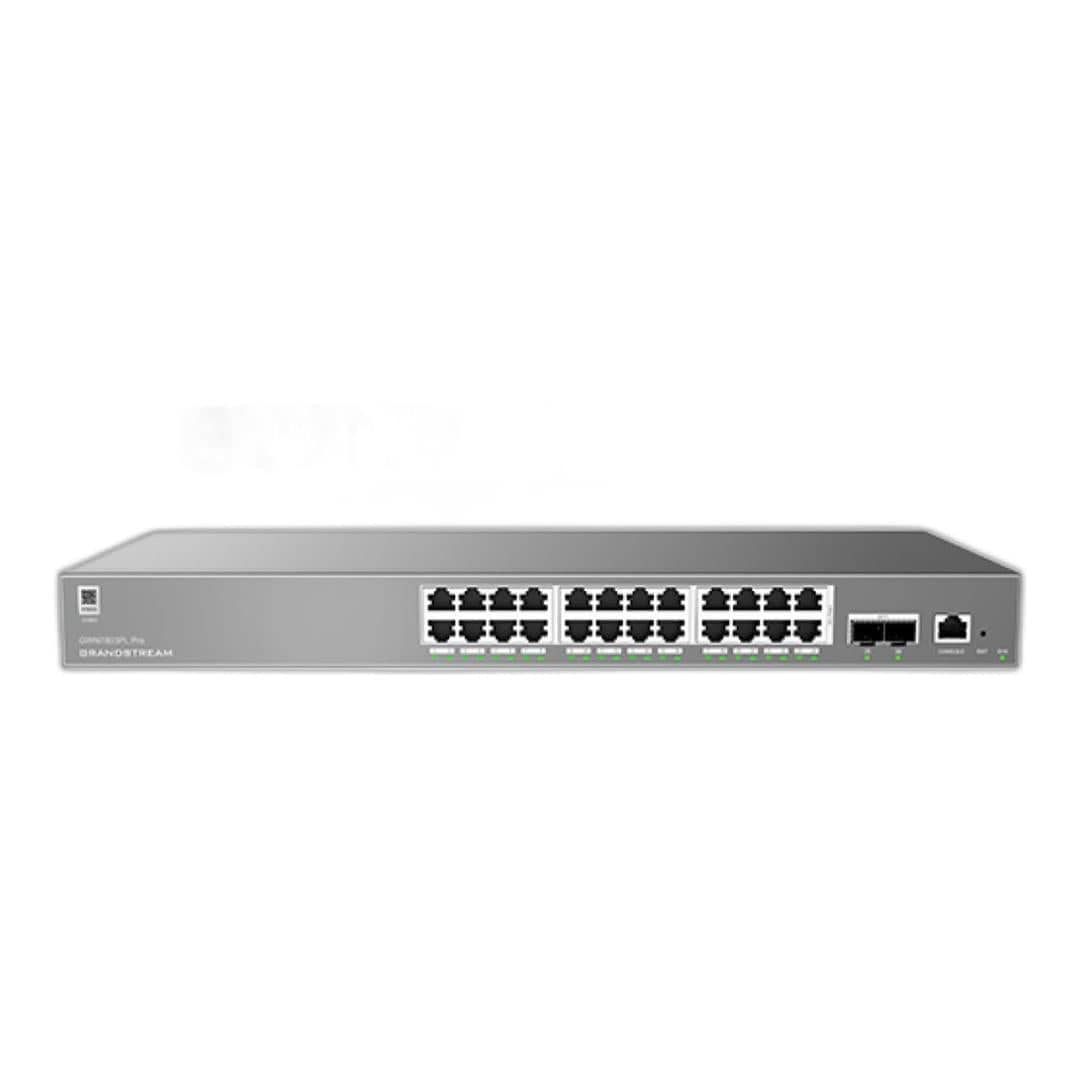

Grandstream Enterprise GWN7803PL Pro 24 port GbE L2++ Managed PoE Switch

Grandstream Enterprise GWN7803PL Pro 24 port GbE L2++ Managed PoE Switch

Enterprise Layer 2++ Managed Network Switches

The next generation of Grandstream’s layer 2 network switches is here. The GWN7800 Pro Series is ideal for demanding businesses as it provides maximum layer 2++ performance thanks to high-speed SFP or SFP+ ports that enable network speeds up to 10Gbps.

The Next Generation of Grandstream Switches

The new generation of Grandstream’s layer 2 network switches is here. The GWN7800 Pro Series is ideal for demanding businesses as it provides maximum performance and network speeds.

Maximum Network Speeds

With built-in SFP+ (10 Gbps) and SFP (2.5 Gbps) ports, the GWN7800 Pro Series is ideal for demanding network environments.

Double the Power and Memory

The GWN7800 Pro Series provides double the CPU and RAM of Grandstream's previous generation of Layer 2+ switches

Intelligent and Efficient Power Management

Available with PoE++ and PoE+ ports, the GWN7800 Pro Series intelligently provides power as needed to maximize energy efficiency.

Setup in Seconds

Simply scan the QR code on any GWN7800 Pro Series device to add it to your GDMS or GWN Manager account for easy management.

Specifications:

Network Protocol: IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af/at/bt, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1d, IEEE 802.1w, IEEE 802.1s, IEEE 802.1x

Gigabit Ethernet Ports: 24

Gigabit SFP+ Ports: 2

PoE Ports (PoE Models Only): 24

PoE Standards: IEEE 802.3af/at

Total Non Blocking Throughput: 44Gbps

Switching Capability: 88Gbps

Forwarding Rate: 65.472Mpps

Switching: Jumbo frame (maximum length: 12288), 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, QinQ, MAC-based VLAN, Protocol-based VLAN, Voice VLAN including auto voice VLAN, tagged OUI and untagged OUI, GVRP(pending) ERPS(pending), 16K MAC addresses

Security

• User hierarchical management and password protection, HTTPS, SSH, Telnet
• Identity authentication, including 802.1X and MAC authentication
• AAA authentication, including RADIUS, TACACS
• Storm control
• Port isolation
• Port security, sticky MAC address, filtering invalid MAC addresses
• IP/IPv6 source guard, DoS attack prevention, ARP inspection, CPU protection
• Loop protection, including port loopback detection, BPDU protection, root protection, and loopback protection
• Kensington Security Slot (Kensington Lock) support
• Firmware signature
