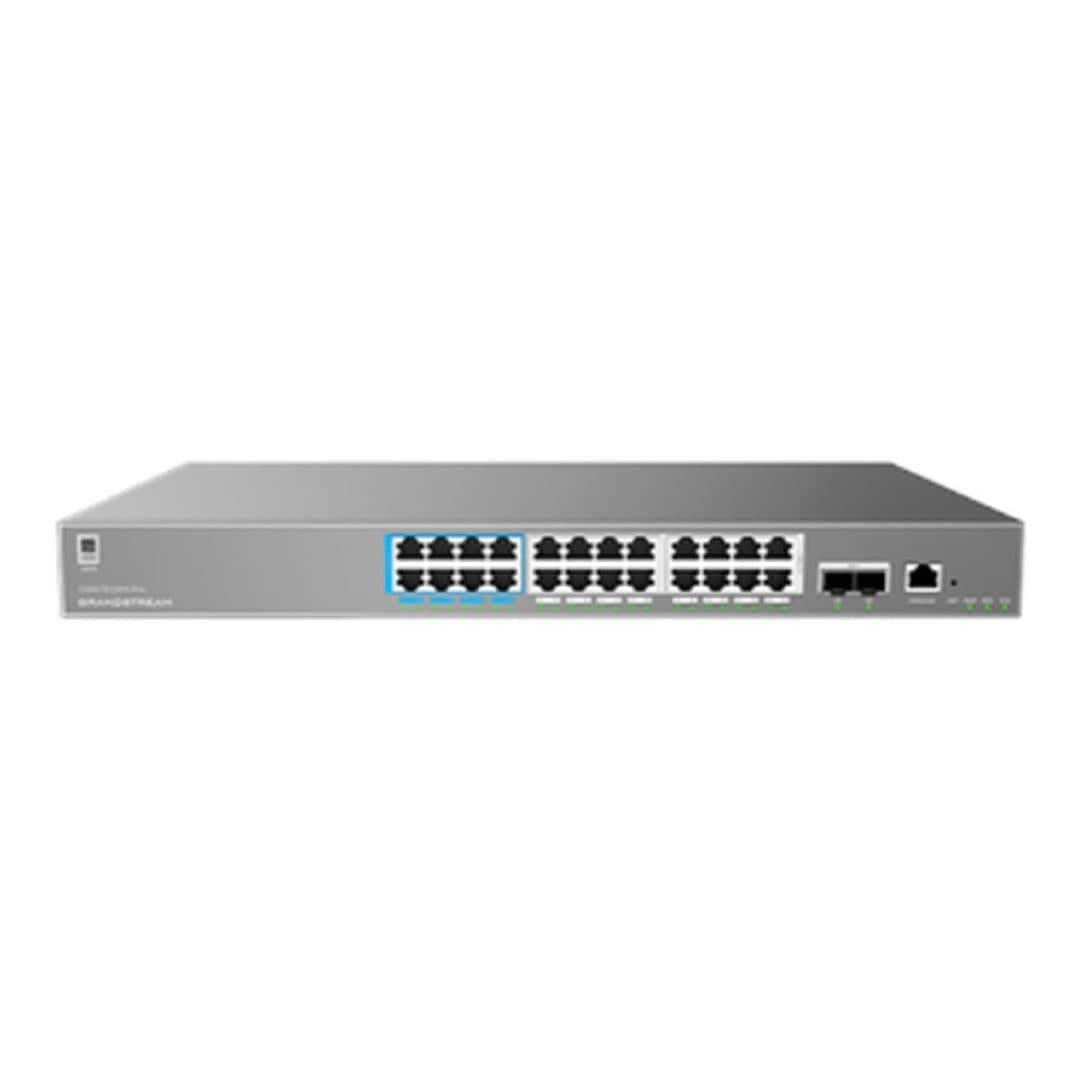

Grandstream Enterprise GWN7803PH Pro 24-port GbE L2++ Managed PoE Switch

Grandstream Enterprise GWN7803PH Pro 24-port GbE L2++ Managed PoE Switch

The GWN7800 Pro Series are layer 2++ managed network switches that allow small-to-medium enterprises to build scalable, secure, and high-performance business networks that are fully manageable. This Series provides high-speed SFP or SFP+ ports and Gigabit Ethernet ports on all models to support demanding business networks and offer switching capabilities up to 216Gbps. The GWN7800 Pro Series includes an advanced VLAN for flexible and sophisticated network traffic segmentation, advanced QoS for prioritization of network traffic, IGMP/MLD Snooping for network performance optimization, and comprehensive security capabilities against potential attacks.

The PoE-capable models provide smart dynamic PoE output to power IP phones, IP cameras, Wi-Fi access points and other PoE endpoints. The GWN7800 Pro Series supports a variety of free and flexible management options, including cloud management with GDMS Networking,on-premise software management with GWN Manager, the embedded controller in their web user interface, GWN Series Routers, and command-line interface (CLI). By providing high-speed SFP and SFP+ ports, advanced control and segmentation of network traffic, powerful security protection, and flexible management options, the GWN7800 Pro Series are ideal for small to medium enterprises.

Specifications:

Gigabit RJ45 Ethernet Ports: 24

Gigabit SFP+ Ports: 2

Serial Console Port: 1

Number of PoE Ports: 24

Layer Tier: L2++ with static routing; IPv4/IPv6 unicast

Max Power Consumption: 120W

PoE Standard: IEEE 802.3af/at/bt

Auxillary Ports: 1x reset pinhole

Total Non-Blocking Throughput: 44 Gbps

Switching Capability: 88 Gbps

Forwarding Rate: 65.472 Mpps

Packet Buffer: 8.4 Mb

Switch Configuration: Jumbo frame (maximum length: 12288), 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, QinQ, MAC-based VLAN, Protocol-based VLAN, Voice VLAN including auto voice VLAN, tagged OUI and untagged OUI, GVRP(pending) ERPS(pending), 16K MAC a

QoS/ACL: Yes

Fan: 3 Fans

Stacking: No

Dimensions: 440mm(L) × 300mm(W) × 44mm(H)
