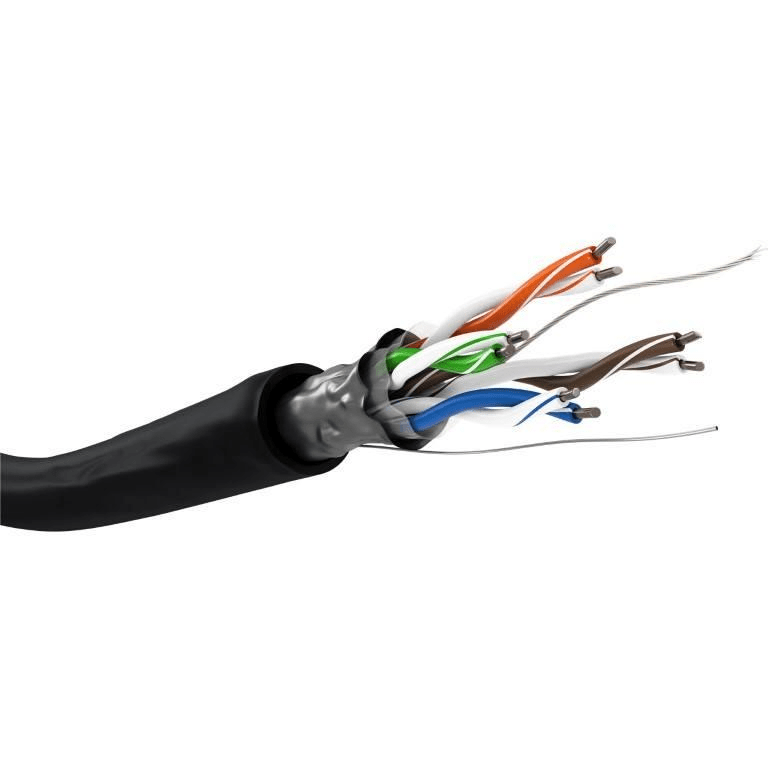

Goobay CAT 5e Outdoor Network F/UTP 100m CCA Cable Black 57294

Goobay CAT 5e Outdoor Network F/UTP 100m CCA Cable Black 57294

Copper-clad aluminium wire (CCA), AWG 24/1 (solid), polyethylene cable sheath (PE)

The Goobay network cable is ideal for outdoor use, e.g. in the garden, for camping, on building facades and for connecting surveillance cameras. The stable cable sheath made of polyethylene is extremely resistant to weathering and UV radiation.

• Shielded twisted pair LAN cable for outdoor assembly with a maximum transmission length of 40 m
• Polyethylene outer sheath (PE) protects the network cable outdoors and makes it extremely weather-resistant.
• The outdoor Ethernet cable is ideal for use on building facades and surveillance cameras.
• Unterminated patch cable for assembly and installation with IDC connection technology. No approval for permanent installation in buildings.
• High-quality copper-clad aluminium wire (CCA) guarantees an excellent and powerful network connection.
• Complies with the Construction Products Regulation (CPR) and Fca fire protection class

Technical specifications

Cable

Specification: CAT 5e

Cable sheath diameter (approx.): 5.7 mm

Cable type: outdoor cable

Shielding class: F/UTP

Number of shieldings: 1 x

Meter scaling: yes

Type 1, shielding: foil (aluminium)

AWG: 24/1 (solid)

Inner conductor material: CCA (copper-clad aluminium)

Material cable sheath: PE

Fire class (CPR): Fca

Cable length: 100 m

Signal transmission

usable up to cable length: 40 m

max. bandwidth: 100 MHz

Impedance: 100 Ω

General

Color: black

Operating temperature from: -20 °C

Operating temperature up to: 75 °C

Consumption Unit: 1 pc
