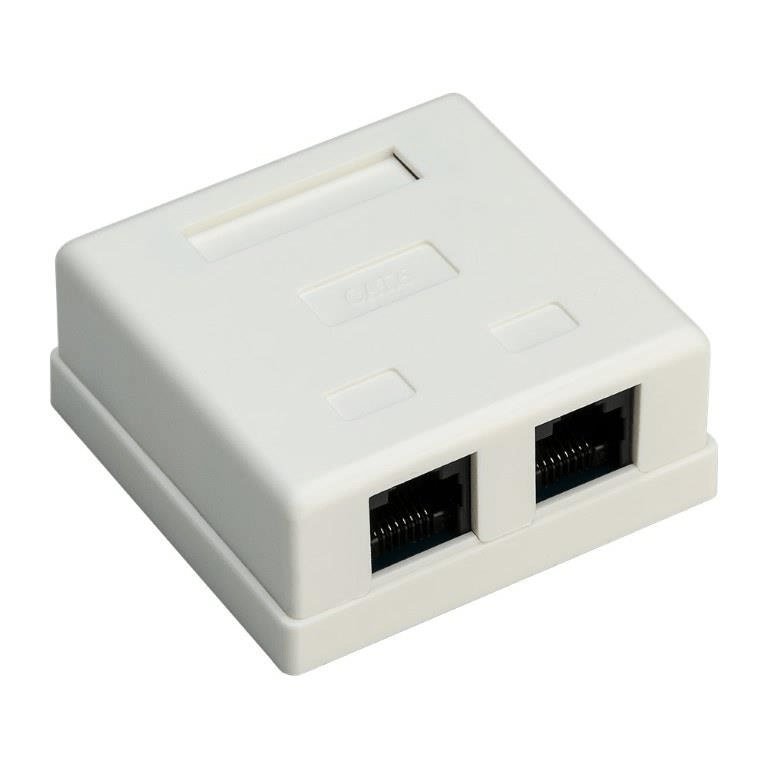

Goobay 2-port RJ45 CAT 6 UTP Surface Mount Installation Box White 77633

Goobay 2-port RJ45 CAT 6 UTP Surface Mount Installation Box White 77633

Unshielded

Our patch panels have a robust housing with shielded slots for an excellent connection. Simply select the module with the required number of ports to easily connect all your Ethernet cables to the network patch panel. Goobay always provides the perfect products for your network needs. Simply. All. You need!

• For tool-free assembly by solderless, screwless and stripping-free connection technology IDC mounting)
• Patch panel incl. fixing screws for mounting on wall and desktop
• CAT 6 distributor for cable diameters of up to 7.0 mm (AWG 22-24)
• With a clear plastic display to label the individual connections for a perfect cable management.
• Terminal strips with colour coding according to TIA 568B for an easy and correct connection
• 2-port patch panel with RJ45 sockets for connecting terminated CAT 6 network cables

Technical specifications

Connections

Connection, type: 2x RJ45 female (8P8C)

Connection 2, type: for IDC connection (toolless)

Connection, type: 2x RJ45 female (8P8C)

Device connections

Device Connections: 2

Cable

Specification: CAT 6

Shielding class: UTP

AWG: 24-22

Signal transmission

max. bandwidth: 250 MHz

General

Color: White

Width: 62.2 mm

Height: 59.8 mm

Depth: 26.5 mm

Consumption Unit: 1 pc

Assembly Material: screws
