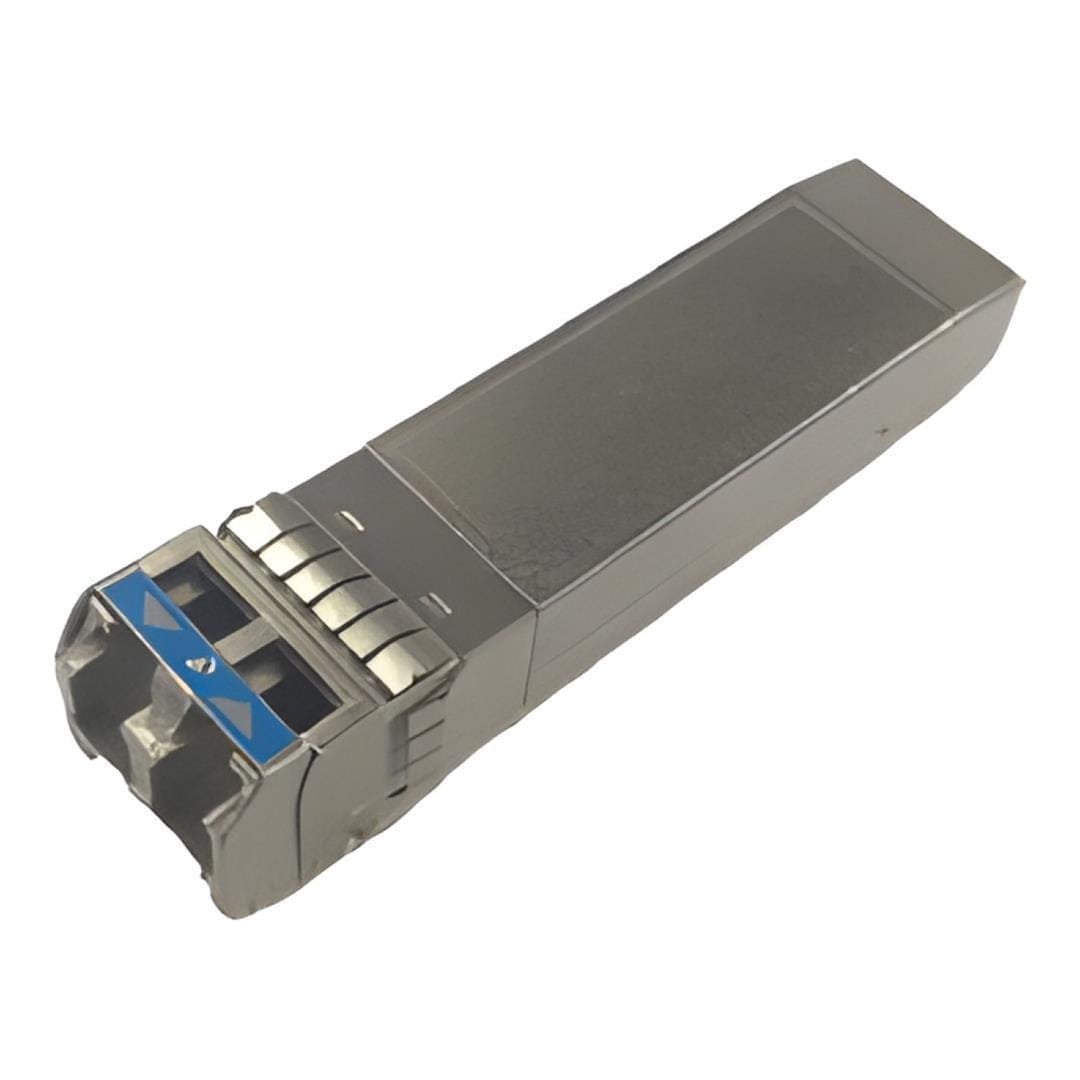

Globalsix Compatible Huawei 10G SFP+BIDI 10KM 1270/1330nm Transceiver Module 1PSFP10GBXU1

Globalsix Compatible Huawei 10G SFP+BIDI 10KM 1270/1330nm Transceiver Module 1PSFP10GBXU1

HW SFP-10G-BXU1 compatible SFP+ transceiver supports up to 10km link lengths over OS2 SMF via an LC simplex connector. This 10G BiDi SFP+ transceiver, featured with data transmission over a single strand of fibre, the one transceiver transmits a 1270-nm channel and receives a 1330-nm signal, whereas the other BiDi SFP+ optics transmits at a 1330-nm wavelength and receives a 1270-nm signal.
Digital diagnostics can also be used through the I2C interface designated by SFF-8472 to allow access to real-time operating parametres. Each BIDI SFP+ transceiver module is individually tested to be used on a series of switches, routers, servers, network interface cards (NICs) etc. Featuring low power consumption and high speed, this 10G BIDI SFP+ transceiver is ideal for enterprise wiring closets, service provider transport applications, Radio & Baseband Units, etc.

Features:

• Built-in Semtech Chip, Max. Power Consumption 1W
• Tested in Targeted Switches for Superior Performance, Quality, and Reliability
• Double Your Bandwidth by Using Only One Fiber for Transmit and Receive
• Carry Information in Both Directions via a Single Strand
• Hot Pluggable SFP+ MSA Compliant
• FS BOX - Support Real-time Configuration
• Digital Optical Monitoring Capability for Strong Diagnostic Capabilities
• Class 1 FDA Laser Safety and RoHS Compliant

Technical Specifications:

HW Compatible: SFP-10G-BXU1
Vendor Name: FS
Form Factor: SFP+
Max. Data Rate: 11.3168Gbps
Wavelength: 1270nm-TX / 1330nm-RX
Max. Transmission Distance: 10km
Connector: Simplex LC
Media: SMF
Transmitter Type: DFB
Receiver Type: PIN
TX Power: -8.2 ~ 0.5dBm
Receiver Sensitivity: < -14.4dBm
Power Budget: 6.2dB
Receiver Overload: 0.5dBm
Max. Power Consumption: ≤1W
Extinction Ratio: >3.5dB
Operating Temperature: 0 to 70°C (32 to 158°F)
Protocols: IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA Compliant, CPRI, eCPRI
