Description
Description

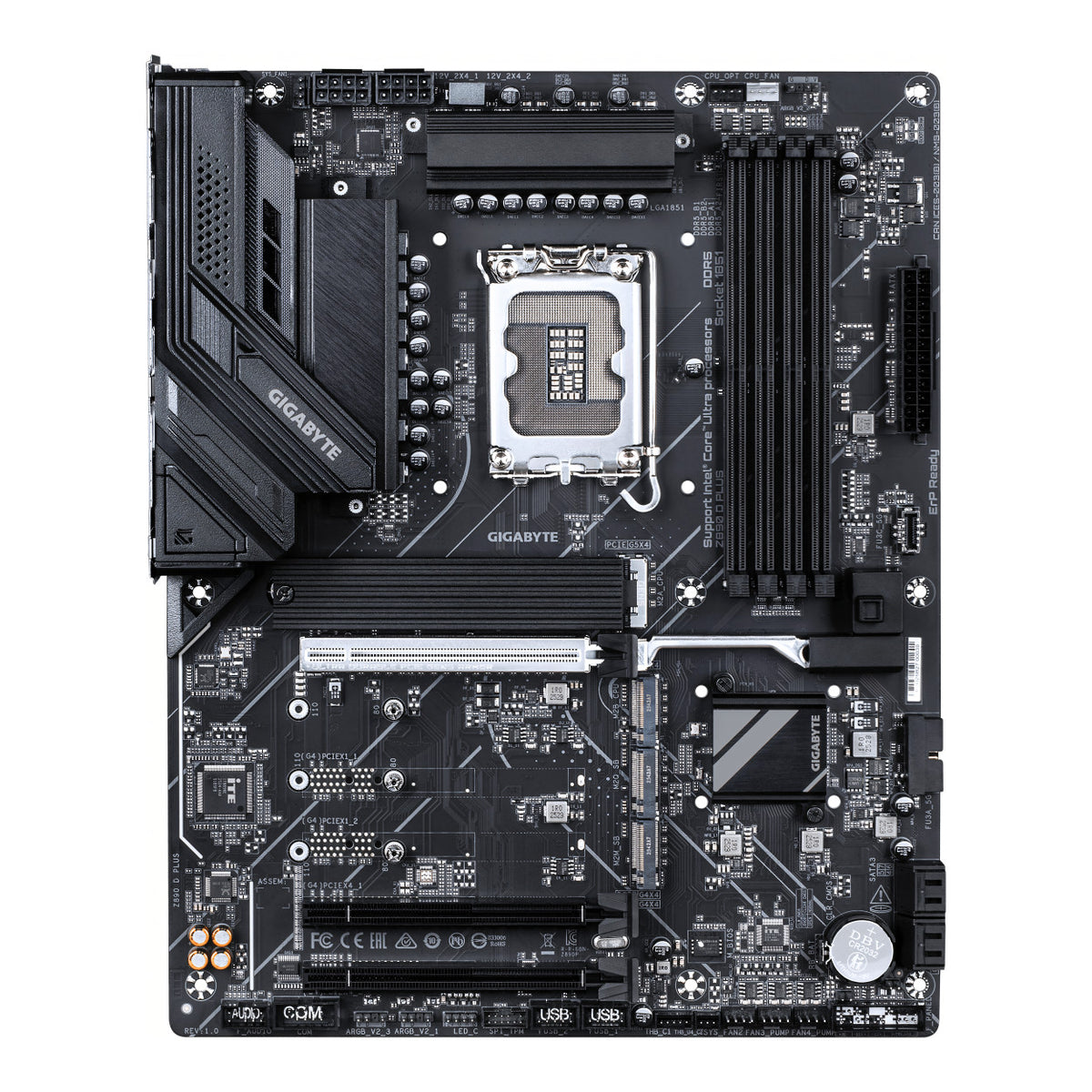

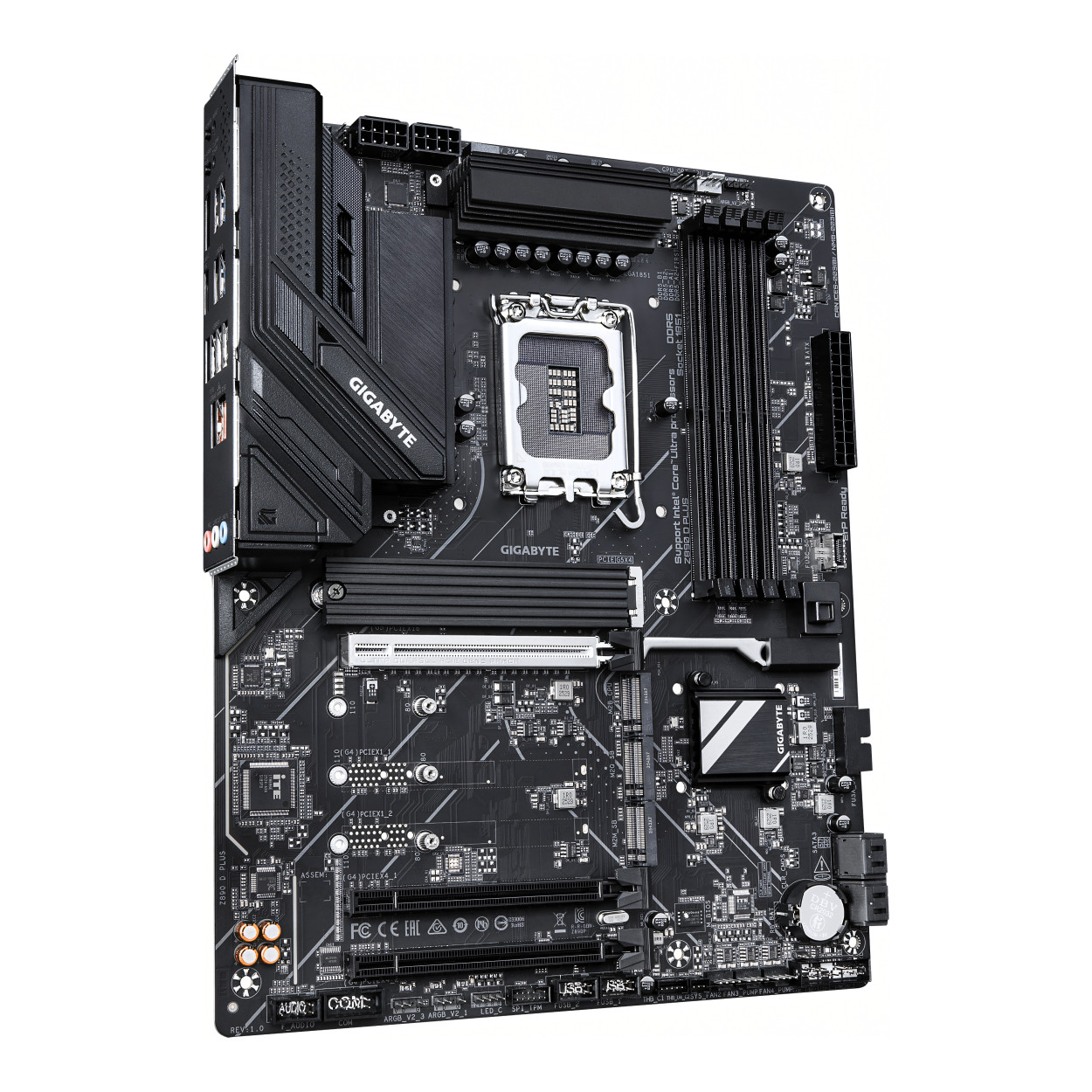

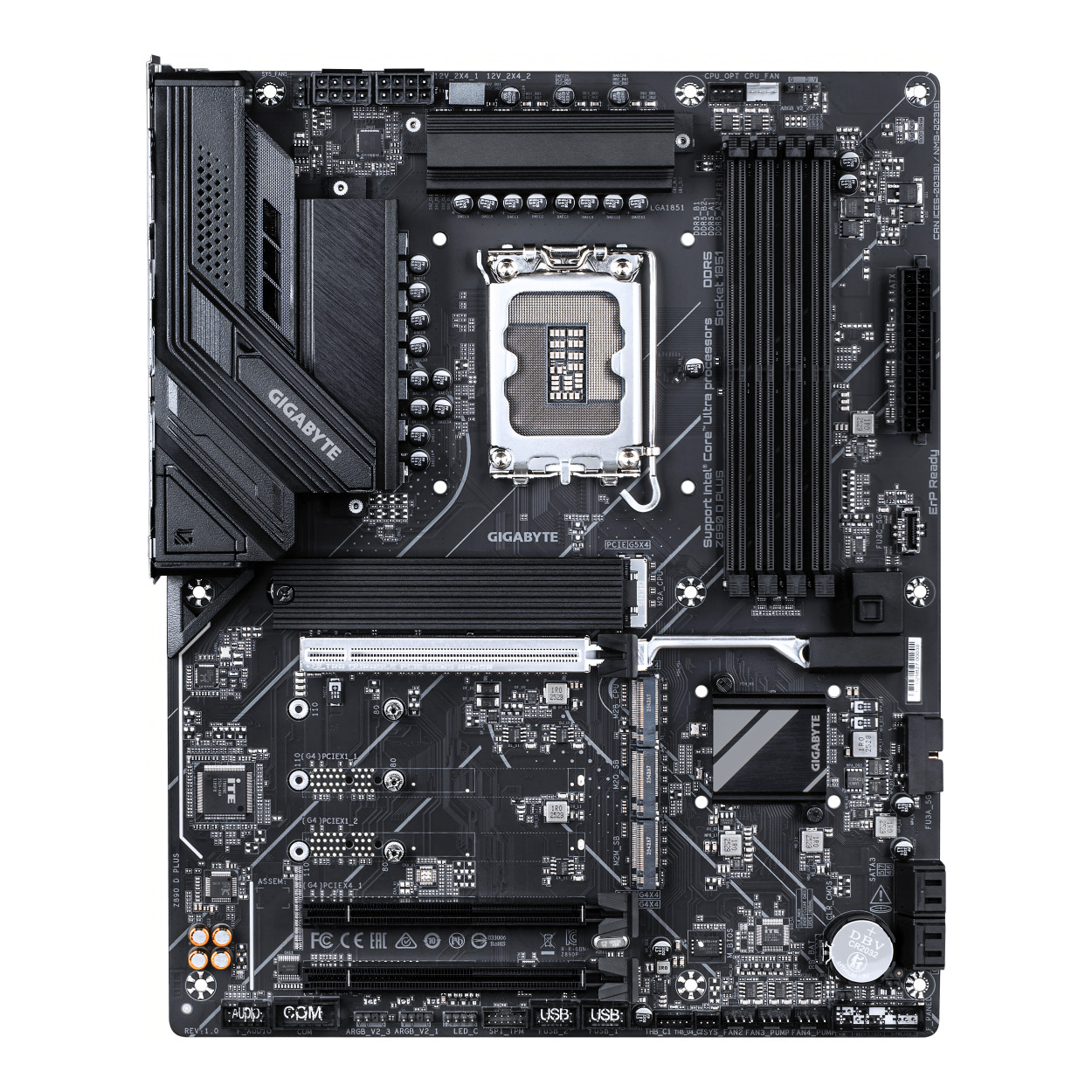

Gigabyte Z890 D PLUS Intel LGA1851 DDR5 ATX Motherboard
The GIGABYTE Z890 D PLUS is an ATX motherboard built around the Intel Z890 Express chipset and LGA1851 platform for compatible Intel Core Ultra processors. With four DDR5 DIMM slots supporting up to 256GB, a PCIe 5.0 x16 expansion slot, four M.2 storage connectors and Realtek 2.5GbE networking, it provides a versatile foundation for high-performance desktop systems. Extensive USB connectivity, dual Thunderbolt add-in card headers and Q-Flash Plus further enhance expansion and system-building flexibility.
Key Features
- Intel Z890 Express chipset with LGA1851 socket for compatible Intel Core Ultra processors.
- 4 × DDR5 DIMM slots supporting up to 256GB and DDR5-9466+ MT/s (OC).
- PCIe 5.0 x16 primary expansion slot for high-performance graphics or compatible NVMe storage.
- 4 × M.2 slots including one PCIe 5.0 x4 CPU-connected slot.
- Realtek 2.5GbE LAN provides high-speed wired network connectivity.

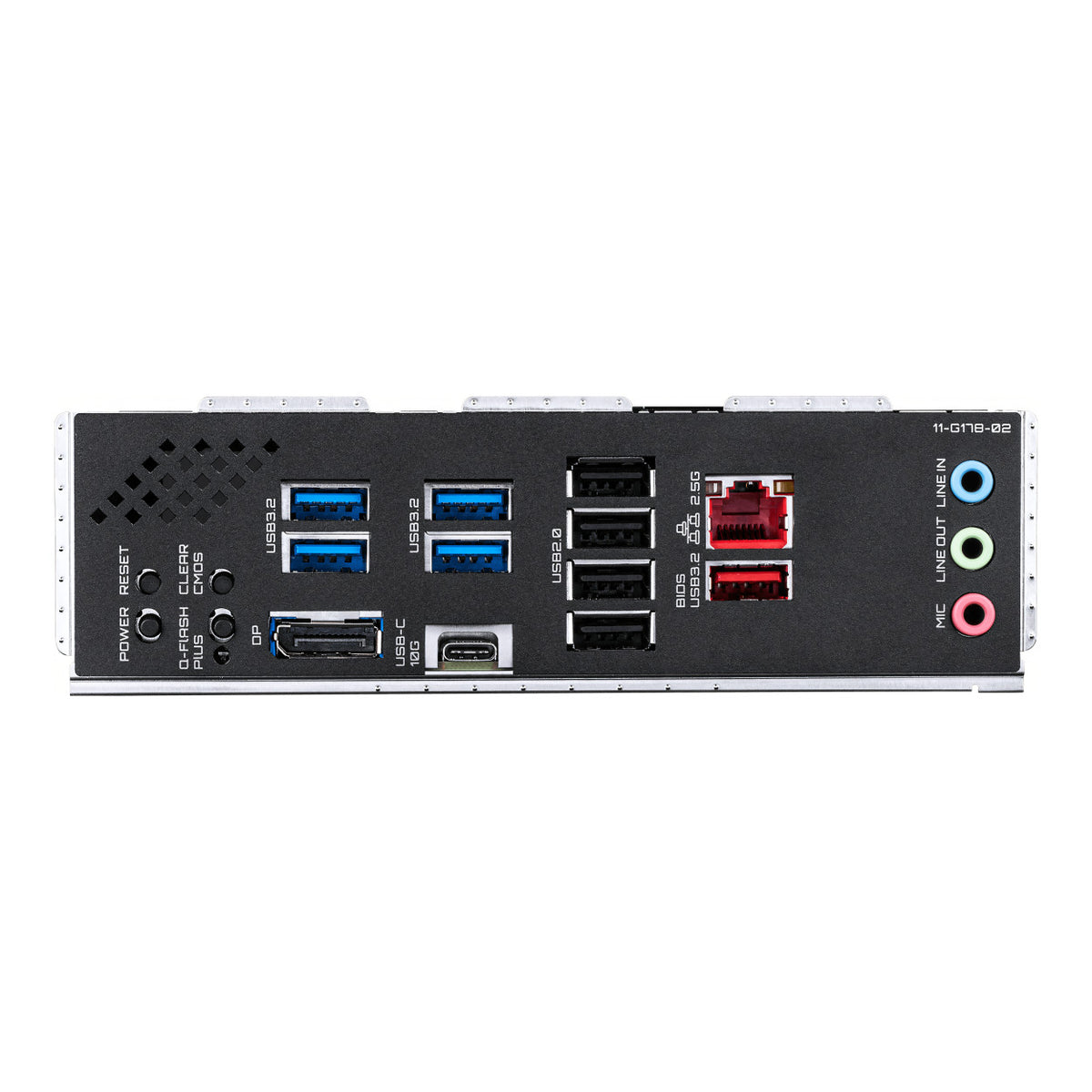

- Rear USB-C and USB-A 10Gb/s connectivity with additional USB 5Gb/s and USB 2.0 ports.
- Q-Flash Plus enables convenient BIOS updates without requiring a CPU, memory or graphics card.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | GIGABYTE |
| Model | Z890 D PLUS |
| Product Type | Desktop Motherboard |
| Chipset | Intel Z890 Express |
| CPU Socket | LGA1851 |
| Processor Support | Intel Core Ultra Processors |
| Memory Type | DDR5 |
| Memory Slots | 4 × DDR5 DIMM |
| Maximum Memory Capacity | 256GB |
| Memory Architecture | Dual Channel |
| Maximum Memory Speed | DDR5-9466+ MT/s (OC) |
| Memory Support | Non-ECC Unbuffered DDR5 / CUDIMM |
| Memory Profile Support | Intel XMP |
| Primary Expansion Slot | 1 × PCIe 5.0 x16 |
| Additional Expansion Slots | 2 × PCIe 4.0 x16 Physical Slots, Operating at x4 |
| M.2 Slots | 4 |
| M2A_CPU | PCIe 5.0 x4/x2, Supports 25110 / 22110 / 2580 / 2280 SSDs |
| M2B_CPU | PCIe 4.0 x4/x2, Supports 22110 / 2280 SSDs |
| M2Q_SB | PCIe 4.0 x4/x2, Supports 22110 / 2280 SSDs |
| M2M_SB | PCIe 4.0 x4/x2 and SATA, Supports 22110 / 2280 SSDs |
| SATA | 4 × SATA 6Gb/s |
| NVMe RAID | RAID 0 / 1 / 5 / 10 |
| SATA RAID | RAID 0 / 1 / 5 / 10 |
| LAN | Realtek 2.5GbE (2.5Gbps / 1Gbps / 100Mbps) |
| Wireless Networking | Not Integrated |
| Audio | Realtek High Definition Audio CODEC |
| Audio Channels | 2 / 4 / 5.1 Channel |
| Display Output | 1 × DisplayPort 2.1 |
| Maximum DisplayPort Resolution | 4096 × 2304 at 60Hz |
| Rear USB-C | 1 × USB 3.2 Gen 2, Up to 10Gb/s |
| Rear USB 10Gb/s Type-A | 1 |
| Rear USB 5Gb/s Type-A | 4 |
| Rear USB 2.0 | 4 |
| Front USB-C Header | 1 × USB 3.2 Gen 1, Up to 5Gb/s |
| Front USB 5Gb/s Header | 1 × Header Supporting 2 Ports |
| Internal USB 2.0 Headers | 2 × Headers Supporting 4 Ports |
| Thunderbolt Expansion | 2 × Headers for GIGABYTE Thunderbolt 5 Add-In Card |
| TPM | 1 × SPI TPM Header |
| RGB Headers | 3 × Addressable RGB Gen2 / 1 × RGB LED |
| CPU Fan Header | 1 |
| CPU Fan / Pump Header | 1 |
| System Fan Headers | 3 |
| System Fan / Pump Header | 1 |
| Main Power | 1 × 24-Pin ATX |
| CPU Power | 2 × 8-Pin ATX 12V |
| Rear Panel Controls | Power / Reset / Clear CMOS / Q-Flash Plus |
| BIOS | 256Mbit AMI UEFI BIOS |
| Q-Flash | Supported |
| Q-Flash Plus | Supported |
| Management Software | GIGABYTE Control Center (GCC) |
| Operating System Support | Windows 11 64-bit / Windows 10 64-bit |
| Form Factor | ATX |
| Dimensions | 30.5 × 24.4cm |
Build a versatile Intel Z890 desktop with high-speed DDR5 memory, PCIe 5.0 expansion, four M.2 storage slots and 2.5GbE networking using the GIGABYTE Z890 D PLUS.
