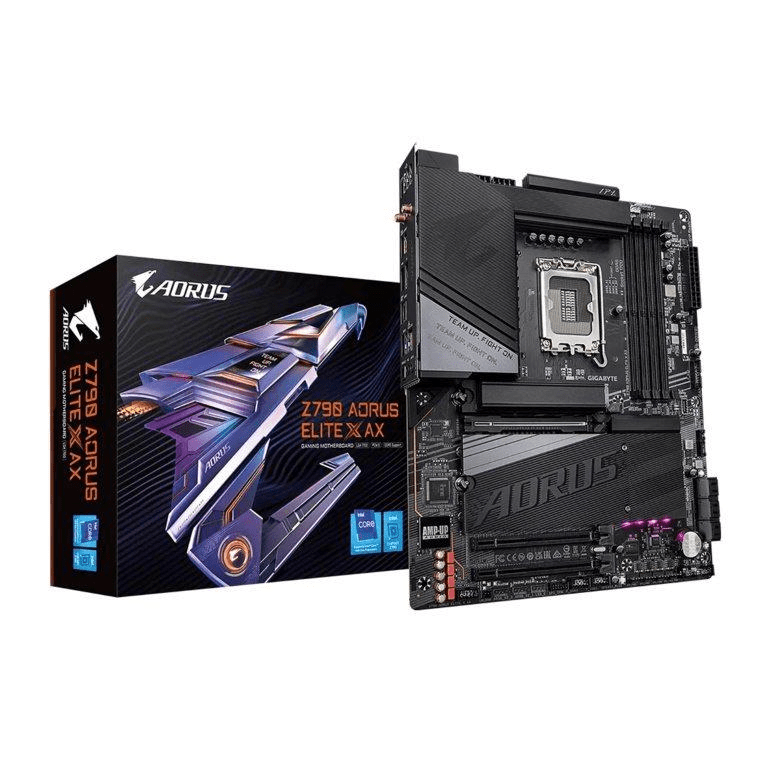

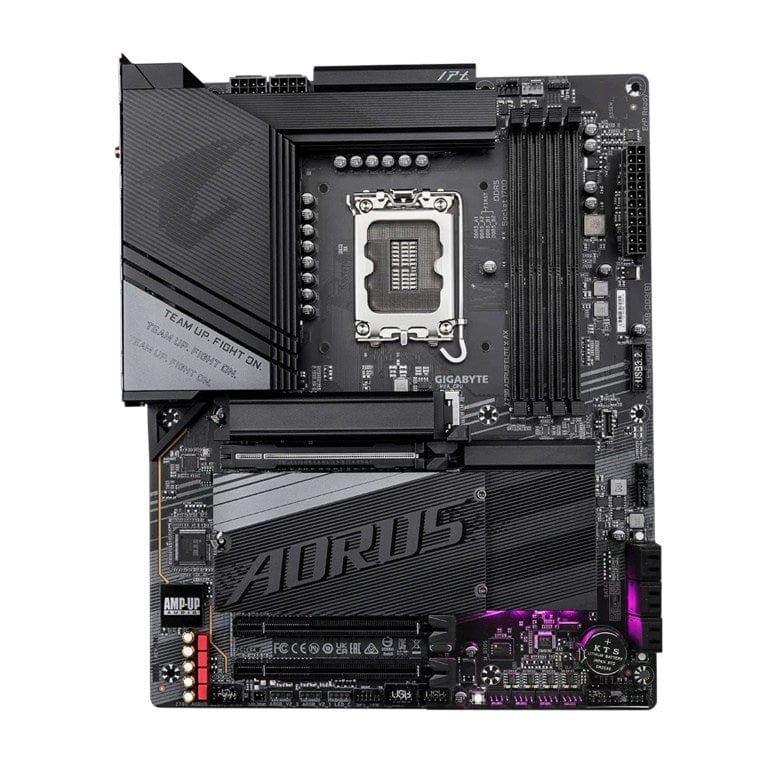

Gigabyte Z790 Aorus Elite X AX Intel LGA 1700 ATX Motherboard GA-Z790-AORUS-ELITE-X-AX

Gigabyte Z790 Aorus Elite X AX Intel LGA 1700 ATX Motherboard GA-Z790-AORUS-ELITE-X-AX

Features

• Supports Intel Core 14th and 13th processors
• Digital twin 16+1+2 phases VRM solution
• Dual Channel DDR5: 4x DIMMs with XMP 3.0 memory module support
• PCIe UD Slot X: PCIe 5.0 x16 slot with 10X strength for graphics card
• EZ-Latch Click: M.2 heatsinks with screwless design
• EZ-Latch Plus: M.2 slots with quick release design
• UC BIOS: User-Centred intuitive UX with Quick Access function
• Ultra-Fast Storage: 4x PCIe 4.0 x4 M.2 slots
• Efficient Overall Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard L
• Fast Networking: 2.5GbE LAN & Wi-Fi 6E with Ultra-high gain antenna
• Extended Connectivity: DP, HDMI, Front USB-C 10Gb/s, Rear USB-C 20Gb/s
• Precision Audio: ALC1220 & Audiophile Grade Capacitors

Gen Designed for 14th Gen

X marks the 14th generation! Introducing the AORUS Z790 X Gen Motherboards, the most powerful platforms ever built for the Intel Core 14th Gen processors. With the leading performance in DDR5 memory, the upgraded DIY-friendly innovations, and the all-new BIOS redesigned as user-centered, the AORUS Z790 X Gen Motherboards are built to fully unleash the next-gen power.

Xceed in DDR5 performance

GIGABYTE is committed to enabling the unparalleled performance of the Intel Core 14th Gen processors. That is why every Z790 AORUS ELITE X AX motherboard is engineered with industry-leading technologies to achieve the best-in-class DDR5 performance on the market.

Xtraordinary power delivery

The Z790 AORUS ELITE X AX motherboard is equipped with the all-digital power design to achieve peak performance of the next-gen processor while providing the best stability under heavy workloads.

Efficient Overall Thermal Xpress your cool

Every Z790 AORUS ELITE X AX motherboard is armored with the most advanced, full metal thermal design. These solid heatsinks are forged to keep your system cool while running fast.

Xpeditious building process

Building your own PC is meant to be joyful and effortless. Now we introduce a variety of innovations to make the Z790 AORUS ELITE X AX motherboard the most DIY-friendly ever.

EZ-Latch Designs

Effortless mechanisms that enable easy installations of components.

Xtra layers for excellent players

As the very foundation of the motherboard, the PCB plays a subtle yet critical role in the capabilities. No gamers should overlook the details lie within the PCB layers.

8-Layer PCB

Enables dense integration, signal quality, power integrity, and low EMI for high-performance systems.

2x Copper Enhancement

Enhances system performance with improved heat dissipation, power handling, and seamless overclocking support.

56% Lower Dissipation Factor

Elevate signal integrity in high-frequency circuits with our pioneering technology, setting a new standard for high-speed electronic design.

Xpect everything UD

GIGABYTE Ultra Durable Technology represents our highest standards to provide a platform for gamers that is not only powerful but also durable and reliable. The Z790 AORUS ELITE X AX motherboard is built to last longer and stand stronger.

Connectivity Xtensively versatile

The Z790 AORUS ELITE X AX motherboard offers a wide range of versatilities from the cutting-edge Wi-Fi 6E support with a redesigned antenna, to an array of USB ports.

Intuitive Customization Xplore infinite utilities

The Z790 AORUS ELITE X AX motherboard is the embodiment of our relentless pursuit of BIOS optimization. And thanks to our new partnership from the community, we now make the next-gen performance more accessible in even more intuitive ways.

Redesigned UI and UX

An intuitive operation interface with an aesthetically pleasing design

Quick Access

9 customizable option slots for effortless access in Easy Mode

PerfDrive

Exclusive BIOS settings that optimize the performance based on the cooling configuration

Technical Specification

• 2x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)
• 1x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB)
• 6x SATA 6Gb/s connectors

• 1x 24-pin ATX main power connector
• 2x 8-pin ATX 12V power connectors
• 1x CPU fan header
• 1x CPU fan/water cooling pump header
• 3x system fan headers
• 1x system fan/water cooling pump header
• 3x addressable RGB Gen2 LED strip headers
• 1x RGB LED strip header
• 4x M.2 Socket 3 connectors
• 6x SATA 6Gb/s connectors
• 1x front panel header
• 1x front panel audio header
• 1x USB Type-C header, with USB 3.2 Gen 2 support
• 1x USB 3.2 Gen 1 header
• 2x USB 2.0/1.1 headers
• 2x Thunderbolt add-in card connectors
• 1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
• 1x reset button
• 1x Q-Flash Plus button
• 1x Clear CMOS button
• 1x reset jumper
• 1x Clear CMOS jumper

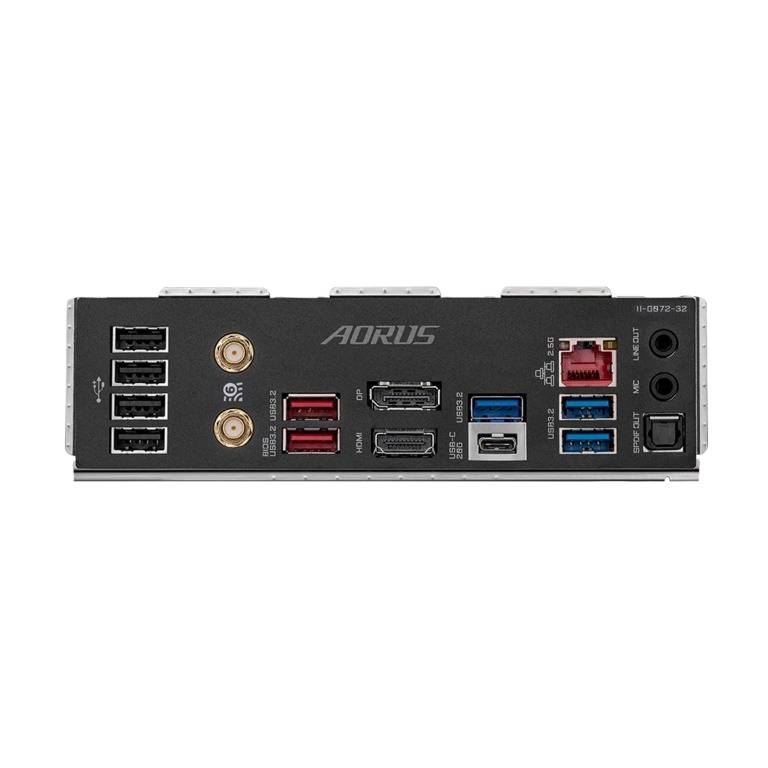

• 1x USB Type-C port, with USB 3.2 Gen 2x2 support
• 2x USB 3.2 Gen 2 Type-A ports (red)
• 3x USB 3.2 Gen 1 ports
• 4x USB 2.0/1.1 ports
• 2x SMA antenna connectors (2T2R) jk
• 1x HDMI port
• 1x DisplayPort
• 1x RJ-45 port
• 1x Optical S/PDIF Out connector
• 2x audio jacks
