Description
Description

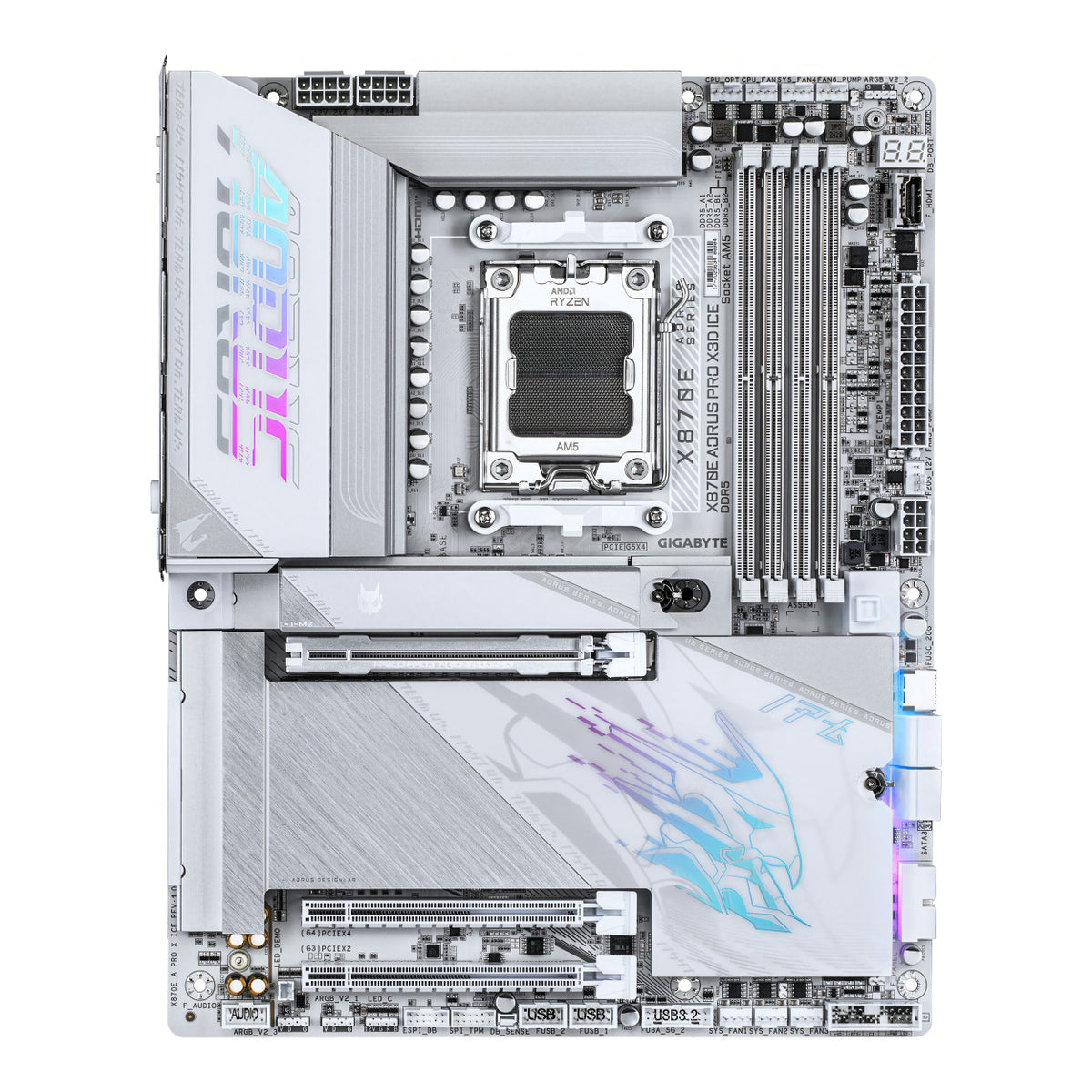

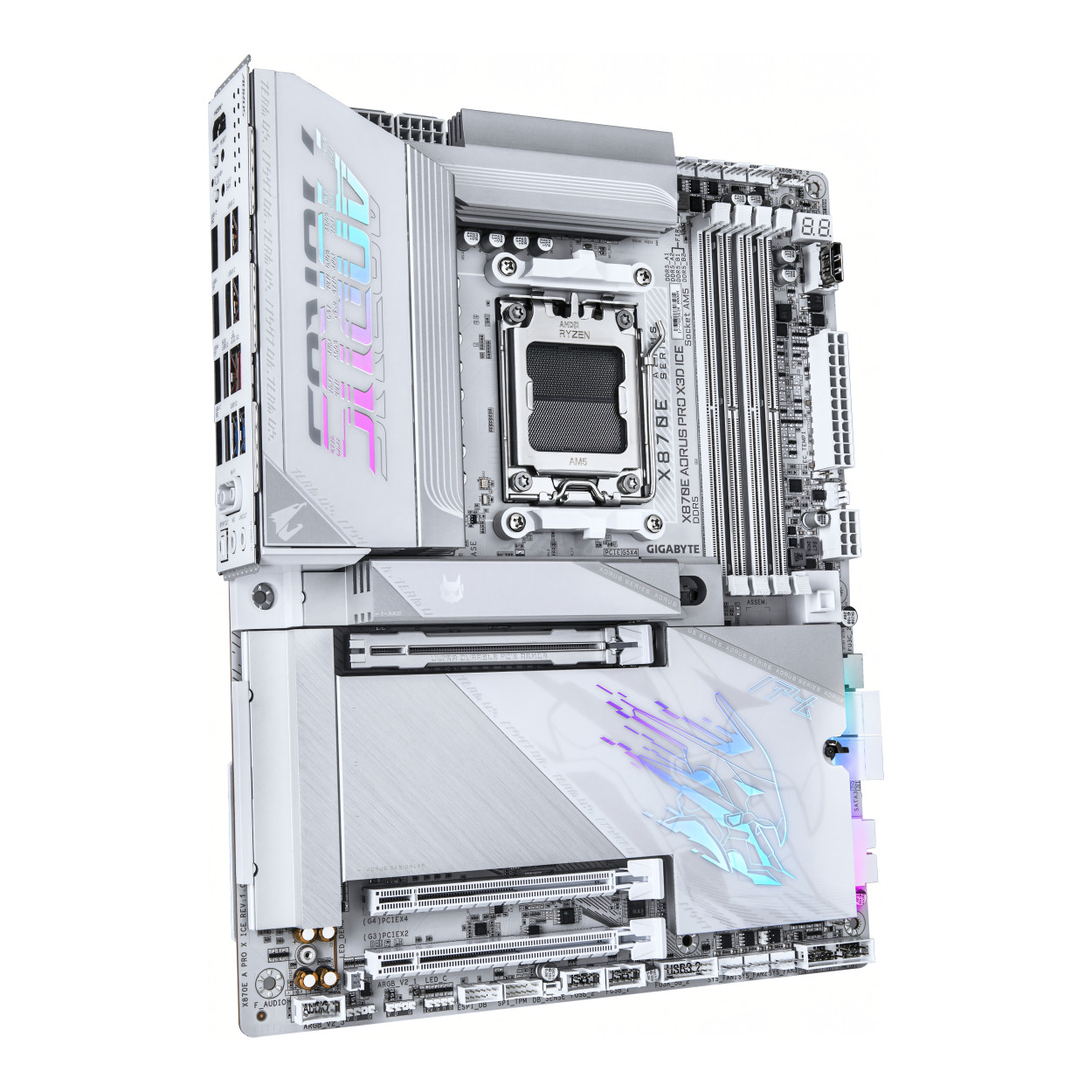

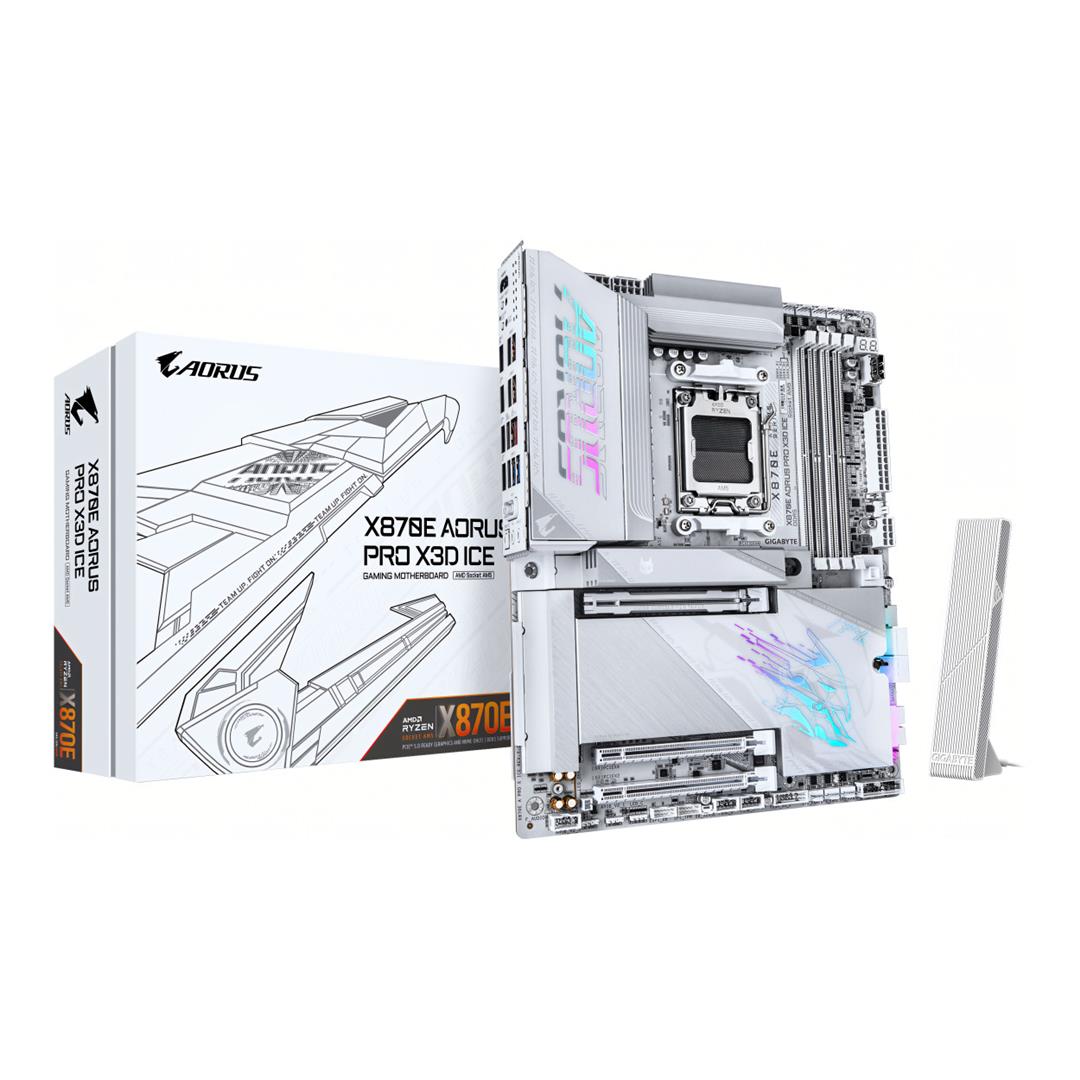

Gigabyte X870E AORUS Pro X3D ICE AMD Socket AM5 ATX Motherboard X870E A PRO X ICE
The GIGABYTE X870E AORUS PRO X3D ICE is a high-performance AMD AM5 ATX motherboard designed for powerful gaming and enthusiast desktop builds. Built around the AMD X870E chipset, it combines support for Ryzen 9000, 8000 and 7000 Series processors with DDR5 memory up to 9000 MT/s (OC), PCIe 5.0 expansion, four M.2 slots, 5GbE networking and Wi-Fi 7. Its white ICE styling is complemented by extensive thermal management, high-speed USB4 connectivity and DIY-friendly features for premium PC builds.
Key Features
- AMD X870E chipset with Socket AM5 support for compatible Ryzen 9000, 8000 and 7000 Series processors.
- 4 × DDR5 DIMM slots supporting up to 256GB and speeds up to DDR5-9000 (OC).
- PCIe 5.0 x16 graphics support with compatible Ryzen 9000 and 7000 Series processors.
- 4 × M.2 slots including two CPU-connected PCIe 5.0-capable slots with compatible processors.
- Realtek 5GbE LAN plus Qualcomm Wi-Fi 7 and Bluetooth 5.4 connectivity.
- Dual USB4 Type-C ports with DisplayPort video output plus extensive high-speed USB connectivity.
- 18+2+2 Twin Digital VRM design with an 8-layer PCB for high-performance AM5 systems.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | GIGABYTE |
| Series | AORUS |
| Model | X870E AORUS PRO X3D ICE |
| Product Type | Desktop Motherboard |
| Chipset | AMD X870E |
| CPU Socket | AMD Socket AM5 |
| Supported Processor Series | AMD Ryzen 9000 / 8000 / 7000 Series |
| VRM Design | 18+2+2 Twin Digital VRM |
| PCB | 8-Layer, Low-Loss, 2X Copper PCB |
| Memory Type | DDR5 |
| Memory Slots | 4 × DDR5 DIMM |
| Maximum Memory Capacity | 256GB |
| Maximum DIMM Capacity | 64GB |
| Memory Architecture | Dual Channel |
| Maximum Memory Speed | Up to DDR5-9000 MT/s (OC) |
| Memory Profile Support | AMD EXPO / Intel XMP |
| Primary Expansion Slot | 1 × PCIe x16, Up to PCIe 5.0 x16 with Ryzen 9000/7000 Series Processors |
| Additional Expansion Slots | 1 × PCIe 4.0 x16 (x4) / 1 × PCIe 3.0 x16 (x2) |
| M.2 Slots | 4 × M.2 Socket 3 M-Key |
| CPU M.2 | 2 × M.2, Up to PCIe 5.0 x4/x2 with Compatible Ryzen 9000/7000 Series Processors |
| Chipset M.2 | 2 × PCIe 4.0 x4/x2 |
| SATA | 4 × SATA 6Gb/s |
| NVMe RAID | RAID 0 / 1 / 5 / 10; RAID 5 Requires Ryzen 9000 Series Processor |
| SATA RAID | RAID 0 / 1 / 10 |
| LAN | Realtek 5GbE (5Gbps / 2.5Gbps / 1Gbps / 100Mbps) |
| Wireless | Qualcomm Wi-Fi 7 QCNCM865 |
| Wi-Fi Bands | 2.4GHz / 5GHz / 6GHz |
| Wi-Fi Standard | IEEE 802.11a/b/g/n/ac/ax/be, Up to 320MHz |
| Bluetooth | Bluetooth 5.4 |
| Audio Codec | Realtek ALC1220 |
| Audio Channels | 2 / 4 / 5.1 / 7.1-Channel High Definition Audio |
| Digital Audio Output | Optical S/PDIF |
| Rear HDMI | 1 × HDMI 2.1, Up to 4096 × 2160 at 60Hz |
| USB4 / DisplayPort | 2 × USB4 Type-C with DisplayPort 1.4, Up to 3840 × 2160 at 240Hz |

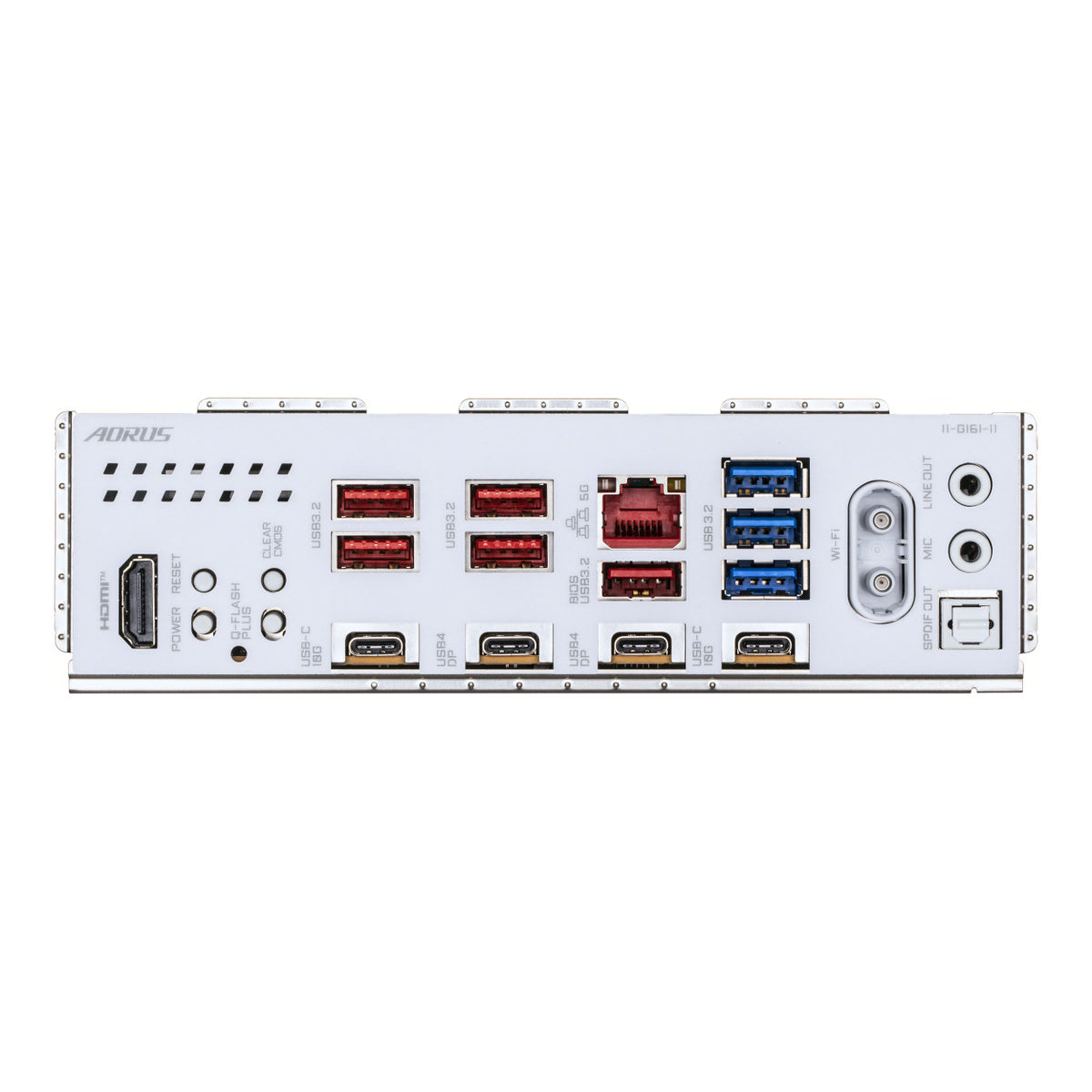

| Rear USB 10Gb/s Type-C | 2 |
| Rear USB 10Gb/s Type-A | 5 |
| Rear USB 5Gb/s | 3 |
| Front USB-C Header | USB 3.2 Gen 2x2, Up to 20Gb/s |
| Front USB-C Charging | Up to 65W PD 3.0 / QC 4+ |
| Front USB 5Gb/s | 2 × Headers Supporting Up to 4 Ports |
| Internal USB 2.0 | 2 × Headers Supporting Up to 4 Ports |
| RGB Connectivity | 3 × Addressable RGB Gen2 Headers / 1 × RGB Header |
| Fan / Pump Headers | 8 Total PWM/DC Fan and Pump Headers |
| Main Power Connector | 1 × 24-Pin ATX |
| CPU Power | 2 × 8-Pin ATX 12V |
| Additional PCIe Power Connector | 1 |
| Rear Controls | Power / Reset / Clear CMOS / Q-Flash Plus |
| BIOS | 512Mbit AMI UEFI BIOS |
| Q-Flash | Supported |
| Q-Flash Plus | Supported |
| Operating System | Windows 11 64-bit |
| Form Factor | ATX |
| Dimensions | 30.5 × 24.4cm |
Build a premium AMD AM5 system with high-speed DDR5, PCIe 5.0 storage and graphics support, Wi-Fi 7, 5GbE networking and extensive USB4 connectivity with the GIGABYTE X870E AORUS PRO X3D ICE.
