Description
Description

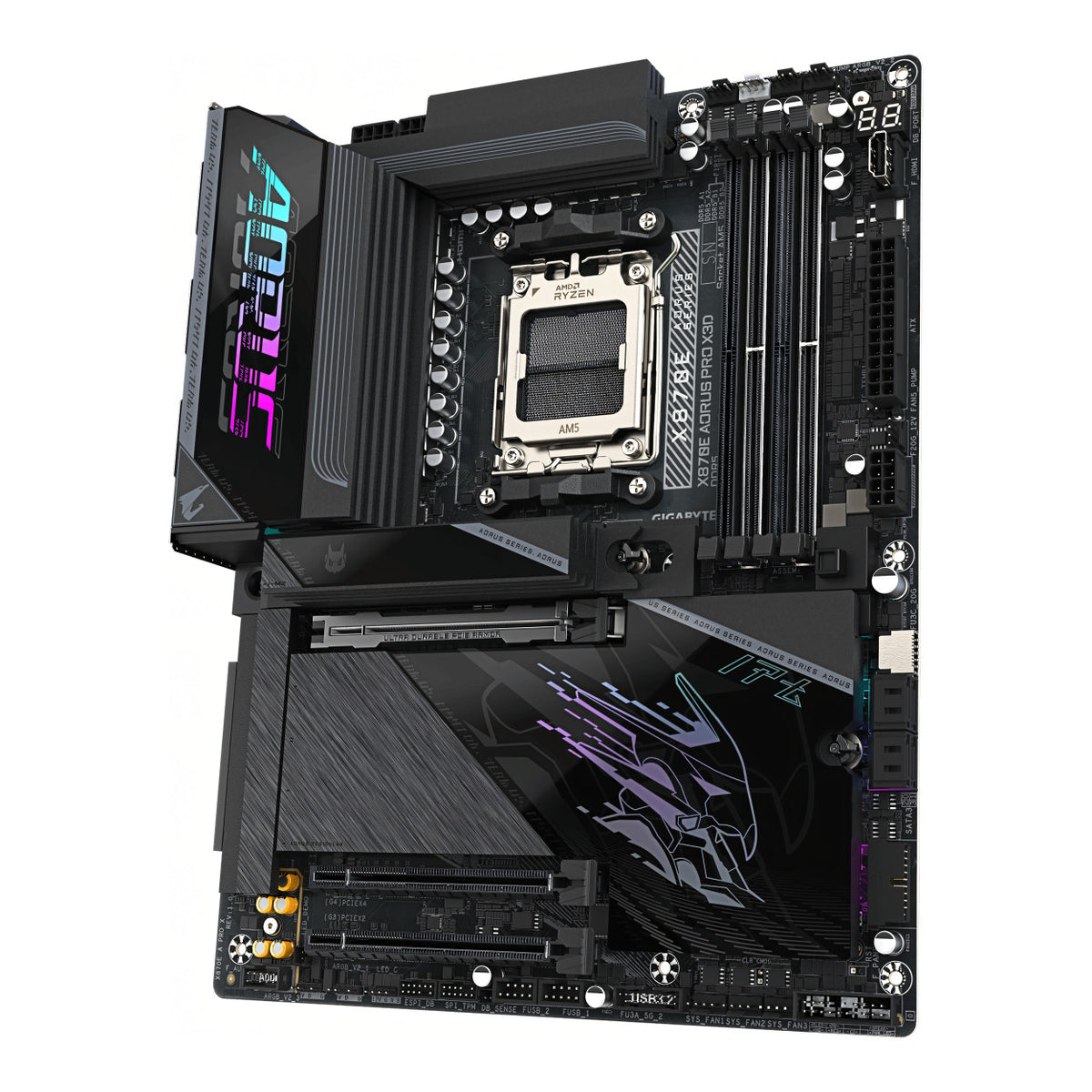

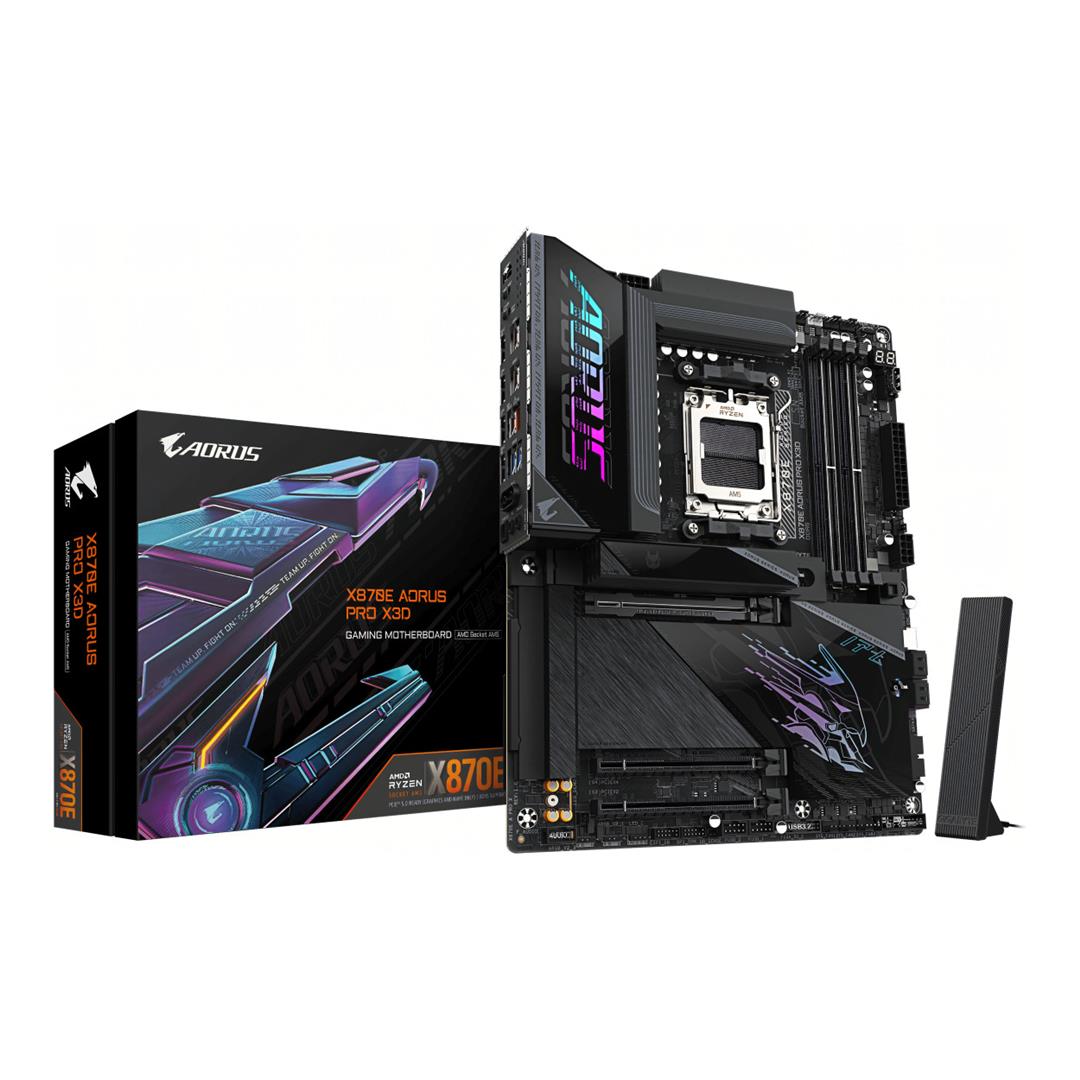

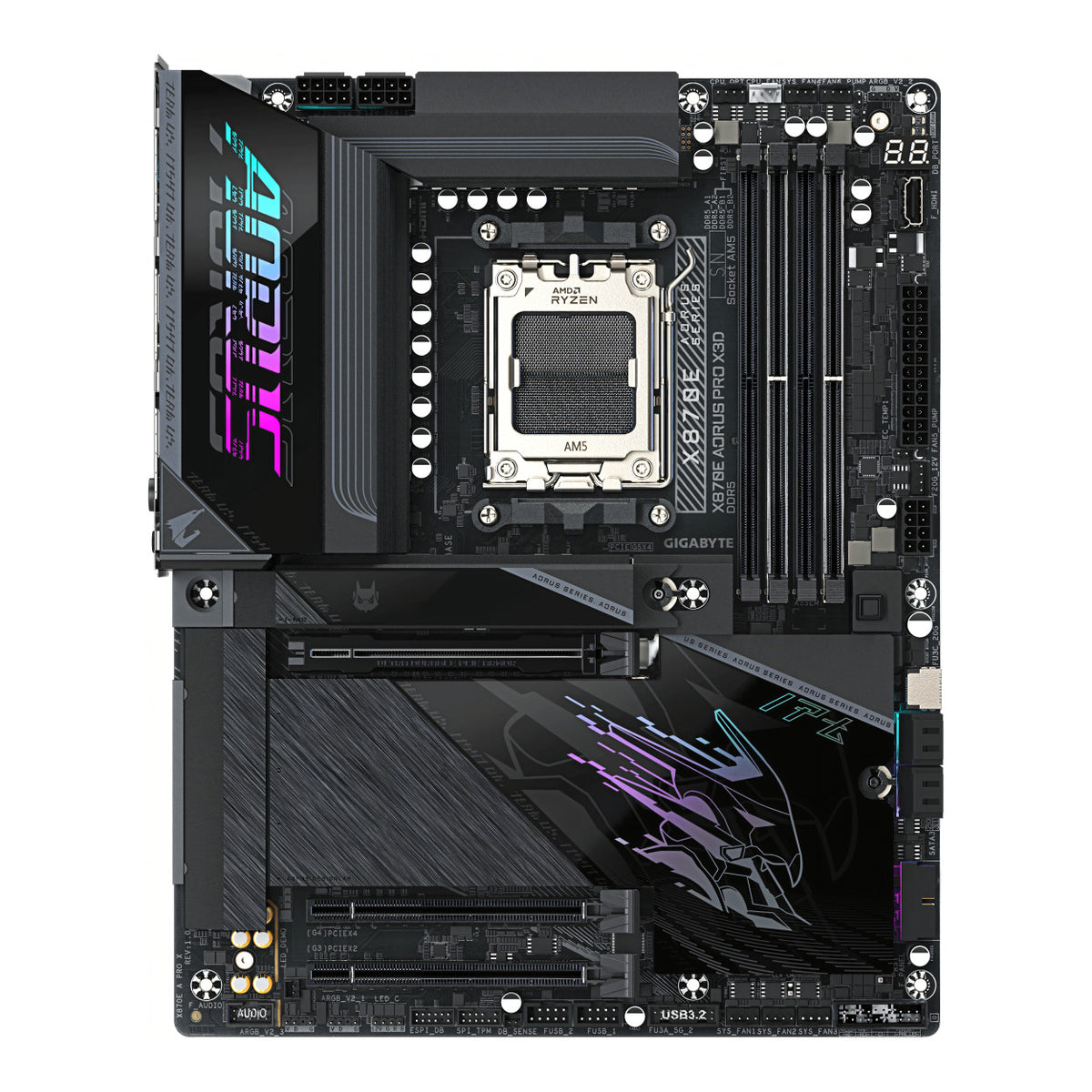

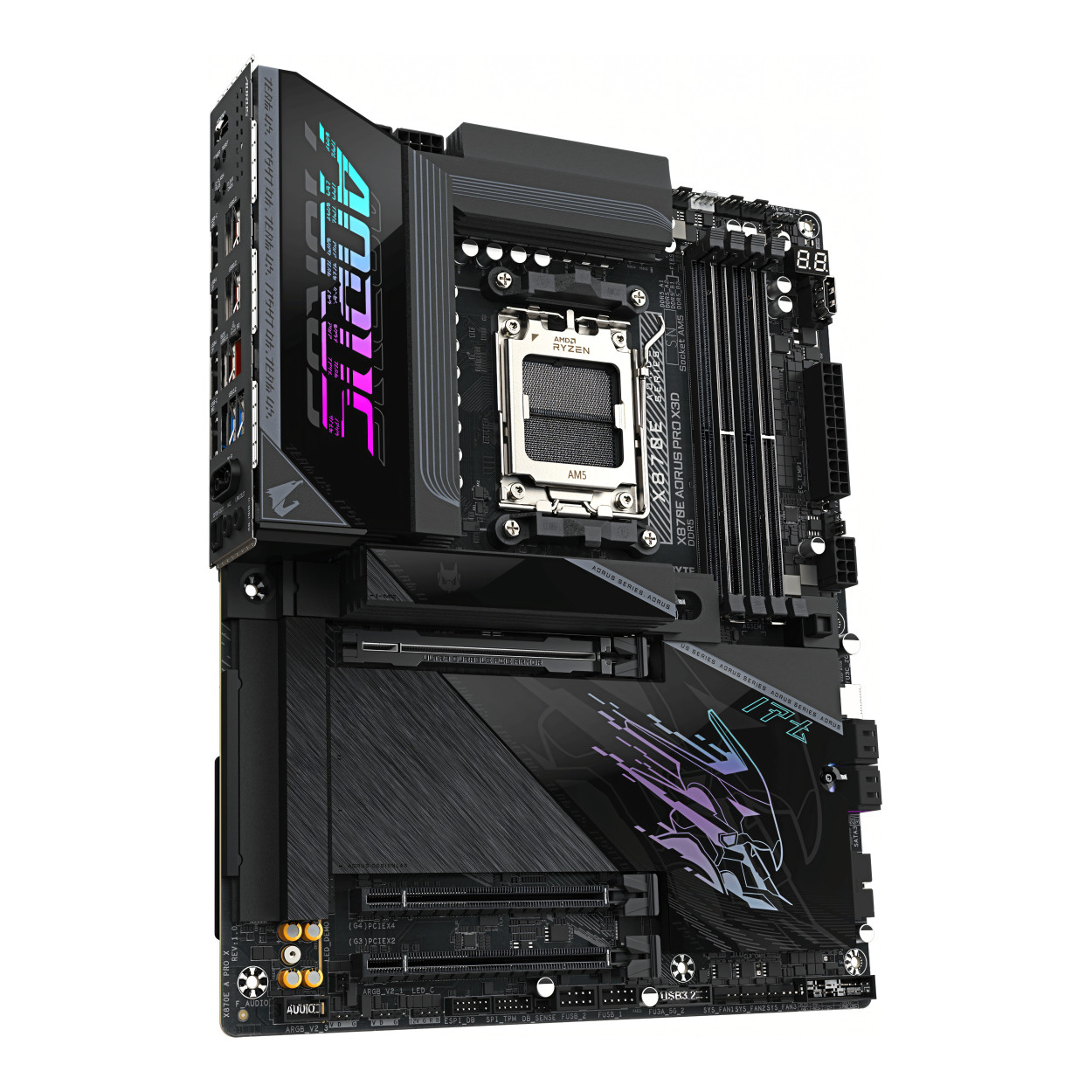

Gigabyte X870E AORUS Pro X3D AMD Socket AM5 ATX Motherboard X870E A PRO X
The GIGABYTE X870E AORUS PRO X3D is a high-performance AMD AM5 ATX motherboard designed for enthusiast gaming and powerful desktop builds. Featuring the AMD X870E chipset, it combines support for Ryzen 9000, 8000 and 7000 Series processors with DDR5 memory up to 9000 MT/s (OC), PCIe 5.0 expansion and storage, Wi-Fi 7, 5GbE networking and dual USB4 connectivity. GIGABYTE's X3D Turbo Mode 2.0, robust power design and comprehensive thermal solution make it particularly well suited to high-performance Ryzen systems.
Key Features
- AMD X870E chipset and AM5 socket supporting compatible Ryzen 9000, 8000 and 7000 Series processors.
- 18+2+2 Twin Digital VRM design with an 8-layer low-loss 2X copper PCB.
- 4 × DDR5 DIMM slots supporting up to 256GB and speeds up to DDR5-9000 (OC).
- PCIe 5.0 x16 graphics support with compatible Ryzen 9000 and 7000 Series processors.
- 4 × M.2 slots including two PCIe 5.0-capable CPU-connected slots.
- Realtek 5GbE LAN plus Qualcomm Wi-Fi 7 and Bluetooth 5.4.
- Dual USB4 Type-C connectivity with DisplayPort video output.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | GIGABYTE |
| Series | AORUS |
| Model | X870E AORUS PRO X3D |
| Abbreviated Model | X870E A PRO X |
| Product Type | Desktop Motherboard |
| Chipset | AMD X870E |
| CPU Socket | AMD Socket AM5 |
| Supported Processors | AMD Ryzen 9000 / 8000 / 7000 Series Processors |
| VRM Design | 18+2+2 Twin Digital VRM |
| PCB | 8-Layer Low-Loss, 2X Copper PCB |
| CPU Power | 2 × 8-Pin ATX 12V |
| Memory Type | DDR5 |
| Memory Slots | 4 × DDR5 DIMM |
| Maximum Memory Capacity | 256GB |
| Maximum Capacity per DIMM | 64GB |
| Memory Architecture | Dual Channel |
| Memory Speed | Up to DDR5-9000 MT/s (OC) |
| Memory Profiles | AMD EXPO / Intel XMP |
| Memory Support | Non-ECC Unbuffered DIMM 1Rx8 / 2Rx8 / 1Rx16 |
| Primary PCIe Slot | 1 × PCIe x16, Up to PCIe 5.0 x16 with Ryzen 9000/7000 Series Processors |
| Ryzen 8000 Primary Slot Mode | PCIe 4.0 x8 with Phoenix 1 / PCIe 4.0 x4 with Phoenix 2 |
| Additional Expansion Slots | 1 × PCIe 4.0 x16 (x4) / 1 × PCIe 3.0 x16 (x2) |
| M.2 Slots | 4 × M.2 Socket 3 M-Key |
| CPU-Connected M.2 | 2 × M.2, Up to PCIe 5.0 x4/x2 with Compatible Ryzen 9000/7000 Series Processors |
| Chipset-Connected M.2 | 2 × PCIe 4.0 M.2 |
| SATA | 4 × SATA 6Gb/s |
| LAN | Realtek 5GbE LAN (5Gbps / 2.5Gbps / 1Gbps / 100Mbps) |
| Wireless | Qualcomm QCNCM865 Wi-Fi 7 |
| Wi-Fi Standards | IEEE 802.11a/b/g/n/ac/ax/be |
| Wi-Fi Bands | 2.4GHz / 5GHz / 6GHz |
| Wi-Fi Channel Width | Up to 320MHz |
| Bluetooth | Bluetooth 5.4 |
| Audio Codec | Realtek ALC1220 |
| Audio | 2 / 4 / 5.1 / 7.1-Channel High Definition Audio |
| Digital Audio | Optical S/PDIF Out |
| HDMI | 1 × HDMI 2.1, Up to 4096 × 2160 at 60Hz |
| USB4 Display Output | 2 × USB4 Type-C with DisplayPort 1.4, Up to 3840 × 2160 at 240Hz |
| Rear USB4 | 2 × USB4 Type-C, Up to 40Gb/s |
| Rear USB 10Gb/s Type-C | 2 |
| Rear USB 10Gb/s Type-A | 5 |
| Rear USB 5Gb/s | 3 |
| Front USB-C | 1 × USB 3.2 Gen 2x2 Header, Up to 20Gb/s |
| Front USB-C Charging | Up to 65W PD 3.0 / QC 4+ |
| Internal USB 5Gb/s | 2 × Headers Supporting Up to 4 Ports |
| Internal USB 2.0 | 2 × Headers Supporting Up to 4 Ports |
| RGB Headers | 3 × Addressable RGB Gen2 / 1 × RGB LED |
| Fan / Pump Headers | 8 Total |
| TPM Header | 1 × SPI TPM Header |
| Rear Controls | Reset / Power / Clear CMOS / Q-Flash Plus |
| BIOS | 512Mbit AMI UEFI BIOS |
| Q-Flash | Supported |
| Q-Flash Plus | Supported |
| Software | GIGABYTE Control Center (GCC) |
| Operating System Support | Windows 11 64-bit |
| Form Factor | ATX |
| Dimensions | 30.5 × 24.4cm |
Build a high-performance Ryzen gaming system with advanced X3D optimisation, DDR5, PCIe 5.0, Wi-Fi 7, 5GbE and USB4 connectivity using the GIGABYTE X870E AORUS PRO X3D.
