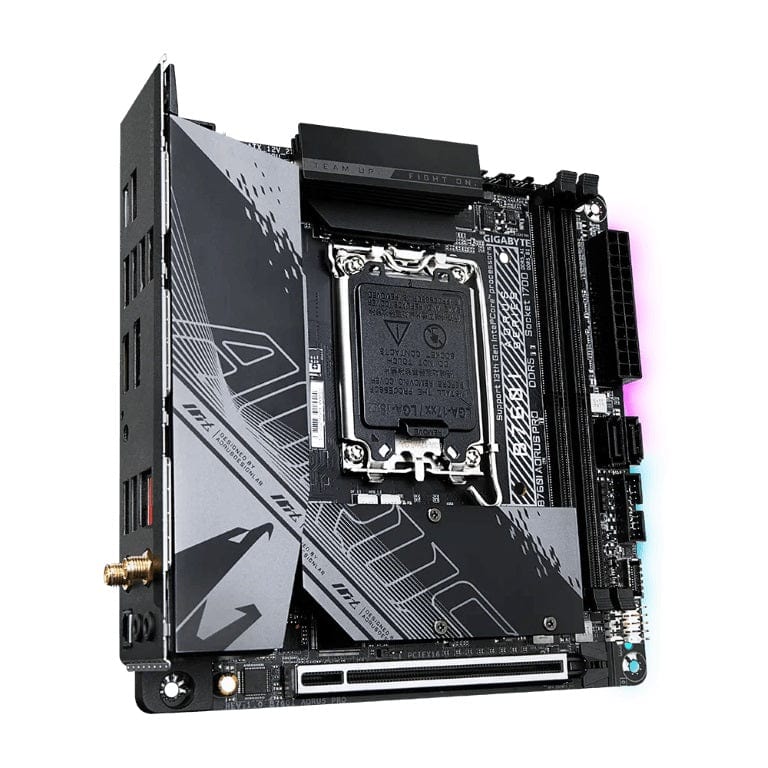

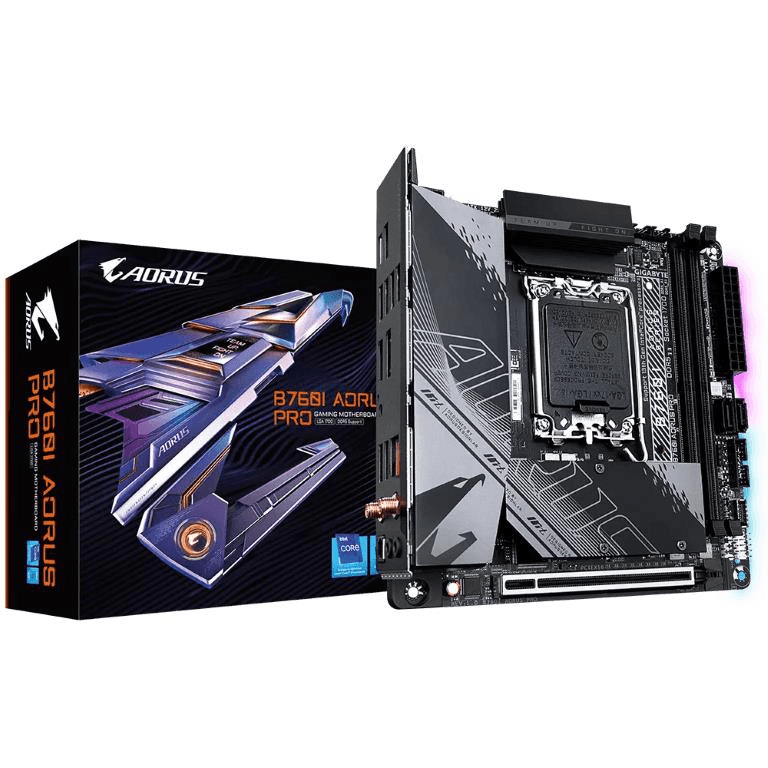

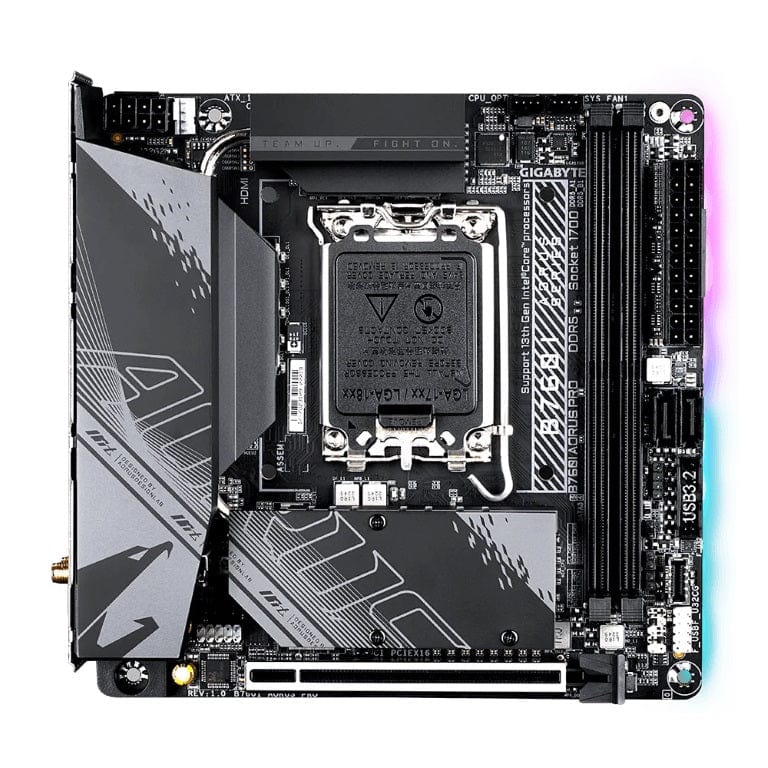

Gigabyte Intel B760 Socket LGA1700 DDR5 Mini-ITX Motherboard GA-B760-I-AORUS PRO

Gigabyte Intel B760 Socket LGA1700 DDR5 Mini-ITX Motherboard

Unparalleled Performance

With the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming.

Outstanding Thermal Design

GIGABYTE Motherboards' unparalleled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming performance.

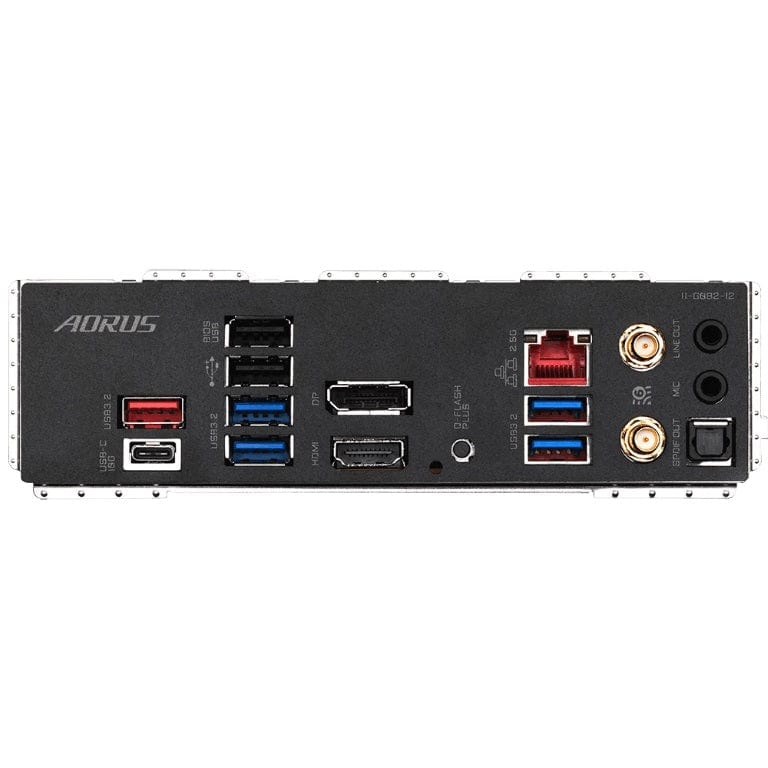

Connectivity

• 802.11ax Wi-Fi 6E
• 2.5GbE LAN
• Rear USB-C^® 10Gb/s
• Front USB 3.2 Gen 1 USB-C
• Hi-Fi Audio

GIGABYTE Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage, and Wi-Fi connectivity.

Personalization

• UEFI BIOS
• GIGABYTE Control Center
• Multi-Key

GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.

Specifications:

Chipset: Intel^® B760 Express Chipset

Form Factor: Mini-ITX Form Factor; 17.0cm x 17.0cm

LAN: Intel^® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

CPU.

• LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel^® Core™, Pentium^® Gold and Celeron^® Processors*
• L3 cache varies with CPU

Operating System

• Support for Windows 11 64-bit
• Support for Windows 10 64-bit

Memory

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)

• Support for DDR5 8000(O.C.) /7800(O.C.) /7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
• 2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory
• Dual channel memory architecture
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics

Integrated Graphics Processor-Intel^® HD Graphics support:(Graphics specifications may vary depending on CPU support.)

• 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
  * Support for DisplayPort 1.2 version and HDCP 2.3
• 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
  * Support for HDMI 2.0 version and HDCP 2.3.

Audio

• Realtek^® Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel
  * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
• Support for S/PDIF Out

Wireless Communication module

Intel^® Wi-Fi 6E AX211 (For PCB rev. 1.0)Realtek^® Wi-Fi 6E RTL8852CE (For PCB rev. 1.1)(Actual data rate may vary depending on environment and equipment.)

• WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
• BLUETOOTH 5.3
• Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
• WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
• BLUETOOTH 5.3
• Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

Expansion Slots

CPU:

• 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

Storage Interface

CPU: Chipset:RAID 0 and RAID 1 support for SATA storage devices

• 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
• 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
• 2 x SATA 6Gb/s connectors
