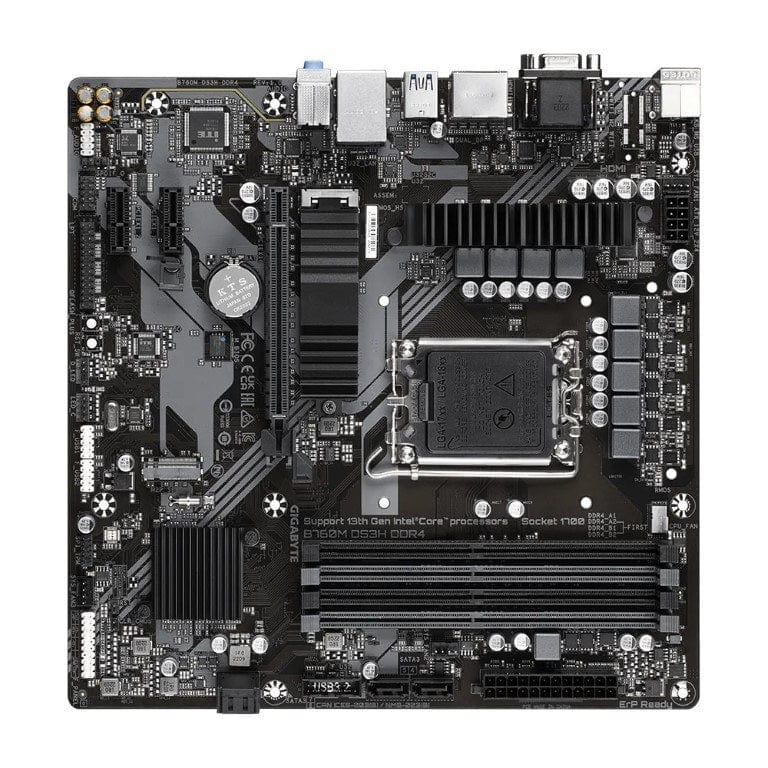

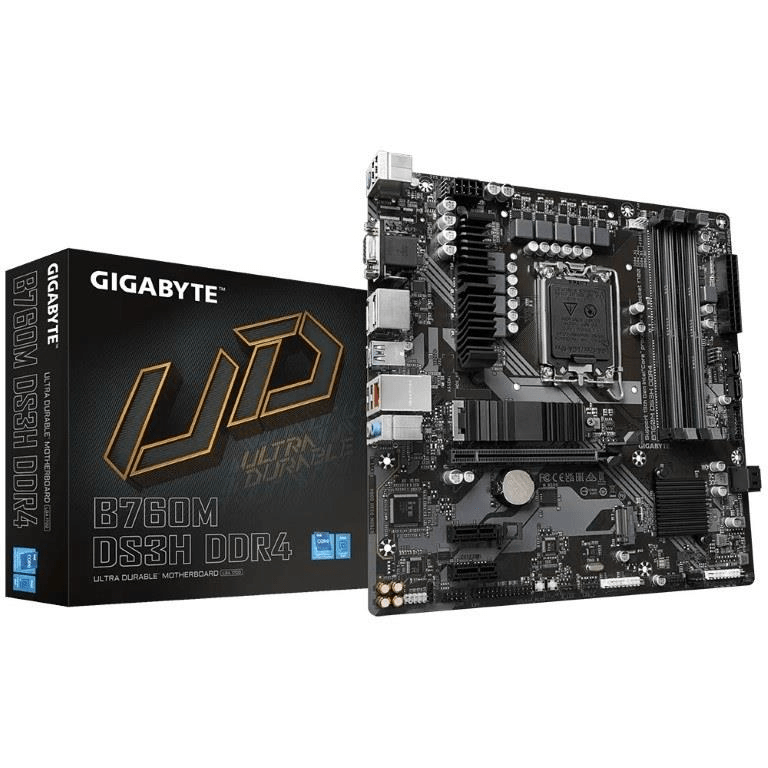

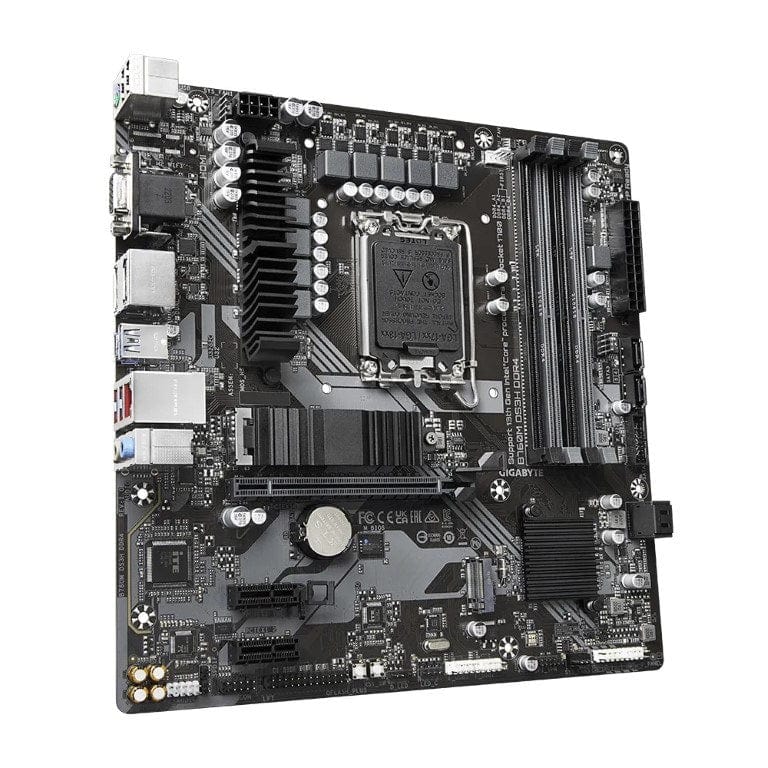

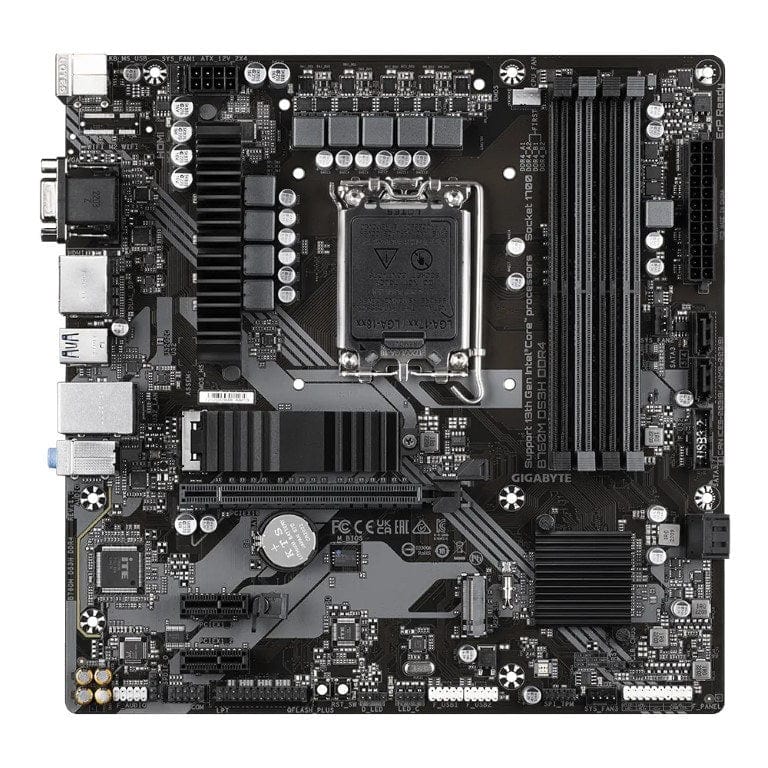

Gigabyte B760M DS3H DDR4 Intel Socket LGA 1700 mATX Motherboard GA-B760M-DS3H-DDR4

Gigabyte B760M DS3H DDR4 Intel Socket LGA 1700 mATX Motherboard GA-B760M-DS3H-DDR4

Features

6+2+1 Phases Hybrid Digital VRM Design

• 6+2+1 Phases Low RDS(on) MOSFETs
• Premium Choke and Capacitors to improve transient response and minimize oscillation

GIGABYTE Ultra-Efficient M.2 Thermal Guard
With durability in mind, GIGABYTE provides a thermal solution for M.2 SSD devices. The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.

SMART FAN 6
Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface

PERSONALIZATION
GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.

ULTRA DURABLE
Q-Flash Plus
Update the BIOS easily without installing the CPU, memory and graphics card.
With GIGABYTE Q-Flash Plus, you don't need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!

Technical Specification

Product: Gigabyte B760M DS3H DDR4

Processor manufacturer: Intel

Processor socket: LGA 1700

Compatible processor series: 12th and 13th Generation Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9

Supported memory types: DDR4-SDRAM

Maximum internal memory: 128 GB

Memory slots type: DIMM

Supported storage drive interfaces: M.2, PCI Express 4.0, SATA

Supported storage drive types: HDD & SSD

RAID levels: 0, 1, 5, 10

Maximum resolution: 4096 x 2304 pixels

LAN: Realtek^® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

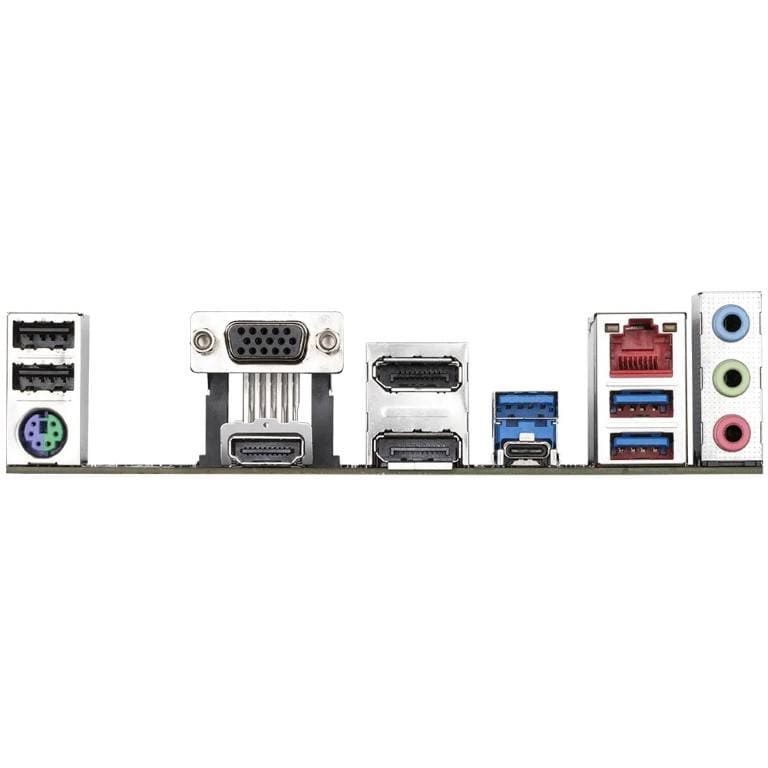

USB connector type: USB Type-A, USB Type-C

Form Factor: Micro ATX Form Factor; 24.4cm x 24.4cm
