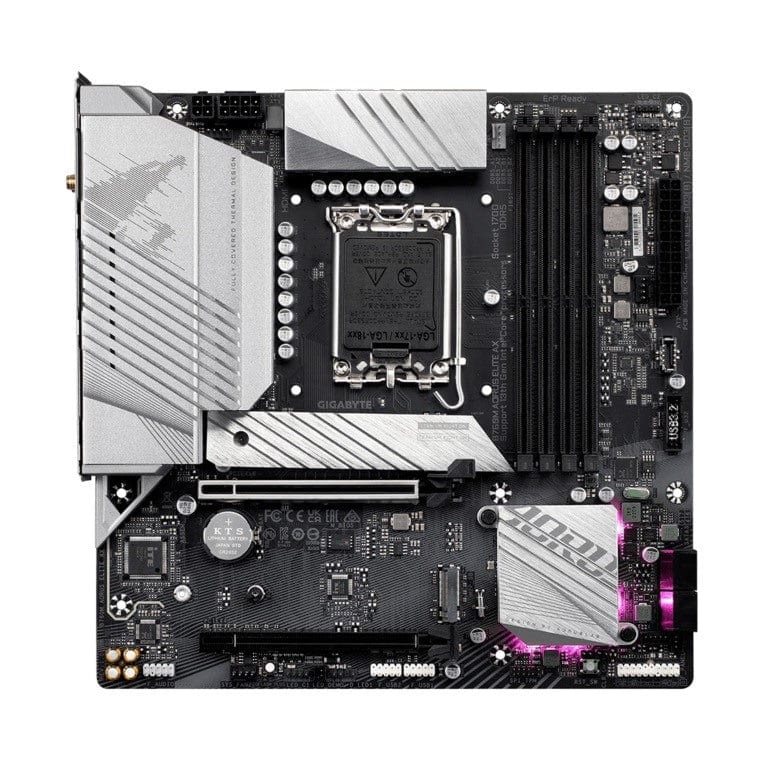

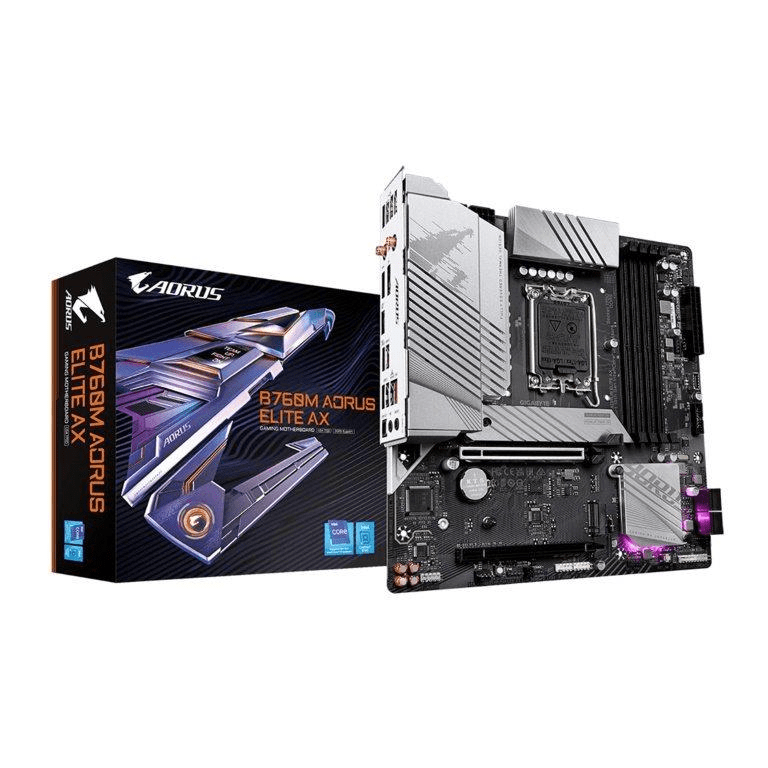

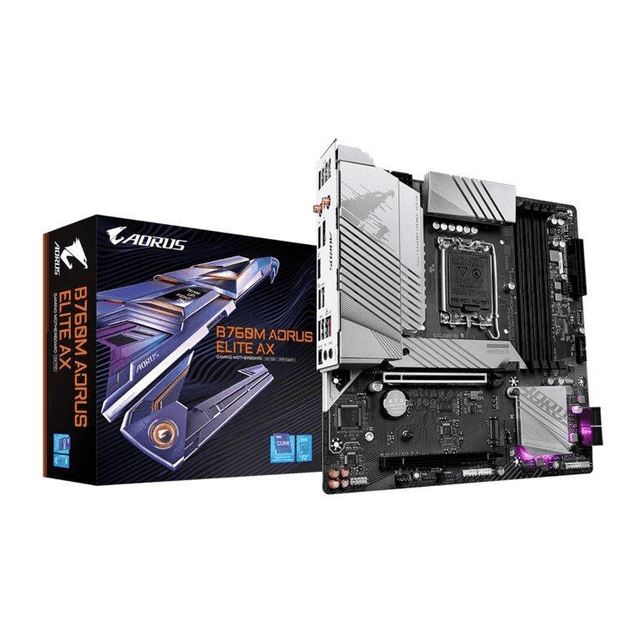

Gigabyte B760M Aorus Elite AX Intel LGA 1700 mATX Motherboard GA-B760M-AORUS ELITE-AX

Gigabyte B760M Aorus Elite AX Intel LGA 1700 mATX Motherboard GA-B760M-AORUS ELITE-AX

Features

• Supports Intel Core 14th / 13th / 12th processors
• Unparalleled Performance: Twin 12*+1+1 Phases Digital VRM Solution (*6+6 phases parallel power design)
• Dual Channel DDR5: 4x SMD DIMMs with XMP 3.0 Memory Module Support
• Next Generation Storage: 2x PCIe 4.0 x4 M.2 Connectors
• Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & M.2 SSD Performance
• EZ-Latch Plus: M.2 Connectors with Quick Release & Screwless Design
• Fast Networks: 2.5GbE LAN & Wi-Fi 6E 802.11ax
• Extended Connectivity: Front USB-C 10Gb/s, Rear USB-C 20Gb/s, DP, HDMI
• Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
• Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card

Unparalleled Performance

With the fast-moving technology changes, Gigabyte always follows the latest trends and provides customers with advanced features and latest technologies. Gigabyte motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming.

Twin Digital VRM Design

To ensure maximum Turbo Boost and overclocking performance of Intel's new generation CPU, Gigabyte AORUS series motherboard equip the best VRM design ever built with the highest quality components.

Unlock DDR5

DDR5 Auto Booster

Automatically Boost the Native DDR5 frequency to 5000MHz while the system is under heavy loading by a single click.

DDR5 Memory Upgrade

Gigabyte BIOS offers pre-defined and retrievable profiles for users to get higher performance easily. The profiles are based on a database that is created by checking each memory IC and PMIC vendors to optimize the modules to unleash their full potential. This is a time saving feature to manually configure overclocked DDR5 memory kits.

• Instantly upgrade memory performance
• Overclock Native and XMP 3.0 DDR5 memory to higher frequency easily
• No need to input dozens of memory parameters such as clock, voltage and timings
• Built-in wide variety pre-tuned profiles database for different memory IC vendors

XMP 3.0 User Profile

Define and create your own SPD profile into Native and XMP 3.0 memory modules or apply the pre-tuned profiles to XMP 3.0 User Profile. Two user-defined profiles can be saved, loaded either locally or from/to an external storage device.

• Two empty SPD profiles can be defined by users and carry to next computer
• Transfer DDR5 XMP Booster profiles into XMP 3.0 User Profiles
• Quick memory performance simulation based on user input clock and timing parameters
• Profile save and load function to share your memory parameters online

DDR5 Overclocking Up to 7800 and Beyond*

AORUS is offering a tested and proven platform that has memory overclocking capability up to 7800 and beyond. For DDR5 XMP Memory, all users need to do to attain high memory performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their AORUS motherboard.

Dual PCIe 4.0 x4 M.2

AORUS Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system's potential.

Gigabyte PerfDrive

PerfDrive technology integrates multiple Gigabyte exclusive BIOS settings to allow users to balance between different levels of performance, power consumption, and temperature according to their needs easily when using 13th gen Intel Core processors.

Outstanding Thermal Design

Gigabyte Motherboards' unparalleled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming performance.

Thermal Design

2x Large Surface

Increased surface area up to 2x larger compared to traditional heatsinks. It improves heat dissipation from the MOSFETs.

Real One-piece Build

TMOS is a TRUE single piece heatsink. Its one-piece design and larger surface drastically improve the cooling performance against competitors' multi-piece design.

Multi-Cut Design

TMOS features several channels and inlets on the heatsink. This design allows for the air flow to go through which leads to a great improvement of the heat transfer performance.

M.2 Thermal Guard

With durability in mind, Gigabyte provides a thermal solution for M.2 SSD devices. The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.

3% Cooler by implementing, 2x copper PCB Design

By adopting 2x copper on PCB inner layer, it lowers the components' temperature at least 3% by turning the PCB into a super thin PCB size copper heatsink to dissipate the heat from the components effectively, due to it’s high thermal conductivity and lower impedance.

Smart Fan 6

Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.

Cooling Features

High Current Support

Each fan headers support PWM and DC fan and Water Cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection

Precision Control

Multiple temperature/fan speed control points for precise fan curve

Dual Curve Mode

Slope/Stair dual mode for different user scenario

Fan Stop

Fan can stop completely below users' specified temperature point

Connectivity

Gigabyte Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage, and Wi-Fi connectivity.

802.11ax Wi-Fi 6E

The Latest Wireless solution 802.11ax Wi-Fi 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.

Smart Antenna

• 2x signal strength compared to traditional antenna design.
• AORUS Antenna with smart antenna function for the best WIFI signal transmitting.

2x Faster than ever

• Adoption of 2.5G LAN provide up to 2.5GbE network connectivity, with at least 2 times faster transfer speeds compared to general 1GbE networking, perfectly designed for gamers with ultimate online gaming experience.
• Support Multi-Gig(10/100/1000/2500Mbps) RJ-45 Ethernet

Connecting the Future - USB 3.2 Gen 2x2 Type-C

Featuring the USB 3.2 Gen 2x2 design which is doubled the performance than previous generation of USB 3.2 Gen 2. It works up to 20Gbps ultra-fast data transfer while connecting to USB 3.2 compliant peripherals. Through the USB Type-C connector, users can enjoy the flexibility of reversible connection to access and store massive amounts of data rapidly.

Connecting the Future - Front USB3.2 Gen 2 Type-C

USB 3.2 Gen 2 provides USB 3.2 Gen 2 ports with speeds up to 10Gbps. With twice the bandwidth compared to its previous generation as well as backwards compatibility with USB 2.0 and USB 3.2 Gen1, the much improved USB 3.2 Gen 2 protocol is available over the new reversible USB Type-C and the traditional USB Type-A connector for better compatibility over a wider range of devices.

UEFI BIOS

Friendly User Interface

The EASY MODE shows important hardware information in one page including CPU clock, Memory, Storage, Fan.

My Favorites

Add constantly used items into the favorite menu for quick access.

Storage Information

Show all kinds of storage information including SATA, PCIE and M.2 interface.

Changelog

List all changes before saving and exiting bios. Quickly review overall settings modification.

Intuitive Load Line Curve

Clearly show each loadline calibration setting in an intuitive curve graph.

Q-Flash Plus

Update the BIOS easily without installing the CPU, memory and graphics card.

With Gigabyte Q-Flash Plus, you don't need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!

Technical Specification

• 1x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
• 4x SATA 6Gb/s connectors

• 1x 24-pin ATX main power connector
• 1x 8-pin ATX 12V power connector
• 1x 4-pin ATX 12V power connector
• 1x CPU fan header
• 3x system fan headers
• 2x addressable LED strip headers
• 2x RGB LED strip headers
• 2x M.2 Socket 3 connectors
• 4x SATA 6Gb/s connectors
• 1x front panel header
• 1x front panel audio header
• 1x USB Type-C header, with USB 3.2 Gen 2 support
• 1x USB 3.2 Gen 1 header
• 2x USB 2.0/1.1 headers
• 2x Thunderbolt add-in card connectors
• 1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
• 1x Q-Flash Plus button
• 1x reset button
• 1x reset jumper
• 1x Clear CMOS jumper

• 2x SMA antenna connectors (2T2R)

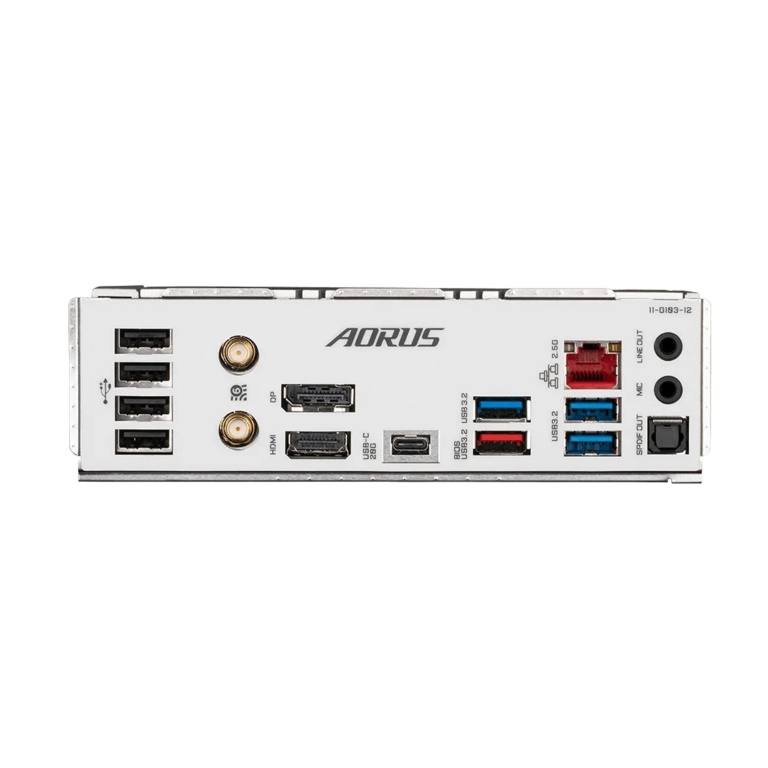

• 1x USB Type-C port, with USB 3.2 Gen 2x2 support
• 1x USB 3.2 Gen 2 Type-A port (red)
• 3x USB 3.2 Gen 1 ports
• 4x USB 2.0/1.1 ports
• 1x HDMI port
• 1x DisplayPort
• 1x RJ-45 port
• 1x optical S/PDIF Out connector
• 2x audio jacks
