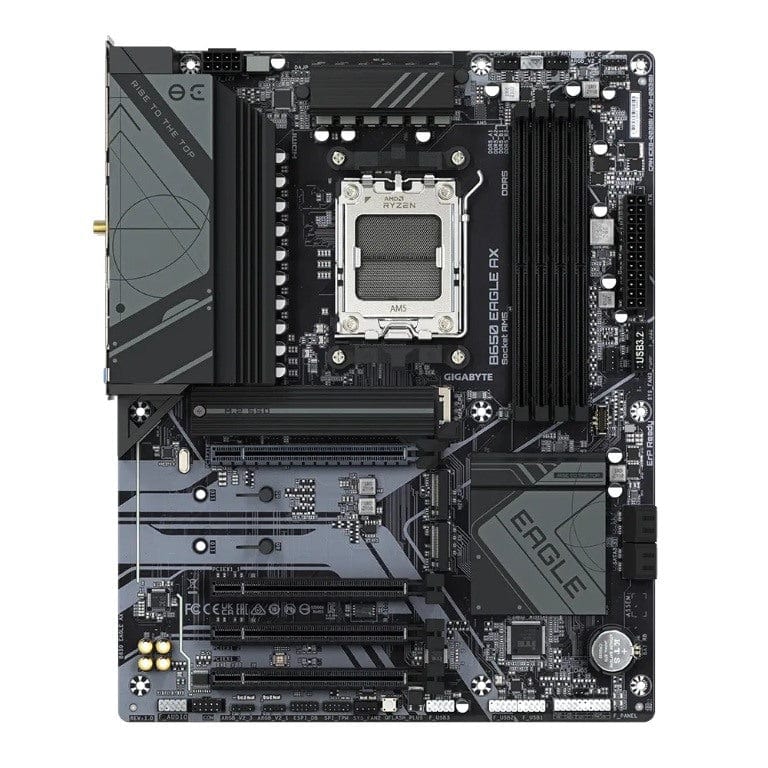

Gigabyte B650 Eagle AX AMD Socket AM5 ATX Motherboard GA-B650-EAGLE-AX

Gigabyte B650 Eagle AX AMD Socket AM5 ATX Motherboard GA-B650-EAGLE-AX

Features

• AMD Socket AM5: Supports AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors
• Unparalleled Performance: 12+2+2 Phases Digital VRM Solution
• Dual Channel DDR5: 4x SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support
• SuperSpeed Storage: 1x PCIe 5.0 + 2x PCIe 4.0 M.2 Connectors
• Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & 25110 M.2 SSD Performance
• EZ-Latch: PCIe x16 Slot with Quick Release Design
• Fast Networks: Wi-Fi 6E 802.11ax & GbE LAN
• Extended Connectivity: DP, HDMI, Rear USB 10Gb/s
• Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
• Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card

Durable Performance

Gigabyte Ultra Durable motherboards built with optimal components inside out provide the prime performance and timeless platform.

Digital VRM Design

The best VRM design ever built with the highest quality components.

EXPO & XMP Support

DDR5 EXPO & XMP Overclocking Up to 7600 and Beyond*

Gigabyte is offering a tested and proven platform with extreme memory performance boost.

Thermal

• Fully Covered MOSFET Heatsink
• 2 Thermal Guard

Future Connectivity

The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.

802.11ax Wi-Fi 6E

The latest Wireless solution 802.11ax Wi-Fi 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides 4x range over BT 4.2 and with faster transmission.

Easy Friendly

Innovative and intuitive hardware, software, and BIOS interface design to create your personal style.

EZ-Latch

Unlock the latch of the PCIe slot easily when remove the graphics card in the PCIe slot.

Q-Flash Plus

Update the BIOS easily without installing the CPU, memory, and graphics card.

Smart Fan 6

Ensures optimal cooling and quiet operation for your gaming PC, with support for PWM/DC fans and pumps, customizable settings, and intuitive temperature monitoring.

• High Current Support: Each fan headers support PWM and DC fan and Water Cooling Pump, and up to 24W (12V x 2A) with Over-Current Protection.
• Precision Control: Multiple temperature/fan speed control points for precise fan curve.
• Dual Curve Mode: Slope/Stair dual mode for different user scenario.
• Fan Stop: Fan can stop completely below users' specified temperature point.

Smart Fan 6 BIOS UI

• Enhance Fan Curve UI: Enhance fan curve control with an expanded number of control points, from 5 to 7, and a larger fan speed graph, enabling users to have more precise and effortless control over fan curve settings.
• Slope/Stair Dual Graph Mode: Switch between Slope and Stair modes to adapt to various user scenarios. Slope mode provides a linear fan speed curve, while Stair mode maintains a constant fan speed within specified temperature intervals.
• Manual Input: For advanced users, manual input of fan speeds is available for fine-tuning and precise control over the cooling system.
• EZ Tuning: Simplify the process with EZ Tuning by setting 4 points on a rough temperature/fan speed scale. Smart Fan 6 will quickly generate a fan curve based on these points.
• Fan Curve Profile: Save your customized fan curve profile in the BIOS ROM, ensuring it remains intact even after BIOS updates.

Technical Specification

• 1x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x2 SSDs
• 1x M.2 connector (M2P_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x2 SSDs
• 1x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
• 4x SATA 6Gb/s connectors

• 1x 24-pin ATX main power connector
• 1x 8-pin ATX 12V power connector
• 1x CPU fan header
• 1x CPU fan/water cooling pump header
• 2x system fan headers
• 1x system fan/water cooling pump header
• 3x addressable RGB Gen2 LED strip headers
• 1x RGB LED strip header
• 3x M.2 Socket 3 connectors
• 4x SATA 6Gb/s connectors
• 1x front panel header
• 1x front panel audio header
• 1x USB Type-C header, with USB 3.2 Gen 1 support
• 1x USB 3.2 Gen 1 header
• 3x USB 2.0/1.1 headers
• 1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
• 1x Q-Flash Plus button
• 1x serial port header j
• 1x Clear CMOS jumper

• 1x DisplayPort
• 1x HDMI port
• 1x PS/2 keyboard/mouse port
• 2x SMA antenna connectors (2T2R)

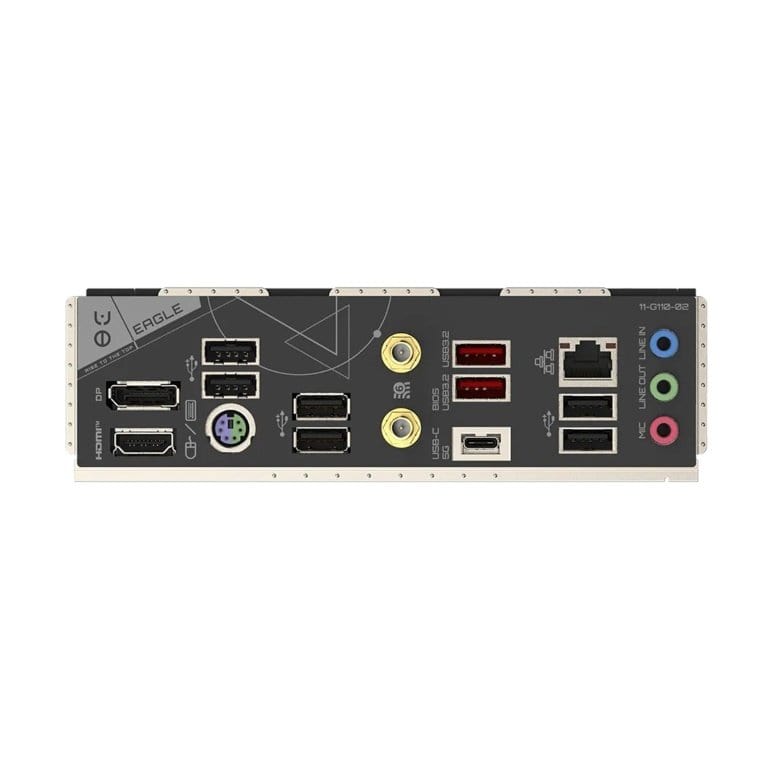

• 1x USB Type-C port, with USB 3.2 Gen 1 support
• 2x USB 3.2 Gen 2 Type-A ports (red)
• 6x USB 2.0/1.1 ports
• 1x RJ-45 port
• 3x audio jacks
