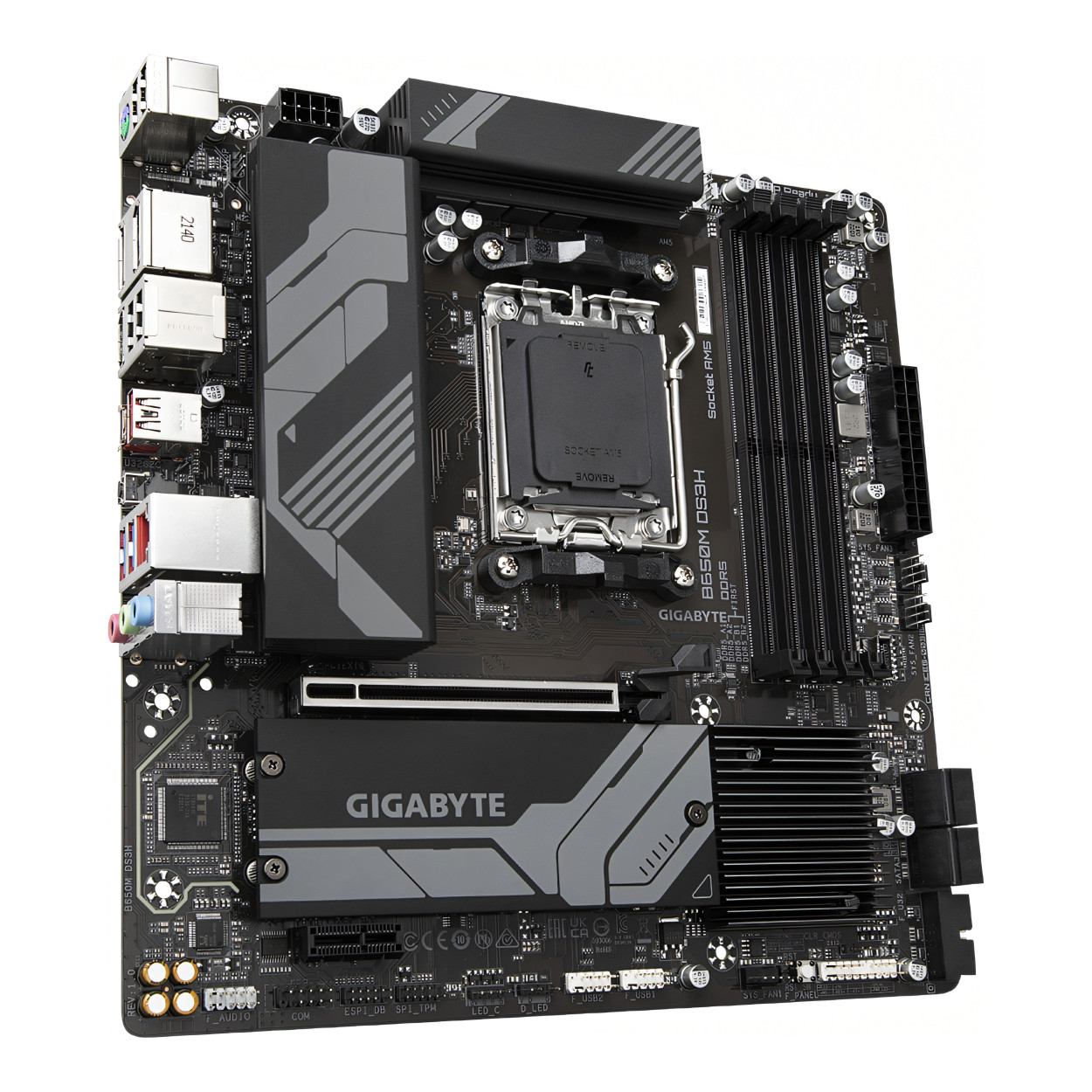

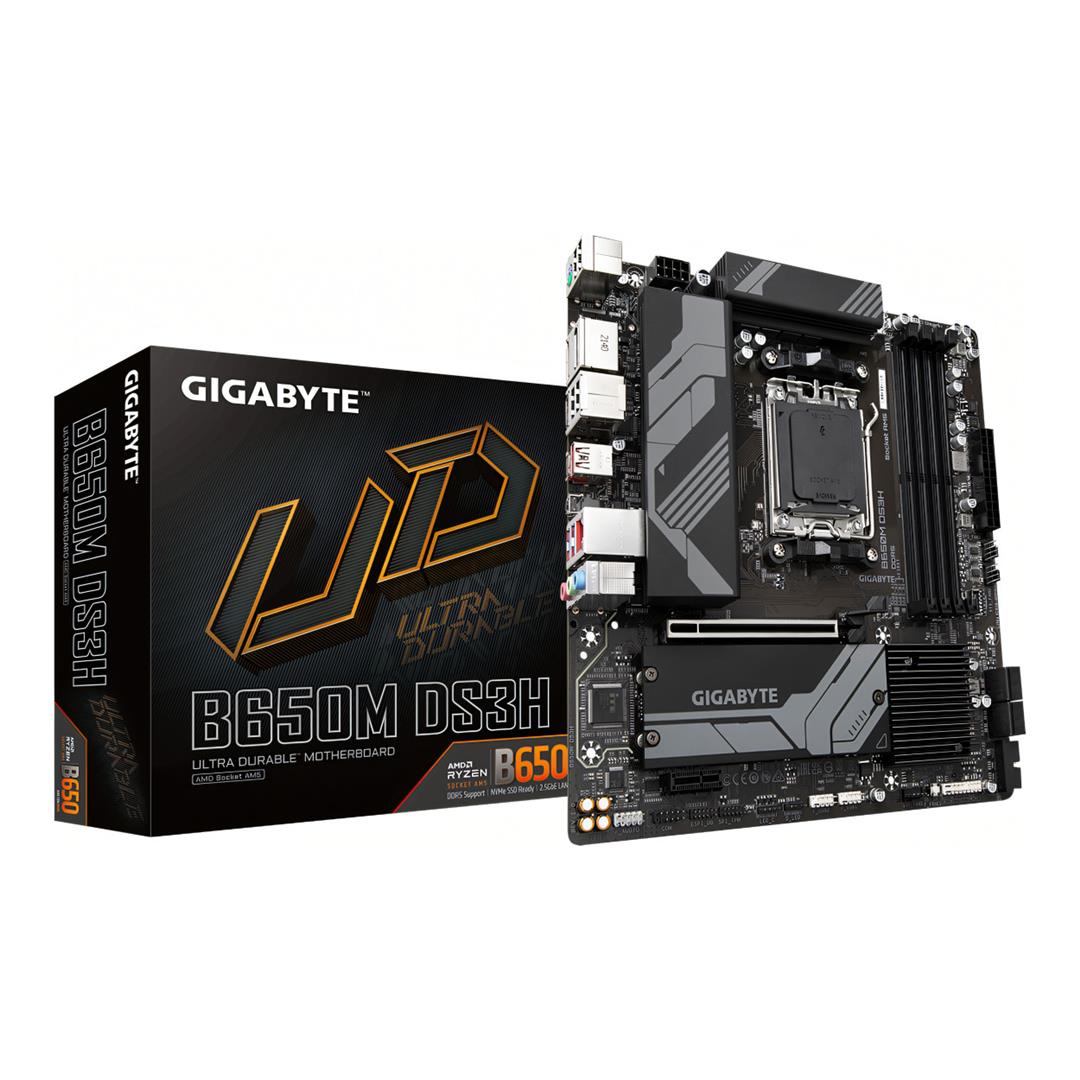

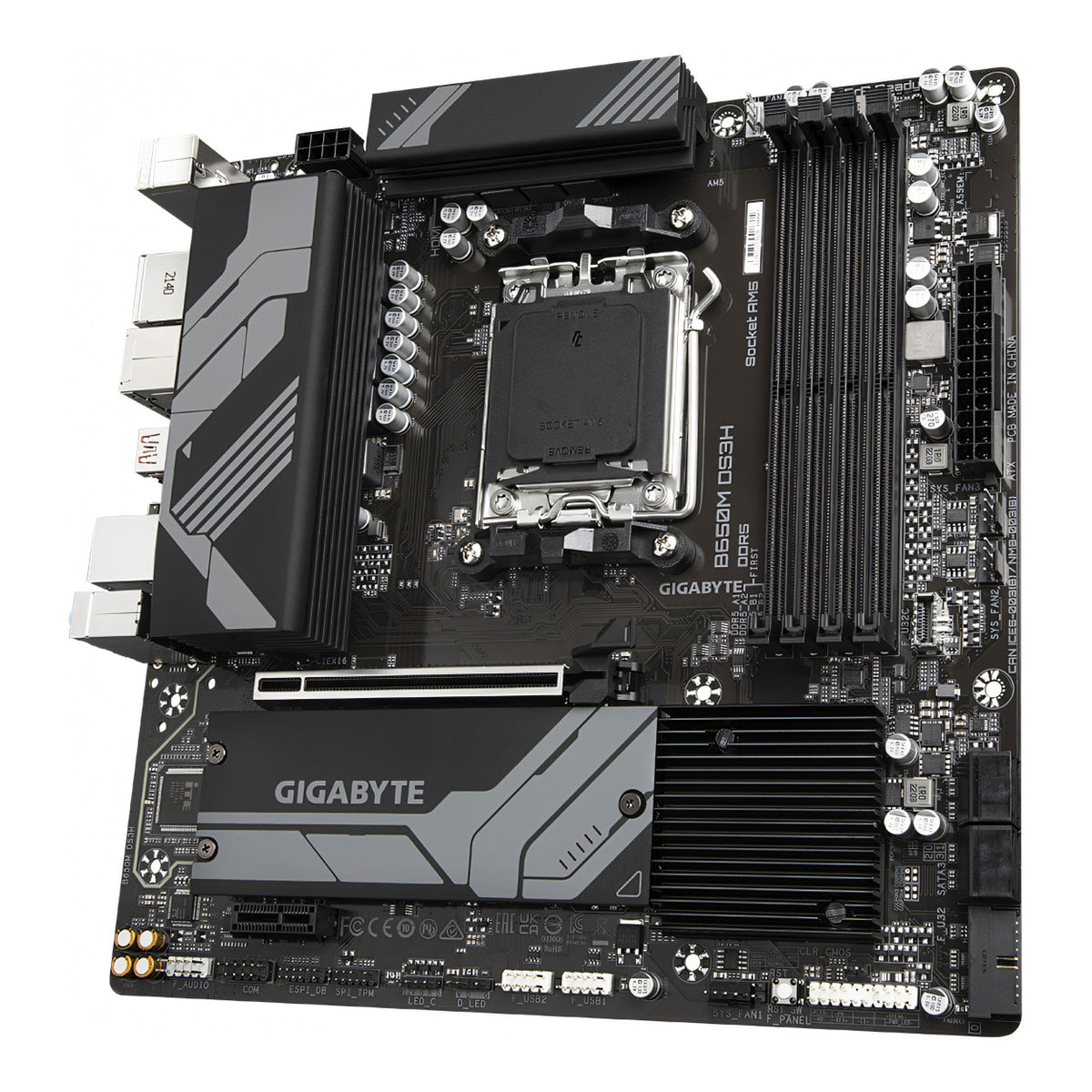

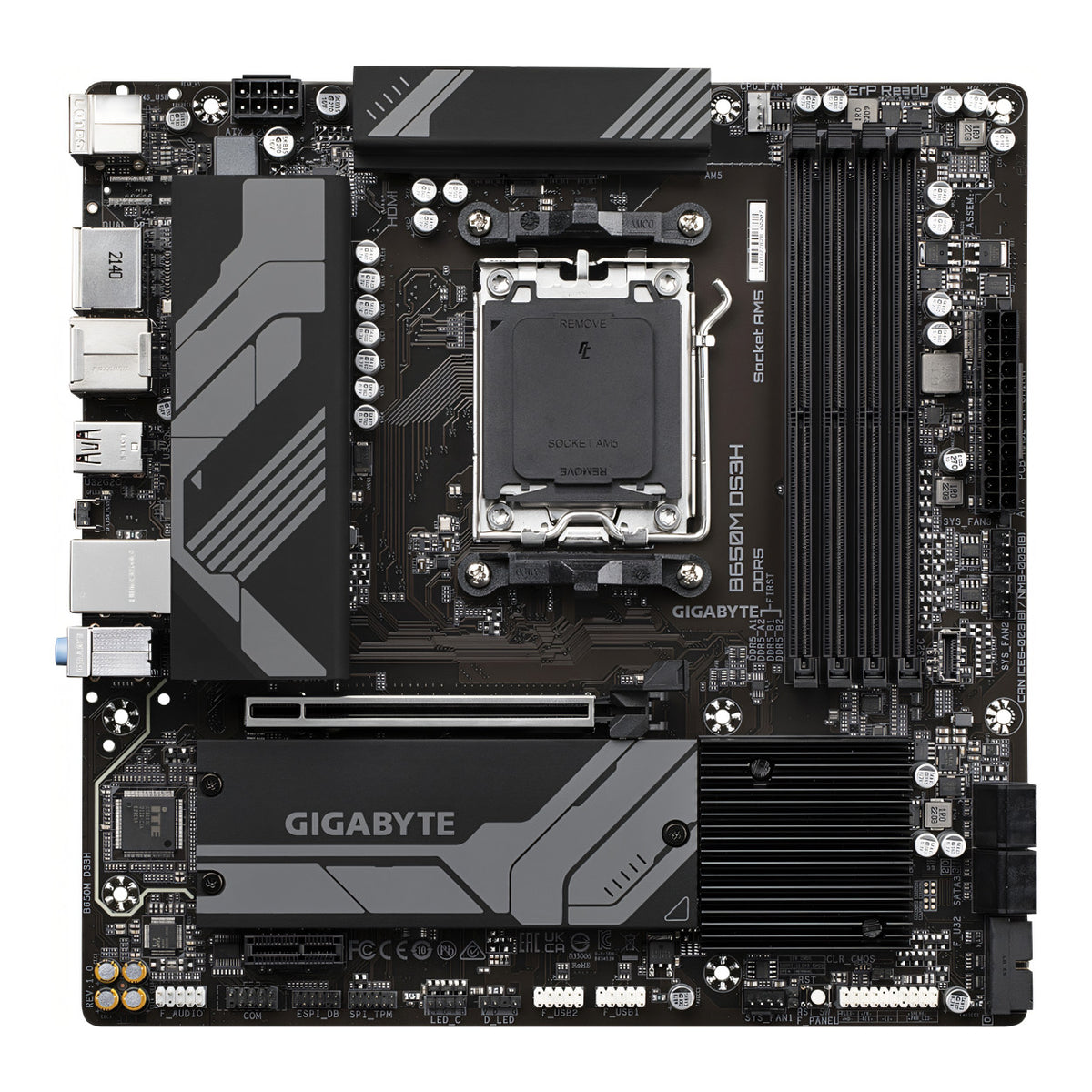

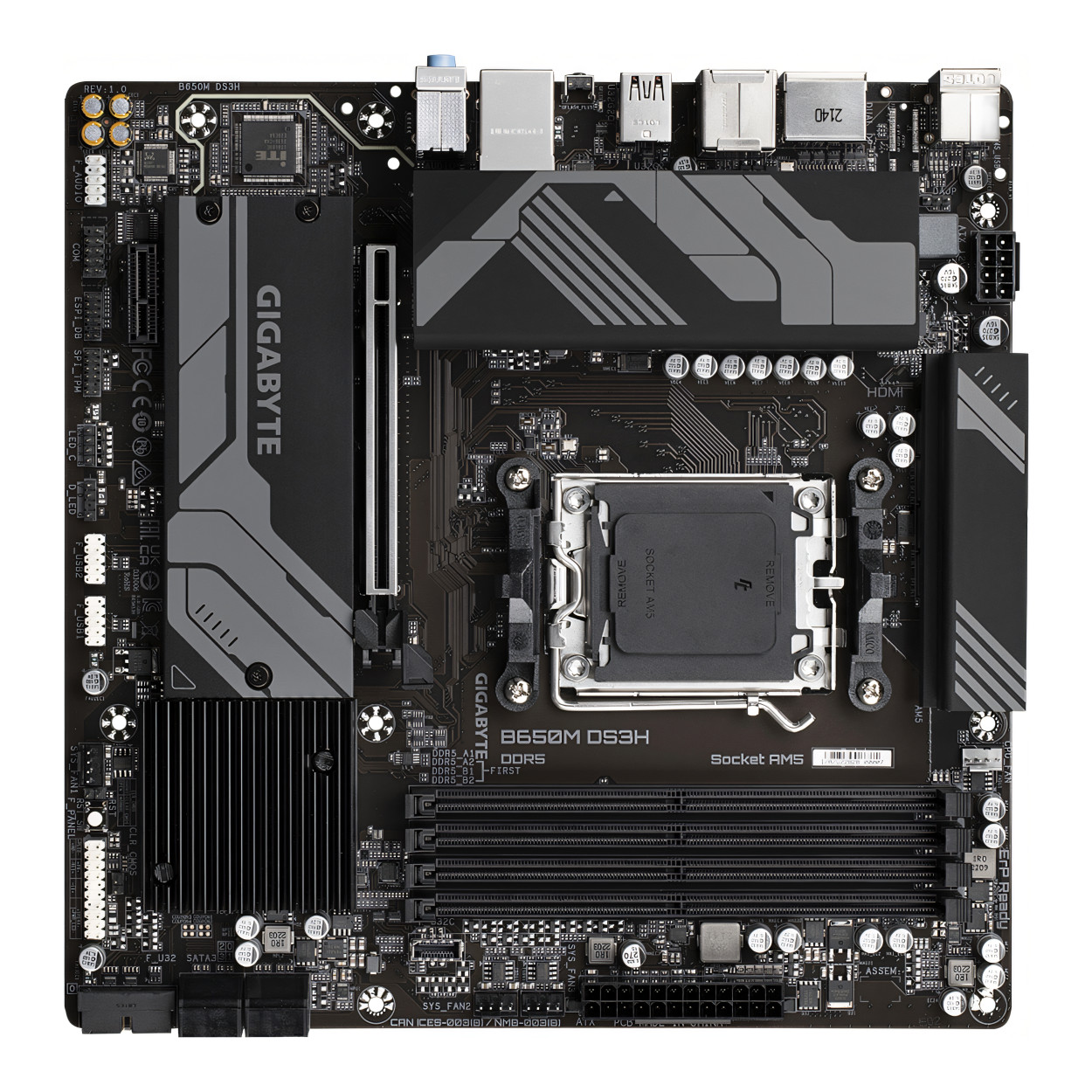

Gigabyte B650 DS3H AMD Socket AM5 mATX Motherboard GA-B650M-DS3H
The GIGABYTE B650M DS3H Rev. 1.0/1.1/1.2 is a Micro ATX AM5 motherboard built around the AMD B650 chipset for compatible Ryzen 7000, 8000 and 9000 Series processors. Four DDR5 DIMM slots, dual PCIe 4.0 M.2 connectors, 2.5GbE networking and extensive USB connectivity provide a capable foundation for modern desktop systems, while Smart Fan 6, M.2 Thermal Guard and Q-Flash Plus simplify system building and management.
Key Features
- AMD AM5 socket supporting compatible Ryzen 7000, 8000 and 9000 Series processors.
- 4 × DDR5 DIMM slots supporting up to 256GB of dual-channel memory and speeds up to DDR5-8000 (OC).
- AMD EXPO and Intel XMP memory profile support.
- 2 × PCIe 4.0 M.2 connectors plus 4 × SATA 6Gb/s ports for high-speed storage.
- Realtek 2.5GbE LAN provides high-speed wired network connectivity.
- Dual DisplayPort and HDMI outputs support up to three displays with a compatible processor.
- Q-Flash Plus enables BIOS updates without installing a CPU, memory or graphics card.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | GIGABYTE |
| Model | B650M DS3H |
| Revision | Rev. 1.0 / 1.1 / 1.2 |
| Product Type | Desktop Motherboard |
| Chipset | AMD B650 |
| CPU Socket | AMD Socket AM5 |
| Supported Processors | AMD Ryzen 7000 / 8000 / 9000 Series Processors |
| VRM Design | Direct 6+2+1 Phases Digital VRM |
| Memory Type | DDR5 |
| Memory Slots | 4 × DDR5 DIMM |
| Maximum Memory | 256GB |
| Maximum Single DIMM Capacity | 64GB |
| Memory Architecture | Dual Channel |
| Memory Speeds | DDR5 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 MT/s |
| Memory Profiles | AMD EXPO / Intel XMP |
| Memory Support | Non-ECC Unbuffered DIMM 1Rx8 / 2Rx8 / 1Rx16 |
| Primary Expansion Slot | 1 × PCI Express 4.0 x16 Physical Slot |
| Primary Slot Operation | x16 with Ryzen 7000/9000; x8 with Ryzen 8000 Phoenix 1; x4 with Ryzen 8000 Phoenix 2 |
| Additional Expansion Slot | 1 × PCI Express 3.0 x1 |
| M.2 Slots | 2 × M.2 Socket 3, M-Key |
| M.2 Interface | PCIe 4.0 x4/x2, Processor Dependent |
| M.2 SSD Sizes | 25110 / 22110 / 2580 / 2280 |
| SATA | 4 × SATA 6Gb/s |
| RAID | RAID 0 / RAID 1 / RAID 10 for NVMe and SATA Storage |
| LAN | Realtek 2.5GbE LAN (2.5Gbps / 1Gbps / 100Mbps) |
| Wireless Networking | Not Integrated |
| Audio | Realtek High Definition Audio CODEC |
| Audio Channels | 2 / 4 / 5.1 / 7.1 Channel |
| DisplayPort | 2 × DisplayPort 1.4, Up to 3840 × 2160 at 144Hz |
| HDMI | 1 × HDMI 2.1, Up to 4096 × 2160 at 60Hz |
| Maximum Simultaneous Displays | 3 |

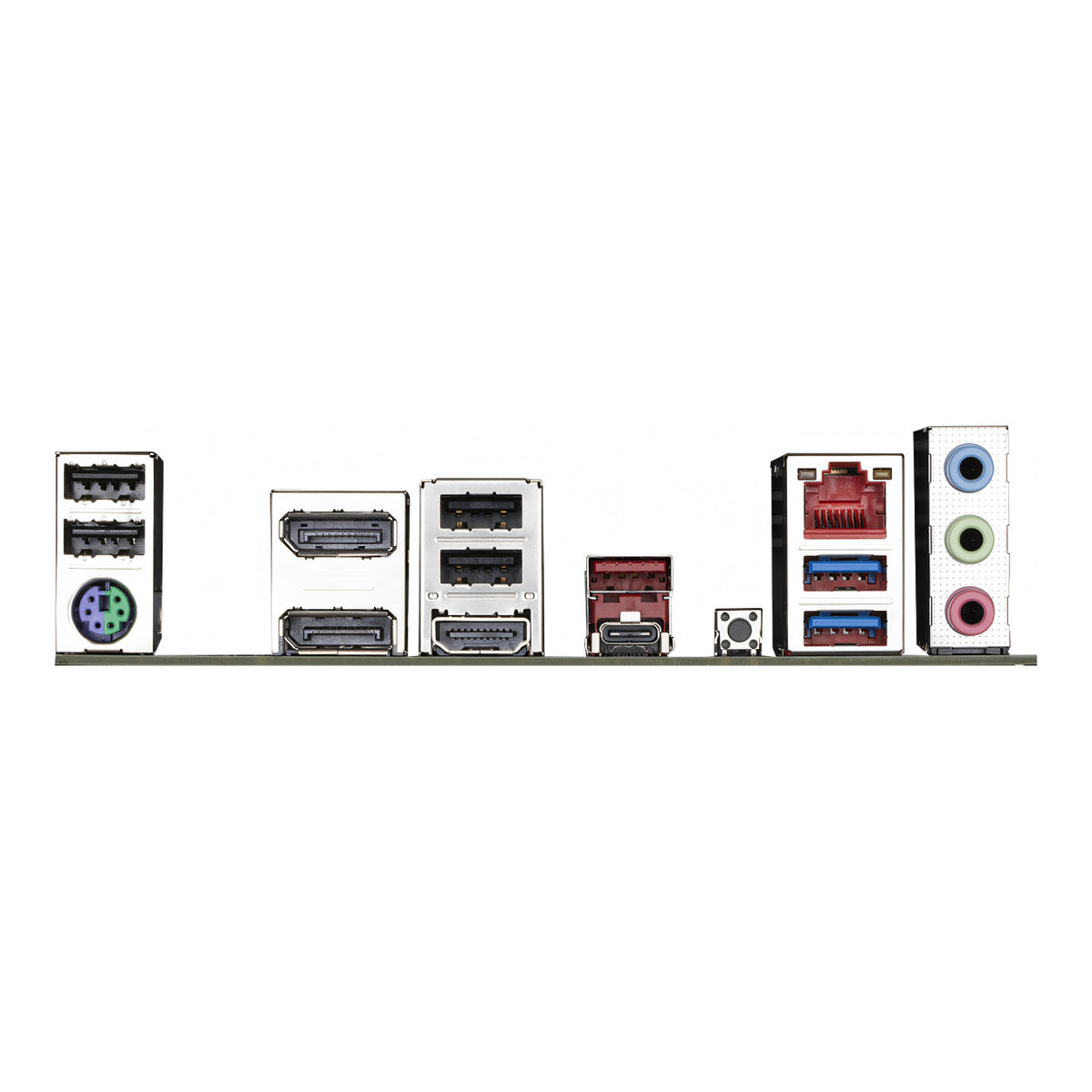

| Rear USB-C | 1 × USB 3.2 Gen 2 Type-C (10Gb/s) |
| Rear USB 3.2 Gen 2 | 1 × Type-A (10Gb/s) |
| Rear USB 3.2 Gen 1 | 2 × Type-A (5Gb/s) |
| Rear USB 2.0 | 4 × USB 2.0/1.1 |
| Front USB-C Header | 1 × USB 3.2 Gen 2 Type-C Header (10Gb/s) |
| Front USB 3.2 Gen 1 | 1 × Header Supporting 2 Ports |
| Internal USB 2.0 | 2 × Headers Supporting 4 Ports |
| Rear Network Port | 1 × RJ-45 |
| Rear Audio | 3 × Audio Jacks |
| Legacy Port | 1 × PS/2 Keyboard/Mouse Port |
| CPU Fan Headers | 1 |
| System Fan Headers | 3 |
| RGB Headers | 1 × Addressable LED / 1 × RGB LED |
| BIOS | 256Mbit AMI UEFI BIOS |
| Q-Flash | Supported |
| Q-Flash Plus | Supported |
| Hardware Monitoring | Voltage / Temperature / Fan Speed / Fan Fail Warning / Fan Speed Control |
| Fan Management | Smart Fan 6 |
| Operating System Support | Windows 11 64-bit / Windows 10 64-bit |
| Form Factor | Micro ATX |
| Dimensions | 24.4 × 24.4cm |
Build a versatile AMD AM5 desktop with DDR5 memory, dual PCIe 4.0 M.2 storage and fast 2.5GbE connectivity using the GIGABYTE B650M DS3H.
