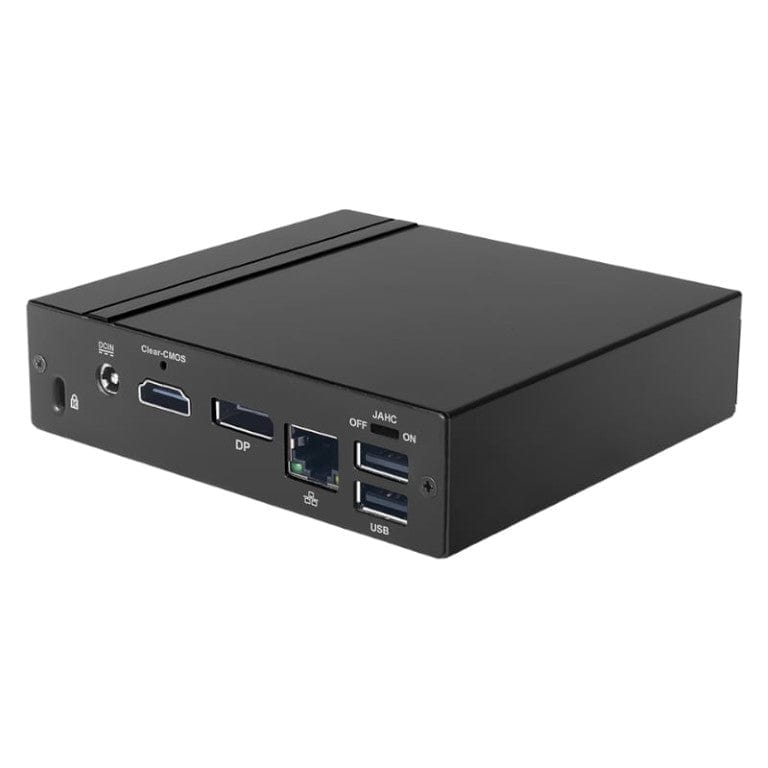

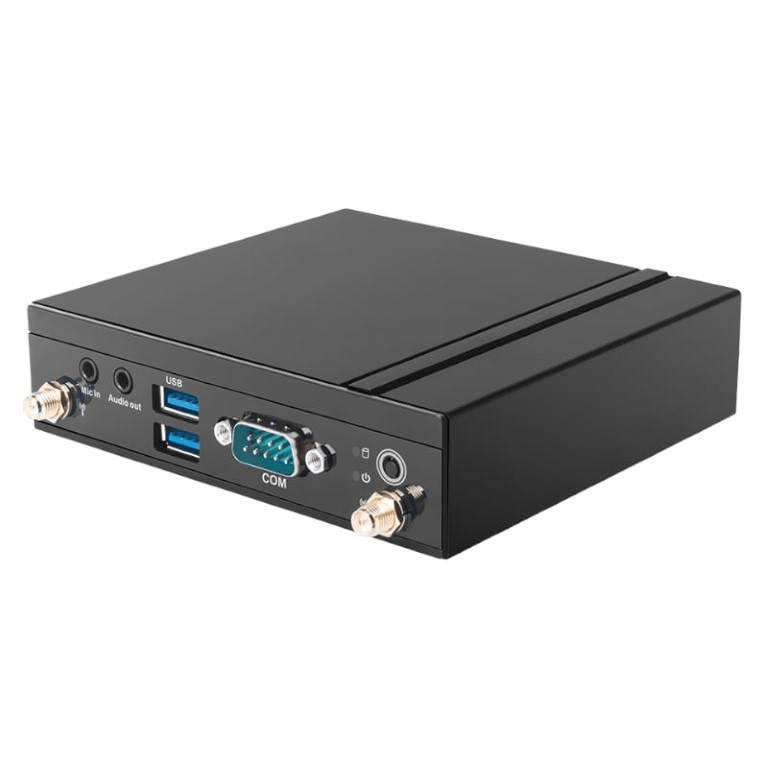

Giada VM23 Fanless UCFF Digital Sinage Player - Intel Celeron N3350 32GB eMMC 2GB RAM VM23-F4-N335031E5G-GIA

Giada VM23 Fanless UCFF Digital Sinage Player - Intel Celeron N3350 32GB eMMC 2GB RAM VM23-F4-N335031E5G-GIA

The Apollo Lake Celeron processors N3350/N3450 (TDP 6W) power the Giada VM23 Fanless ultra-compact player. It is Giada’s most popular model, having the best price-performance ratio. It has internal LPDDR4 memory as well as eMMC5.1 storage. Intel HD Graphics 500 is used in the player. It has dual 1080p video decoding support. HDMI 1.4a supports resolutions of up to 4096 x 2160@24Hz, whereas DisplayPort 1.2 allows resolutions of up to 4096 x 2160@60Hz. The fanless design, along with a passive thermal cooling system, minimises failure rates while keeping the device noise-free and dustproof. It makes this Giada® device suitable for use in mission-critical applications.

Features

• Intel Celeron N3350 processor
• 1x HDMI, Supporting 4K Display
• Onboard LPDDR4 2GB
• Realtek RTL 8111H Gigabit Ethernet
• 1x E-Key M.2 (2230) for WiFi/BT
• Long life cycle

Technical Specification

• CPU: Intel Celeron N3350 processor
• Frequency: 2.40 GHz
• Chipset: SoC
• Processing Units: 2 Cores

• Type: Onboard LPDDR4-2133 MHz
• Size: 2 GB

• Socket: 1x Full-size Mini-PCIe for MSATA
• Onboard: 32 GB, Onboard eMMC

• GPU: Intel HD Graphics 500
• Graphic Engine: DirectX 12, OpenGL 4.3, OpenCL 2.0
• DisplayPort: 1x DP (Max.4096 x 2304 @60 Hz)
• HDMI: 1x HDMI (Max.3840 x 2160 @30 Hz)

• Controller: Realtek RTL 8111H Gigabit Ethernet
• Interface: 1x RJ45
• Wi-Fi/BT: 1x E-Key M.2 (2230) for Wi-Fi/BT

• USB: 2x USB3.2 Gen2, 4 x USB2.0
• Serial Port: 1x RS232
• Audio: 1x MIC-IN, 1x AUDIO-OUT
• Antenna: 1x Connector for Wi-Fi/BT
• Button: 1x Power on, 1x CLR-CMOS

• TPM: NA
• Watchdog Timer: Yes
• Auto Power on: Yes
• RTC: Set up independently every day
• Remo on: Yes
• Fanless: Yes
• Compatible Operation System: Windows 10 (64Bit), Windows 11 (64bit), Linux Ubuntu (64bit)
• Power Type: DC-IN
• Input Voltage: 12 V/2 A
• Colour: Black
• Dimensions: 11.6 x 10.7 x 3 cm

What's in the Box

• 1x Giada VM23 Intel Celeron Fanless Player – Black
• 1x WiFi Antenna
• 1x AC Power Adapter
• 1x Power Cable
• 1x User Manual
