Giada VM23 Barebone PC - Intel Celeron N3450 32GB SSD 4GB RAM No OS VM23-F4-N345032E5G-GIA

Giada VM23 Barebone PC - Intel Celeron N3450 32GB SSD 4GB RAM No OS VM23-F4-N345032E5G-GIA

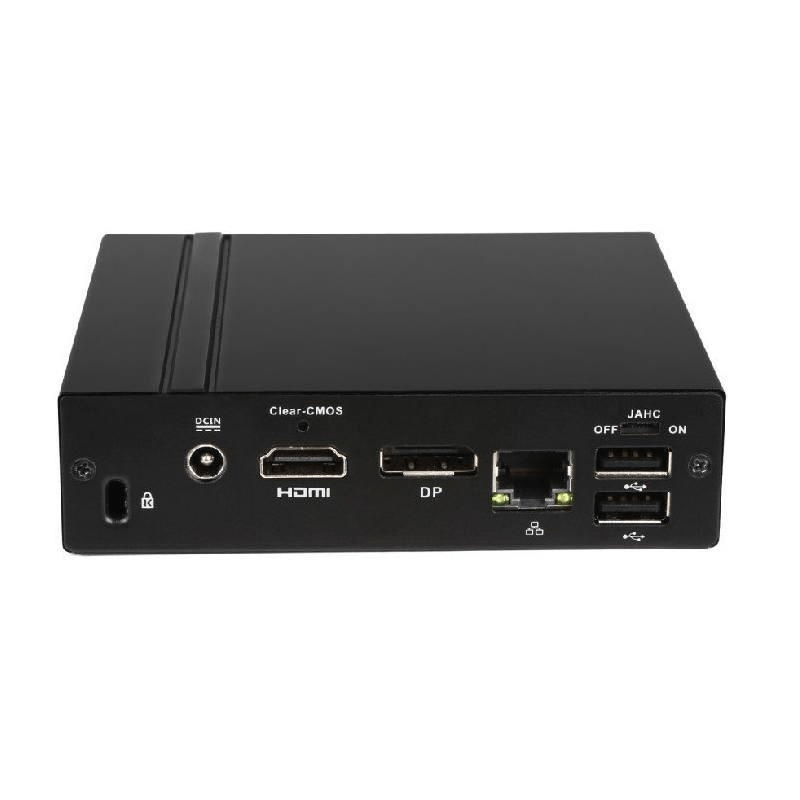

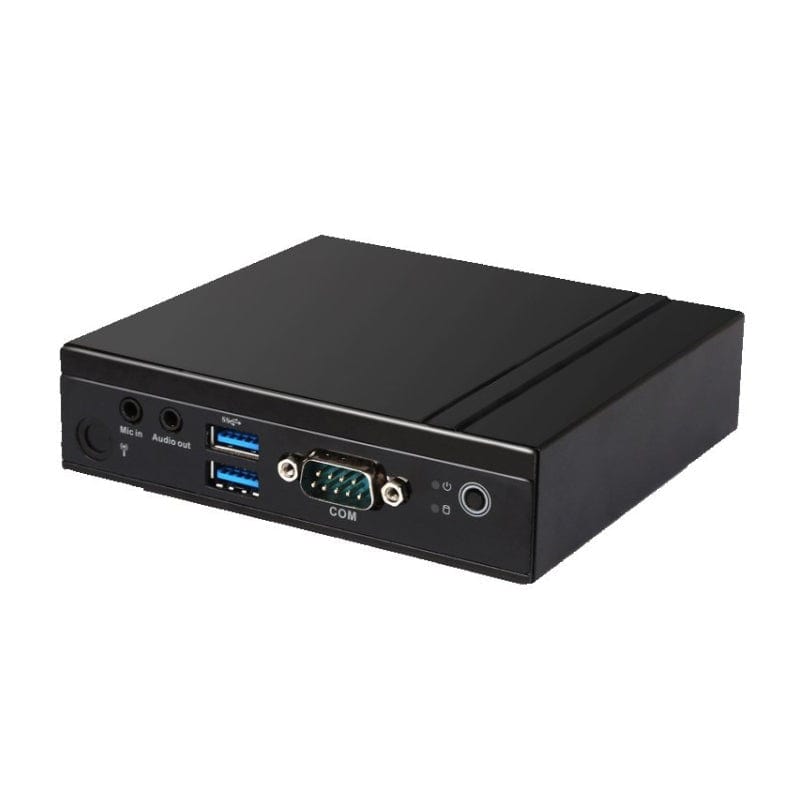

The Giada VM23 Intel Celeron Ultra-compact Fanless Signage Player is an entry-level media player that supports the current quad-core Intel Apollo Lake Celeron N3450 processor. This processor uses very low power thanks to its TDP of only 6W, you can still get the performance you need in a very small package. The latest Intel HD500 graphics offer a maximum 4K/UHD resolution of 4096 x 2160. For versatility, it has a DisplayPort and an HDMI port, so the player can control two monitors independently and easily. Thanks to the fanless design and its slim dimensions of 11.7 x 10.7 x 3 cm, the VM23 can be installed inconspicuously. This in turn allows you to save on a lot of desk space or simply mount the VM23 behind your monitor or large format display.

FEATURES:

• Intel® Celeron® N3450 Processor
• 1 x DP, 1 x HDMI, Supporting 4K Display
• Onboard LPDDR4 2GB
• RJ45 Gigabit LAN and M-key M.2 (2230) for WiFi/BT
• Full-size mSATA Support

SPECIFICATIONS:

• Processor:
  • CPU: Intel® Celeron N3450
  • Frequency: 1.10 GHz (Up to 2.20 GHz )
  • Cores: 4
  • BIOS: AMI Source Code
• Memory:
  • Type: LPDDR4-2133 MHz
  • Socket: Onboard
  • Size: 4GB
• Graphics:
  • GPU: Intel^® Gen9 Graphic engine
  • Graphic Engine: DirectX 12.0, OpenGL 4.3, OpenCL 2.0
  • DisplayPort: 1 x DP (Max.4096 x 2304@60Hz)
  • HDMI: 1 x HDMI (Max.3840 x 2160@30Hz)
• Network:
  • Controller: Realtek RTL8111H Gigabit Ethernet
  • Interface: 1 x RJ45
• I/O:
  • USB: 2x USB 3.0, 2x USB 2.0
  • Serial Port: 1 x RS232
  • Audio: 1 x MIC-IN, 1 x AUDIO-OUT
  • Mini-PCIe: 1 x Full-size Mini-PCIe for mSATA
  • M.2: 1 x M.2 (2230) for WiFi/BT
• Storage:
  • mSATA: 1 x Full-size mSATA
  • eMMC: 32GB (Optional: 64GB)
• JAHC Tech:
  • WatchDog Timer: 0~255 Second Time Out Support
  • Auto Power On: Power Activated Automatically Start
  • Remote Control: Wake on LAN
  • RTC: Set Up Independently Every day, A Week as a Cycle
• Operation System:
  • Windows: Windows 10（64Bit）
  • Linux: Support
• Power:
  • Power Type: DC-IN
  • Input Voltage: 12V/2A
• Environment:
  • Operating Temperature: 0℃ ~ 40℃ ( 32 â„‰ ~ 104 â„‰ ) at 0.7m/s Air Flow
  • Relative Humidity: 95%@40℃ (non-condensing)
• Certification: CE, FCC Class B, CCC
• Mounting: Desk/Wall Mounting and VESA Mounting Kit (JT NUC-JC530)
• Construction: Metal
• Fanless: Yes
• Colour: Black
• Dimensions: 11.7 x 10.7 x 3 cm

WHAT’S IN THE BOX:

• Giada VM23 Intel Celeron Ultra-compact Fanless Signage Player – Black x1
• WiFi Antenna x1
• AC Power Adapter x1
• Power Cable x1
• User Manual x1
