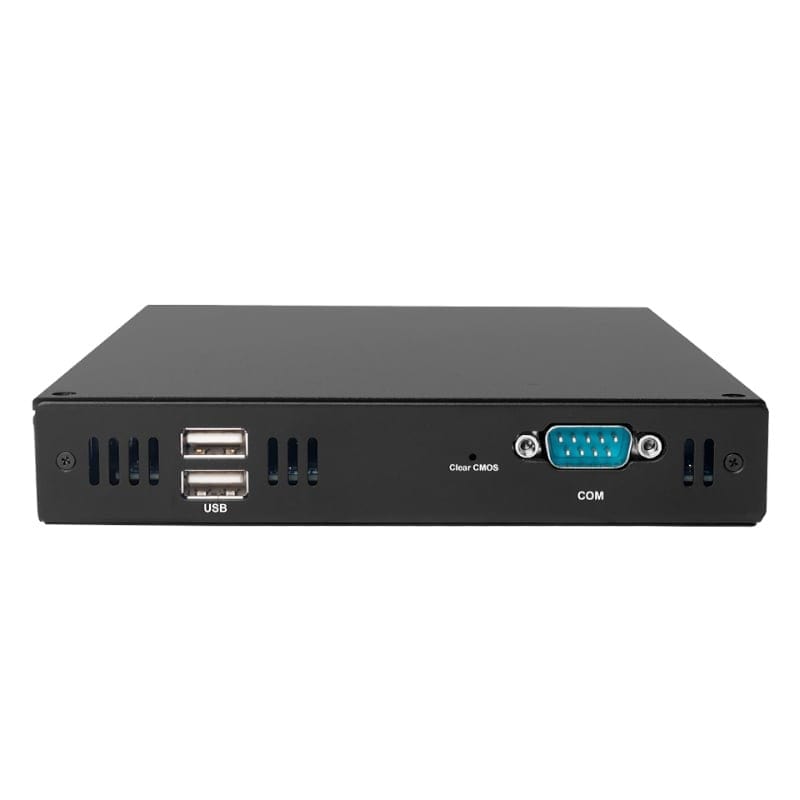

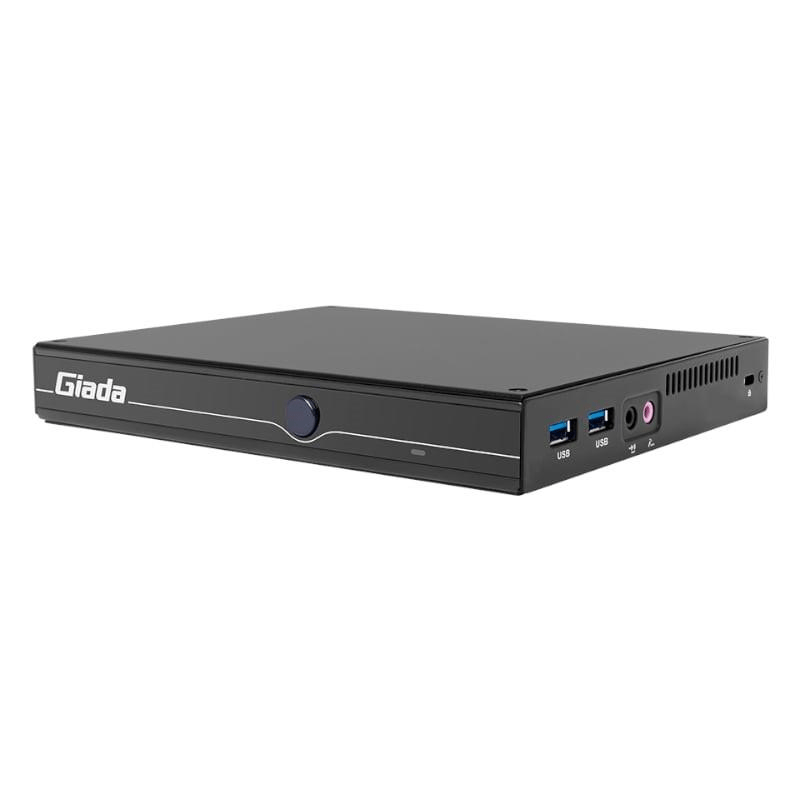

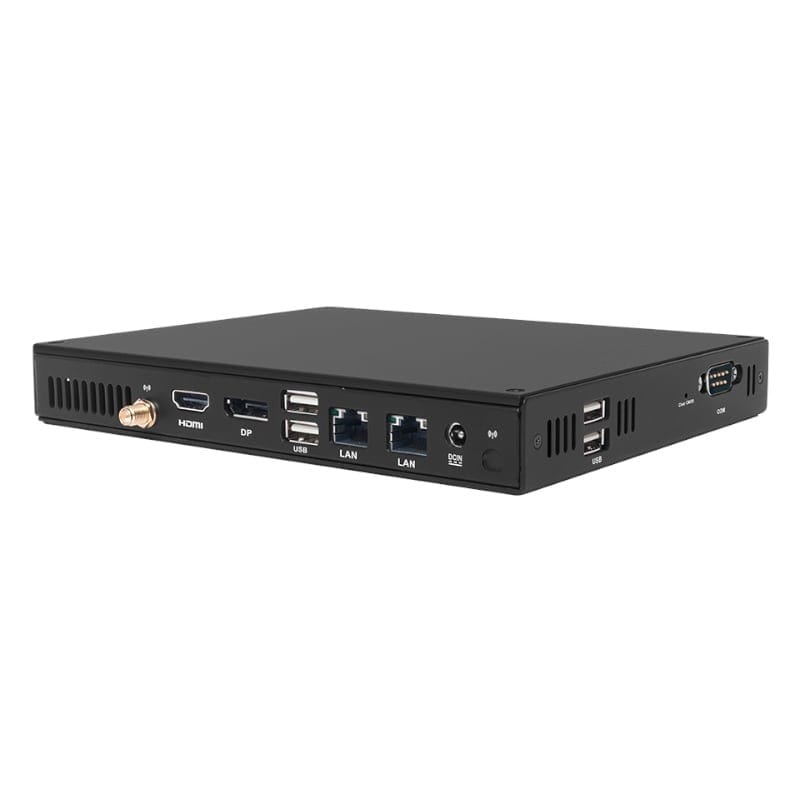

Giada F106D Mini Barebone PC - Intel Celeron N5100 4GB eMMC No RAM F106D-FVN510042N0G-GIA

Giada F106D Mini Barebone PC - Intel Celeron N5100 4GB eMMC No RAM F106D-FVN510042N0G-GIA

The Giada F106D Mini PC comes with Jasper Lake processors, such as the Celeron® N5100 (TDP 6W, 1.1GHz base frequency). The PC utilises Intel® UHD Graphics and is capable of delivering vibrant dual 1080p video playback. The device has HDMI 2.0a and DisplayPort 1.2 ports, which are capable of supporting resolutions up to 4096 x 2160 at a refresh rate of 60Hz. The device is equipped with a passive thermal cooling system, which features a fanless design. This design not only reduces the failure rate but also ensures that the device operates noise-free and remains dustproof. The Giada F106D Mini PC is designed to be used in mission-critical applications.

FEATURES:

• Intel® Celeron® N5100 Processor

• 1 x DP, 1 x HDMI, Supporting 4K Display

• Onboard LPDDR4 4GB

• 2 x RJ45 Gigabit LAN and 1 x E-Key M.2 (2230) for Wi-Fi/BT

• Long life cycle

• Fanless Design

SPECIFICATIONS:

• Processor:

• CPU: Intel® Celeron® N5100 processor (Fanless)

• Turbo Frequency: 2.80 GHz/2.90 GHz

• Chipset: SoC

• Processing Units: 4 Cores/4 Cores

• Memory:

• Type: Onboard LPDDR4-2666 MHz

• Size: 4GB

• Storage Supported:

• Socket 1: 1 x M-Key M.2 (2242/2280) for SSD (only PCIe SSD)

• Socket 2: 1 x Full-size Mini-PCIe for MSATA

• Graphics:

• GPU: Intel® UHD Graphics

• Graphic Engine: DirectX 12.1, OpenGL 3.0, OpenCL 1.1, OpenGL ES 2.0, H.264, MEPG2

• DisplayPort: 1 x DP (Max.4096 x 2160 @60 Hz)

• HDMI: 1 x HDMI (Max.4096 x 2160@60Hz)

• Network:

• Controller: Realtek RTL 8111H Gigabit Ethernet

• Interface: 2 x RJ45

• Wi-Fi/BT: 1 x E-Key M.2 (2230) for Wi-Fi/BT Support Wi-Fi 5, Wi-Fi 6

• Mobile Network: 3G/4G colay with 1 x Mini-PCIe for MSATA, 1 x SIM Slot

• I/O:

• USB: 2 x USB3.2 Gen2, 4 x USB2.0

• Serial Port: 1 x RS232

• Audio: 1 x MIC-IN, 1 x AUDIO-OUT

• Antenna: 2 x Connector for Wi-Fi/BT, 1 x Connector for 3G/4G (Reserved)

• Button: 1 x Power on, 1 x CLR-CMOS

• System:

• TPM: TPM2.0

• Watchdog Timer: Yes

• Auto Power on: Yes

• RTC: Set up independently every day

• Remo on: Yes

• Fanless: Yes

• Operation System:

• Windows: Windows 10 (64Bit), Windows 11 (64bit)

• Linux: Linux Ubuntu (64bit)

• Power:

• Power Type: DC-IN

• Input Voltage: 19V/2.37A

• Environment:

• Operating Temperature: 0°C ~45°C (32°F~113°F) @0.7m/s Air Flow

• Relative Humidity: 95% @ 45°C (non-condensing)

• Certification: CE, FCC Class B

• Construction: Metal

• Fanless: Yes

• Colour: Black

• Dimensions: 18.9 x 14.8 x 2.6 cm

WHAT’S IN THE BOX:

• Giada F106D Intel Celeron Ultra-compact Fanless Player 4 GB – Black x1

• Wi-Fi Antenna x2

• AC Power Adapter x1

• Power Cable x1

• User Manual x1
