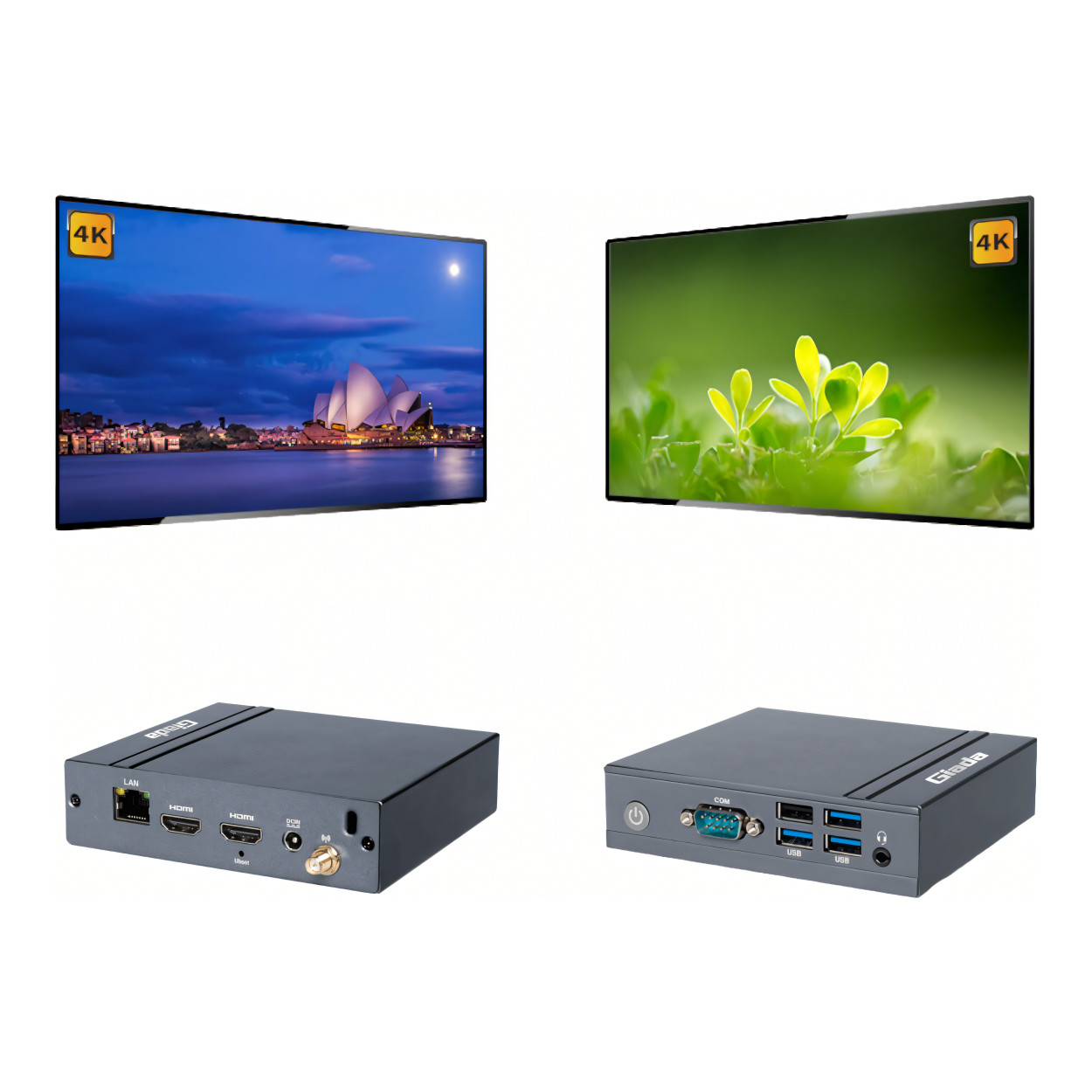

The Giada DN24 Raspberry Pi CM4 Lite Compact Signage Player (DN24-CM4 2GB) is a compact commercial multimedia player designed for digital signage, information displays, embedded applications and other professional deployments. Powered by the Raspberry Pi Compute Module 4 Lite platform, it combines a quad-core ARM Cortex-A72 processor with 2GB LPDDR4 memory, 32GB onboard eMMC storage and VideoCore VI graphics. Dual HDMI outputs support displays up to 3840 × 2160 at 60Hz, while Gigabit Ethernet, dual-band Wi-Fi, Bluetooth, USB and RS-232 provide versatile connectivity for commercial installations.

Key Features

• Raspberry Pi CM4 Platform: Built around the Raspberry Pi Compute Module 4 Lite architecture for a compact and versatile ARM-based signage platform.
• Quad-Core Cortex-A72: Features four ARM Cortex-A72 processing cores operating at up to 1.5GHz.
• 2GB LPDDR4 Memory: Equipped with 2GB of onboard LPDDR4-3200 memory.
• 32GB eMMC Storage: Provides onboard solid-state storage for the operating system, applications and digital signage content.
• VideoCore VI Graphics: Integrated GPU supports OpenGL ES 3.0 and Vulkan 1.0.
• Dual 4K Display Output: Two HDMI outputs support resolutions up to 3840 × 2160 at 60Hz.
• 4K H.265 Decoding: Hardware-assisted H.265 decoding supports video playback up to 4K at 60fps.
• Gigabit Ethernet: Integrated Broadcom BCM54210 network controller provides wired Gigabit network connectivity.
• Dual-Band Wireless: Integrated Wi-Fi/Bluetooth module supports both 2.4GHz and 5GHz Wi-Fi.
• Extensive USB Connectivity: Provides three USB 3.2 Gen 1 ports and one USB 2.0 port.
• RS-232: Integrated serial connectivity enables communication with compatible commercial displays, controllers and other equipment.
• 24/7 Commercial Operation: Designed as a professional commercial-grade player for continuous signage operation.
• Watchdog Timer: Integrated watchdog functionality helps improve reliability in unattended deployments.
• Automatic Power-On: Supports automatic startup for digital signage and embedded installations.
• RTC Scheduling: Real-time clock functionality supports scheduled operation.
• Compact Metal Chassis: Durable enclosure measures only 116.6 × 107.4 × 30mm.
• Raspberry Pi OS: Designed for operation with the Raspberry Pi OS software environment.

Processor & Memory

Graphics & Display

Connectivity & I/O

Commercial Operation Features

Technical Specifications

What's Included:

• 1 × Giada DN24 Raspberry Pi CM4 Lite Compact Signage Player
• 1 × Raspberry Pi CM4 Lite Module with 2GB LPDDR4 Memory
• 32GB Onboard eMMC Storage
• Standard Supplied Accessories

Please Note: This listing refers specifically to the 2GB RAM / 32GB eMMC Giada DN24 configuration. Some South African catalogues identify this configuration using the SKU DN24-CM4-4GB despite specifying 2GB of installed LPDDR4 memory. Giada's manufacturer specification confirms that the standard configuration uses 2GB LPDDR4-3200, with 4GB listed as an optional memory configuration. Confirm the distributor SKU when ordering where this distinction is important.

The Giada DN24 Raspberry Pi CM4 Lite Compact Digital Signage Player combines an efficient quad-core ARM platform, 2GB LPDDR4 memory, 32GB eMMC storage, dual 4K60 HDMI output and extensive wired and wireless connectivity in a compact commercial-grade metal enclosure designed for digital signage and embedded multimedia deployments.
