FirstShop  |  SKU: GW60004H
Sold out

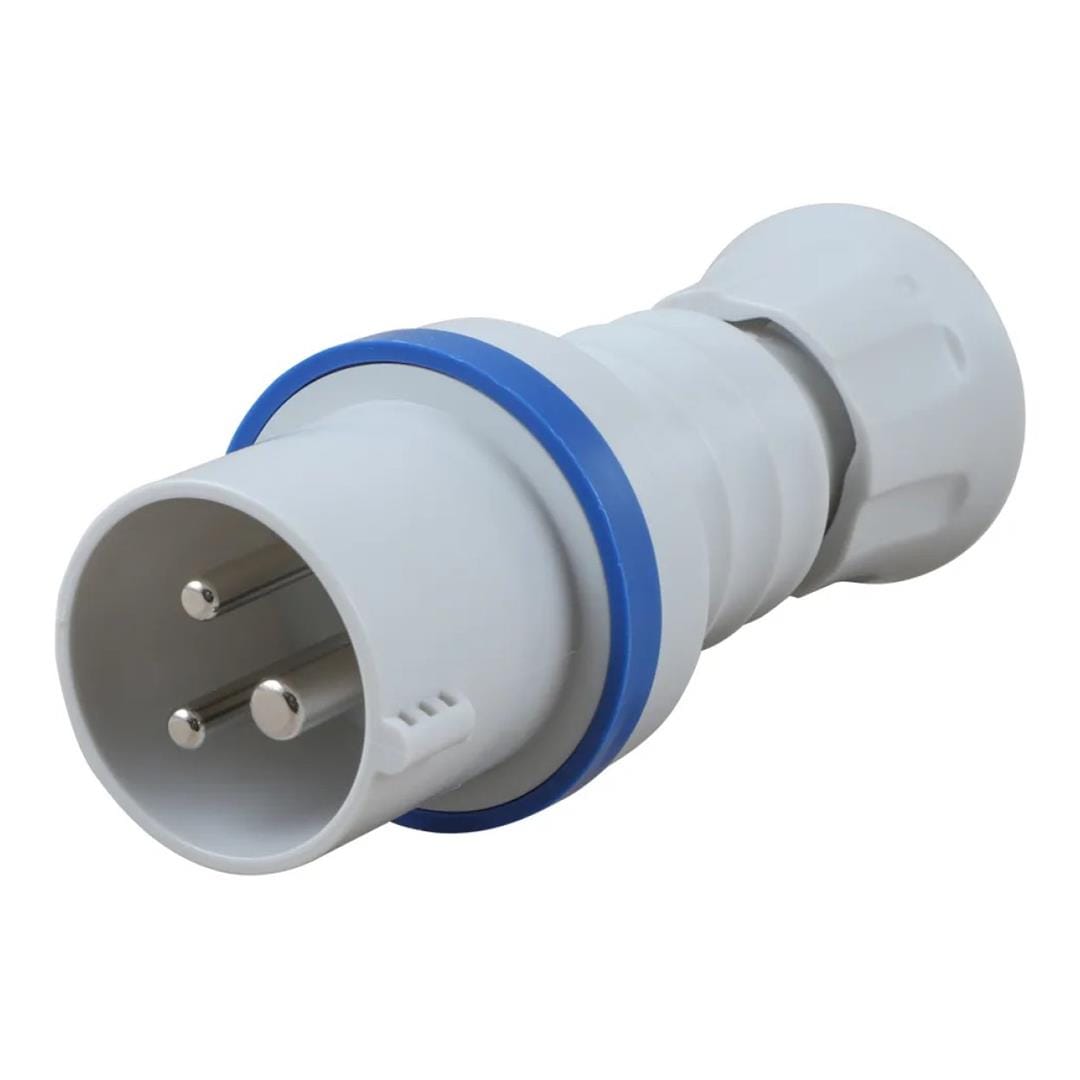

Gewiss Industrial Plug Straight 16A IP44 GW60004H

Regular price R 22900
Sold out

    Delivery and Shipping

    * Fast Delivery Available - Learn more about FirstShop delivery

    Easy Returns

    Buy With Confidence. 14 Day Returns. Online. Learn More

    Price Match Guarantee

    Found a Better Price? We'll Match It - Guaranteed - Learn More

    Description

    Gewiss Industrial Plug Straight 16A IP44 GW60004H

    Range: IEC 309 HP range
    Plugs and socket-outlets IEC 309 Standard

    The IEC 309 HP system comprises plugs and socket-outlets from 16 to 125 A in two different versions – straight mobile and 10° flush-mounting – which have IP44/IP54 and IP66/IP67/IP68/IP69 degrees of protection (IP68/IP69 only available for straight versions). The introduction of all the hours references for the earthing contact completes the range for specific applications and installations. The 16-32 A versions are available with screw wiring or fast wiring with spring terminals, while the 63-125A versions propose indirect wiring with mantle terminals.

    Technical Specifications:

    Colour
    Blue

    Type
    Straight plug

    Number of Poles
    2P+E

    Rated Current
    16 A

    Rated Voltage
    200 – 250 V

    Frequency
    50 / 60 Hz

    IP Rating
    IP44 / IP54

    Mechanical Resistance
    IK09

    Reference Hour (h)
    6

    Terminal Tightening Capacity
    1 – 2.5 mm² (flexible cables)
    1.5 – 4 mm² (rigid cables)

    Cable Clamp Tightening Capacity
    7.5 – 13.8 mm

    Type of Wiring
    Screw type

    Material Type
    Halogen-free (compliant with EN 60754-2)

    Electrocod
    2230

    Glow Wire Test
    850 °C (active parts)
    650 °C (passive parts)

    Total Number of Operations

    5,000

    Permissible Overload
    22 A

    Breaking Capacity at 1.1 Un
    20 A

    Insulation Resistance

    10 MΩ

    Thermo-Pressure with Ball
    125 °C (active parts)
    80 °C (passive parts)

    Operating Temperature
    -25 °C to +55 °C
