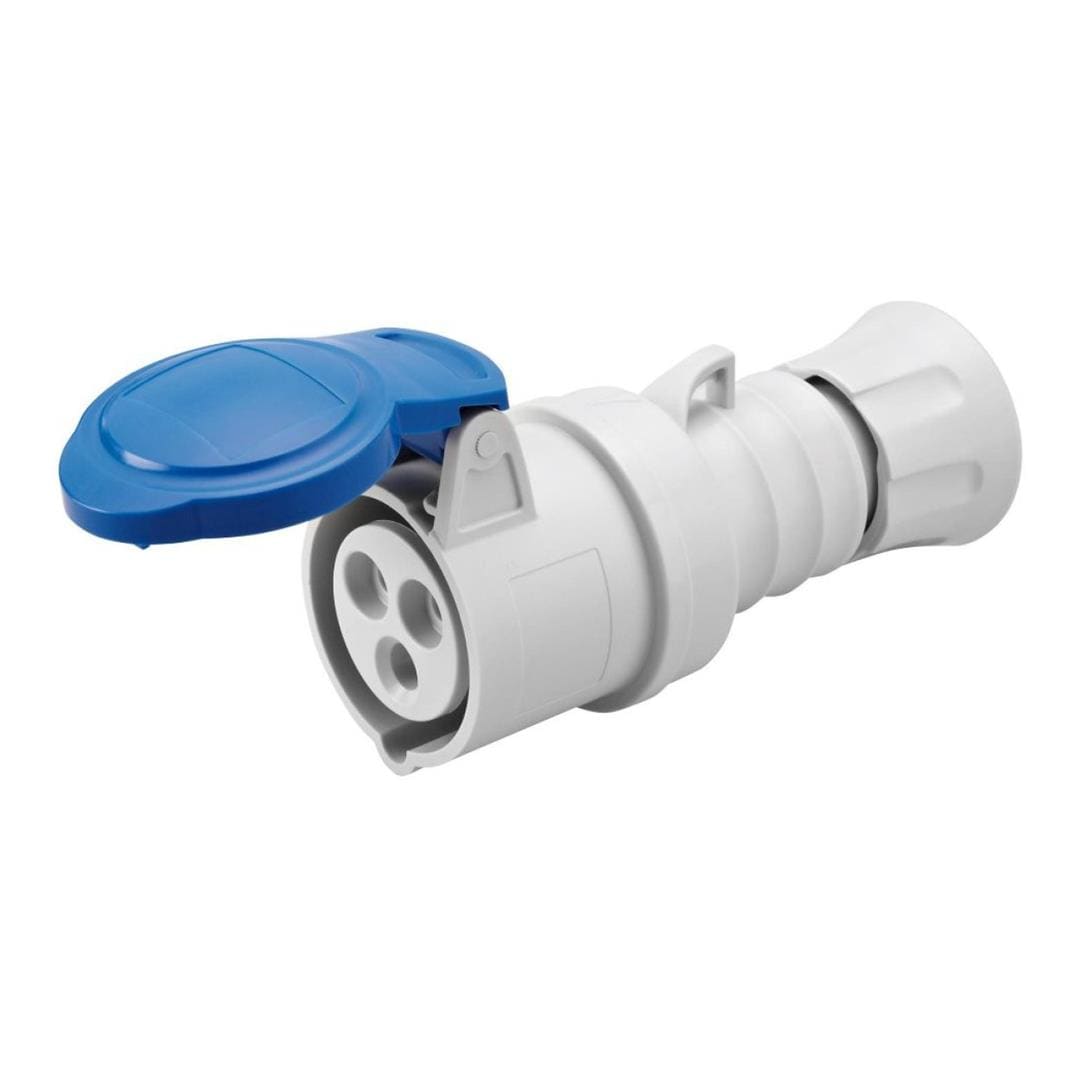

Gewiss Industrial Connector Straight 32A IP44 GW62015H

Gewiss Industrial Connector Straight 32A IP44 GW62015H

IEC 309 HP: range of plugs and socket-outlets compliant with international Standards IEC 60309-1 and IEC 60309-2, assimilated at European level as EN 60309-1 and EN 60309-2. This range expands the GEWISS assortment of mobile plugs, mobile and recessed sockets for currents from 16 to 125A with IP44 / IP54 protection ratings and ratings up to IP66 / IP67 / IP68 / IP69 to ensure total protection in all possible applications. The technopolymers and thickness used for the parts made of insulating material guarantee an elevated degree of mechanical and chemical agent resistance. All the sleeves and pins of the IEC 309 HP socket-outlets and plugs are surface-treated with nickel-plating to ensure full protection against corrosion, oxidation and abrasion. All the external metallic elements of the IEC 309 HP plugs and socket-outlets are made of stainless steel (the threaded metallic inserts for the body-grip coupling of the 63-125A versions are made of brass).

Technical Specifications:

General

Color
Blue

Type
Straight Connector

Number Of Poles
2P + E

Reference H
6

Electrocod
2210

Electrical Specifications

Rated Current
32 A

Rated Voltage
200–250 V

Frequency
50 / 60 Hz

Permissible Overload
42 A

Breaking Capacity At 1.1 Un
40 A

Insulation Resistance

10 MΩ

Protection And Durability

IP Rating
IP44 / IP54

Mechanical Resistance
IK09

Total Number Of Operations

2000

Material And Construction

Type Of Wiring
With Screw

Material Type
Halogen-Free In Compliance With EN 60754-2

Glow Wire Test

• 850°C (Active Parts)
• 650°C (Passive Parts)

Thermo-Pressure With Ball

• 125°C (Active Parts)
• 80°C (Passive Parts)

Cable Compatibility

Terminal Tightening Capacity

• 2.5–6 mm² Flexible Cables
• 2.5–10 mm² Rigid Cables

Cable Clamp Tightening Capacity
9.2–19.9 mm

Environmental

Operating Temperature
-25°C To +55°C
