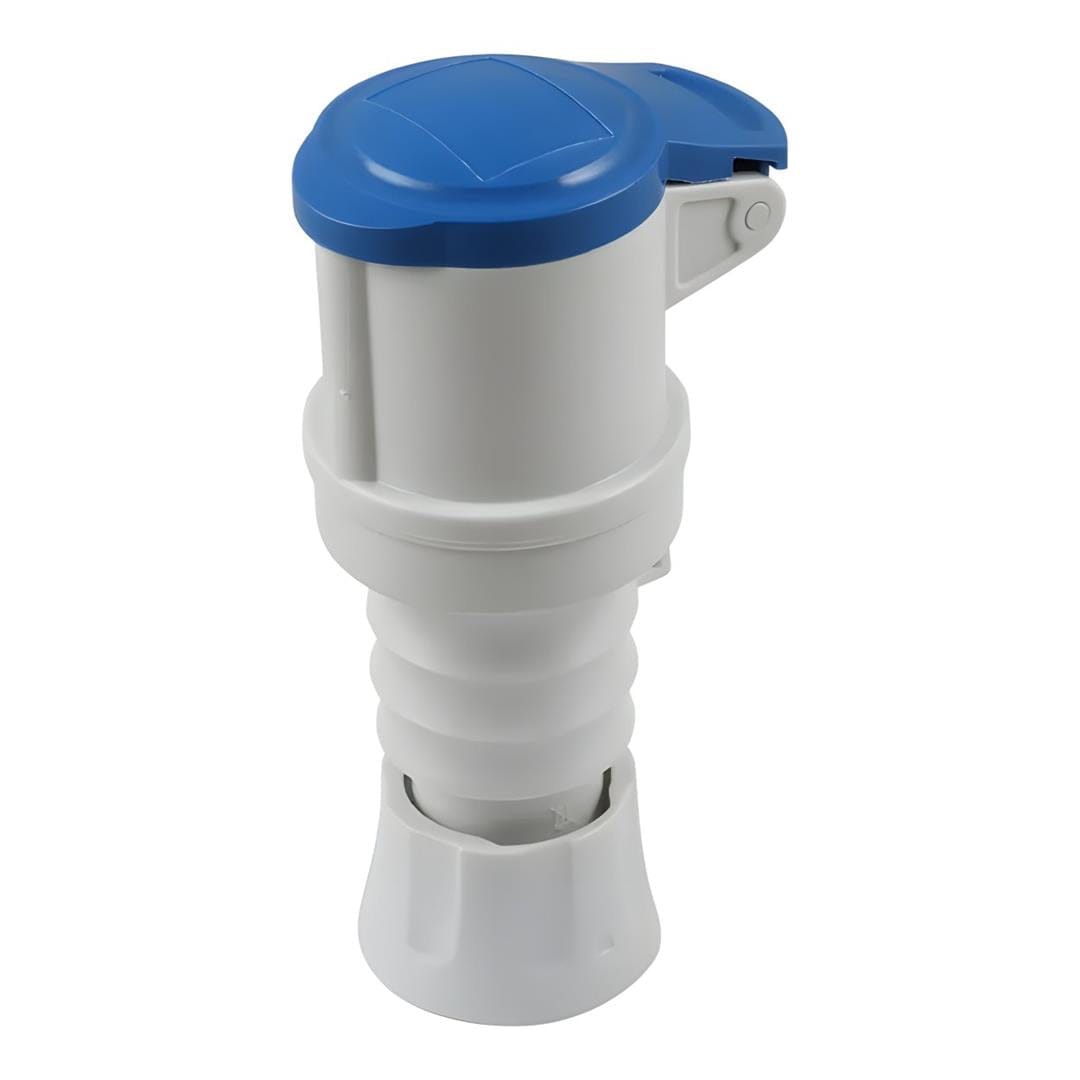

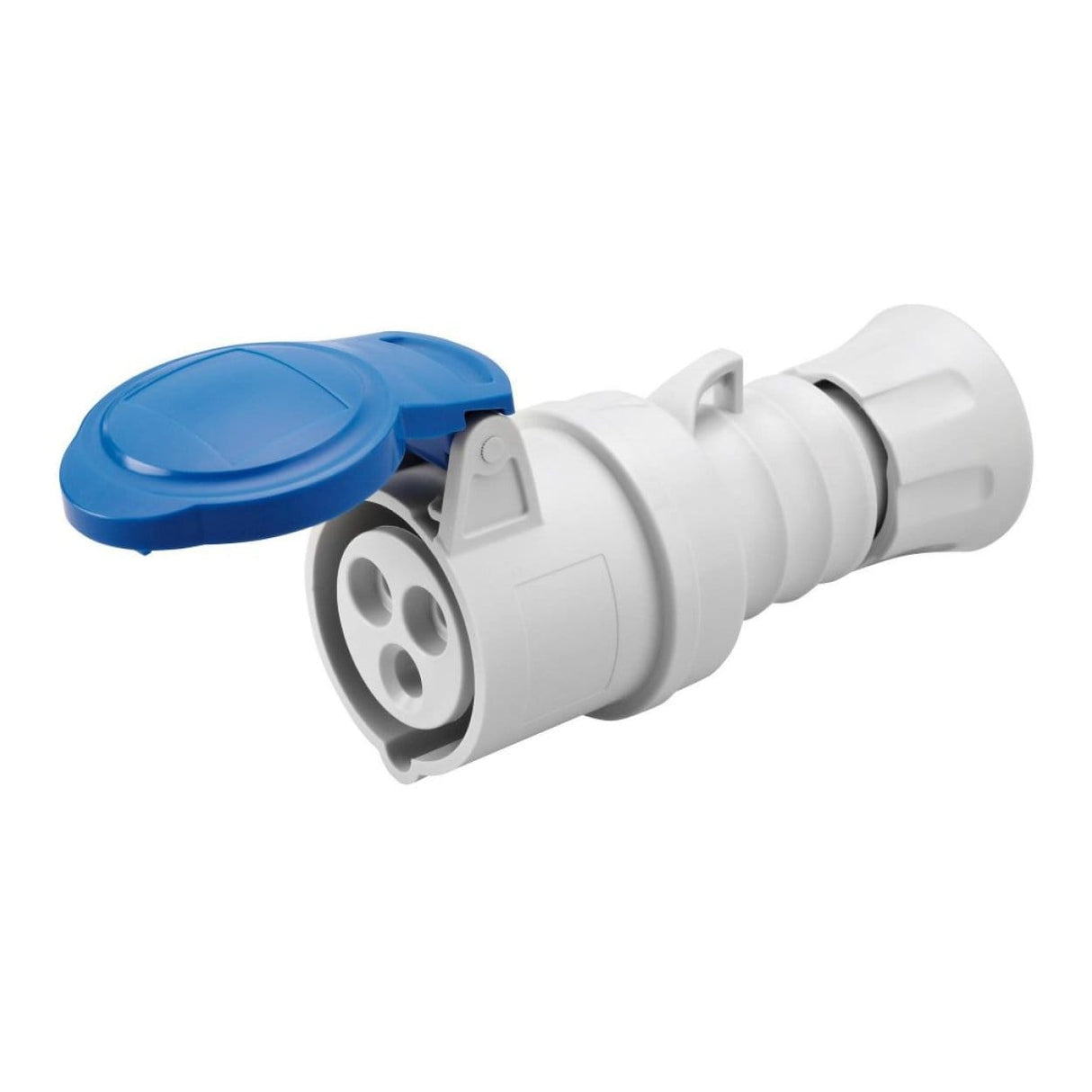

Gewiss Industrial Connector Straight 16A IP44 GW62004H

Gewiss Industrial Connector Straight 16A IP44 GW62004H

Range: IEC 309 HP range
Plugs and socket-outlets IEC 309 Standard

The IEC 309 HP system comprises plugs and socket-outlets from 16 to 125 A in two different versions – straight mobile and 10° flush-mounting – which have IP44/IP54 and IP66/IP67/IP68/IP69 degrees of protection (IP68/IP69 only available for straight versions). The introduction of all the hours references for the earthing contact completes the range for specific applications and installations. The 16-32 A versions are available with screw wiring or fast wiring with spring terminals, while the 63-125A versions propose indirect wiring with mantle terminals.

Technical Specifications:

Colour
Blue

Type
Straight connector

Number of Poles
2P+E

Rated Current
16 A

Rated Voltage
200 – 250 V

Frequency
50 / 60 Hz

IP Rating
IP44 / IP54

Mechanical Resistance
IK09

Reference Hour (h)
6

Terminal Tightening Capacity
1 – 2.5 mm² (flexible cables)
1.5 – 4 mm² (rigid cables)

Cable Clamp Tightening Capacity
7.5 – 13.8 mm

Type of Wiring
Screw type

Material Type
Halogen-free (compliant with EN 60754-2)

Electrocod
2210

Glow Wire Test
850 °C (active parts)
650 °C (passive parts)

Total Number of Operations

5,000

Permissible Overload
22 A

Breaking Capacity at 1.1 Un
20 A

Insulation Resistance

10 MΩ

Thermo-Pressure with Ball
125 °C (active parts)
80 °C (passive parts)

Operating Temperature
-25 °C to +55 °C
