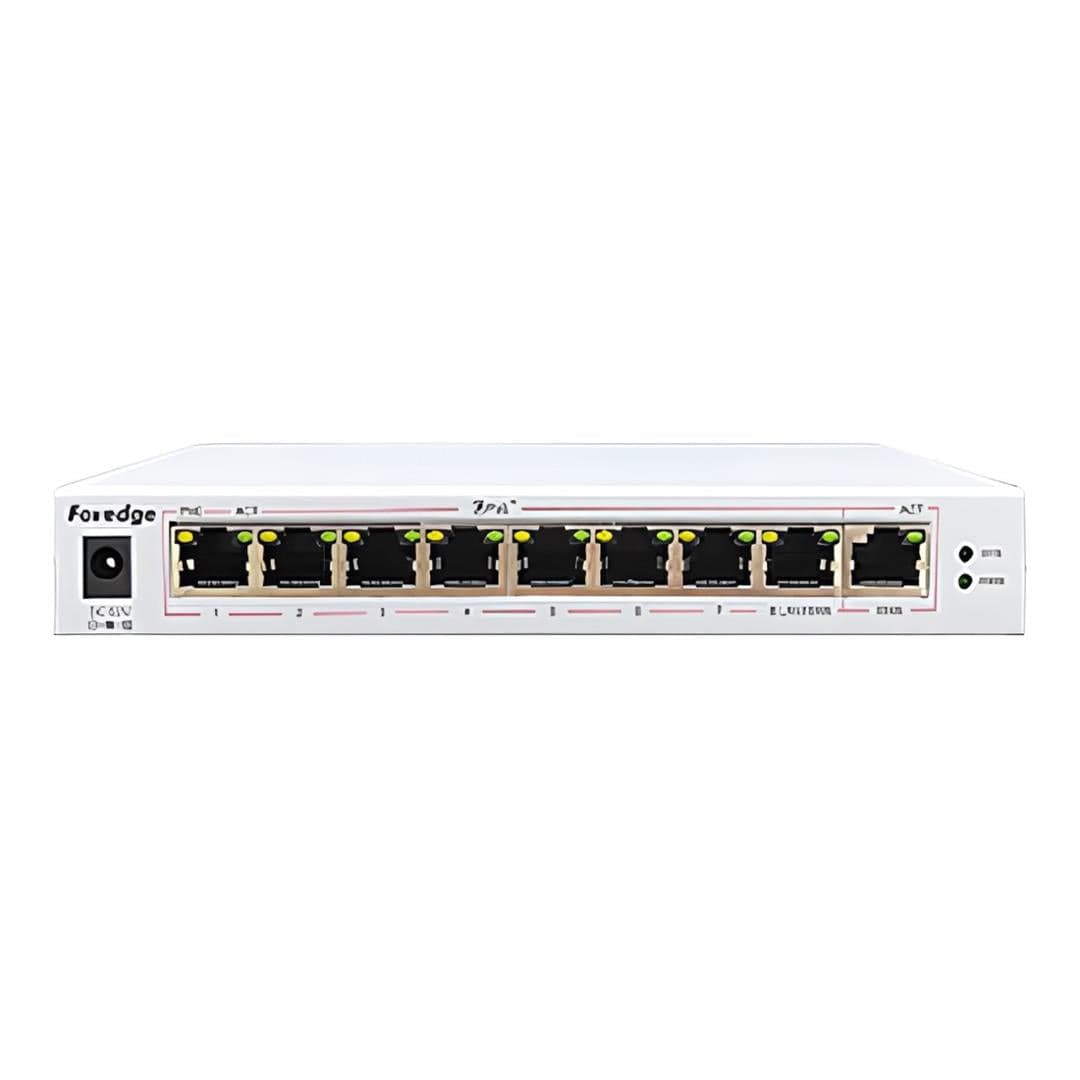

Foredge FAC109-POE-MR PoE AC Integrated Gigabit Router

Foredge FAC109-POE-MR PoE AC Integrated Gigabit Router

Is a new generation of PoE·AC integrated gigabit router product developed by Fengrunda for small and medium-sized enterprises, offices, villas and other environments.

Features:

• Routing functions, AC management functions, PoE functions in one, support centralized AP management.
• Supports dual WAN port backup redundancy, bandwidth overlay, and traffic load balancing
• Support a variety of authentication methods, control Internet access rights, advertising marketing
• Efficient ACL to ensure internal and external network security
• Supports remote management of cloud platforms and app

Technical Specifications:

Bandwidth

Maximum Bandwidth: 2 Gbps

Recommended Bandwidth: 1 Gbps

Ports

1 × 10/100/1000M RJ45 WAN Port

1 × 10/100/1000M RJ45 LAN/WAN Port (Supports PoE)

7 × 10/100/1000M RJ45 LAN Ports (Support PoE)

LED Indicators

RJ45 Ports: Link/Act

Front Panel: SYS, Power

Input Power Supply

DC 52V/2.5A

PoE

Standards: IEEE 802.3af, IEEE 802.3at

Single Port Maximum Output: 30 W

Maximum Output: 120 W

Network Protocols

TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, MQTT, DNS, DDNS

Running State

Basic Device Information

Interface Information (connection status, flow rate)

Access Cloud Platform Status

Hardware Resource Utilization (CPU, memory, PoE)

Real-Time Traffic Information

Network Topology

WAN Status

LAN Status

Network Configuration

WAN Settings (DHCP, Static IP, PPPoE), dual WAN redundancy, bandwidth overlay, load balancing

LAN Settings

IPv6 Settings

DHCP

Network Diagnostics

AP Centralized Management

Centralized AP Management: templates, AP access lists, load balancing, roaming, RF tuning, wireless mode, upgrade management

AP Settings: unified management of 50 Foredge AP products

Plug and Play

Terminal Management

Mask and rate limit terminals accessing APs

Typical Load: 100 units

Safety Management

Internet Filtering (IP, MAC, Port, Domain)

Application Group Filtering (shopping, video, games)

Dual WAN Backup Redundancy

Access Control Lists (ACLs)

Secure Methods

PPTP, L2TP

Authentication Management

Web Authentication (one-click Internet access, portal ads)

SMS Authentication (real-name, marketing via mobile number)

Advanced Functions

QoS

DDNS

System Tools

System Time

User Management

System Logs

Backup/Restore

System Upgrade

System Restart

Heat Dissipation

Natural Heat Dissipation

Environment

Operating Temperature: –20 °C ~ 50 °C

Operating Humidity: 10% ~ 90% RH (non-condensing)

Storage Temperature: –40 °C ~ 70 °C

Storage Humidity: 5% ~ 90% RH (non-condensing)

Dimensions

185 × 100 × 28 mm (W × D × H)
