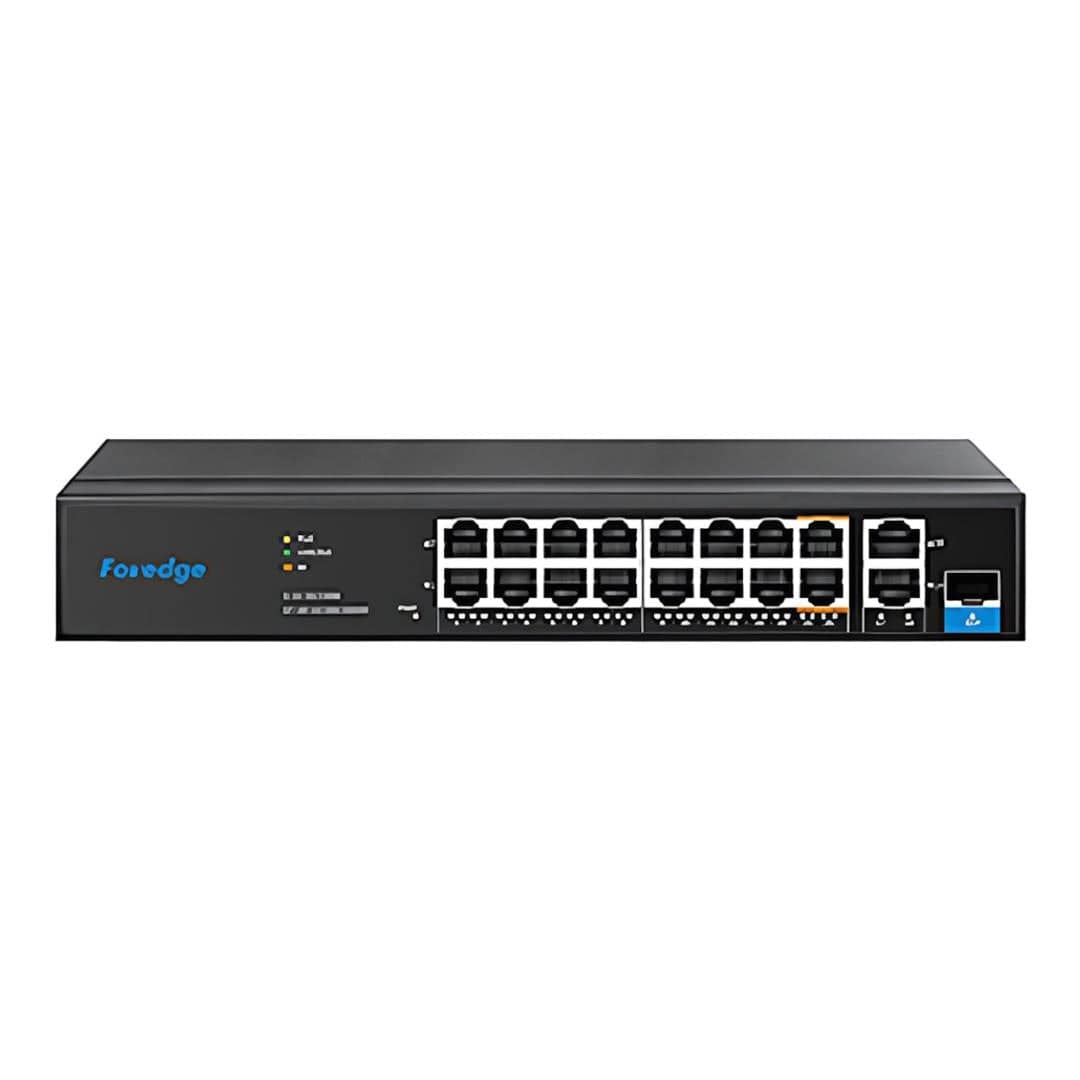

Foredge AI8016M 16-Port 100M AI PoE Unmanged Switch

Foredge AI8016M 16-Port 100M AI PoE Unmanged Switch

The product has 16 gigabit PoE ports, 2 gigabit RJ45 ports, and 1 gigabit SFP port, suitable for network access and edge convergence.

Features:

• 16*10/100Mbps PoE RJ45 ports（port1~port16）
• 2*10/100/1000Mbps RJ45 ports（port17~port18）
• 1*1000M SFP port
• Port 15-16 max power：60W
• PoE budget：150W
• All ports support 6KV lightning protection

Technical Specifications:

Networking Ports

16 × 10/100 Mbps PoE RJ45 ports (Port 1–16)

2 × 10/100/1000 Mbps RJ45 ports (Port 17–18)

1 × 1000 Mbps SFP port

Networking Standards

IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt

Performance

Bandwidth: 7.2 Gbps

Packets Forwarding Rate: 5.4 Mpps

MAC Table Size: 8K

Forwarding Type: Store and Forward

LED Indicators

Power Indicator

LINK/ACT Indicator

PoE Indicator

PoE

Pin Assignment: 1/2 (+), 3/6 (–)

Power

Port 15–16 Maximum Power: 60 W

PoE Budget: 150 W

Dimensions

210 × 152 × 40 mm (W × D × H)

Environment

Working Temperature: 0 °C ~ 40 °C

Storage Temperature: –40 °C ~ 70 °C

Working Humidity: 10%–90% RH (non-condensing)

Storage Humidity: 5%–90% RH (non-condensing)

Safety Compliance

CE, RoHS, FCC, CCC
