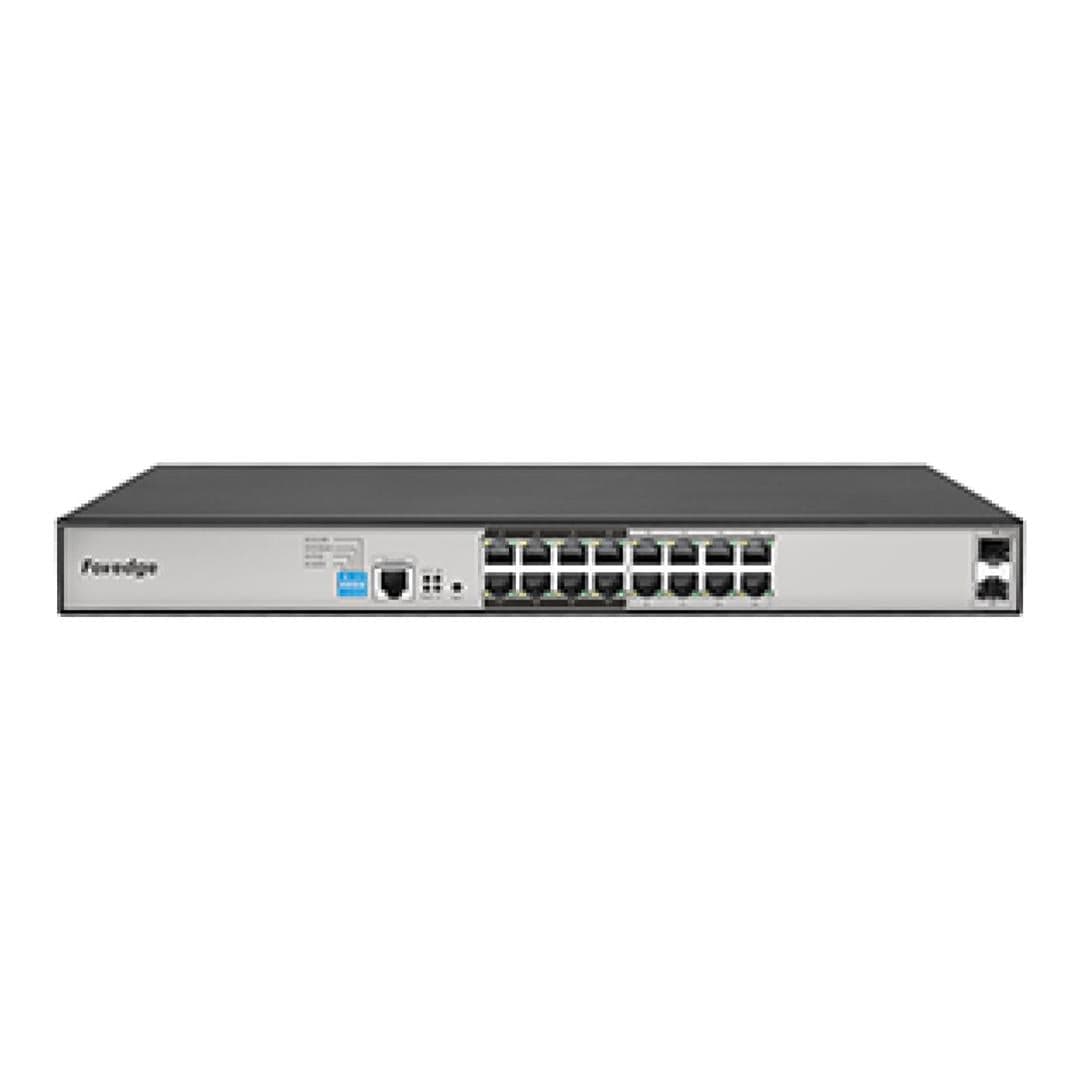

Foredge 16-port Gigabit Layer2 PoE Managed Switch

Foredge 16-port Gigabit Layer2 PoE Managed Switch

The product adopts a new generation of high-performance hardware and software platforms, providing flexible and cost-effective full gigabit access and uplink ports

Features:

• 16 10/100/1000Mbps RJ45 ports (POE), 2 Gigabit SFP fiber optic ports
• Supports SNMP, RMON, Syslog, USB features, as well as multiple management methods such as CLI, web management, and Telnet, making it easy to maintain
• Hardware level multiple protection ensures continuous operation of equipment and stable network without disconnection
• Supports one-stop management on the Apollo cloud platform

Technical Specifications:

Networking Interface

• 16 x 10/100/1000 Mbps RJ45 ports (PoE)
• 2 x SFP ports
• 1 x Console port

Network Protocols

IEEE 802.3, 802.3i, 802.3u, 802.3ab, IEEE 802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1p, IEEE 802.1q, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.3af, IEEE 802.3at

Performance

Bandwidth: 36 Gbps

Packet forwarding rate: 26.8 Mpps

MAC table size: 8K

Forwarding type: Storage and forwarding

LED Indicators

• 18 x Link/Act indicators
• 16 x PoE indicators
• 1 x Power indicator
• 1 x SYS indicator

PoE

Pin assignment: 1/2 (+), 3/6 (–)

Maximum power per port: 30 W

Total PoE budget: 150 W

Power Supply

Input: AC 100–240 V, 50/60 Hz

Dimensions

440 mm x 180 mm x 44 mm

Environment

Operating temperature: 0 °C to 40 °C

Storage temperature: –40 °C to 70 °C

Operating humidity: 10%–90% RH (non-condensing)

Storage humidity: 5%–90% RH (non-condensing)

Safety Regulations

CE, RoHS, FCC

VLAN

Supports 4K VLANs

Supports 802.1Q VLAN, MAC VLAN, IP VLAN

DHCP

Supports DHCP Snooping

MAC Address Table

IEEE 802.1d standard

Supports auto learning and aging

Supports static, dynamic, and filtering entries

Security Features

Password protection

User access restriction by port, IP address, or MAC address

HTTPS, SSL V3, TLS V1, SSH V1/V2

IP–MAC–PORT binding

ARP protection, IP source protection, DoS protection

DHCP Snooping and DHCP attack protection

802.1X authentication, AAA

Port security and isolation

CPU protection

PoE Management

PoE power limit

PoE chip status check

PoE port priority

PoE scheduling by time period

Intelligent power supply

ACL

Supports Layer 2 to Layer 4 packet filtering

Supports port mirroring, flow rate limiting, QoS remarking

QoS

Supports 8 port queues

Supports port priority, 802.1P priority, DSCP priority

SP, WRR, SP+WRR, WFQ scheduling algorithms

Spanning Tree

STP (IEEE 802.1d), RSTP (IEEE 802.1w), MSTP (IEEE 802.1s)

Loop protection, root bridge protection, TC protection, BPDU protection, BPDU filtering

Optical port 50 ms switching

Multicast

IGMP Snooping v1/v2/v3

MLD Snooping v1/v2

Fast leave mechanism

Layer 2 IPv4 static multicast

Layer 2 IPv6 static multicast

Storm Suppression

Multicast suppression

Broadcast suppression

Unknown unicast suppression

Link Aggregation

Static and dynamic aggregation

Load balancing by IP, MAC, or mixed mode

Supports up to 32 aggregation groups

IPv6

IPv6 Ping, IPv6 Tracert, IPv6 Telnet

IPv6 SSH, IPv6 SSL

Management and Maintenance

Web management (HTTP, HTTPS, SSL V3)

CLI management (Telnet, SSH V1/V2, Console port)

SNMP V1/V2/V3

RMON V1/V2

LLDP device discovery

NTP time synchronization

DNS client

CPU and memory monitoring

System log with graded warning

Ping and Tracert detection

Cable detection

Apollo cloud platform management and maintenance
