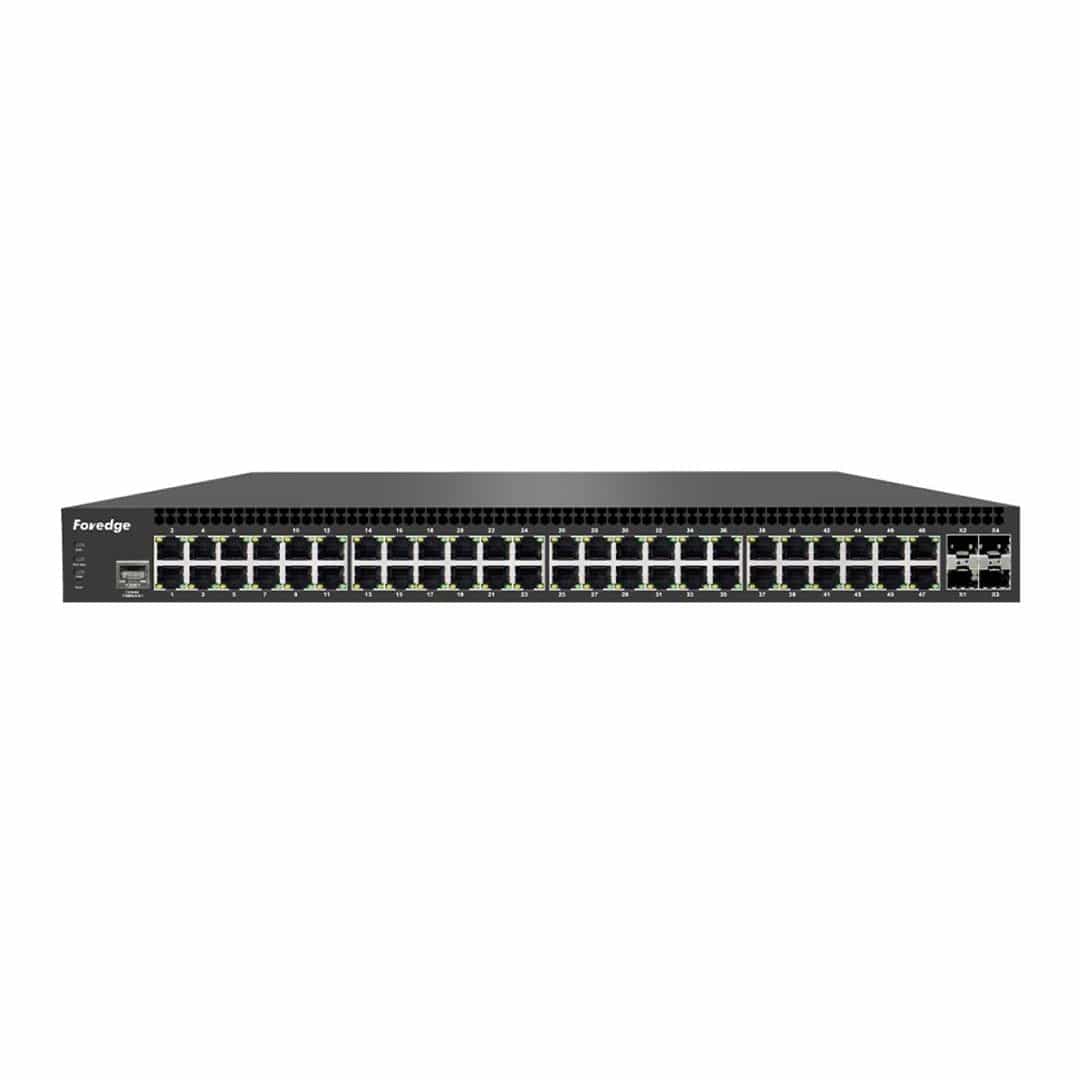

Foredge 10G Uplink 48-port Gigabit L3 PoE Managed Switch S5700-48GP-4TFR

Foredge 10G Uplink 48-port Gigabit L3 PoE Managed Switch S5700-48GP-4TFR

The product adopts a new generation of high – performance hardware and software platform,provides flexible and cost – effective full-gigabit access and uplink ports.

Features:

• 48 10/100/1000Mbps RJ45 ports (POE)
• 4 10 Gigabit SFP+fiber optic ports
• High end chips with more stable and powerful performance
• Three layer routing protocol control, adaptable to multiple services, and efficient and guaranteed information transmission
• Supports one-stop management on the Apollo cloud platform
• Support cloud platform for resource visualization management of switches and attached PD devices, making operation and maintenance management simpler

Technical Specifications:

Network Interface: 48 × 10/100/1000 Mbps RJ45 (PoE), 4 × 10G SFP+ fiber, 1 × Console port
Network Protocols: IEEE 802.3, 802.3i, 802.3u, 802.3ab, 802.3z, 802.3ad, 802.3x, 802.1p, 802.1q, 802.1d, 802.1s, 802.1w, 802.3af, 802.3at
Performance: Bandwidth 176 Gbps, Packet forwarding rate 130.9 Mpps, MAC addresses 16K, Port cache 12 Mb, Forwarding mode Store-and-Forward
LED Indicators: 52 Link/Act, 48 PoE, 1 Power, 1 SYS
PoE Pin: 1/2 (+), 3/6 (–)
Power: Input AC 100–240 V 50/60 Hz, Single-port max 30 W, Total 360 W
Dimensions (L × W × H): 440 × 320 × 44 mm
Environmental: Operating temp 0–40 °C, Storage temp –40–70 °C, Operating humidity 10–90% RH non-condensing, Storage humidity 5–90% RH non-condensing
Safety Regulations: CE, RoHS, FCC

Layer 3 Interface: Supports IPv4/IPv6 addressing, ARP, ND configuration
Layer 3 Routing: IPv4 static, RIP v1/v2, OSPFv2; IPv6 static, RIPng, OSPFv3
VLAN: 4K VLANs, 802.1Q VLAN, MAC VLAN, IP VLAN, Voice VLAN
DHCP: DHCP server, DHCP relay, DHCP snooping
MAC Address Table: IEEE 802.1d compliant, automatic learning/aging, static/dynamic/filtered tables
Security Features: Password protection, access restrictions by port/IP/MAC, HTTPS, SSL V3, TLS V1, SSH V1/V2, IP-MAC-PORT binding, ARP/IP source/DOS protection, DHCP Snooping/Attack protection, 802.1X authentication, AAA, port security/isolation, CPU protection
PoE Management: Power limit, chip status check, port priority, time scheduling, intelligent supply
ACL: L2–L4 filtering, port mirroring, bandwidth restriction, QoS remarking
QoS: 8 queues per port, port/802.1p/DSCP priority, SP, WRR, SP+WRR, WFQ scheduling
Spanning Tree: STP (802.1d), RSTP (802.1w), MSTP (802.1s), loop/root/TC/BPDU protection, optical port 50 ms switching
Multicast: IGMP v1/v2/v3 snooping, MLD v1/v2 snooping, fast leave, static IPv4/IPv6 multicast, IGMP v1/v2/v3 L3 multicast
Storm Suppression: Multicast, broadcast, unknown unicast suppression
Link Convergence: Static/dynamic aggregation, load balancing (IP/MAC/mixed), up to 32 groups
IPv6 Support: Ping, Tracert, Telnet, SSH, SSL
Network Management: Web (HTTP/HTTPS/SSL V3), CLI (Telnet/SSH/Console), SNMP v1/v2/v3, RMON v1/v2, LLDP, NTP, DNS client, CPU/memory monitoring, system log/alerts, ping/tracert/cable detection, Apollo cloud platform
