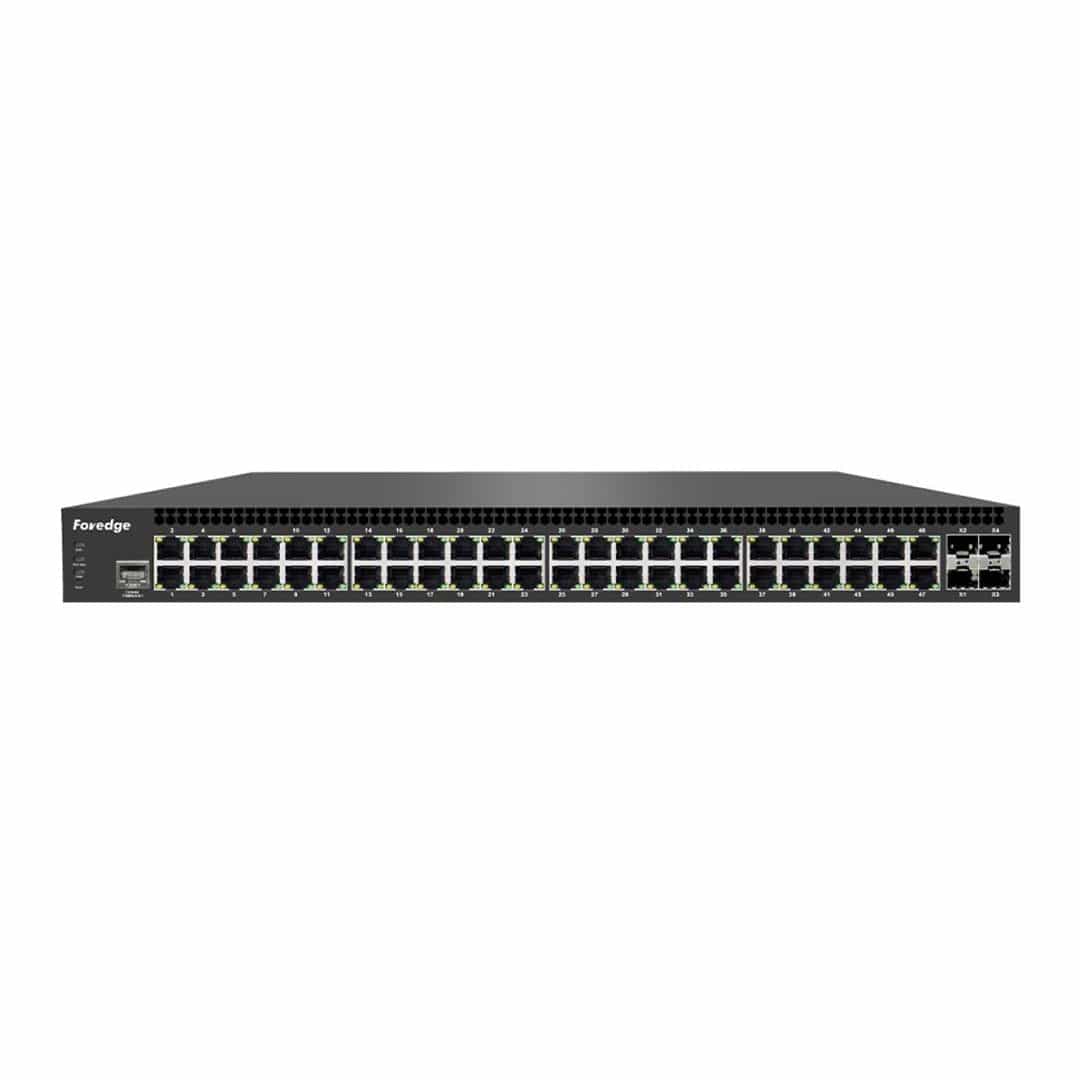

Foredge 10G Uplink 48-port Gigabit L3 PoE 700W Managed Switch S5700-48GP-4TFR-700W

Foredge 10G Uplink 48-port Gigabit L3 PoE 700W Managed Switch S5700-48GP-4TFR-700W

The product adopts a new generation of high – performance hardware and software platform,provides flexible and cost – effective full-gigabit access and uplink ports.

Features:

• 48 10/100/1000Mbps RJ45 ports (POE)
• 4 10 Gigabit SFP+fiber optic ports
• High end chips with more stable and powerful performance
• Three layer routing protocol control, adaptable to multiple services, and efficient and guaranteed information transmission
• Supports one-stop management on the Apollo cloud platform
• Support cloud platform for resource visualization management of switches and attached PD devices, making operation and maintenance management simpler

Technical Specifications:

Network Interface: 48 10/100/1000 Mbps RJ45 ports (PoE), 4 10G SFP+ fiber ports, 1 Console port
Network Protocol: IEEE 802.3, 802.3i, 802.3u, 802.3ab, 802.3z, 802.3ad, 802.3x, 802.1p, 802.1q, 802.1d, 802.1s, 802.1w, 802.3af, 802.3at

Performance Specifications: Bandwidth: 176 Gbps, Packet Forwarding Rate: 130.9 Mpps, MAC Address Table: 16K, Port Cache: 12 Mb, Forwarding Mode: Store and Forward

LED Indicator: 52 Link/Act indicators, 48 PoE indicators, 1 Power indicator, 1 SYS indicator

PoE Pin: 1/2 (+), 3/6 (–)
Power: Input: AC 100-240V/50-60Hz, Single Port Max Power: 30W, Total Power: 360W

Dimensions (L×W×H): 440 × 320 × 44 mm

Environmental Specifications: Operating Temperature: 0°C to 40°C, Storage Temperature: -40°C to 70°C, Working Humidity: 10% to 90% RH non-condensing, Storage Humidity: 5% to 90% RH non-condensing

Safety Regulations: CE, RoHS, FCC

Software Specifications:

Protocol Standard:

• IEEE 802.3: Ethernet MAC

• IEEE 802.3i: 10BASE-T

• IEEE 802.3u: 100BASE-TX

• IEEE 802.3ab: 1000BASE-T

• IEEE 802.3z: 1000BASE-X (optical)

• IEEE 802.3ad: Link aggregation

• IEEE 802.3x: Flow control

• IEEE 802.1p: Layer 2 QoS/CoS

• IEEE 802.1q: VLAN

• IEEE 802.1d: STP

• IEEE 802.1s: MSTP

• IEEE 802.1w: RSTP

• IEEE 802.3af/at: PoE

Layer 3 Interface: Supports IPv4 and IPv6 configuration, ARP and ND configuration
Layer 3 Routing: Supports IPv4 static/dynamic routing (RIP v1/v2, OSPFv2), IPv6 static/dynamic routing (RIPng, OSPFv3)

VLAN: Supports 4K VLANs, 802.1Q, MAC VLAN, IP VLAN, Voice VLAN

DHCP: Supports DHCP server, relay, and snooping

MAC Address Table: Complies with IEEE 802.1d, supports automatic learning/aging, static/dynamic/filtered entries

Safety Features: Password protection, port/IP/MAC access restrictions, HTTPS/SSL/TLS/SSH support, IP-MAC-PORT binding, ARP/IP source/DOS protection, DHCP attack protection, 802.1X, AAA, port security/isolation, CPU protection

PoE Management: Supports power limit, chip status check, port priority, power scheduling, intelligent power supply

Access Control (ACL): Supports L2-L4 packet filtering, port mirroring, flow speed restriction, QoS remarking

QoS: 8 port queues, port/802.1p/DSCP priority, SP, WRR, SP+WRR, WFQ scheduling

Spanning Tree: Supports STP (802.1d), RSTP (802.1w), MSTP (802.1s), loop/root/TC/BPDU protection, optical port 50ms switching

Multicast: Supports IGMP v1/v2/v3 snooping, MLD v1/v2 snooping, fast leave, L2/L3 IPv4/IPv6 static multicast

Storm Suppression: Supports multicast, broadcast, and unknown unicast suppression

Link Convergence: Supports static/dynamic convergence, IP/MAC/mixed load balancing, up to 32 aggregation groups

IPv6: Supports Ping, Tracert, Telnet, SSH, SSL over IPv6

Network Management: Supports WEB (HTTP/HTTPS/SSL), CLI (Telnet/SSH/serial), SNMP v1/v2/v3, RMON v1/v2, LLDP, NTP, DNS, CPU/memory monitoring, system logs and alerts, Ping/Tracert/cable detection, Apollo cloud platform management
