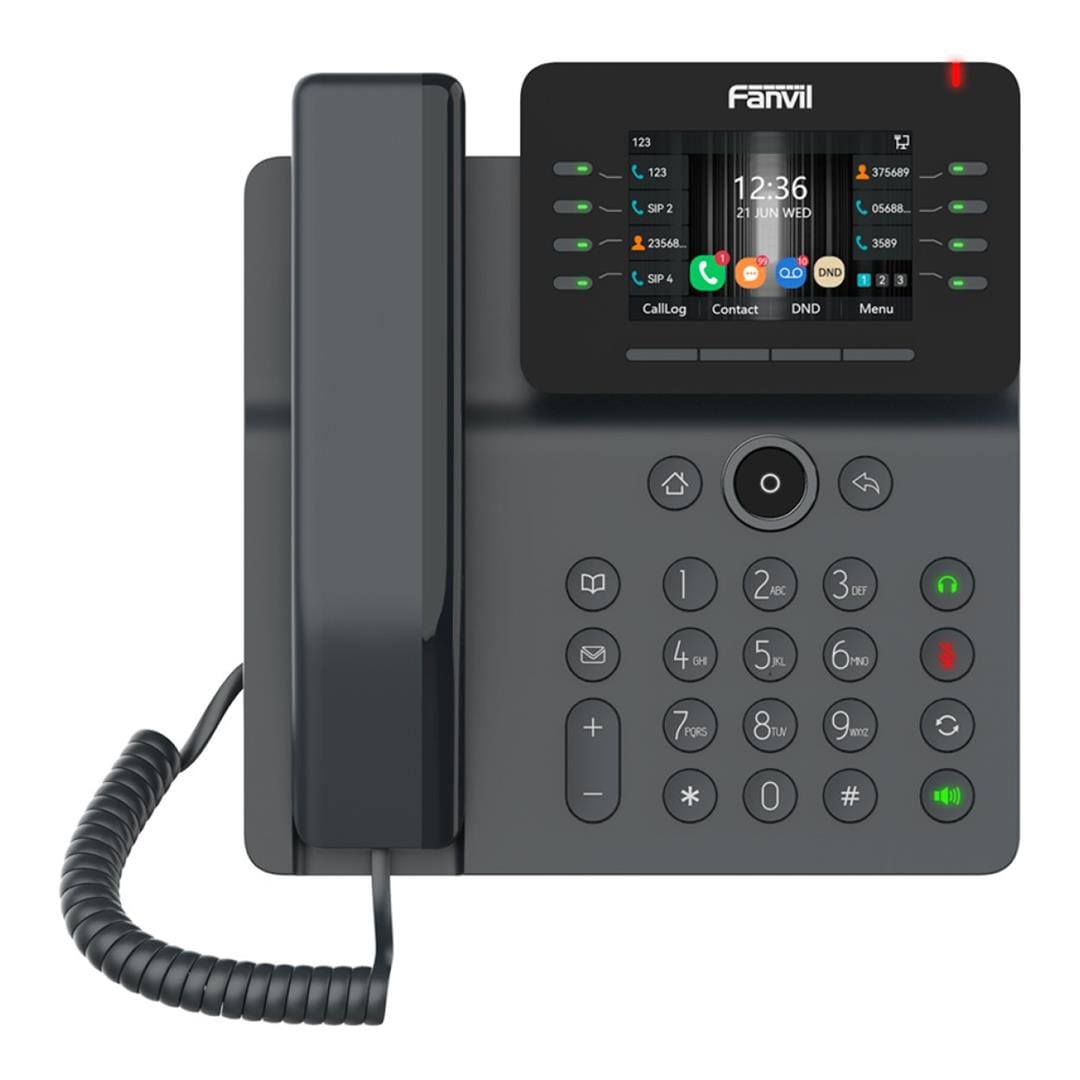

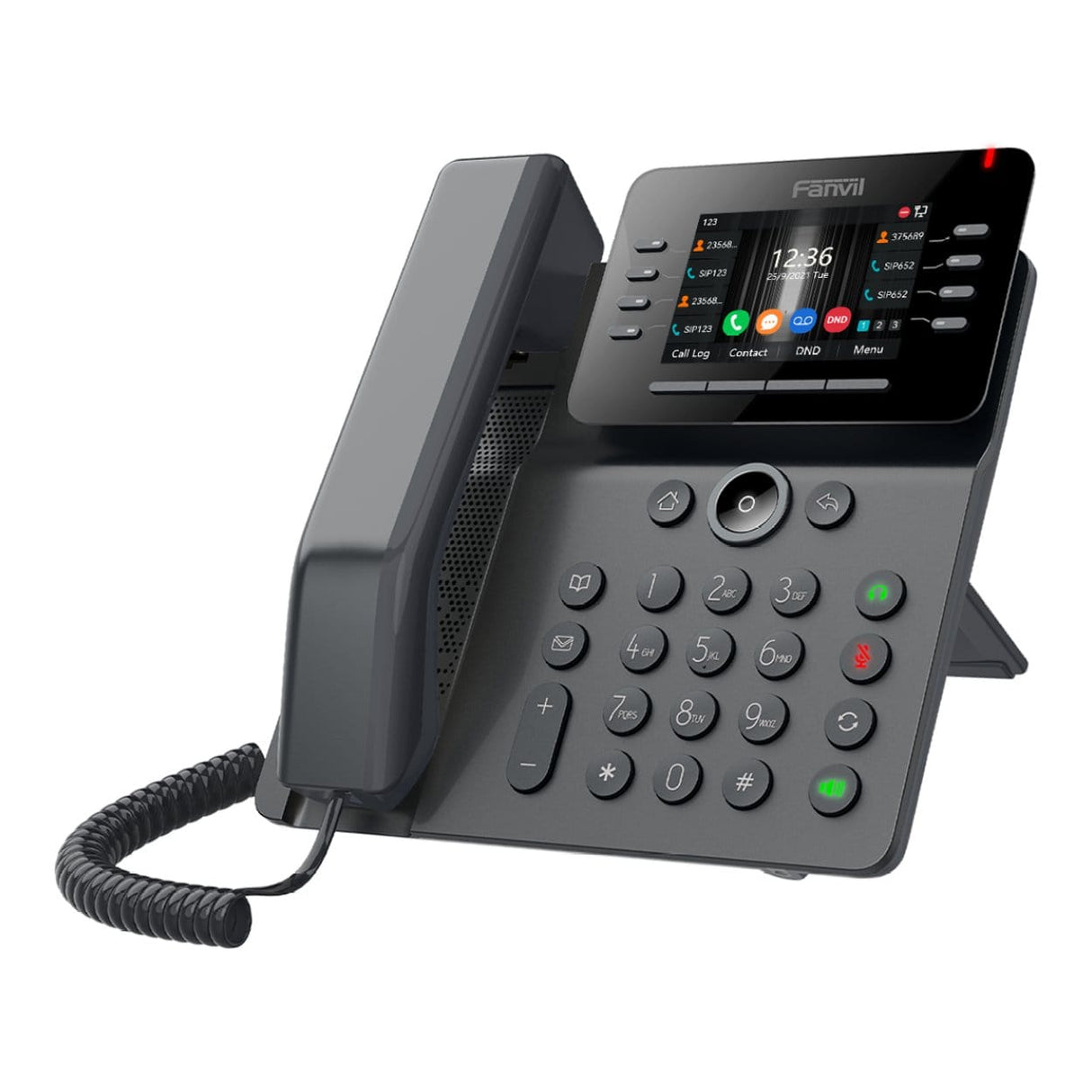

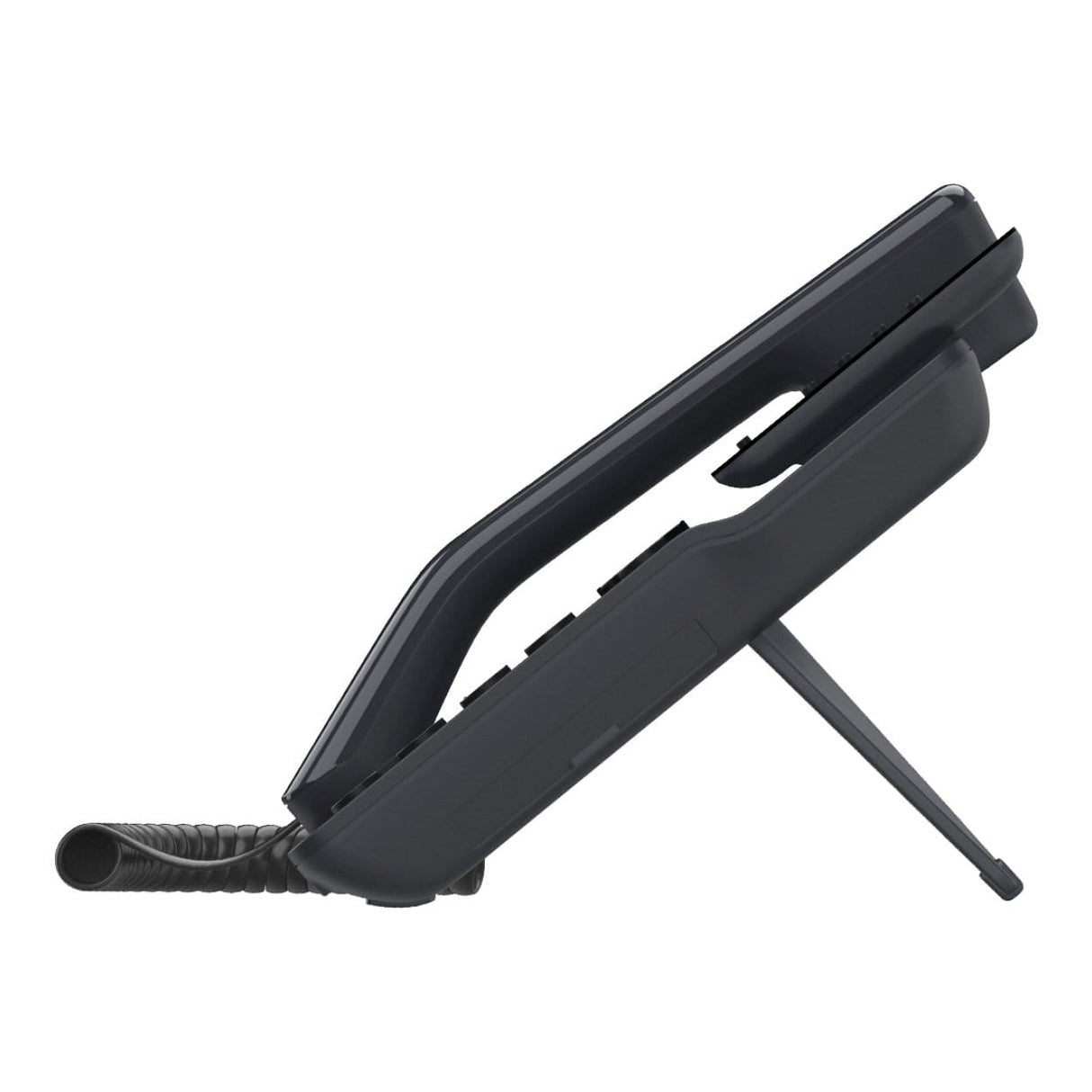

Fanvil V64 Prime IP Business Phone

Fanvil V64 Prime IP Business Phone

V64 is more than an efficient telephone but a delicate work of art, providing a smart and smooth business communication experience for enterprises. As the prime business phone featuring a color LCD screen and built-in Bluetooth 4.2 and 2.4G/5G Wi-Fi, V64 is a perfect combination of elegant outside and powerful inside.

Specifications:

Generic

• 12 SIP lines
• HD voice
• PoE enabled
• 3.5-inch (480x320) color screen
• Handset / hands-free / headset mode
• Intelligent DSS keys
• Desktop Stand / Wall-mounted (need an additional wall hanging parts)
• Optional external power supply

Phone Functions

• Local Phonebook (1000 entries)
• Remote Phonebook (XML/LDAP,1000 entries)
• Call logs (In/Out/Missed,1000 entries)
• Blocked List/Allowed List
• Screen saver
• Voice Message Waiting Indication (VMWI)
• Programmable DSS/Soft keys
• Network Time Synchronization
• Built-in Bluetooth 4.2: Support Bluetooth headset/ Pairing mobile devices
• Built-in Wi-Fi
• 2.4GHz, 802.11 b/g/n
• 5GHz, 802.11 a/n/ac
• Support Poly wireless headset (Through Poly APD-80 EHS Cable)
• Support Jabra wireless headset (Through Fanvil EHS20 EHS Cable)
• Support Recording
• Action URL / Active URI
• XML Browser
• Customize Background
• Customize Boot Logo
• uaCSTA
• Customize Incoming Call Ringtone
• time Plan (timed reboot/timed forward/timed upgrade/timed config)
• Hidden DTMF
• Ring From Headset
• Customize DSS icon
• Customize DSS LED lights
• Customize BLF
• Customize UI Display

Call Functions

• Call out / Answer / Reject
• Mute / Unmute (Microphone)
• Call Hold / Resume
• Call Waiting
• Intercom
• Caller ID Display
• Speed Dial
• Anonymous Call (Hide Caller ID)/Ban

Anonymous call

• Call Forward (Always/Busy/No Answer)
• Call Transfer (Attended/Unattended)
• Call Parking/Pick-up (Depending on server)
• Redial
• Predial
• Call Back
• Do-Not-Disturb(DND)/Timed DND
• Auto-Answering

SIP SMS

• Voice Message
• 6-way Audio Conference
• Hot Line
• Hot Desking
• Direct IP call without SIP proxy
• Fuzzy Search Call
• Action Plan
• Dial Plan
• Call Completion/Auto Redial
• Primary and Backup SIP Servers
• Default Ext Line
• Multicast

Audio

• HD Voice: HD handset, HD speaker
• Wideband ADC/DAC 16KHz Sampling
• Narrowband Codec: G.711a/u, G.723.1,G.726,G.729,G.729A,G.729B,G.729AB, iLBC
• Wideband Codec: G.722, Opus
• Full-duplex Acoustic Echo Canceller (AEC)
• Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR) / Automatic Gain Control (AGC)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer
• DTMF: In-band, Out-of-Band (RFC2833/ SIP INFO)
• VQM voice quality monitoring

Network

• Physical: 10/100/1000 Mbps Ethernet, dual bridged port for PC bypass
• IP Mode: IPv4/IPv6/IPv4&IPv6
• IP Configuration: Static IP / DHCP / PPPoE
• Network Access Control: 802.1x
• VPN: L2TP / OpenVPN
• VLAN
• LLDP
• QoS
• RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)
• DNS-SRV (RFC 3263)
• Support Redundant Servers
• Agent
• Https Mutual Authentication
• Wi-Fi Security Mode: WPA/WPA2-PSK/802.1X EAP

Protocols

• SIP v1 (RFC2543) v2(RFC3261)
• UDP/TCP/TLS
• RTP/RTCP/SRTP（Optional/Compulsory）
• STUN
• DHCP
• IPv6
• LLDP
• PPPoE
• 802.1x
• 802.1p/Q
• L2TP
• OpenVPN
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR-069

Deployment & Management

• Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069
• Screenshot
• Web Management Portal
• Web-based Packet Dump
• Configuration Export / Import
• Phonebook Import/Export
• Firmware Upgrade
• Syslog
• Network Firewall
• Online Upgrade
