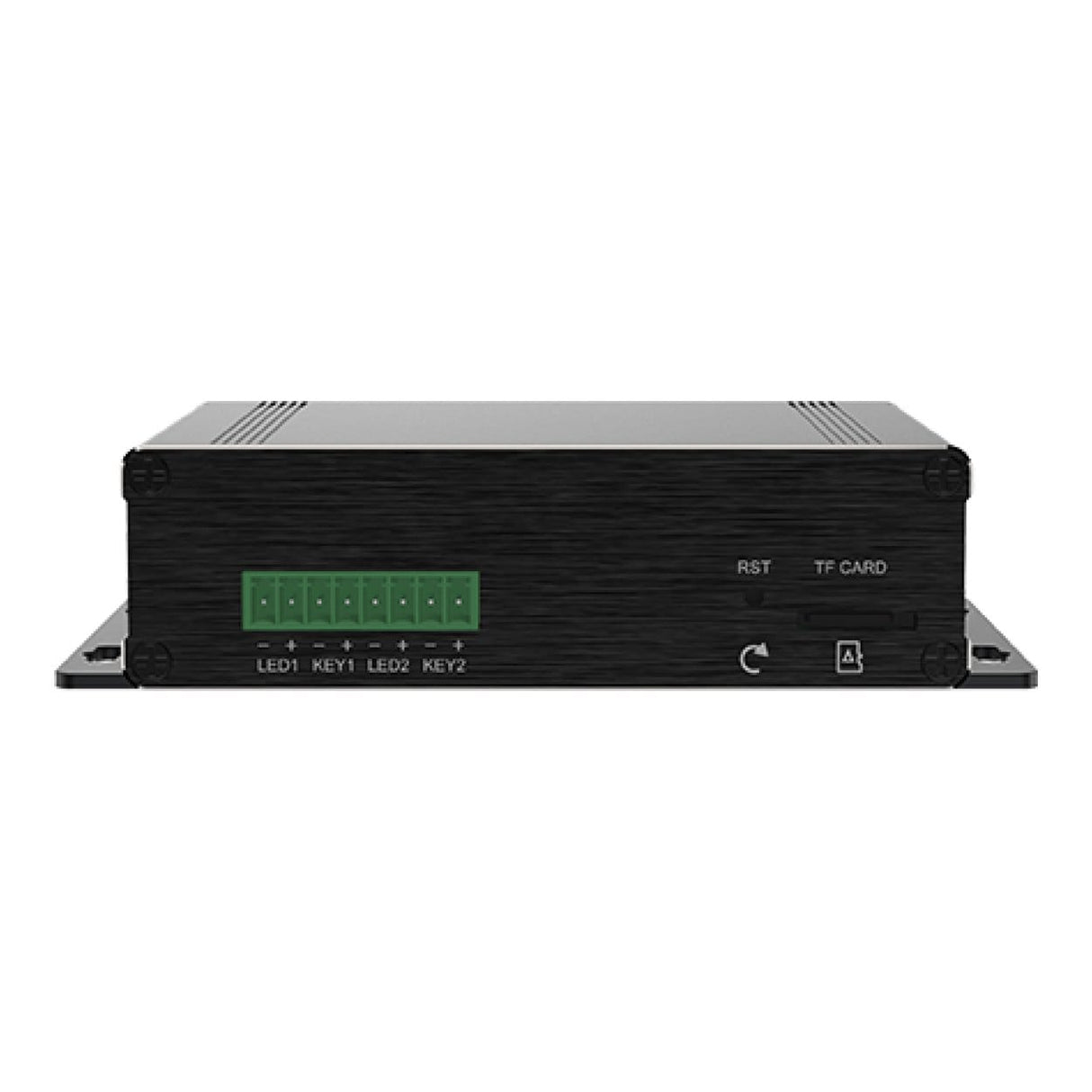

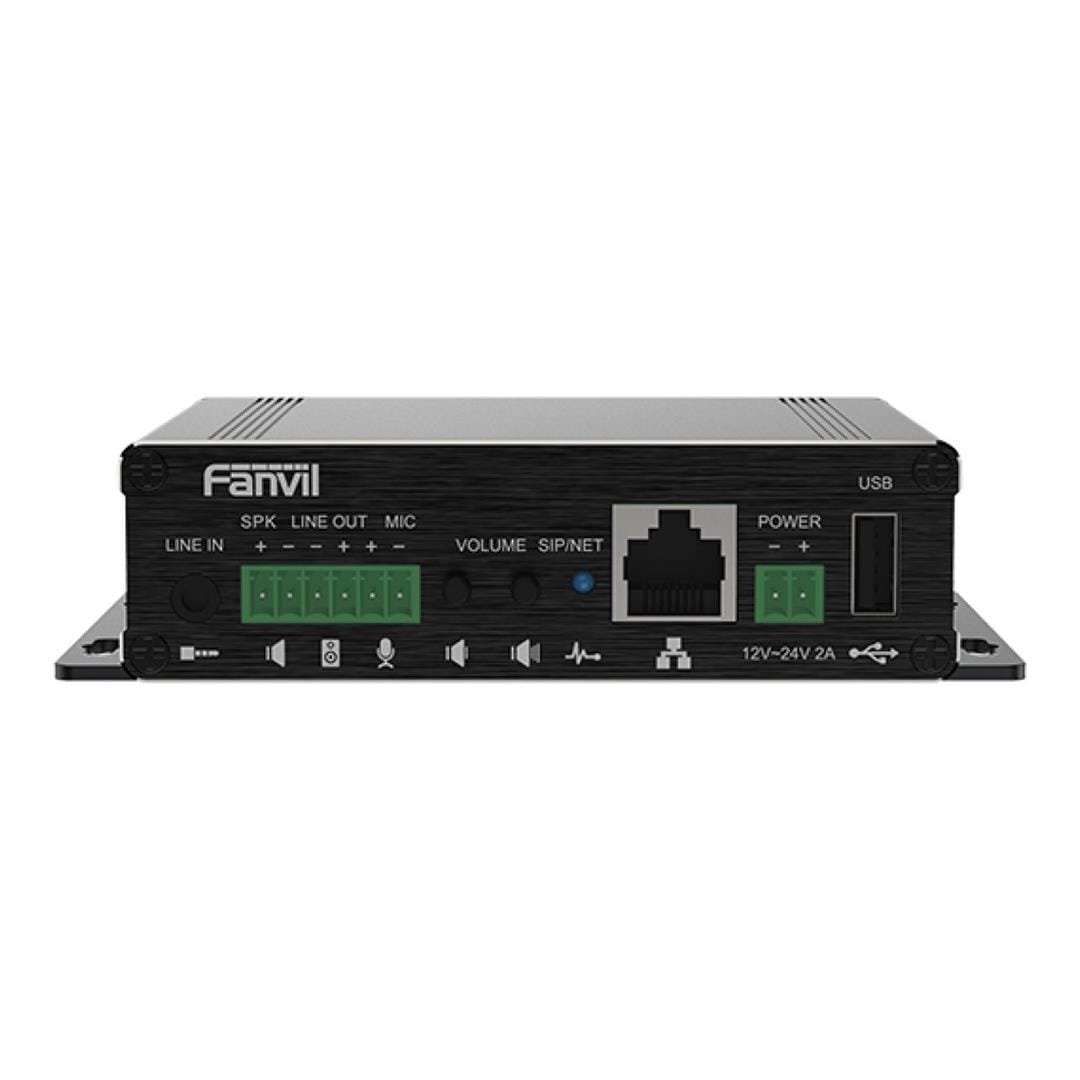

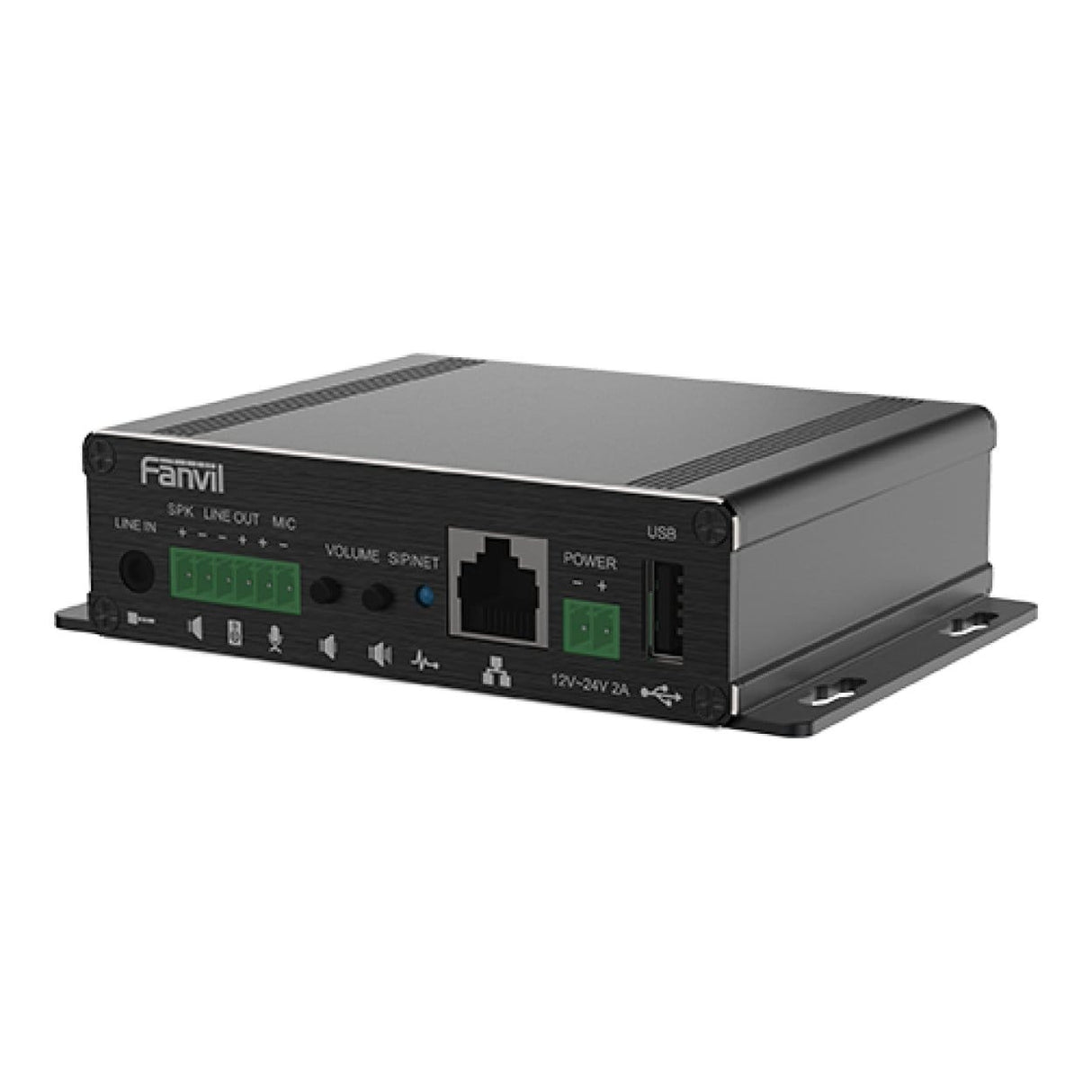

Fanvil PA3 SIP Paging Gateway

Fanvil PA3 SIP Paging Gateway

The design of Fanvil PA3 fits to every internal installation, especially for public broadcasting. With HD audio and function-rich interfaces, Fanvil PA3 can be used for real-time & fix-time MP3 broadcasting, and one-touch intercom when connecting to the external devices. Fanvil PA3 is your perfect choice to DIY the integrated broadcasting solution for the campus, shopping mall, railway station, building, etc.

Specifications:

Generic

• 2 SIP lines
• Speed dial
• Linkage with IP camera to realize video intercom
• Oral announcement of the IP address(in English)
• MP3 broadcasting
• Support programmable DSS key ports
• Support mono active speaker
• Support audio line in
• Support TF card and USB flash drive
• PoE enabled

Device Functions

• Auto-answering
• Programmable DSS keys
• Through button or web page volume adjustment
• Network time synchronization
• Dynamic multicast function
• Support recording (through USB flash drive or server)
• Action URL / Active URI

Call Functions

• Call out / answer / reject
• Call waiting
• Intercom, Multicast
• Speed dial
• Anonymous call (Hide caller ID)

Deployment & Management

• Auto provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR 069
• Web management portal
• Web based packet dump
• Configuration export / import
• Firmware upgrade
• Syslog

Audio

• Narrowband codec: G.711A/U, G.729A/B,iLBC,G.723.1,G.726-32K
• Wideband codec: G.722, Opus
• Full-duplex hands-free speakerphone with AEC
• DTMF: In-band, Out-of-Band (RFC2833/ SIP INFO)

Network

• Physical: 10/100 Mbps Ethernet
• IP mode:IPv4/IPv6/IPv4&IPv6
• IP configuration: Static IP / DHCP / PPPoE
• VPN: L2TP / OpenVPN
• VLAN
