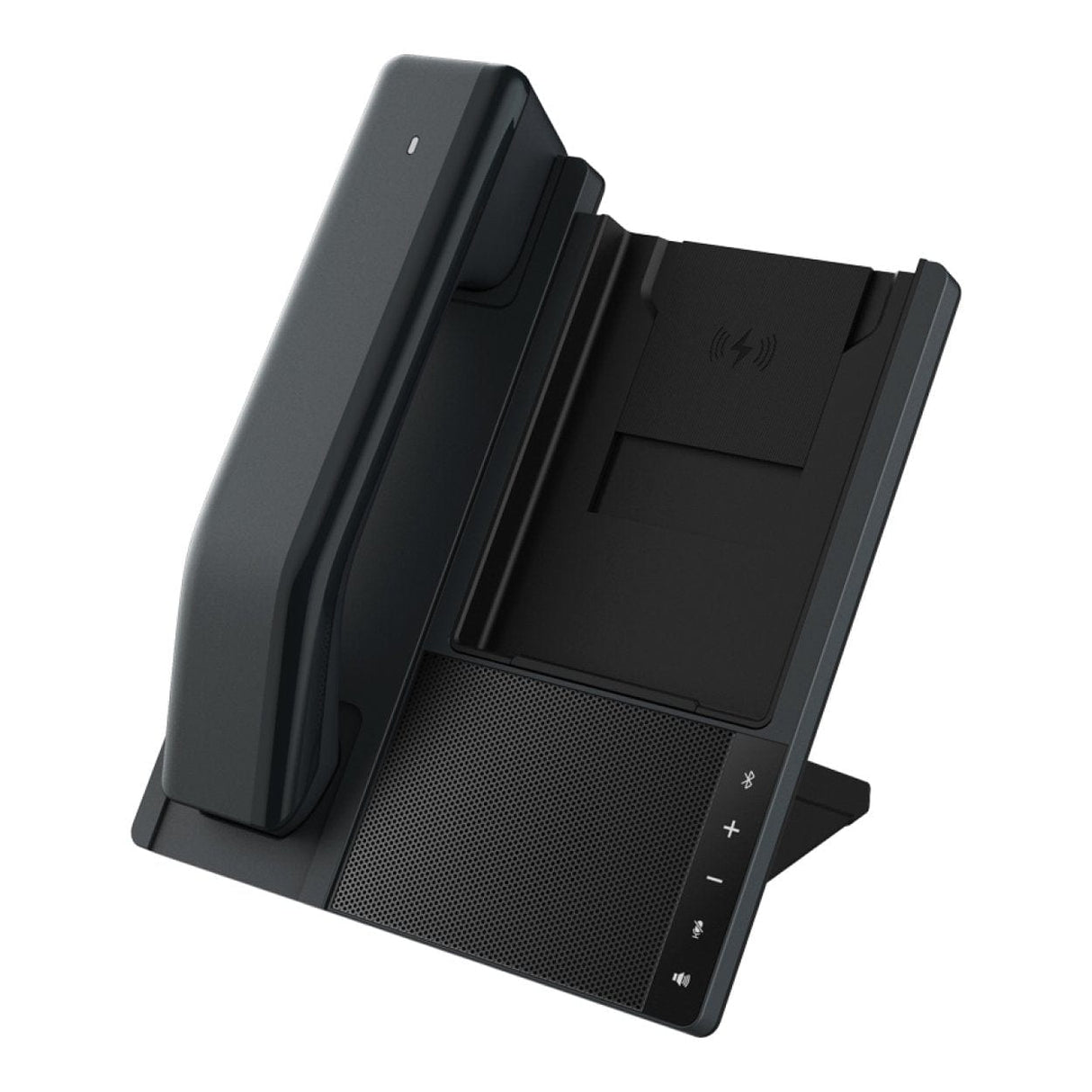

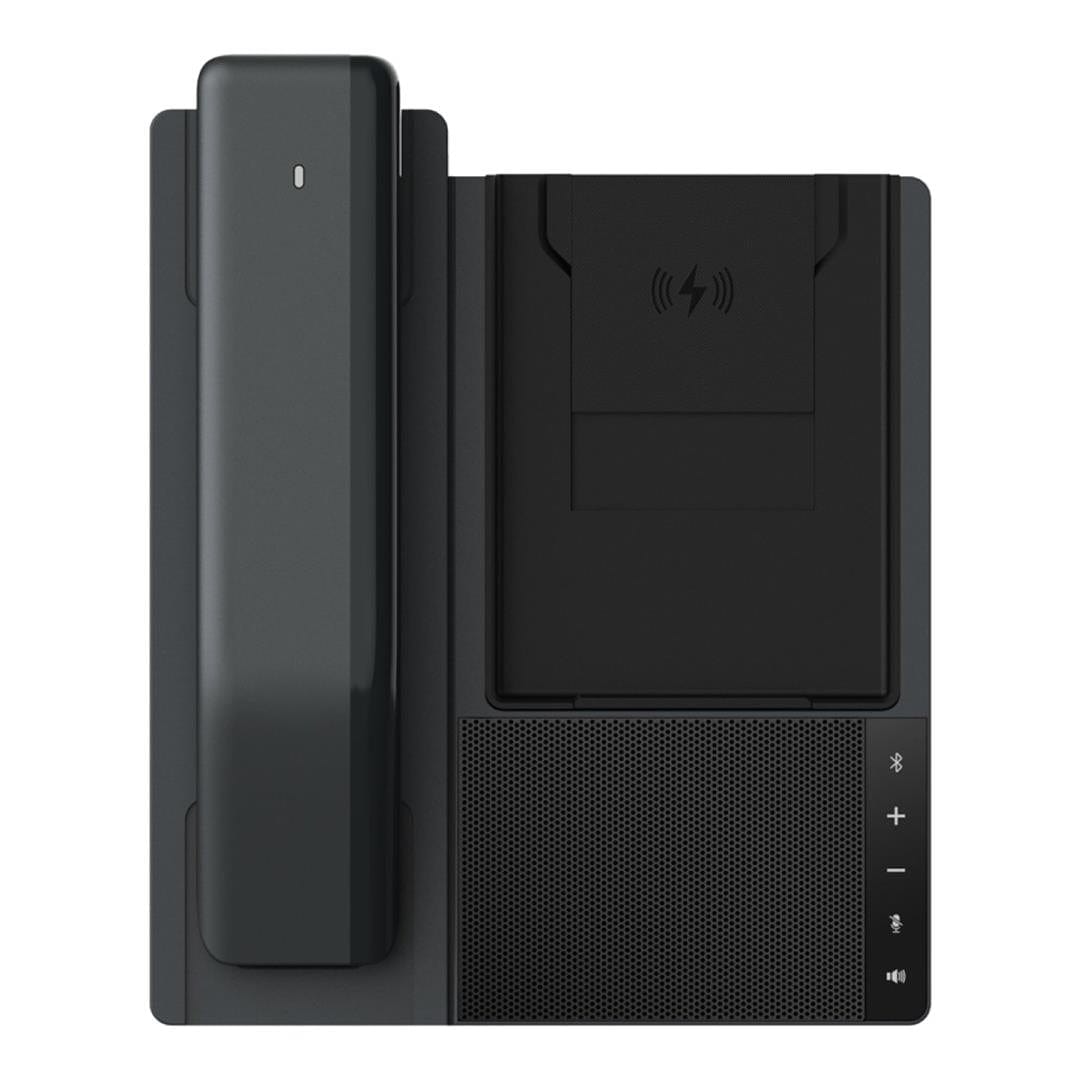

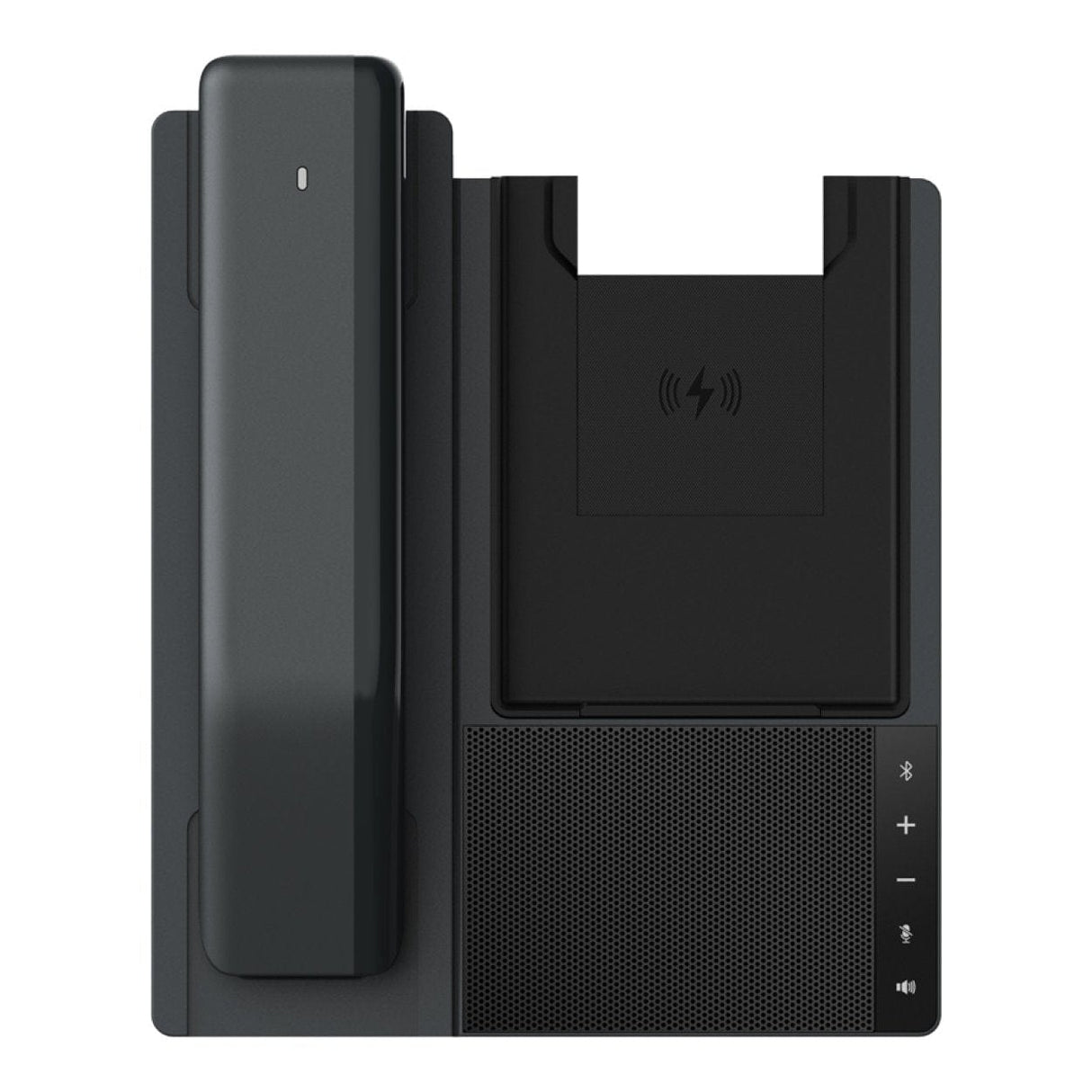

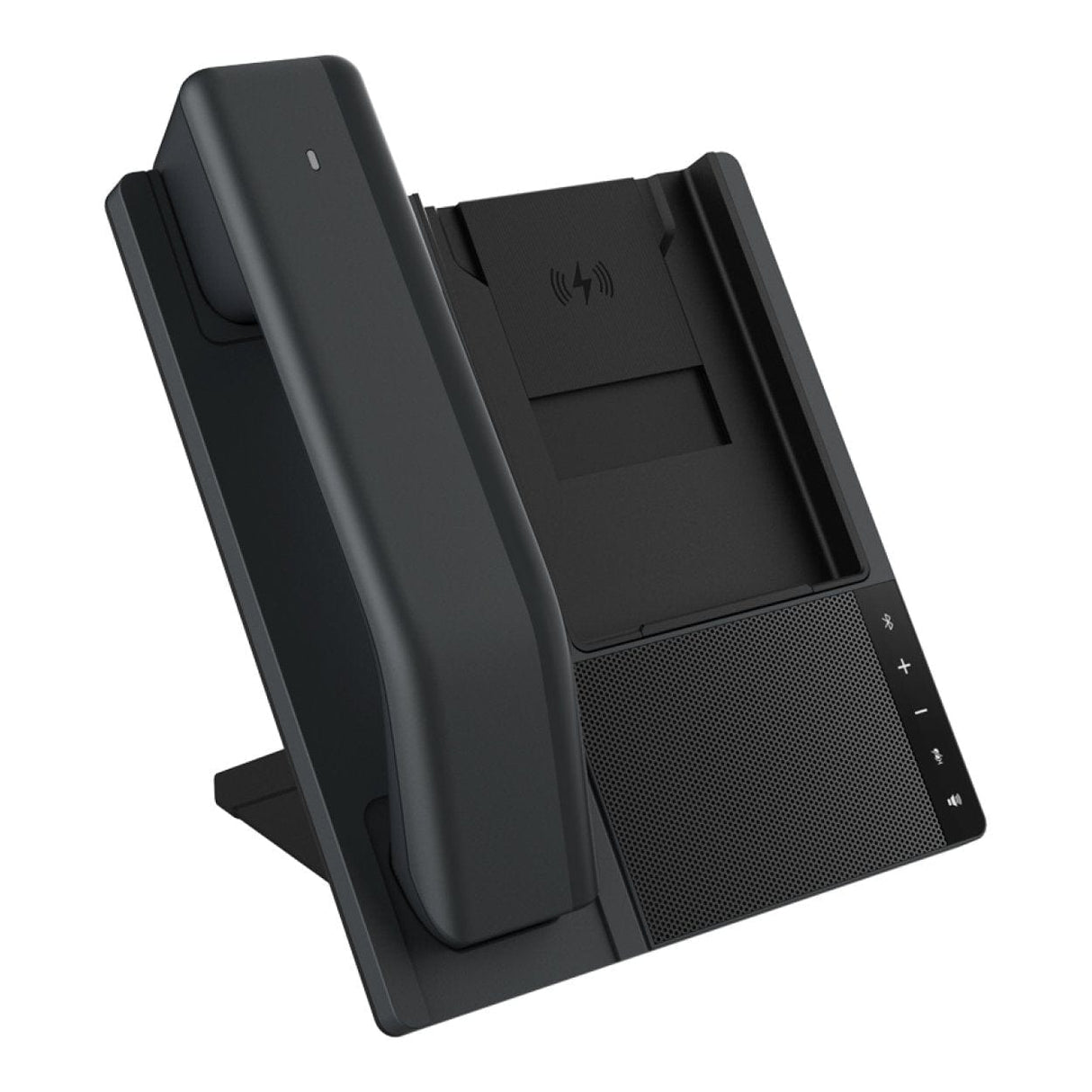

Fanvil DB20-H | All-in-One Phone Station with a Bluetooth Handset and 10W Wireless Phone Charger

Convergence for Convenience. Seamless Smartphone-PC Collaboration and Handset-Base Switching.

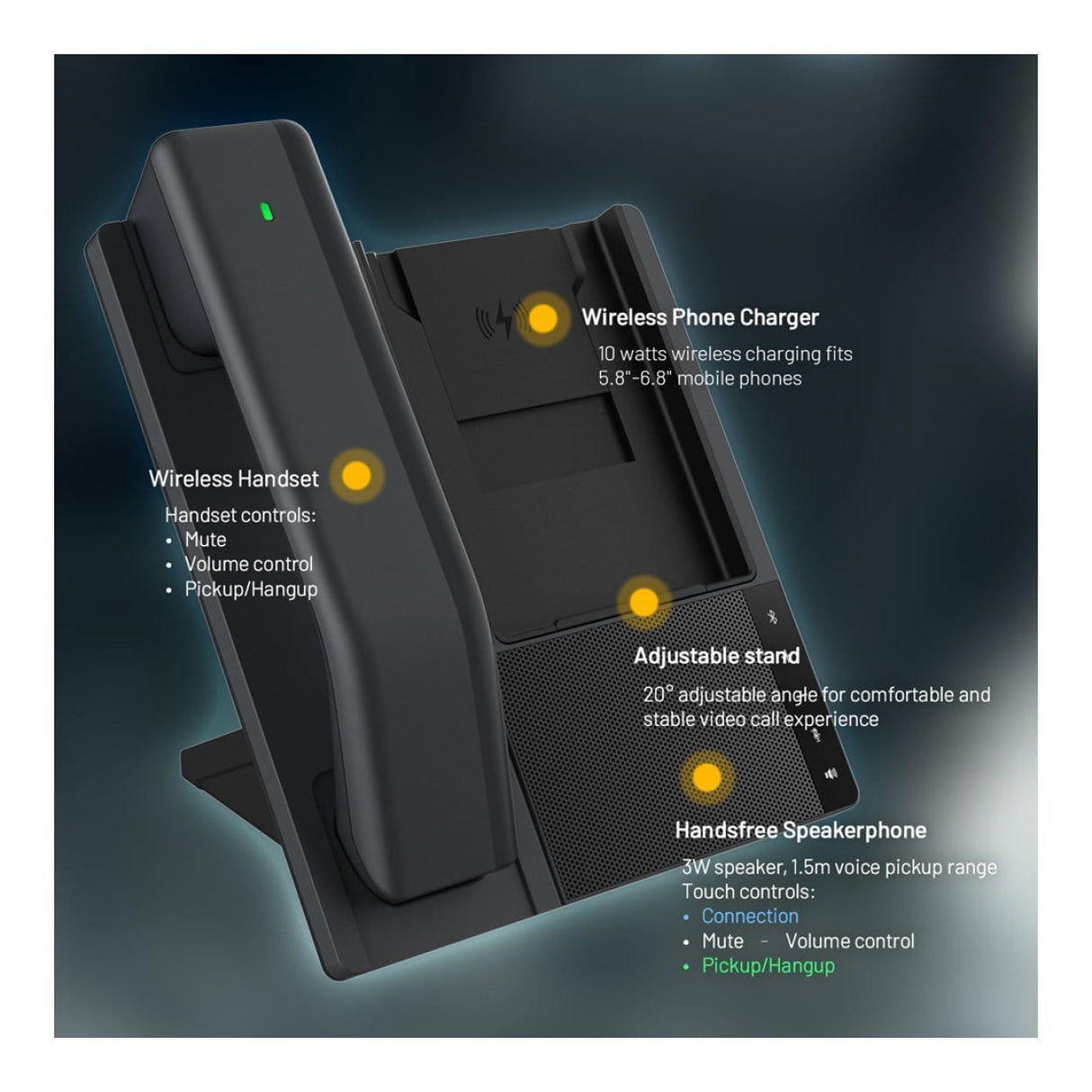

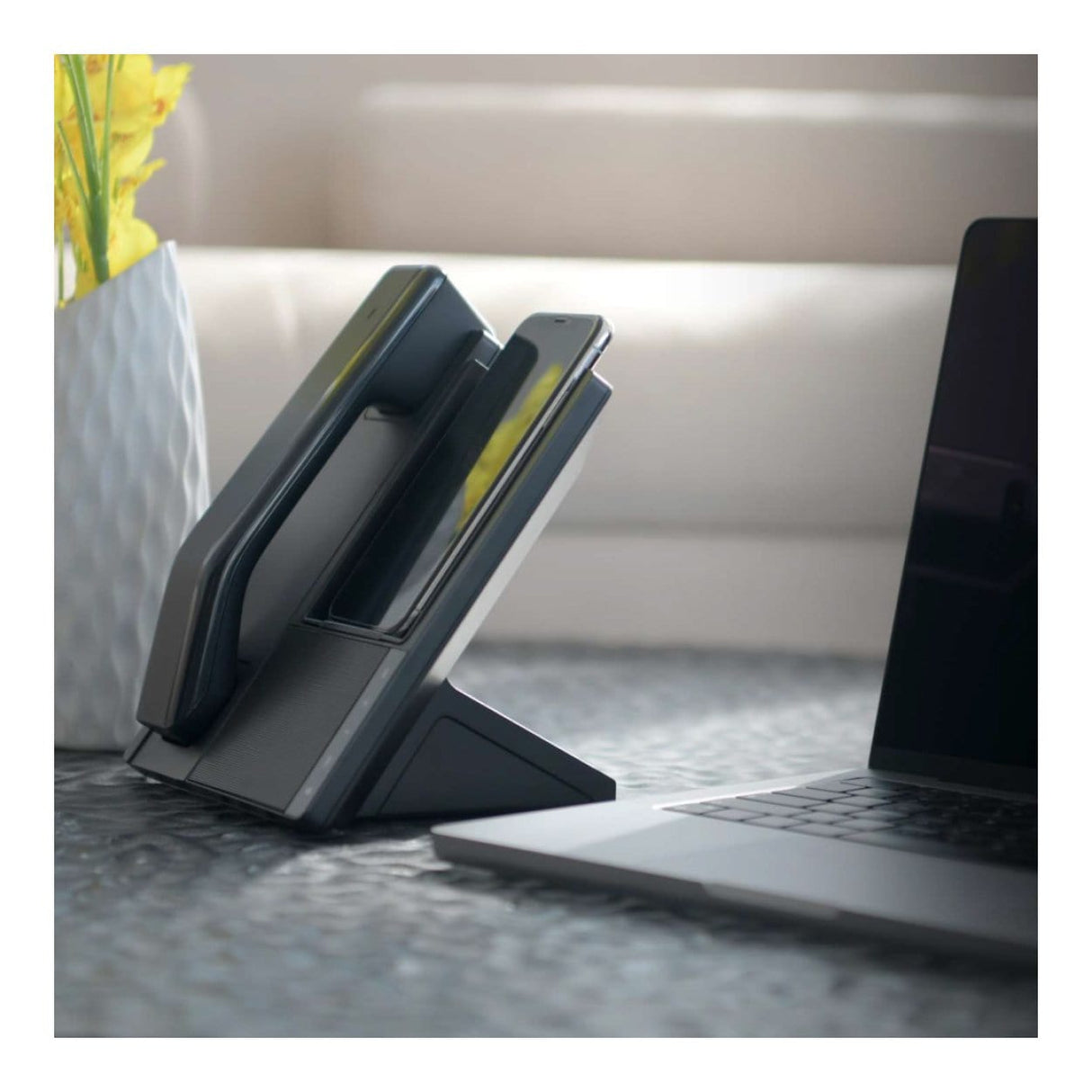

• Free desk space with this all-in-one design
• Call seamlessly between softphone, UC and phone calls
• Speakerphone and bluetooth handset for smartphone and PC
• Wireless mobile phone charging station

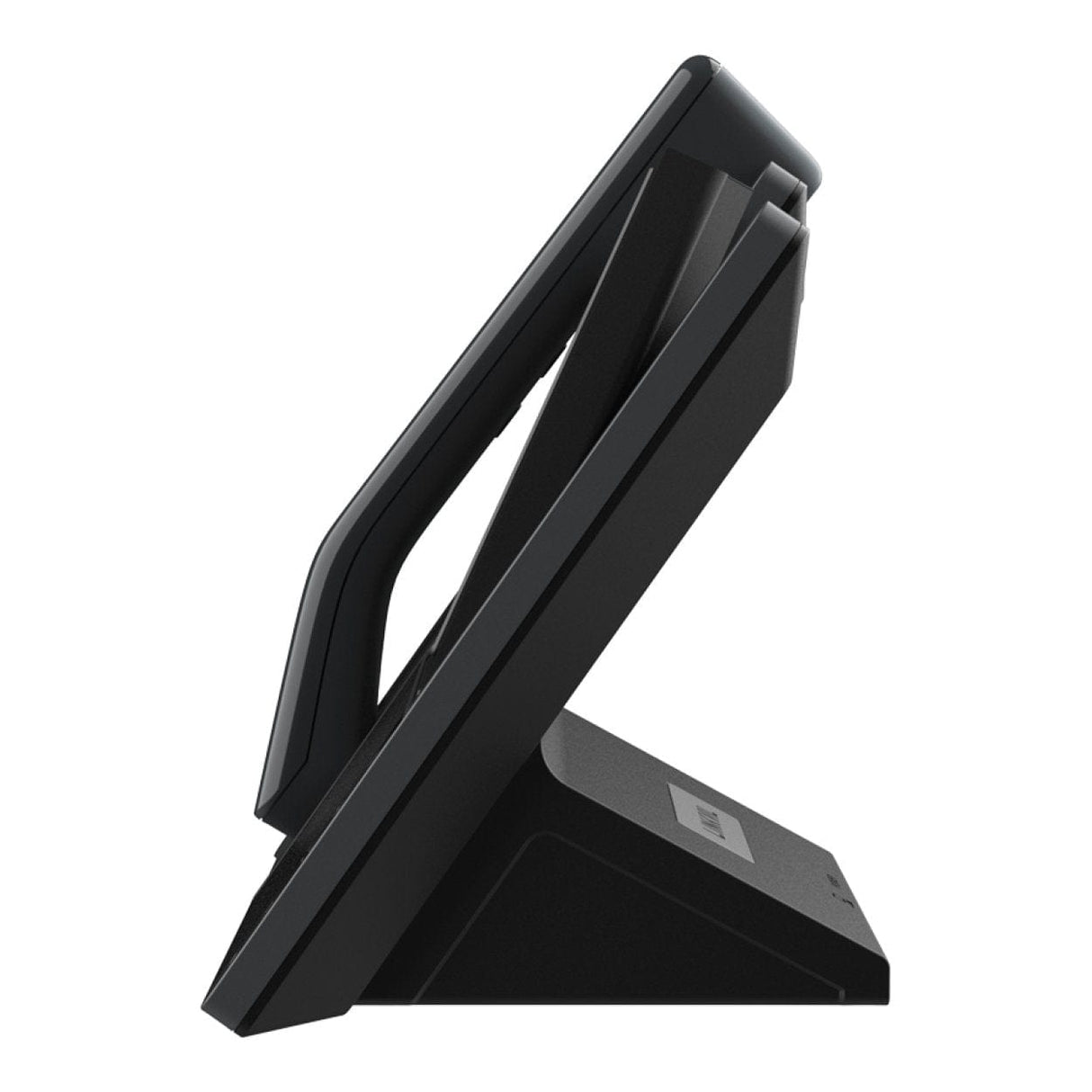

• Adjustable mobile phone stand for better viewing angles during video conferencing

Specifications

Microphone

Type: 2× Omnidirectional Analogue Microphones

Voice Pickup Range: 1.5m

Sensitivity: -32dB Fs

Frequency Range: 45Hz~7KHz

SNR: >65dB(A)

Speakerphone

Speaker Size: ø40mm

Rated Power: 4Ω 3W

Sensitivity: 87dB ±2dB

Frequency Range: 195Hz~20KHz

Impedance: 4Ω @1Khz

Max. Input Power: 5W

Music-Mode Bandwidth: 195Hz~20KHz

Speak-Mode Bandwidth: 195Hz~8KHz

Audio Codecs: SBC

Power Supply: 12V 1.5A

Power Consumption: Max.18W

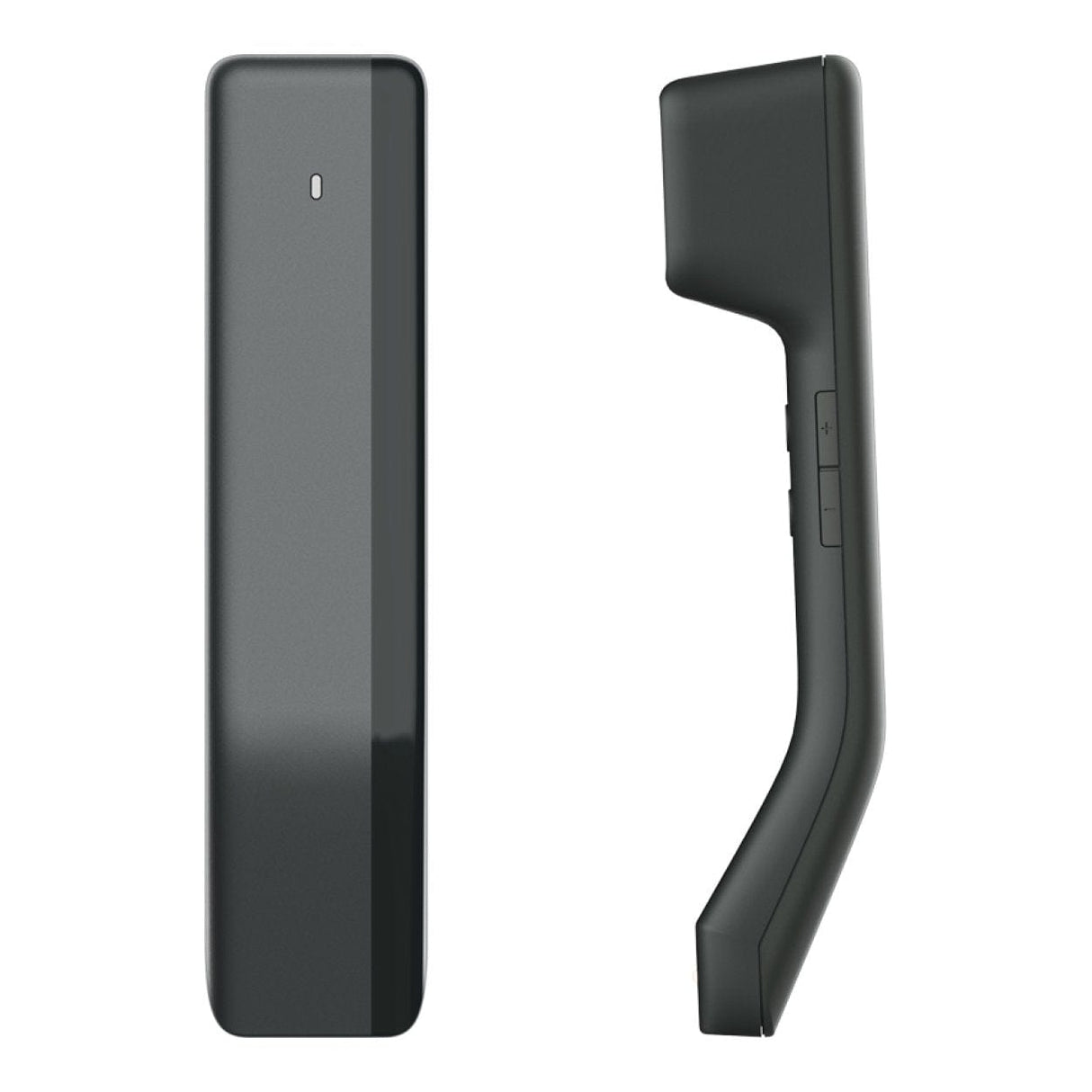

WIRELESS HANDSET

Microphone

Type: 1× Omnidirectional Analogue Microphone

Sensitivity: -38dB Fs

Frequency Range: 45Hz~8KHz

Battery Type: Lithium Polymer Battery

Battery Capacity: 300mAh

Talk Time: 18-hours

Charging Time: 3.5-hours

Standby Time: 21-hours (Automatically Shuts Down if no Operation is Performed for 10-minutes)

WIRELESS CHARGING

Number of Wireless Charging Coils: 1×

Output Power: 10W

Effective Distance of Wireless Charging: Coil is Aligned in the Centre within a Diameter Range of 3~5mm

CONNECTIVITY

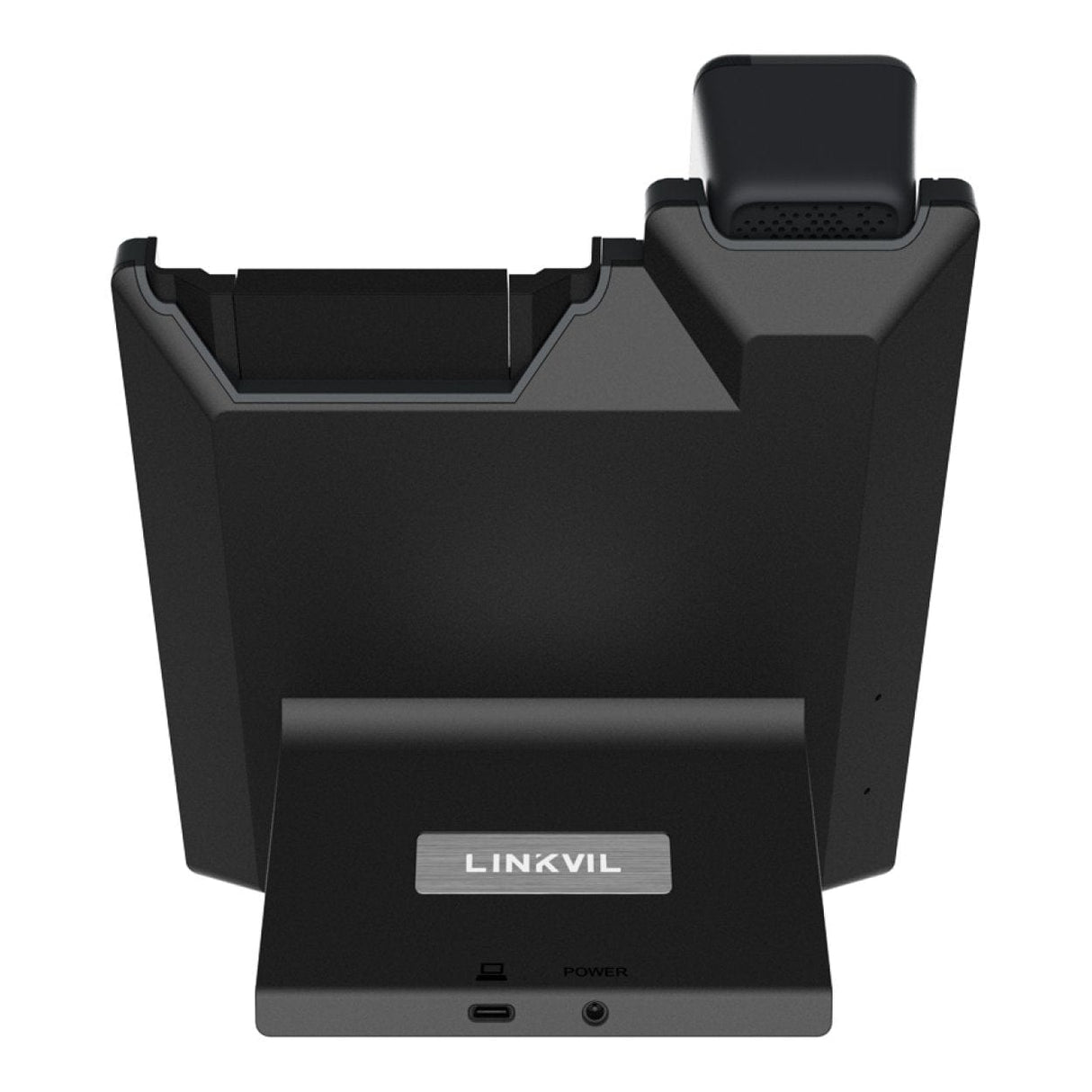

Base (PC / Mobile Device): USB Type-C / Bluetooth

Wireless Handset: Bluetooth

Bluetooth Version: 5.4

Profiles: A2DP, HSP, HFP

Operating Range: up to 10m

Pairing List: up to 8× Devices

Simultaneous Connections: 2×

In the Box:

• DB20-H All-in-One Phone Station
• Bluetooth Handset
• Wireless Charge Card
• Power Adapter
• USB Type-A to Type-C Cable
• Quick Start Guide
• Safety Information and Declaration
