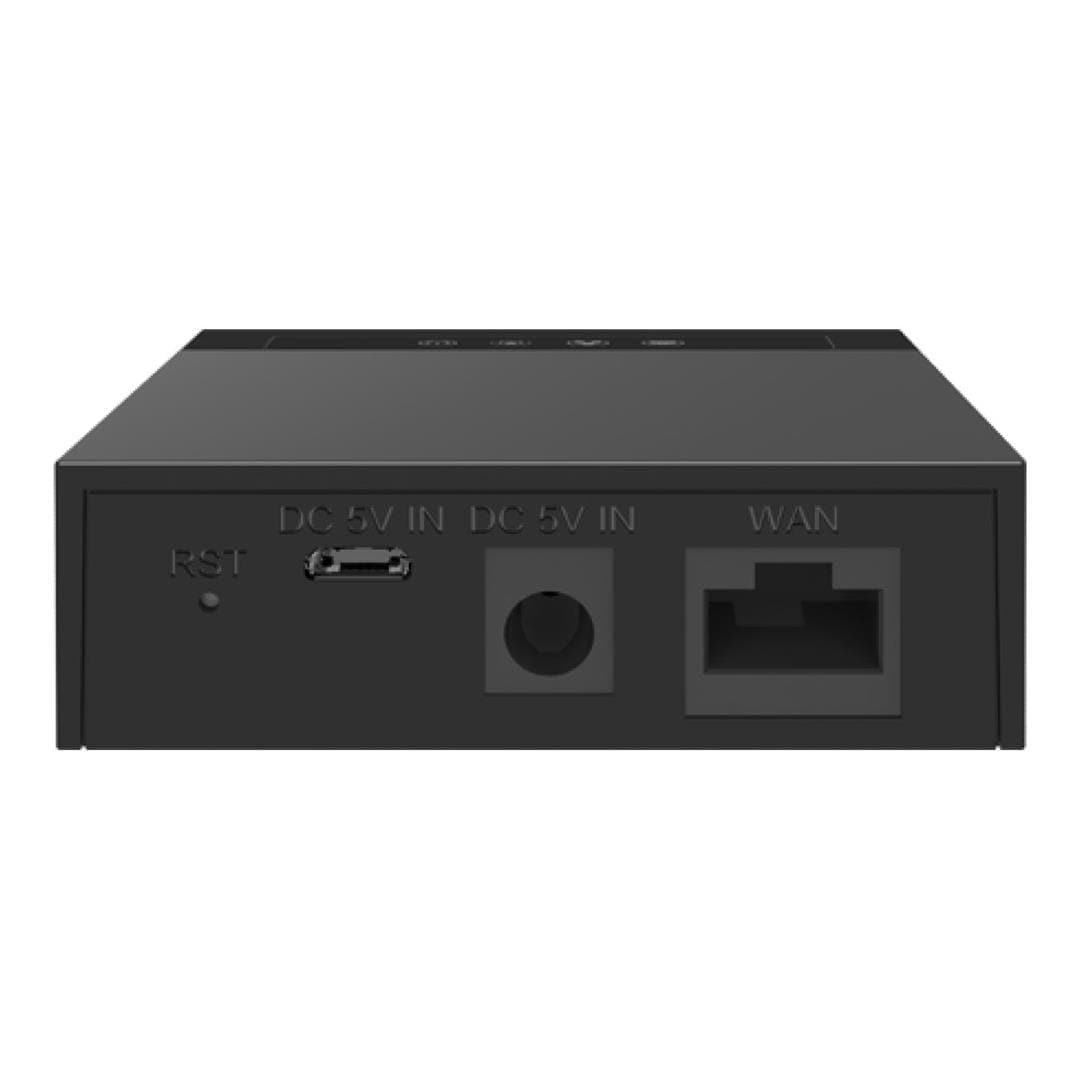

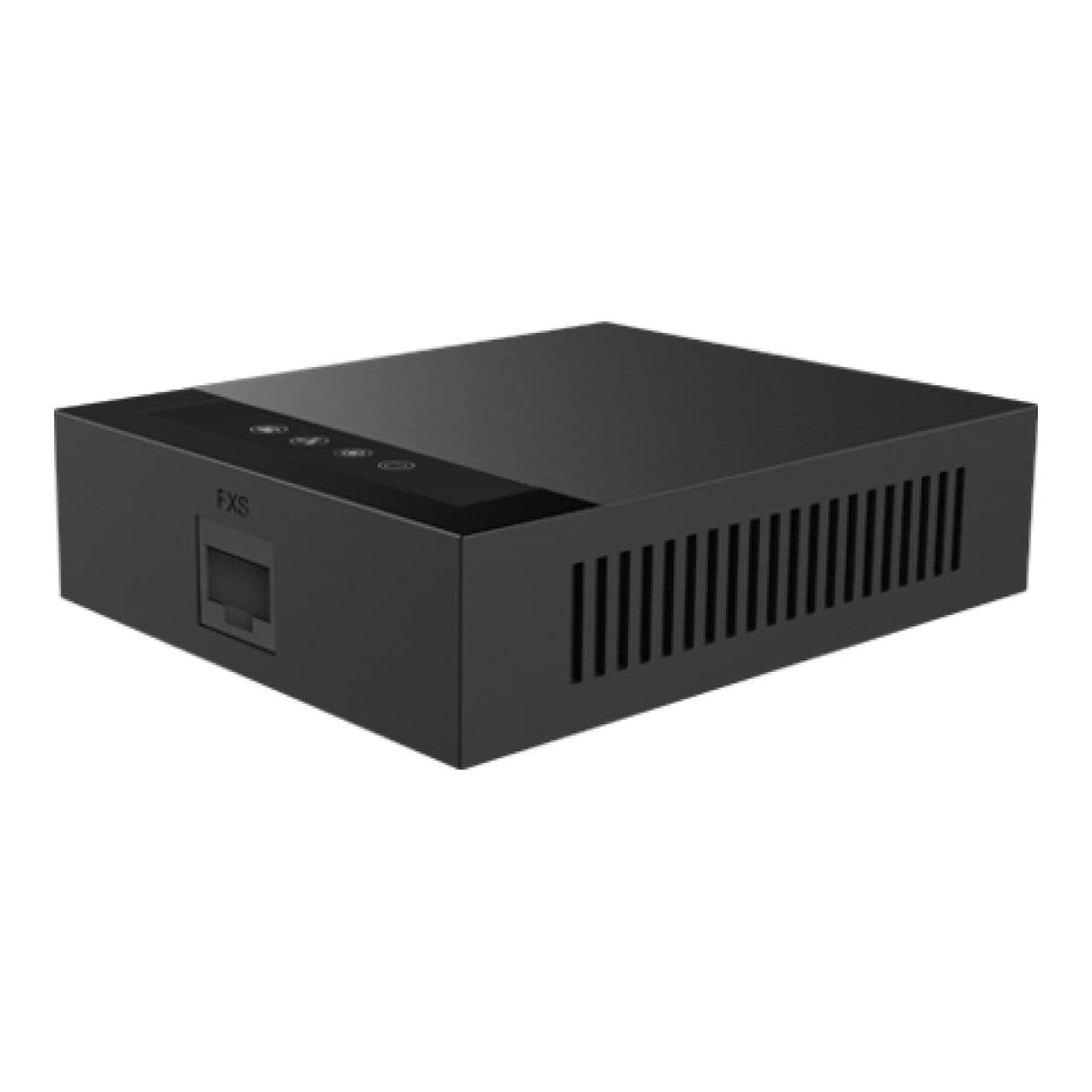

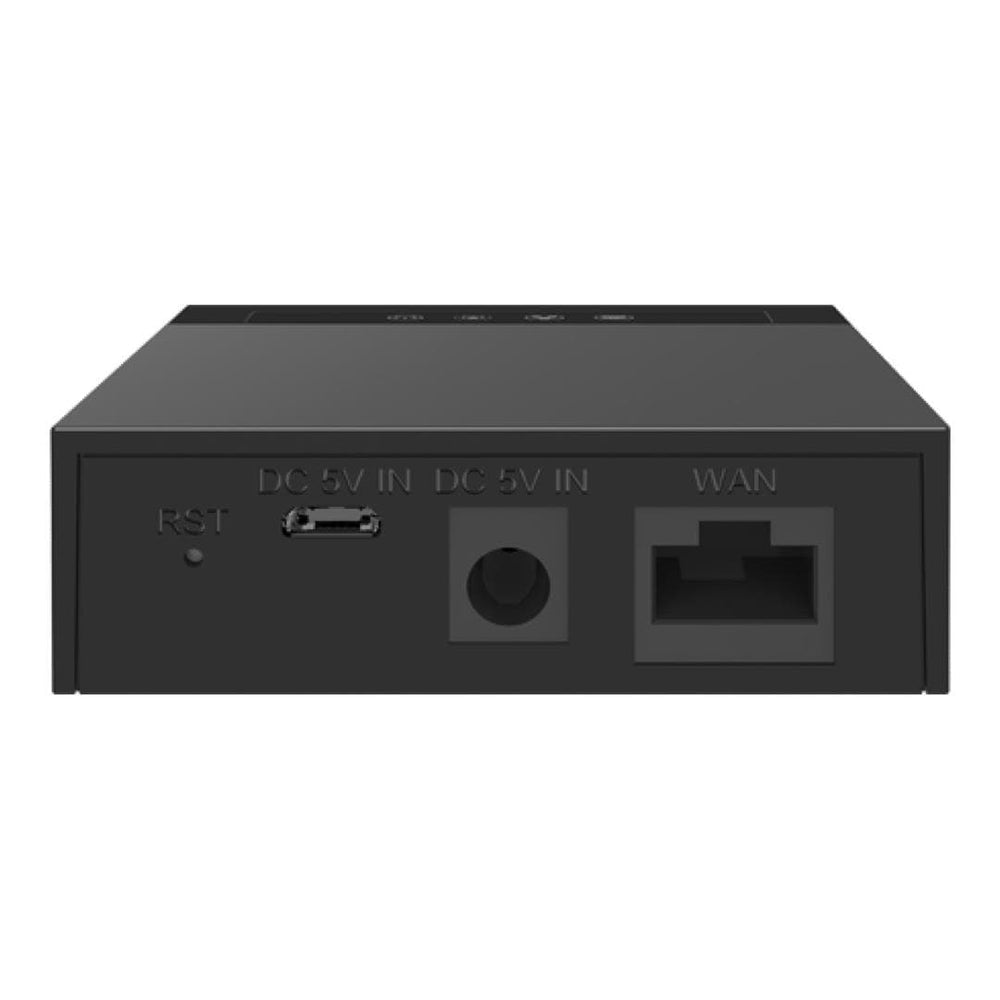

Fanvil GA10 SIP ATA Gateway with FXS Port

Fanvil GA10 SIP ATA Gateway with FXS Port

GA10 is a SIP ATA gateway with an easy-to-use FXS port. It supports G.722 and Opus audio codec, 2 SIP lines, 3-way conference advanced VoIP functionalities. By migrating to IP voice with easy-to-install ATA, GA10 enables users to take advantage of VoIP on analog phones. It provides convenient, stable and cost-effective communication solutions for individual, enterprise and operator to realize the deployment of VoIP.

Specifications:

Generic

• 2 SIP lines
• HD voice

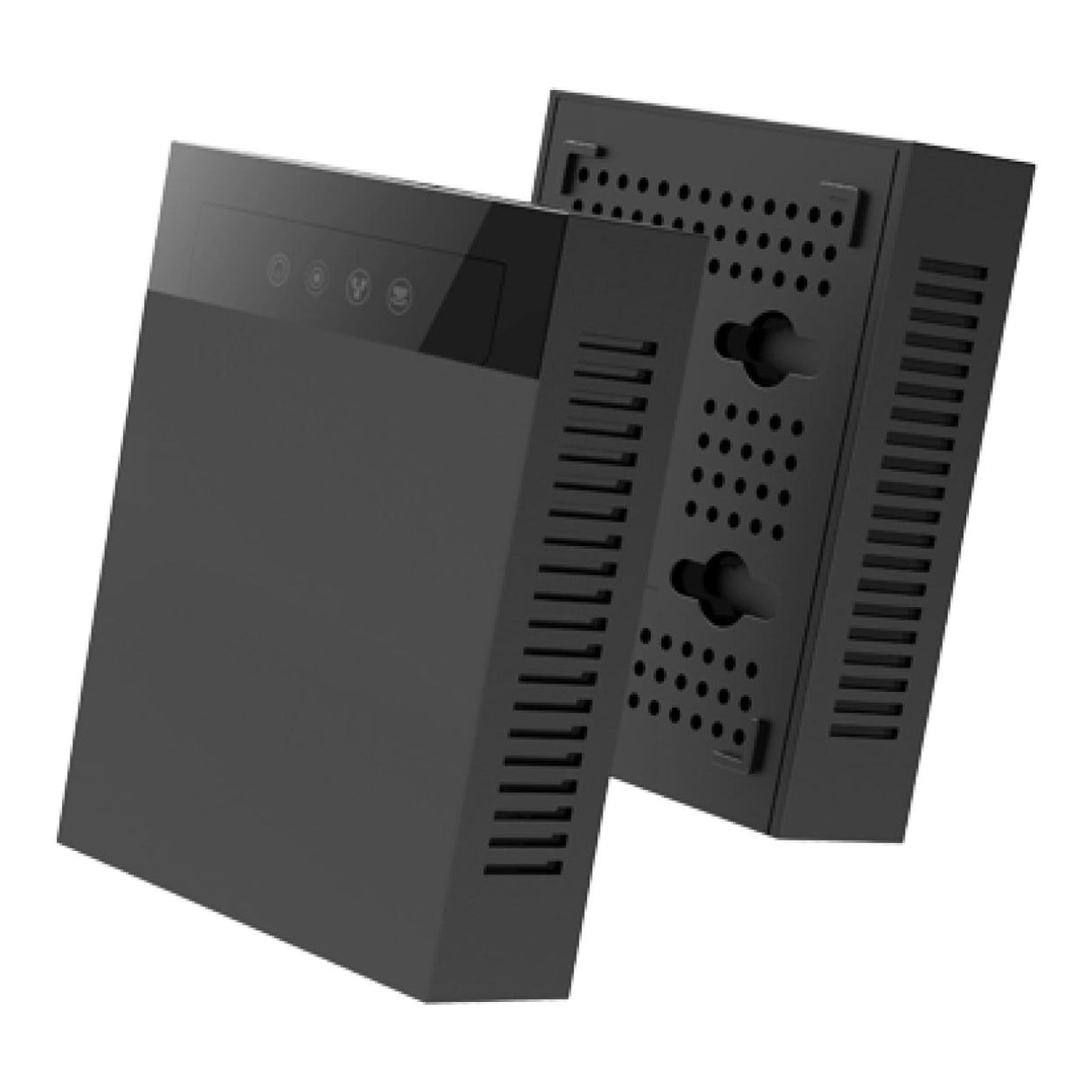

• Desktop / wall-mounted
• Support USB port or power adapter for power supply

Phone Functions

• Caller ID display
• Direct IP Dialing
• Anonymous call (hide caller ID)
• Call hold / resume
• Call waiting
• Call forward (Always/Busy/No Answer)
• Call Transfer (Attended/Unattended)
• Do-Not-Disturb
• Voice message waiting indication (MWI)
• Blocked list / allowed list
• 3-way conference
• Hot line

Audio

• Narrowband codec: G.711a/u, G.726, G.729A/B, iLBC
• Wideband codec: G.722, Opus
• Acoustic Echo Canceller (AEC) Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Noise Reduction (NR) / Automatic Gain Control (AGC)
• Packet Loss Concealment (PLC)
• Dynamic adaptive jitter buffer
• DTMF: In-band
• Support the signal tone of different countries or regions

FXS features

• Response detection
• Busy tone detection
• Incoming call detection
• Polarity detection
• Hang up detection
• Disconnect Methods: Busy Tone, Polarity Reversal
• Signalling: Kewl Start, Loop Start

Network

• Physical: 10/100Mbps Ethernet
• IP Mode:IPv4/IPv6/IPv4&IPv6
• IP Configuration: Static IP / DHCP / PPPoE
• Firewall
• VLAN
• QoS
• Wifi : NA

Protocols

• SIP2.0 over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN
• DHCP
• CDP
• PPPoE
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR-069

Deployment & Management

• Auto-provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069
• Voice menu for basic configuration
• Web management portal
• Web-based packet dump
• Configuration export / import
• Phonebook import/export
• Backup and recovery
• Firmware upgrade
• Syslog
