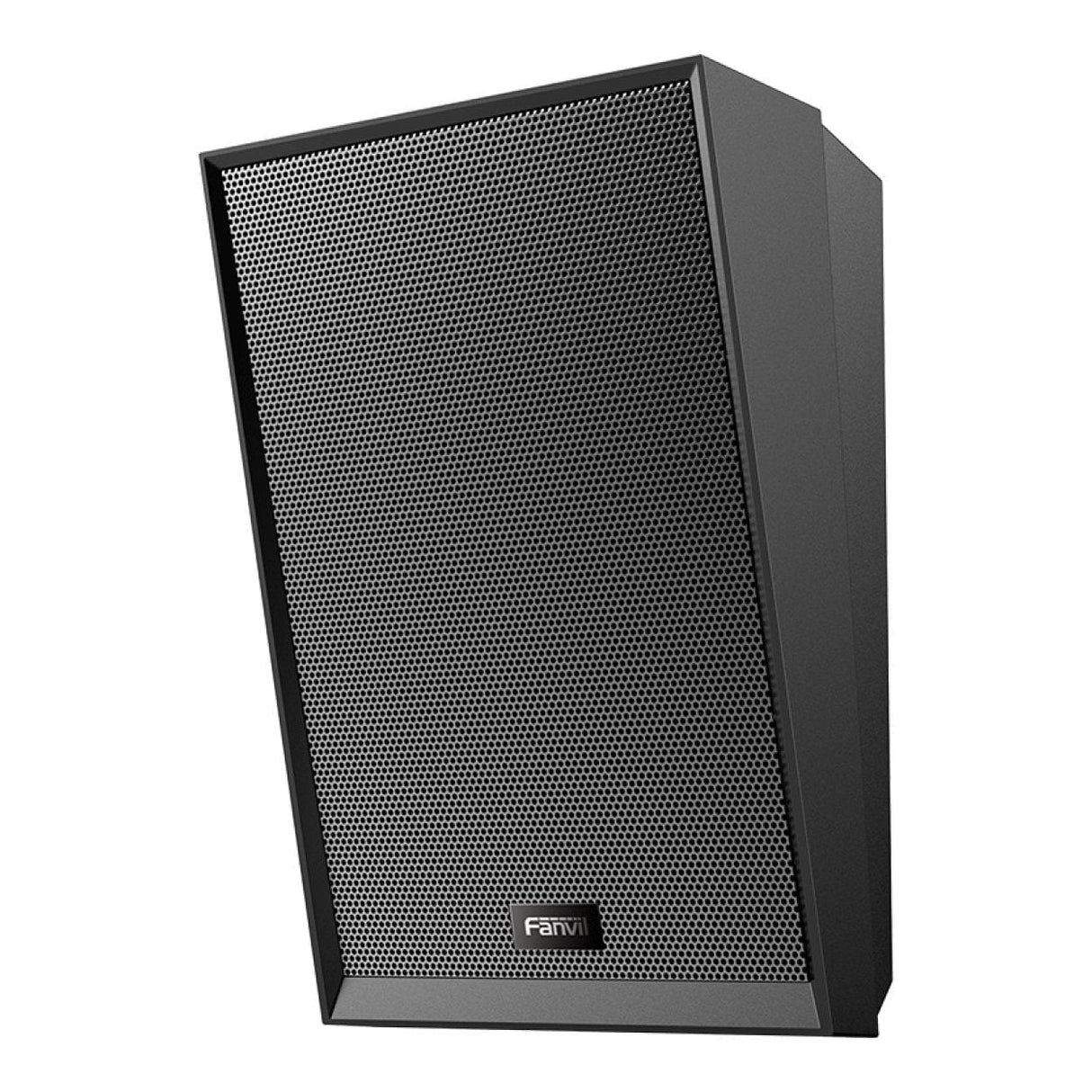

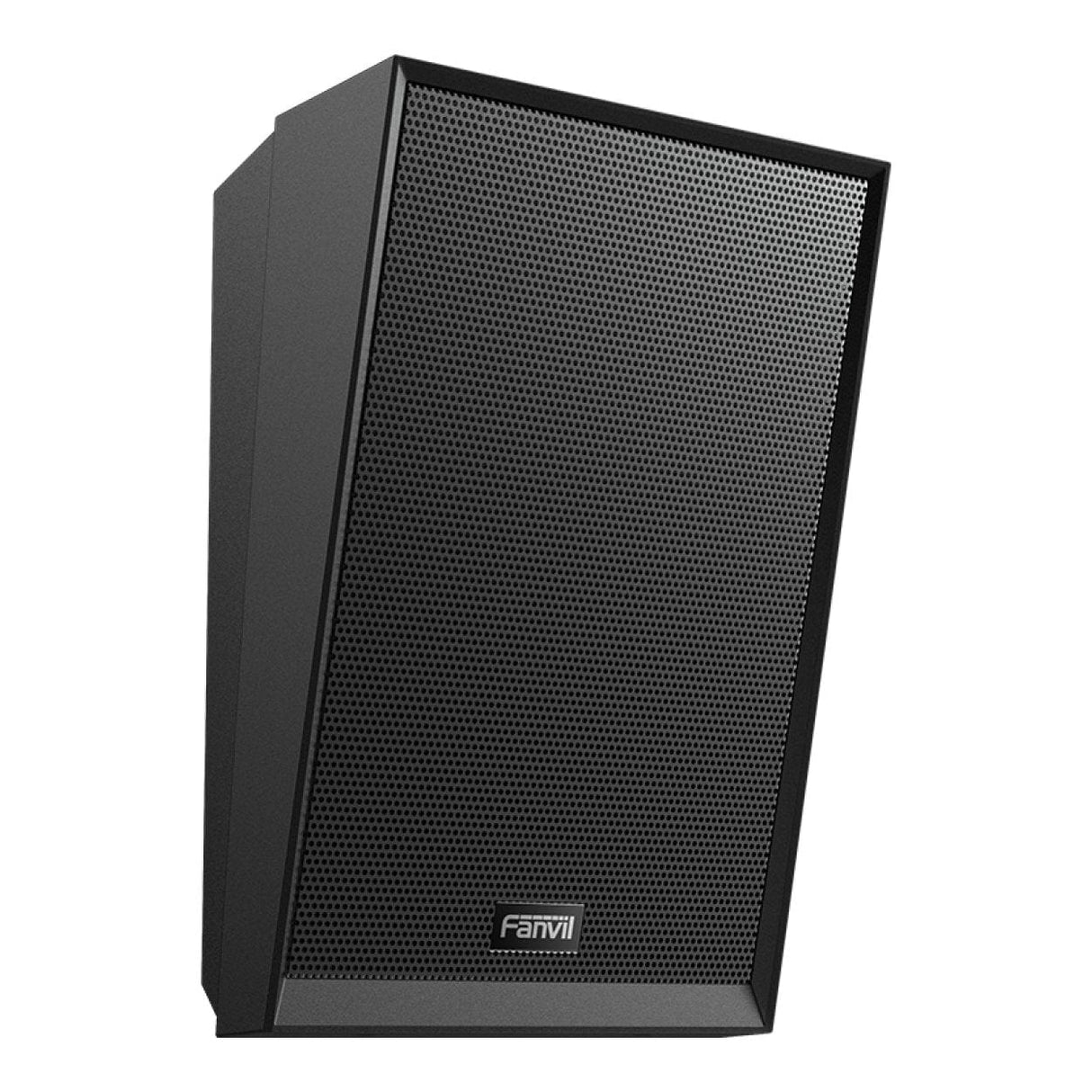

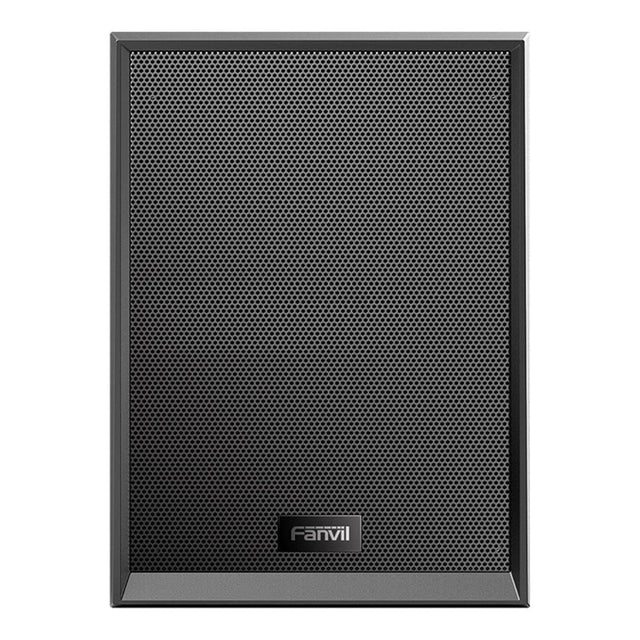

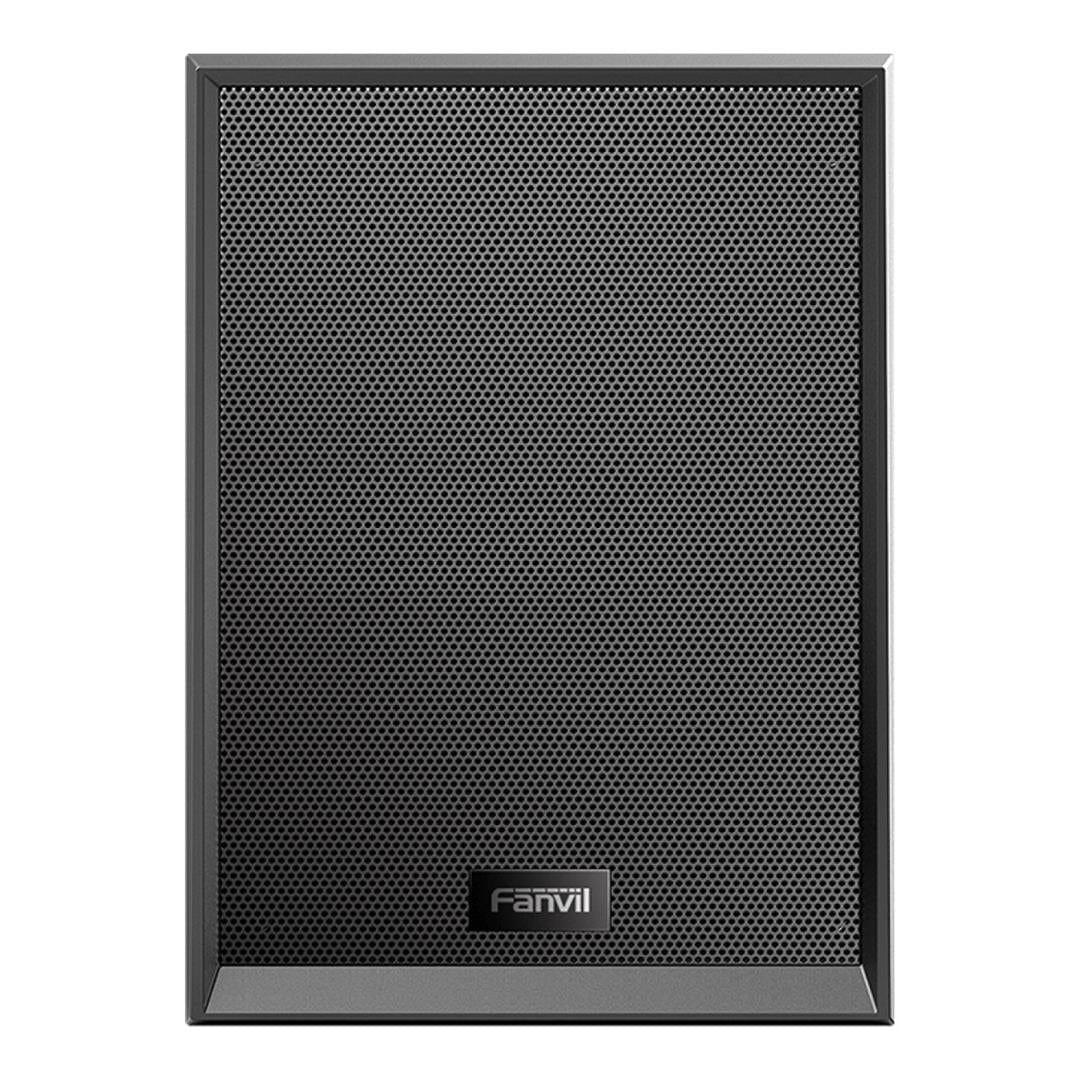

Fanvil A212 SIP Wall Mount Speaker Black

Fanvil A212 SIP Wall Mount Speaker Black

Fanvil A212 | 15W Wall-Mounted SIP Speaker with POE+ Support

Modern Styling, Superior Sound Quality

The Fanvil A212 SIP wall-mounted speaker is a commercial-grade IP audio terminal that can be used independently as an audio system and seamlessly integrated with external systems and platforms (such as converged communication systems, video surveillance systems, Fanvil broadcast intercom systems, access control systems, digital billboards and fire alarm systems). It can help to build a fully integrated audio communication system and is easy to configure and operate in a unified manner.
Fanvil A212 integrates broadcast and intercom functions and supports 20× multicast partition priority management. It adopts G.722 and Opus encoding to bring high-definition call sound quality while supporting the broadcasting of MP3 and WAV encoding lossless sound quality. It can be connected to a 15W passive speaker to achieve a better amplification effect.

The Fanvil A212 system is compatible and scalable and supports standard SIP 2.0 (RFC3261) and related RFC protocols.

• Excellent Sound Quality - Support HD intercom, lossless music broadcast
• Flexible Integration - Supports standard SIP protocol, HTTP API, short-circuit input and output and video linkage, easy to integrate with third-party systems
• Easy to Manage - Supports Web, DM software, FDMCS and Fanvil broadcast intercom APP management equipment
• Functional Integration - Set paging broadcast, timing broadcast, emergency broadcast, two-way intercom, self-check / monitoring, priority management and other functions in one
• Multi-Mode - Serverless mode, converged communication mode, Fanvil broadcast intercom system mode and external linkage mode

Specifications

Installation: Wall-Mounted Installation

Microphone: Yes

Speaker Power: 15W PoE+ / DC24V

Frequency Response: 100~20KHz

Sensitivity: 88dB ±3dB 1M/1W

Audio Files Storage: 24MB

Support Protocol: SIP/ONVIF

Maximum SPL: 105dB(1m)

Short-Circuit Input: 3×

Short-Circuit Output: 1×

Audio Line-In / Output: Support for an External 8Ω 15W Sub Speaker

Power Supply: PoE+ / DC24V 2A

Working Temperature: -20~55°C

Weight: 2.27kg

Dimension (W × H × D): 184 × 275 × 124mm
